Roller Shutters

Commercial Metal Shutters

From only £1,809

Based on 2000mm x 2000mm

instant quote icon Instant Quote

Key Product features


Commercial, Retail

Product Rating



Galvanised Steel

Lath Types

Solid, Perforated, Punched

Manual Operation

Spring & Lock

Electric Operation

Single Phase - Tube Motor

Max Width


Max Height - Manual

2800mm (Depending on Width)

Max Height - Electric

7000mm (Depending on Width)

Box & Guides - Standard Finish


Curtain - Standard Finish


Lead Times

10-20 working days

Why choose the Commercial Metal Roller Shutters?

The Commercial Metal Roller Shutter is the most popular shutter for Offices and Shops. It's one of the most versatile and cost-effective types of roller shutters and goes up to 7m wide. The 75mm curved galvanised steel laths, are available in 22G (0.7mm), 20G (0.9mm) and 18G (1.2mm), depending on the size of the roller shutter and the security level required. The laths are also available Solid, Perforated (18% Vision) and Punched (40% Vision).

There are two styles of Commercial Metal Roller Shutters;

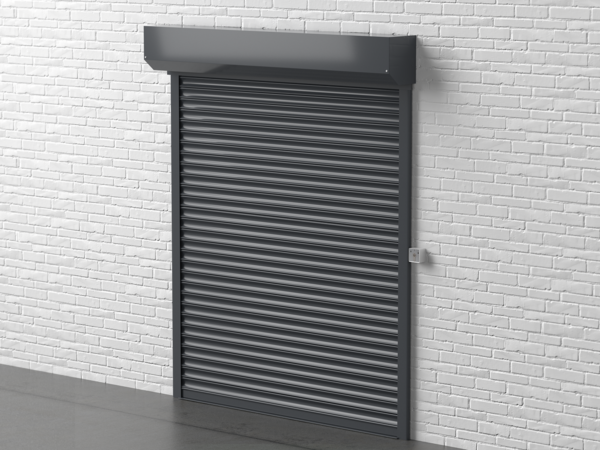

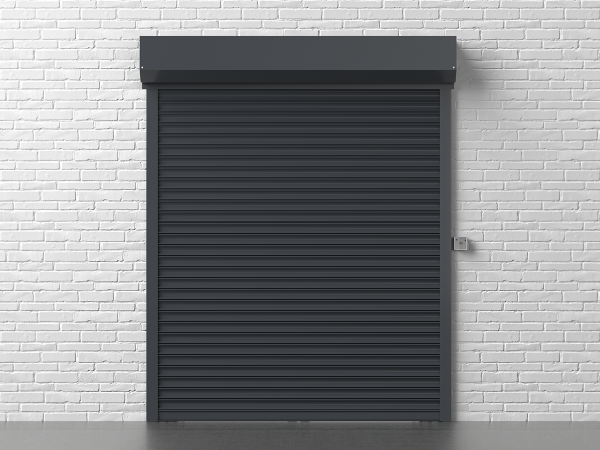

  1. Traditional Style - This uses the guide angles, which steps the guide off the wall to allow for the T Rail. The standard finish is galvanised.
  2. Continental Style - This uses the same steel curtain, but uses the extruded aluminium guide which is a neater solution and comes with a full shutter box. The Box and Guides are powder coated White, Brown, Black or Cream as standard. The curtain comes galvanised finish as standard.

The Commercial Metal Roller Shutter is available Manually Operated - Spring and Lock, but due to the heavy steel curtain, it is normally Electrically operated. Why not automate the shutter, to make daily operation easier and you can incorporate the your shutters into a fully automation system, including Timers, Remote Control Systems and Smart Hubs eg; Alexa.

The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.



Single skin 76mm (3'') curved steel slat. Wall thickness 0.7mm,0.9mm, or 1.2mm, depending on overall shutter opening width. Solid laths are standard with the option
of Perforated (18% Vision) and Punched (25% Vision) at an additional cost.

Bottom Slat

Galvanised steel ’T’ shaped bottom rail is provided as standard. The option of an “L” is available when face fixing or need to miss a door handle on one side of the opening. Both the “T” rail and “L” Rail are available with a Rubber Bottom Seal and Safety Edge at an additional cost

Shutter Box

Galvanised steel casing & end plates as standard. For external installation or for covering up the roller shutter mechanism, there is the optional fascia and hood at an extra cost. Galvanised finish as standard, powder coating available at an additional cost.

Guide Rails
Galvanised steel “U” channel guides. The guide size varies dependent on application/size, either 50mm, 65mm or 100mm. Windlocking guides available for added security or windy locations. Guide channels are bolted onto angle or box section, depending on the application. Galvanised finish as standard.


The standard finish is Galvanised finish.  It can be powder coated any BS or RAL colour.

Survey an Opening

Our video on how to measure a Window or Door opening.

Manual Shutter Installation

Our video on how to install a Manual Spring Loaded roller shutter.

Electric Shutter Installation

Our video on how to install an Electric roller shutter.
