Collection: Steel Personnel Doors

Steel personnel doors are available in a range of configurations depending on security, fire performance, ventilation, glazing, and application requirements. Below are the main types commonly specified.

Standard Steel Personnel Doors

Basic single or double leaf access doors designed for:

• Offices
• Warehouses
• Storage areas
• Service corridors

Suitable for internal or external use with standard locking hardware.

Fire Rated Steel Personnel Doors

Designed to provide certified fire resistance, typically:

• FD60 (60 minutes)
• FD120 (120 minutes)

Tested to BS EN 1634-1 , used where compartmentation is required.

Steel Personnel Fire Exit Doors

Personnel doors fitted with compliant emergency escape hardware such as:

• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)

Used on protected escape routes.

Security Rated Steel Personnel Doors

Engineered for enhanced resistance to forced entry and tested to standards such as:

• LPS 1175
• PAS 24
• Secured By Design

Suitable for higher risk commercial or infrastructure sites.

Louvred Steel Personnel Doors

Incorporate ventilation panels to allow airflow while maintaining security or fire performance (where certified).

Commonly used in:

• Boiler rooms
• Electrical intake rooms
• Mechanical plant areas

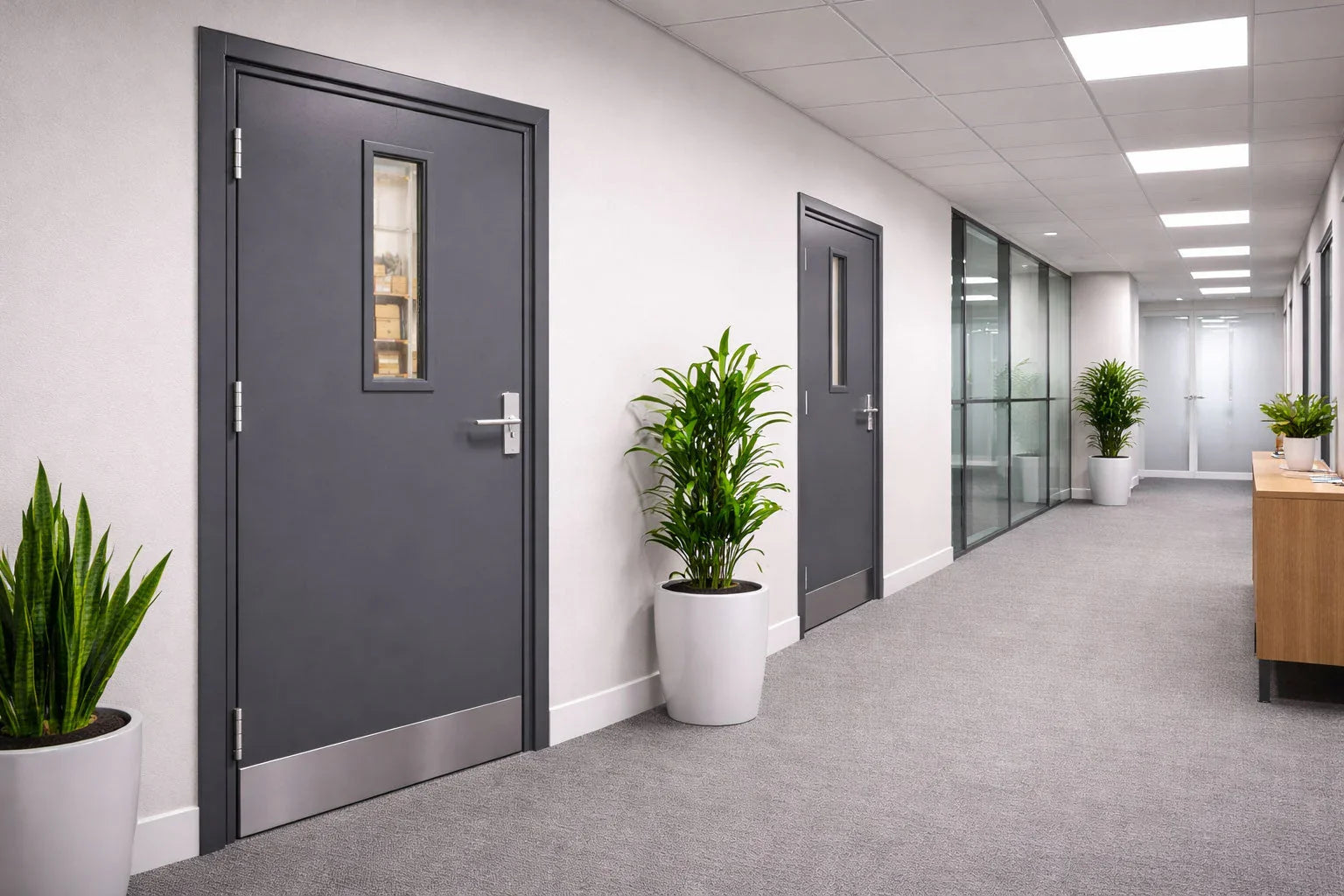

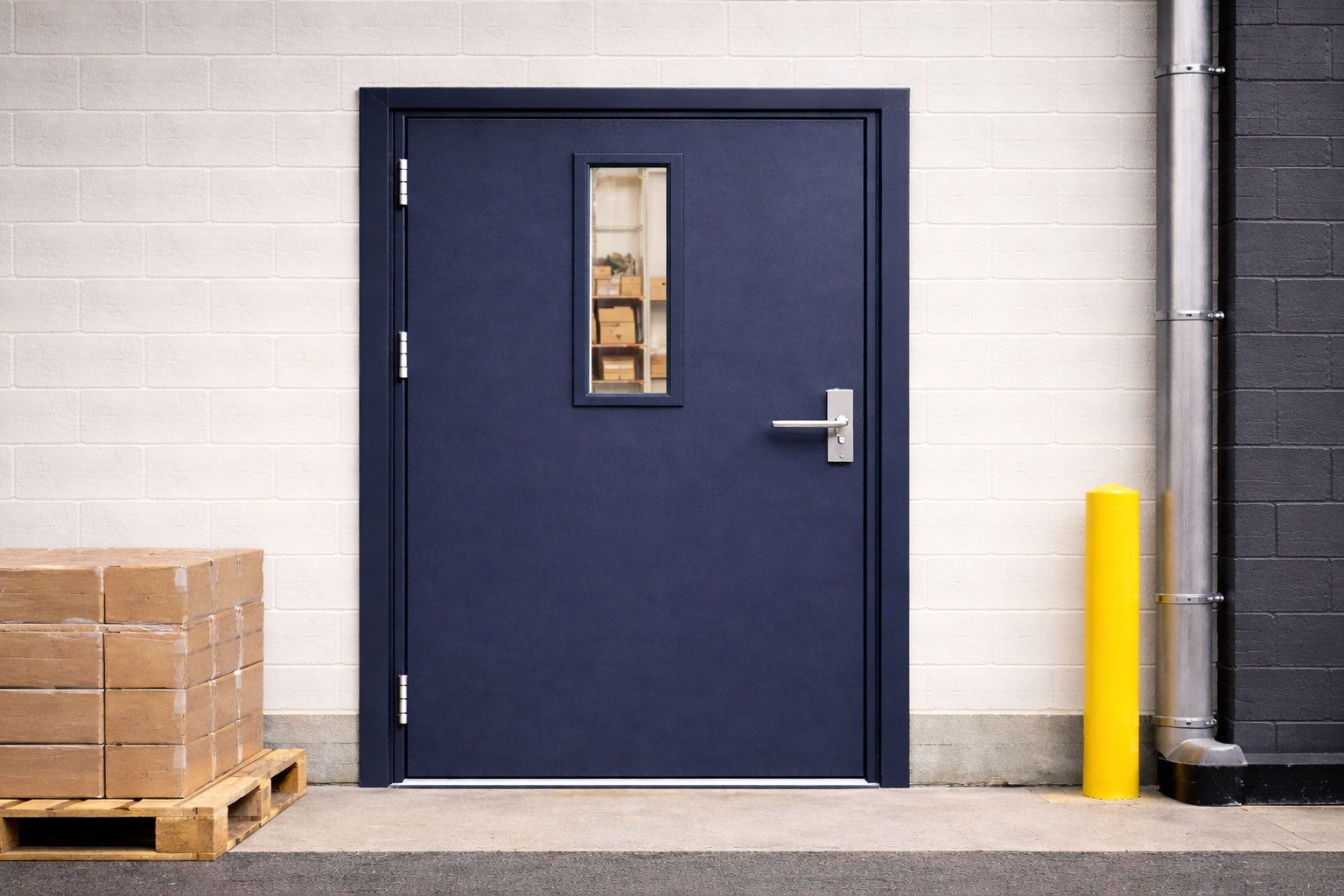

Glazed Steel Personnel Doors

Include certified glazing panels to provide visibility and natural light, commonly installed in:

• Offices
• Schools
• Commercial corridors

Acoustic Steel Personnel Doors

Designed to reduce sound transmission, ideal for:

• Plant rooms
• Generator rooms
• Music rooms
• Technical environments

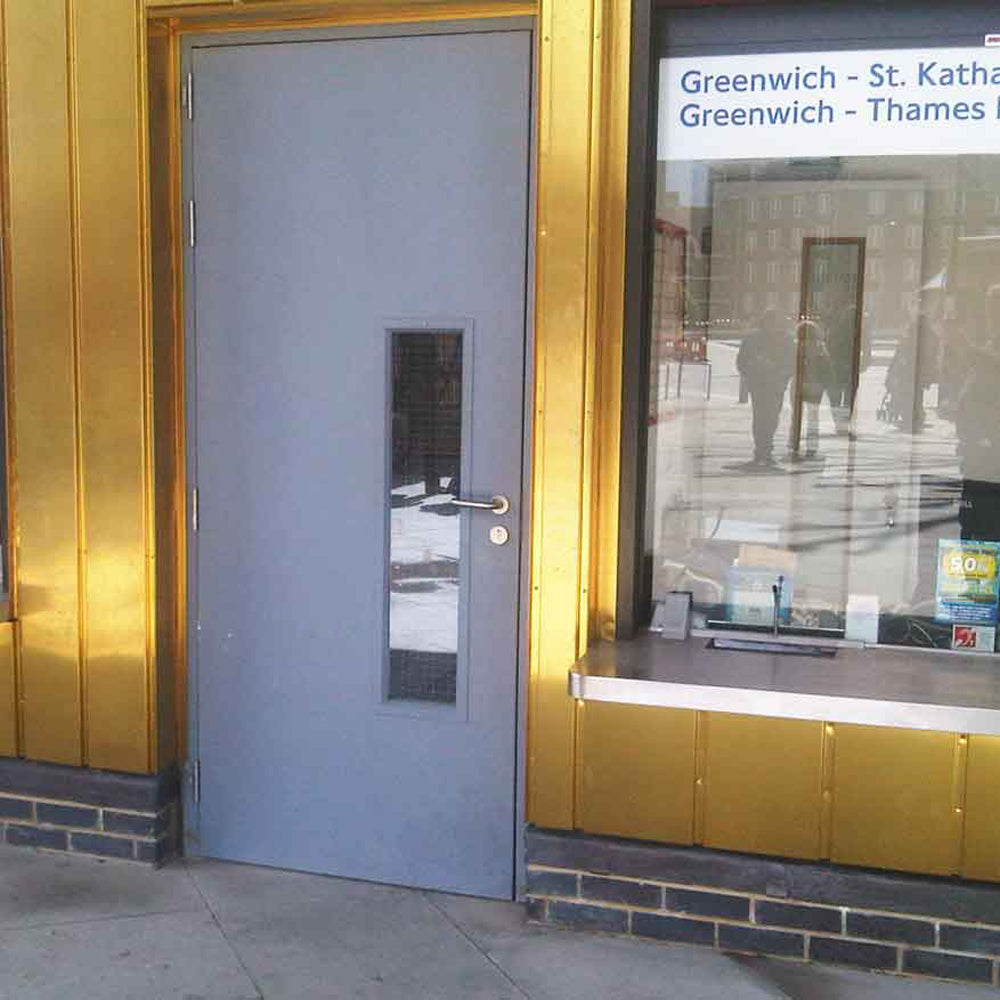

External Rated Steel Personnel Doors

Designed for outdoor use and capable of meeting external performance standards such as:

• EN 14351-1
• Weather and wind load requirements

Steel personnel doors can often combine multiple features, for example, a door may be fire rated, glazed, and security rated, provided the configuration remains within certified test evidence. Selection should be based on the building’s operational, security, and fire safety requirements.

Steel personnel doors can be configured to suit security, fire performance, acoustic needs, and architectural design, provided all enhancements remain within certified test evidence where applicable.

Door Configuration

• Single leaf doors (most common)
• Double leaf doors for wider openings
• Overpanels or side panels (where specified)

Made to measure sizing

Doors can be manufactured to suit both internal and external openings.

Fire Rating Options (If Required)

• FD60
• FD120
• Smoke control variants (e.g. FD60S)

All fire rated versions must comply with BS EN 1634-1.

Security Upgrades

• Reinforced steel construction
• Multi point locking systems
• Anti drill and anti-tamper hardware
• Security ratings such as LPS 1175 or PAS 24

Glazing Options

• Fire rated glazing (where required)
• Standard toughened or laminated glass
• Clear or obscured glass
• Vision panels in various shapes and sizes

All glazing must be installed within certified systems if fire rated.

Louvred Panels

• Fixed or fire-rated louvre systems
• Custom ventilation sizes
• Positioned to suit plant or mechanical requirements

Acoustic Insulation

• Acoustic cores to improve sound reduction
• Specified dB performance ratings
• Ideal for plant rooms and noise sensitive environments.

Finish and Colour

• Polyester powder-coated finishes
• Wide RAL colour range
• Frame and leaf colour matching
• Stainless steel finishes (for hygienic environments)

Hardware and Ironmongery

• Lever handles
• Mortice locks
• Panic hardware (BS EN 1125 / BS EN 179)
• Door closers
• Access control integration
• Electromagnetic hold-open devices

All hardware must be compatible with the certified door configuration.

External Performance Enhancements

• Weather seals
• Thermal insulation cores
• Threshold options
• Compliance with EN 14351-1 (where required)

Steel personnel doors can be tailored to combine multiple performance features, such as fire rating, security rating, glazing, and acoustic performance, ensuring the final specification aligns with the building’s operational and regulatory requirements.

Steel personnel doors are used wherever durable, secure, and low maintenance pedestrian access is required. Their strength and adaptability make them suitable for a wide range of commercial, industrial, and residential environments.

Commercial Buildings

Commonly installed in:

• Offices
• Retail back of house areas
• Storage rooms
• Service corridors

They provide secure daily access with long term durability.

Industrial and Warehouse Facilities

Used for:

• Staff entrances
• Internal access between production areas
• Plant rooms
• Maintenance workshops

Steel construction withstands high traffic and demanding environments.

Schools and Public Sector Buildings

Installed in:

• Classrooms
• Staff areas
• Utility rooms
• Circulation spaces

They offer robust performance in high use environments.

Healthcare Facilities

Specified for:

• Service rooms
• Plant enclosures
• Back of house access
• Controlled staff areas

Often combined with fire or hygiene specifications.

Residential and Multi Occupancy Buildings

Used for:

• Communal entrances
• Service cupboards
• Bin stores
• Basement access
• Plant and riser rooms

They provide enhanced security and longevity compared to timber doors.

High Security Applications

When upgraded to security-rated specifications (e.g. LPS 1175 or PAS 24), steel personnel doors are suitable for:

• Data rooms
• Secure storage
• Infrastructure sites
• Utility buildings

External Access Points

Designed for outdoor use, steel personnel doors are commonly fitted to:

• Side entrances
• Yard access
• Warehouse exits
• Utility enclosures

Where required, they can be specified to meet external performance standards.

Steel personnel doors are selected where reliability, strength, and adaptability are essential, and they can be configured to incorporate fire resistance, security ratings, acoustic performance, or ventilation depending on the building’s requirements.

Steel personnel doors are engineered for strength, longevity, and adaptable performance, making them a reliable solution for commercial, industrial, and multi occupancy buildings.

Robust Steel Construction

Manufactured from reinforced steel, these doors offer:

• High impact resistance
• Long service life
• Resistance to warping, cracking, or splitting
• Suitability for high traffic environments

Ideal for demanding internal and external applications.

Enhanced Security

Steel personnel doors provide strong resistance to forced entry and can be upgraded with:

• Multi point locking systems
• Reinforced cores
• Security ratings such as LPS 1175 or PAS 24

This makes them suitable for higher risk areas.

Optional Fire Resistance

Available as fire-rated door sets (e.g. FD60 or FD120), tested to BS EN 1634-1, supporting compliant compartmentation where required.

Ventilation Options

Louvred configurations allow controlled airflow for:

• Plant rooms
• Boiler rooms
• Electrical intake areas

Without compromising durability.

Glazing Options

Can incorporate glazing panels to:

• Improve visibility
• Increase natural light
• Enhance safety in circulation areas
• Fire-rated glazing is available where required.

Acoustic Performance

Optional acoustic cores help reduce sound transmission, ideal for:

• Generator rooms
• Plant enclosures
• Technical spaces

Wide Range of Finishes

• Polyester powder-coated finishes in a broad RAL colour range
• Frame and leaf colour matching
• Hygienic finishes for specialist environments

External Durability

When specified for outdoor use, steel personnel doors can include:

• Weather seals
• Insulated cores
• Compliance with external performance standards

Low Maintenance

Compared to timber alternatives, steel doors:

• Require minimal upkeep
• Resist moisture damage
• Maintain structural integrity over time

Steel personnel doors combine strength, adaptability, and compliance options, providing a practical long-term access solution across a wide range of building types.

Steel personnel doors must comply with relevant fire, security, escape, and product standards depending on their intended application. The specific compliance requirements are determined by the building’s fire strategy, security assessment, and whether the door is internal or external.

Fire Resistance (Where Specified)

If the door is fire-rated, it must be tested to:

• BS EN 1634-1 – Fire resistance of internal doorsets
• BS EN 16304 - Fire resistance of external doorsets

Common ratings include FD60 and FD120.Smoke control variants (e.g. FD60S) may also require compliance with smoke leakage standards.

The complete door set, including leaf, frame, seals, hinges, glazing, and hardware, must match the certified test evidence.

Emergency Escape Compliance

Where the door forms part of an escape route, hardware must comply with:

• BS EN 1125 – Panic exit devices (public buildings)
• BS EN 179 – Emergency exit devices (staff-only areas)

Doors must open in the direction of escape where required by the fire strategy.

Security Standards (If Required)

Security-rated steel personnel doors may be tested to:

• LPS 1175 – Resistance to forced entry
• PAS 24 – Enhanced security performance
• Secured By Design

Security upgrades must not compromise fire certification if both are required.

External Door Compliance

For external steel personnel doors, compliance may include:

• BS EN 14351-1 – External pedestrian doorsets
• CE and/or UKCA marking
• Declaration of Performance (DoP)

This covers weather resistance, wind load, and air permeability performance.

Smoke Control (If Specified)

Where smoke containment is required, doors may need:

• Smoke seals
• Testing in line with smoke leakage standards (e.g. EN 1634-3)

Machinery and Electrical Safety (If Automated)

If fitted with automatic operators, compliance may extend to:

• Supply of Machinery (Safety) Regulations
• Relevant electrical safety standards
• Risk assessment and safe operation controls are required.

Installation to Certified Detail

To maintain compliance:

• Doors must be installed in accordance with manufacturer instructions
• Approved fixings and tolerances must be followed
• Fire stopping around frames must be correctly completed
• Unauthorised modifications can invalidate certification.

Ongoing Inspection and Maintenance

Steel personnel doors should be included in routine building inspections to ensure:

• Correct operation
• Hardware integrity
• Seal condition
• Continued compliance with fire or security requirements

When correctly specified, installed, and maintained, steel personnel doors can meet a range of fire, security, and safety standards while providing long-term durability and regulatory compliance.

Steel personnel doors must be installed correctly to ensure structural integrity, smooth operation, and where applicable, compliance with fire, security, or external performance standards. Requirements will vary depending on whether the door is standard, fire rated, security rated, or externally exposed.

Installation Requirements

Structural Fixing

The steel frame must be securely fixed into suitable structural substrate (masonry, concrete, or structural steel) using:

• Approved mechanical fixings
• Correct fixing centres
• Appropriate packers

The frame must be square, plumb, and level before final tightening.

Correct Alignment and Clearances

• Door leaf must align evenly within the frame
• Manufacturer gap tolerances must be maintained
• Hinges must be correctly adjusted
• Latch engagement must be smooth and secure

Incorrect alignment can cause premature wear and operational issues.

Fire Rated Installations (If Applicable)

For fire-rated steel personnel doors:

• Installation must follow the certified test evidence (e.g. BS EN 1634-1, BS16304-1)
• Intumescent and smoke seals must be correctly fitted
• Frame to wall gaps must be fire stopped with approved materials
• Only compatible fire rated hardware may be installed

Improper installation can invalidate the fire rating.

Security Rated Installations (If Applicable)

For LPS 1175 or PAS 24 doors:

• Fixing methods must match tested detail
• Reinforced locking points must be correctly aligned
• Frame anchoring must meet security specification

External Door Installations

For external steel personnel doors:

• Weather seals must be properly fitted
• Thresholds must be correctly installed
• Drainage and water run-off considered
• Thermal breaks or insulated cores maintained

Hardware Installation

Correct fitting of:

• Hinges
• Locks and cylinders
• Panic hardware (if applicable)
• Door closers
• Access control systems

All hardware must be installed according to manufacturer instructions.

Supply Only Considerations

Steel personnel doors can be supplied for installation by competent contractors. However:

• Installation must follow technical drawings and instructions
• Compliance responsibility rests with the installer
• Fire and security ratings can be invalidated by incorrect fitting
• Professional installation is recommended, particularly for fire or security-rated doors.

Maintenance Requirements

Steel personnel doors are generally low maintenance but should be inspected periodically.

Routine Inspection

Check for:

• Smooth opening and closing
• Secure hinge fixings
• Correct latch engagement
• Seal condition (especially for fire or external doors)
• Frame stability

Hardware Maintenance

• Adjust door closers
• Lubricate hinges and lock mechanisms
• Check panic hardware operation
• Inspect access control devices

External Door Checks

For external doors:

• Inspect weather seals
• Check for corrosion
• Ensure drainage areas are clear
• Maintain powder-coated finish if damaged

Fire Door Maintenance (If Applicable)

Fire rated steel personnel doors should be:

• Included in routine fire door inspections
• Checked for seal integrity
• Confirmed to self-close and latch fully

When properly installed and periodically maintained, steel personnel doors provide long term durability, safe operation, and continued compliance with relevant fire, security, and external performance standards.

The cost of steel personnel doors varies depending on size, configuration, fire or security rating, glazing or louvre options, finish, and installation complexity. Below is a practical budget guide based on typical UK commercial specifications.

Standard Steel Personnel Doors (Single Leaf)

Suitable for general access in offices, warehouses, and service areas.

• Supply only: From £550 – £900
• Supplied and installed: From £1,100 – £1,800

Based on a standard size (approx. 900mm x 2100mm).

External Steel Personnel Doors

Including weather seals and insulated cores.

• Supply only: From £700 – £1,200
• Supplied and installed: From £1,300 – £2,200

Pricing depends on thermal performance and external compliance requirements.

Fire Rated Steel Personnel Doors (FD60)

• Supply only: From £900 – £1,500
• Supplied and installed: From £1,800 – £3,000

Higher ratings (e.g. FD120) will increase cost.

Steel Personnel Fire Exit Doors

Including compliant panic hardware.

• Supply only: From £1,000 – £1,600
• Supplied and installed: From £2,000 – £3,200

Hardware specification affects final pricing.

Security Rated Steel Personnel Doors

Tested to LPS 1175 or PAS 24.

• Supply only: From £1,500 – £2,500
• Supplied and installed: From £2,800 – £4,500+

Cost varies depending on security level.

Louvred Steel Personnel Doors

Including ventilation panels.

• Supply only: From £800 – £1,400
• Supplied and installed: From £1,600 – £2,800

Glazed Steel Personnel Doors

With standard or fire-rated glazing.

• Supply only: From £850 – £1,600
• Supplied and installed: From £1,700 – £3,000

Double Leaf Steel Personnel Doors

• Supply only: From £1,400 – £2,800
• Supplied and installed: From £2,800 – £5,000+

What Affects Final Pricing

• Door size and configuration
• Fire rating (if applicable)
• Security rating level
• Glazing or louvre size
• Finish and colour
• Hardware specification
• Installation complexity and structural preparation

Getting an Accurate Quote

Because steel personnel doors can incorporate fire resistance, security ratings, and specialist hardware, accurate opening sizes and performance requirements are essential. A site survey is recommended to ensure correct specification, compliance, and installation pricing.
