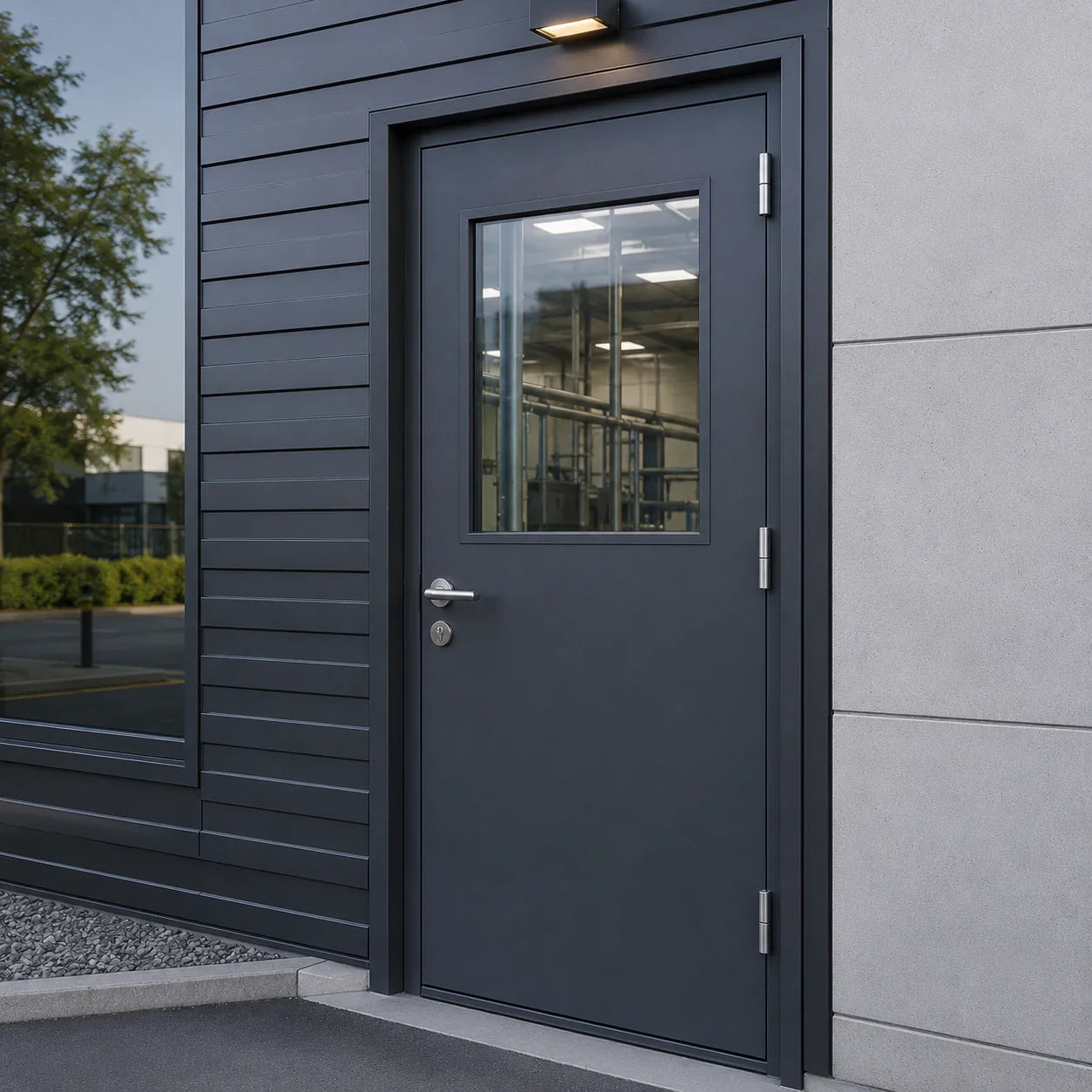

External Steel Fire Door

Fire Rated Steel Door Construction

Tested up to EI120 and EW30 for high-performance external fire protection

What do EI120 and EW30 Fire Rating Mean?

Fire door classifications describe different aspects of a door set's performance during a fire test.

E - Integrity: The door's ability to prevent flames and hot gases passing though to the unexposed side.

I - Insulation: The door's ability to limit the temperature rise on the unexposed side.

W - Radiation: The door's ability to limit the amount of heat radiation transmitted through the door.

An EI120 classification therefore indicates a tested configuration providing integrity and insulation performance for the stated period, while EW30 relates to integrity and radiation performance for the stated period.

Fully Certified for External Use

CE and UKCA marked to BS EN 14351-1 and EN 16034 standards

PAS24 Security Upgrade Available

Enhanced security option for increased protection against forced entry

Acoustic Rating Up to 36dB

Helps reduce noise transfer, ideal for plant rooms and external areas

Single and Double Door Options

Available in various configurations to suit different openings

Made to Measure Design

Manufactured to your exact sizes for a precise and secure fit

Wide Range of Colour Options

Galvanised or powder coated in any RAL or BS colour

Optional Vision Panels Available

Improves visibility while maintaining fire performance

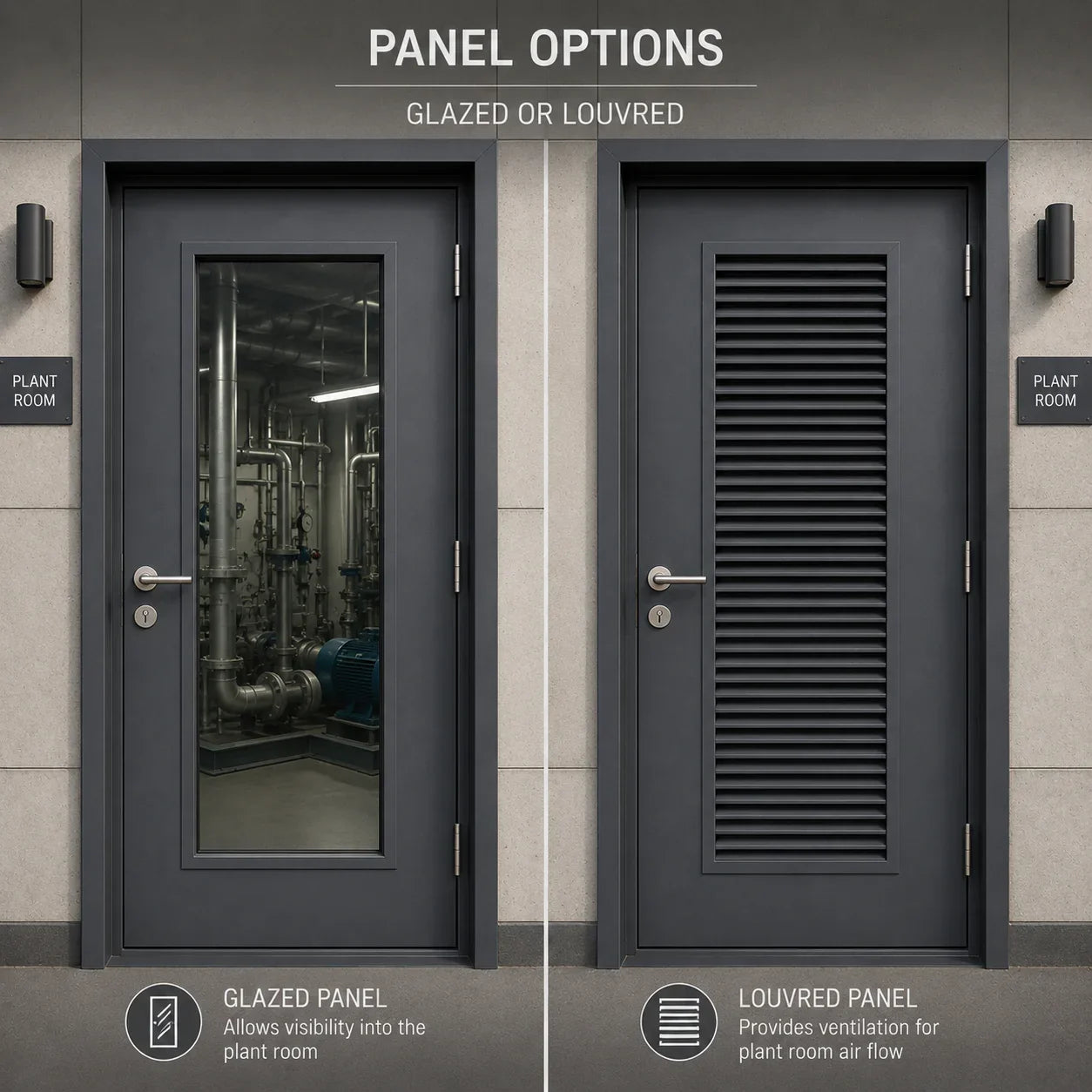

Louvred Panel Options

Allows airflow while retaining fire integrity

Heavy-Duty Hardware Options

Includes panic bars, closers, and external access hardware

Weather Resistant Design

Built to withstand external conditions and harsh environments

Low Maintenance & Durable

Long-lasting steel construction with minimal upkeep required

Our External Steel Fire Doors are designed to meet demanding external conditions while offering flexibility in fire performance, security, and overall design. A wide range of customisation options ensures the doors can be tailored to suit both functional and aesthetic project requirements.

Door Configuration

Available as single or double doors, allowing flexibility for different opening sizes and escape requirements. Double doors are ideal for larger external exits or high-traffic areas.

Fire Rating Options

Doors are available with fire ratings up to EI120 and EW30, providing certified protection for external applications and ensuring compliance with relevant fire safety standards.

Certification & Compliance

Fully CE and UKCA marked to BS EN 14351-1 and EN 16034, making them suitable for high-safety external escape routes and regulated environments.

Need Fire Protection and Security?

Standard fire resistance and security against forced entry are different performance requirement.

Where an external fire door also needs enhanced resistance against intrusion, a PAS 24 security-rated configuration can be specified.

This can be particularly useful for external perimeter doors, service entrances and other openings where the door needs to contribute to both the building's fire strategy and physical security.

PAS 24 performance applies only to the appropriate tested/certified door configuration, so securityhardware, glazing and other options should be selected accordingly.

Sizes & Made-to-Measure Options

Each door is manufactured to your exact opening size, ensuring a precise fit. Bespoke sizes are available for non-standard or complex structural openings.

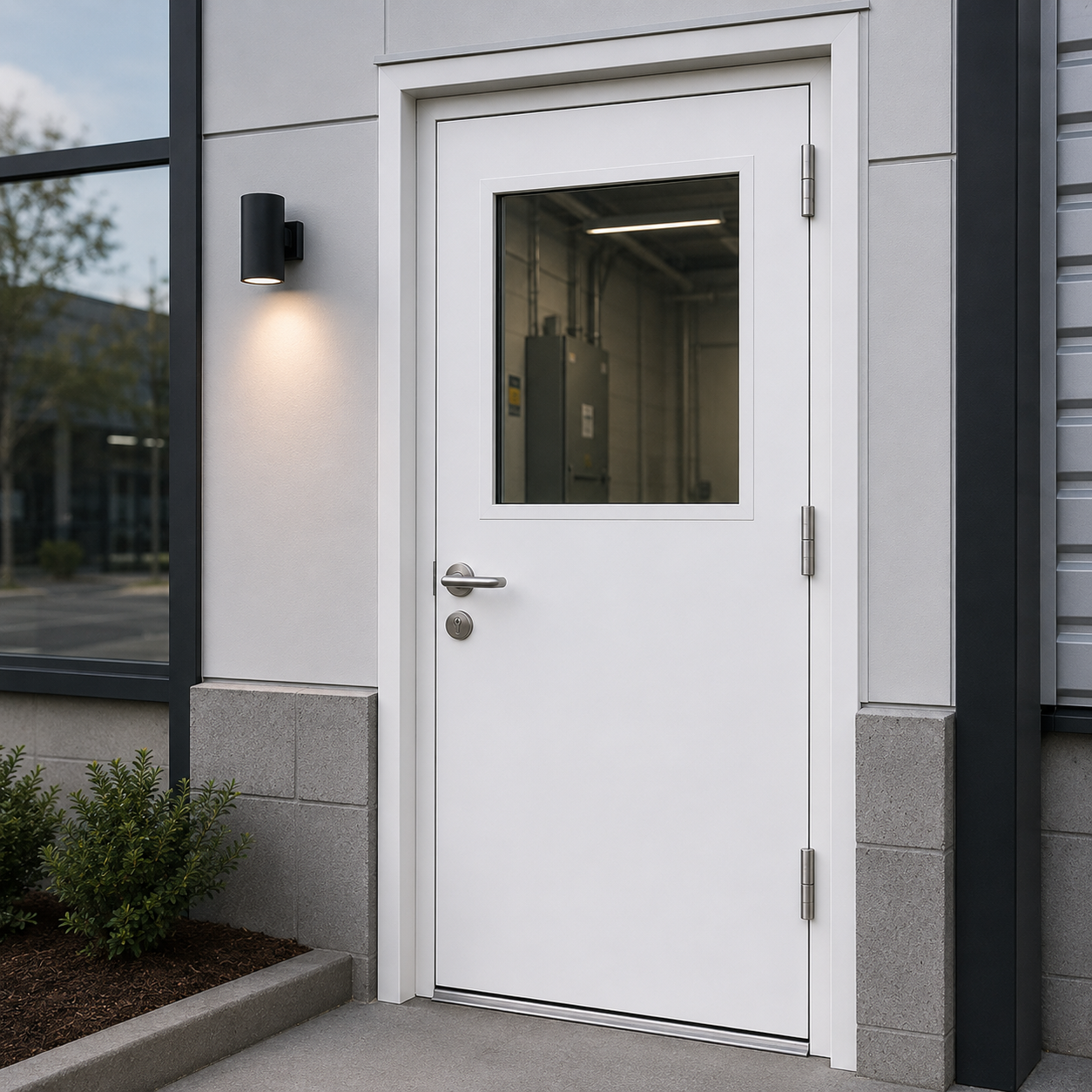

Vision Panels

Approved fire-rated vision panels are available in specified sizes and configurations, allowing visibility through the door while maintaining the applicable tested fire performance.

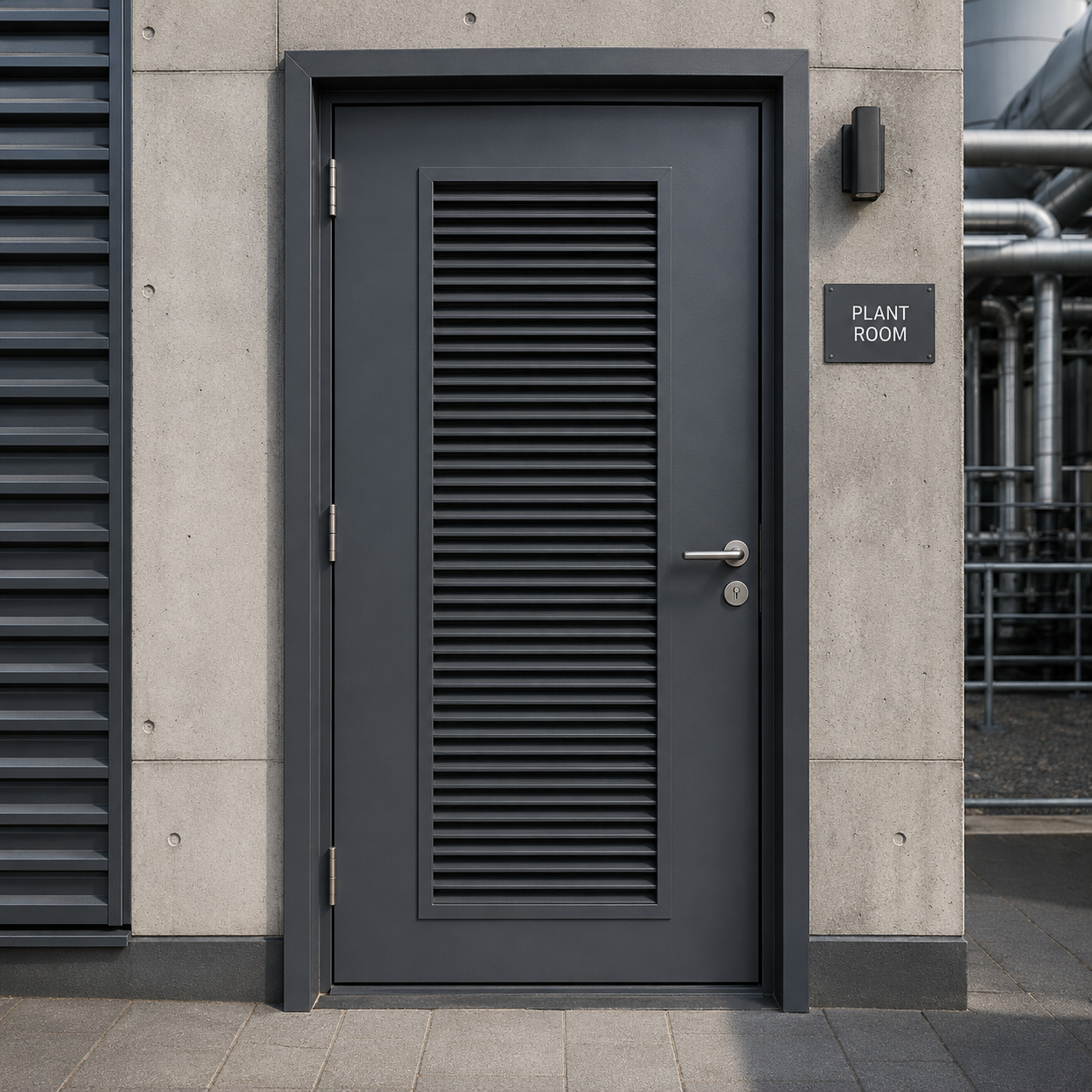

Ventilation Louvres

Approved fire-rated louvre options are available on applicable door configurations where ventilation is required. The permitted louvre specification depends on the required fire performance and certified door configuration.

Acoustic Performance

Doors are available with acoustic ratings up to 36dB, helping reduce noise transfer in environments where sound control is important.

Colour & Finish Options

Supplied galvanised as standard or powder coated in any RAL or BS colour, allowing the doors to match building aesthetics or branding. Durable coatings ensure resistance to weather and corrosion.

Hardware & Ironmongery

A full range of external-grade, fire-rated hardware is available, including:

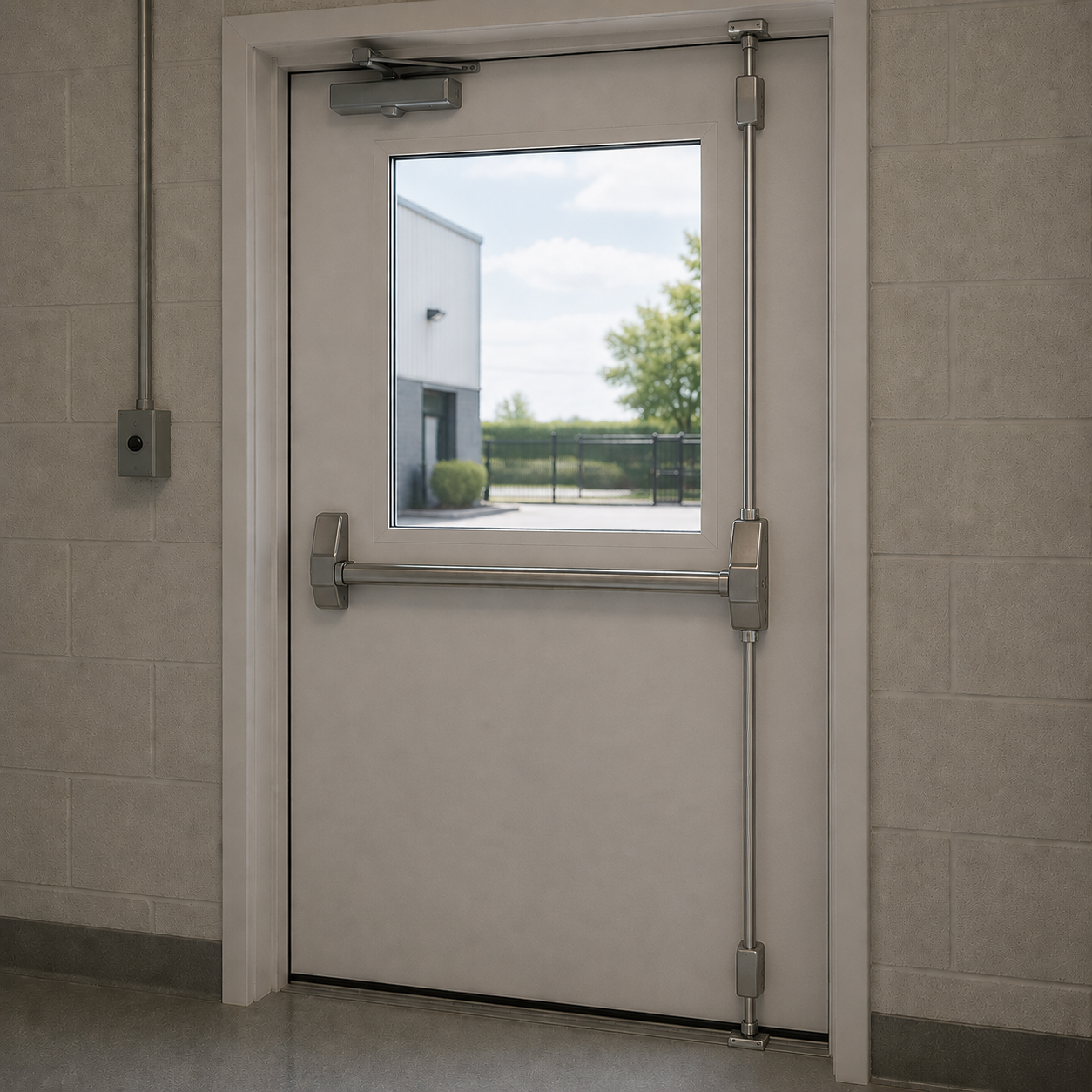

• Panic bars and escape hardware
• External access locks and handles
• Door closers and restrictors
• Threshold options for accessibility

External Application Design

Specifically engineered for external use, with weather-resistant seals, durable finishes, and construction designed to withstand harsh environmental conditions.These options ensure your external steel fire doors provide the right balance of fire protection, security, acoustic performance, and durability for your project.

• Door Construction: Single or double leaf external steel fire door sets
• Material: Galvanised steel with insulated core construction
• Fire Rating: Up to EI120 (integrity & insulation) and EW30 (integrity & radiation)
• Testing Standards: EN 1634-1
• Certification: CE and UKCA marked to BS EN 14351-1 and EN 16034
• Security Rating: PAS24:2016 upgrade available
• Acoustic Rating: Up to 36dB sound reduction
• Door Operation: Hinged door (inward or outward opening depending on application)
• Frame: Heavy-duty steel frame suitable for external openings
• Finish: Galvanised as standard or powder coated to any RAL / BS colour
• Insulation: Insulated core for thermal and fire performance
• Seals: Intumescent fire seals and weather seals for external use
• Hinges: Heavy-duty, fire-rated steel hinges
• Locking Options: Fire-rated locks, panic hardware, and external access options
• Vision Panels: Optional fire-rated glazed panels
• Ventilation: Optional fire-rated louvre panels
• Threshold Options: Standard, low threshold, or rebated options available
• Weather Resistance: Designed for external exposure with durable coatings and seals
• Compliance: Fire performance and product conformity according to the applicable tested/certified door specification. The required door classification and installation should be determined according to the project's fire strategy and applicable building requirements.
• Usage: Suitable for external escape routes, plant rooms, and service areas
• Maintenance: Low maintenance with long service life

Our External Steel Fire Doors are manufactured to order, with a typical lead time of 3–4 weeks from order confirmation and final specification. This ensures each door is produced to the required fire rating, size, and external performance standards.

Please note that additional features and upgrades, such as vision panels, fire-rated louvre panels, PAS24 security upgrades, or specialist hardware, may extend the lead time by a few additional weeks. We will always confirm accurate timescales at quotation stage to support your project planning.

We offer a professional supply and installation service, ensuring your doors are fitted correctly, weather-sealed, and fully compliant with fire safety and building regulations.

Correct Installation Is Essential

A fire door's tested performance relates to the complete door set and its approved installation configuration, not simply the steel door leaf.

The frame, supporting construction, fixings, clearances, seals, threshold, hardware and any fire stopping around the opening must therefore be installed in accordance with the applicable manufacturer's instructions and tested/certified specification.

For supply-only projects, installation requirements should be reviewed before fitting to ensure the proposed wall construction and installation method are suitable.

The cost of External Steel Fire Doors depends on factors such as fire rating, size, configuration, security upgrades, and external performance requirements. As these doors are designed for higher-spec applications, pricing is typically above standard internal fire doors.

Indicative Pricing

Standard External Steel Fire Door (EI30–EI60)

• Supply Only: £700 – £1,200
• Supply & Install: £1,200 – £2,000

Higher Rated Fire Doors (Up to EI120 / EW30)

• Supply Only: £1,000 – £1,800
• Supply & Install: £1,600 – £2,800

Double External Fire Doors

• Supply Only: £1,500 – £2,800
• Supply & Install: £2,500 – £4,000

Fire Doors with PAS24 Security Upgrade

• Supply Only: £1,200 – £2,200
• Supply & Install: £2,000 – £3,500

Bespoke / Large / Specialist Configurations

• Supply Only: £1,800+
• Supply & Install: £3,000+

Factors Affecting Price

Several elements will influence the final cost:

• Fire Rating: Higher performance levels (EI120, EW30) increase cost
• Size & Configuration: Larger or double doors require more materials
• Security Upgrades: PAS24 certified doors and enhanced locking systems
• Customisation: Vision panels, fire-rated louvres, and specialist hardware
• Finish: Powder coating finishes for external durability
• Acoustic Rating: Higher sound reduction specifications (up to 36dB)
• Installation Complexity: External openings, weather sealing, and site access

Additional Costs to Consider

• Delivery depending on location and order size
• Removal of existing doors
• Structural or builder’s works
• Fire stopping and weatherproofing during installation

Get an Accurate Quote

Every project is unique, so we recommend contacting us for a tailored quotation. Our team will help specify the correct fire rating, security level, and configuration to ensure full compliance and best value for your application.
