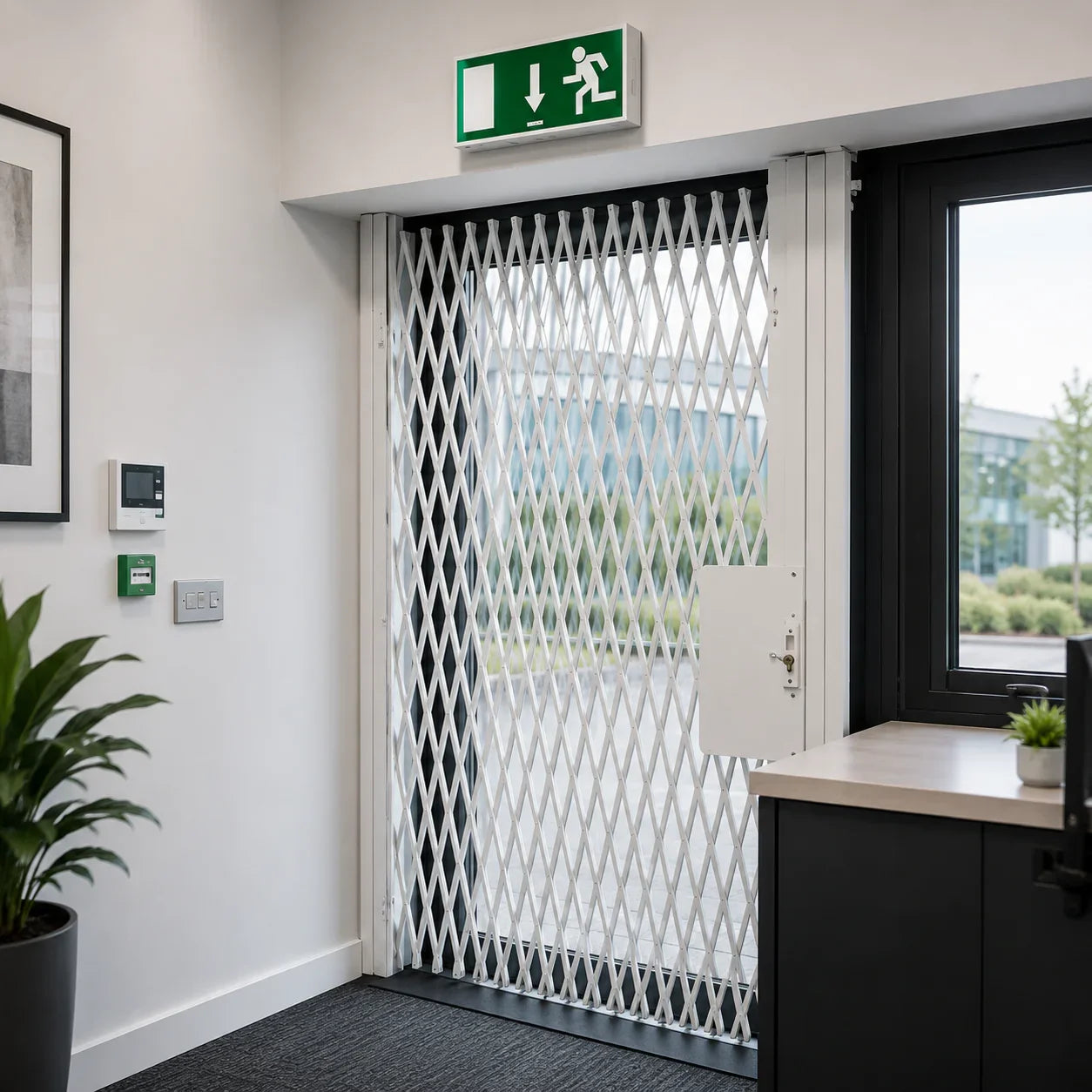

Fire Exit Folding Grille

Designed for Fire Exit Door Security

Specifically developed to protect vulnerable fire exit doors without restricting escape

Maintains Emergency Egress Compliance

Keyless thumbturn lock allows instant exit without keys in emergencies

Trackless Folding Design

No bottom track, eliminating trip hazards and ensuring safe evacuation routes

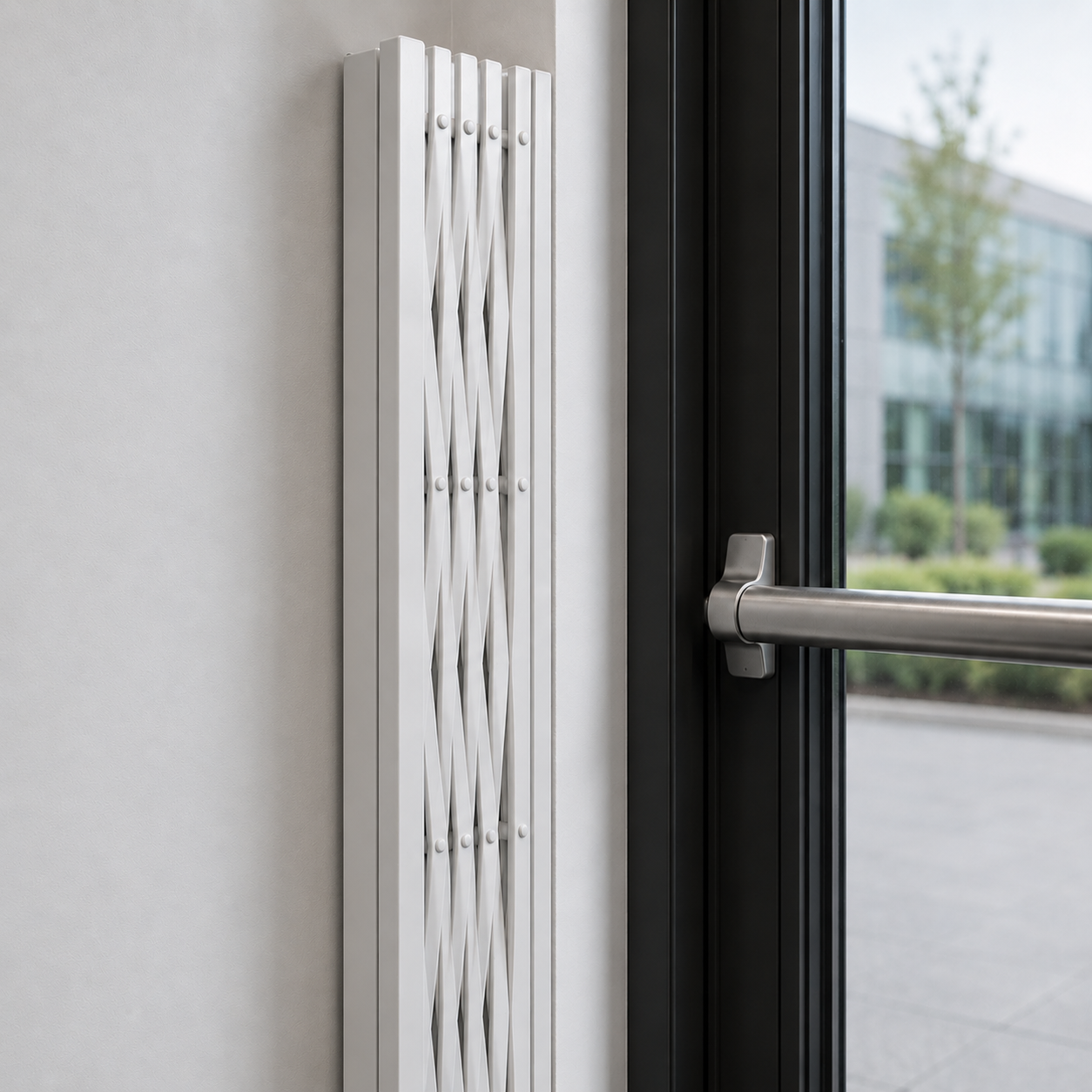

90° Folding Operation

Grille folds flat against the wall, maintaining full door width when open

Prevents Tampering from Outside

Compact diamond lattice stops access to internal push bars and handles

Ideal for Ventilation Security

Allows doors to remain open while still maintaining a secure barrier

Durable Steel Construction

Provides reliable protection against forced entry and unauthorised access

Supplied in Standard Sizes

Available in 1010mm, 1330mm, and 1650mm widths (2000mm height)

Smooth & Simple Operation

Fitted with heavy-duty castors and guide components for easy use

Clean, Professional Finish

Powder coated in RAL 9016 white as standard

Suitable for Multiple Sectors

Ideal for commercial, industrial, retail, and public buildings

Low Maintenance Design

Built for long-term use with minimal upkeep required

The CS80 Fire Exit Security Grille is designed as a ready-to-install, safety-critical product, balancing security with emergency egress compliance. While it is primarily supplied in standard configurations to ensure reliability and fast availability, it still offers key options to suit different site requirements.

Standard Size Options

The CS80 is available in pre-manufactured sizes to suit most fire exit doorways:

• Widths: 1010mm, 1330mm, 1650mm
• Height: 2000mm

These sizes are designed to align with common commercial door openings, allowing for quick specification and installation.

Trackless Design

• No top or bottom track required
• Eliminates trip hazards and obstruction to escape routes
• Allows the grille to fold and hinge 90° flat against the wall
• Ensures full clear opening width during emergency evacuation

Configuration & Operation

• Side-folding design with compact stacking
• Hinged return for neat storage when not in use
• Designed specifically for fire exit door applications

Locking & Safety Features

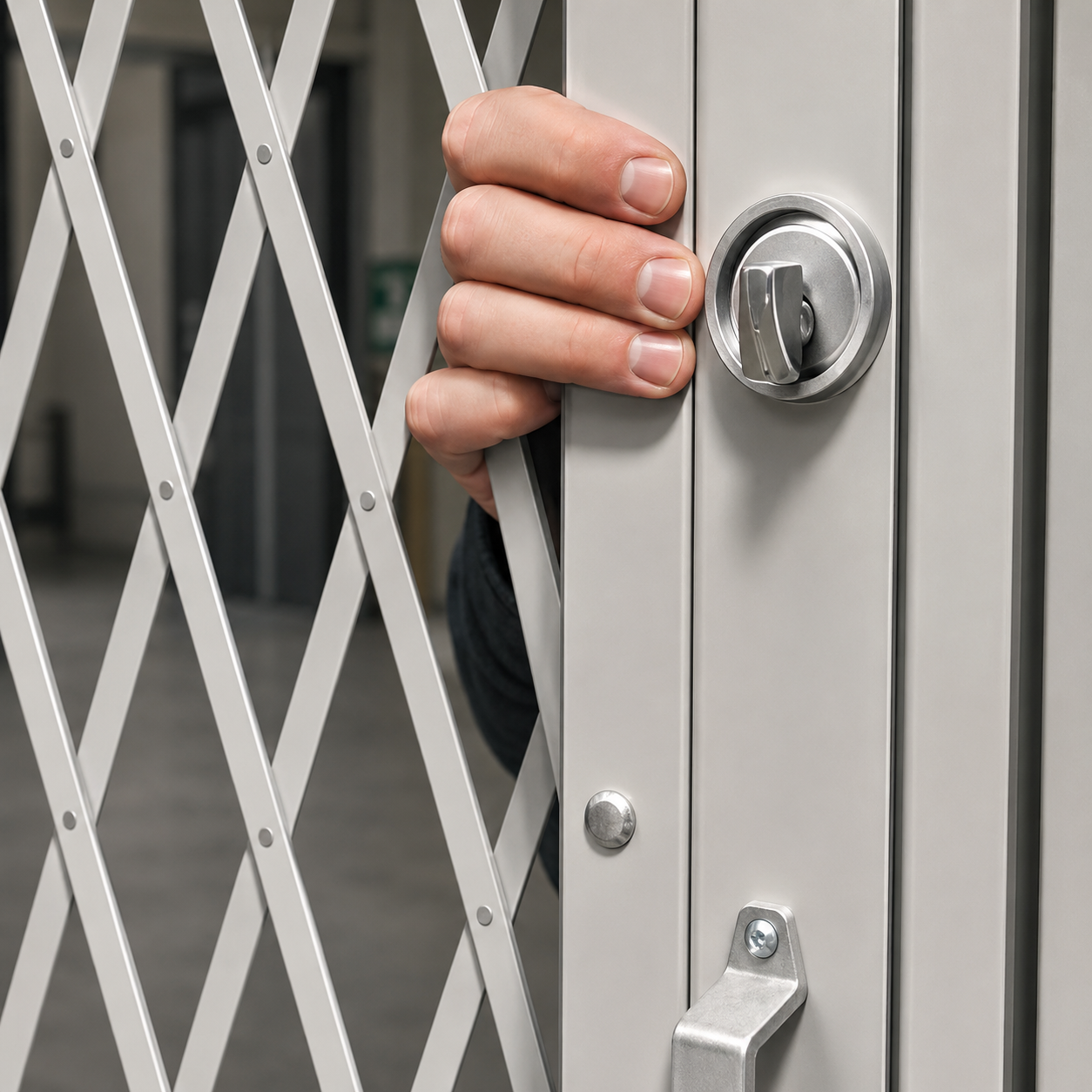

• Keyless thumbturn lock for emergency egress
• Allows immediate exit from the inside without keys

Includes:

• Emergency locking post
• Lock protection plate

Designed to maintain security externally while allowing safe internal escape

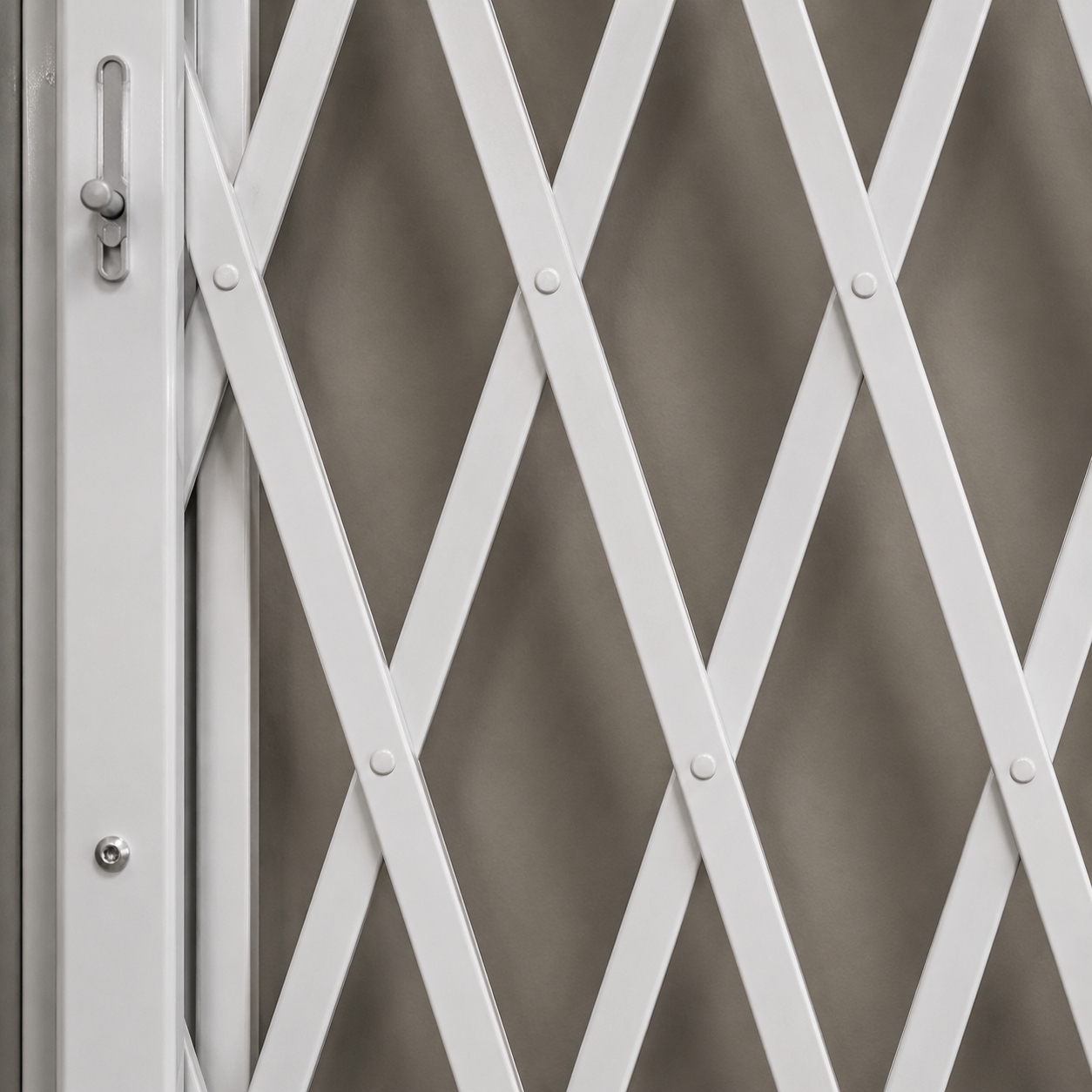

Anti-Tamper Lattice Design

• Compact diamond lattice pattern
• Prevents hands reaching through to operate internal push bars or panic hardware
• Maintains visibility and airflow

Installation Options

• Designed for internal installation only
• Typically face fixed to the wall adjacent to the fire exit door

Suitable for fixing into:

• Masonry
• Structural openings

Minimal preparation required due to trackless system

Finish Options

• Standard finish: Powder Coated White (RAL 9016)
• Clean, neutral appearance suitable for most environments
• Optional RAL / BS colour finishes may be available on request

Included Components

Each system is supplied as a complete package including:

• Diamond folding grille
• Heavy-duty castor wheel system
• Emergency locking post
• Lock protection plate
• Hinges and fixings

Application Flexibility

Suitable for:

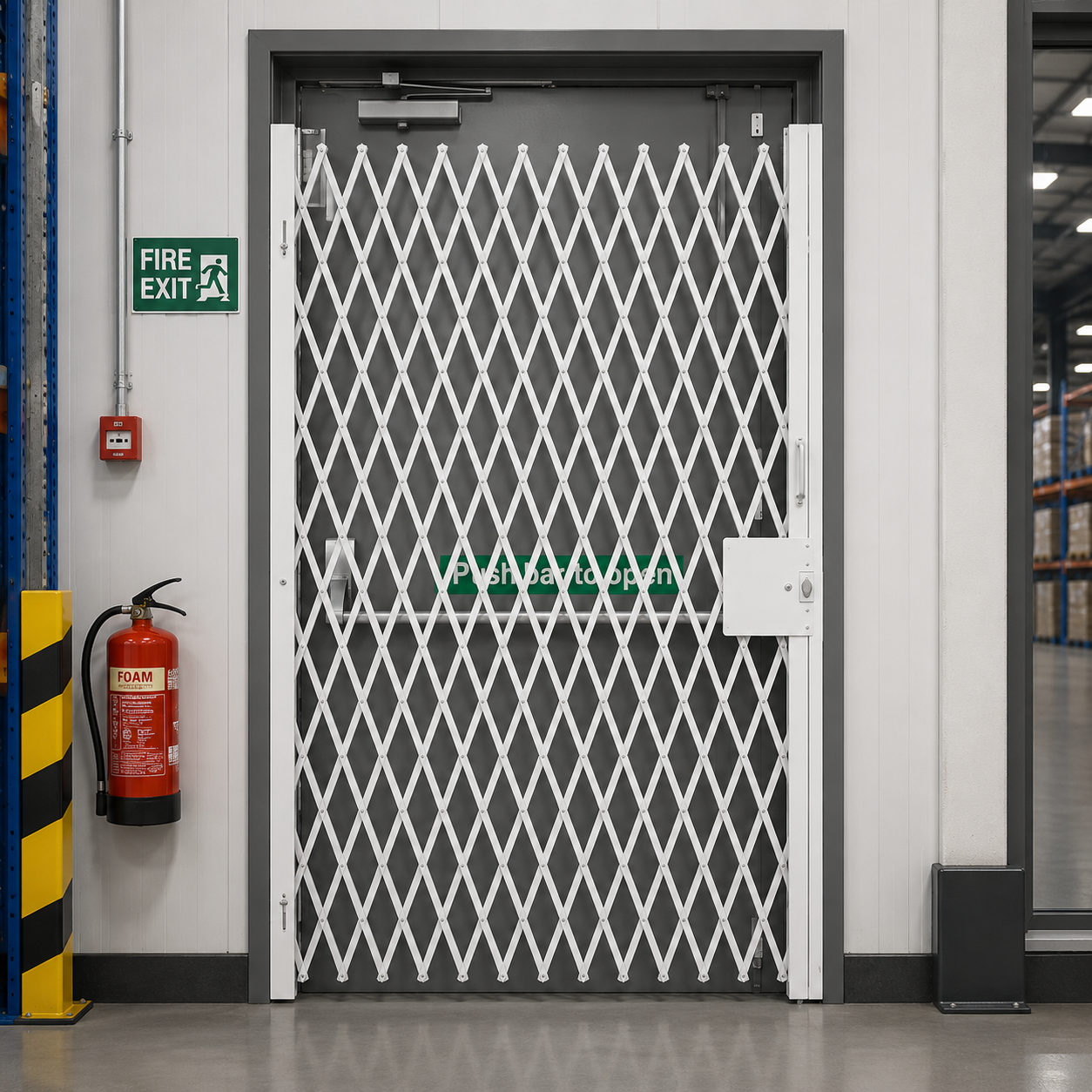

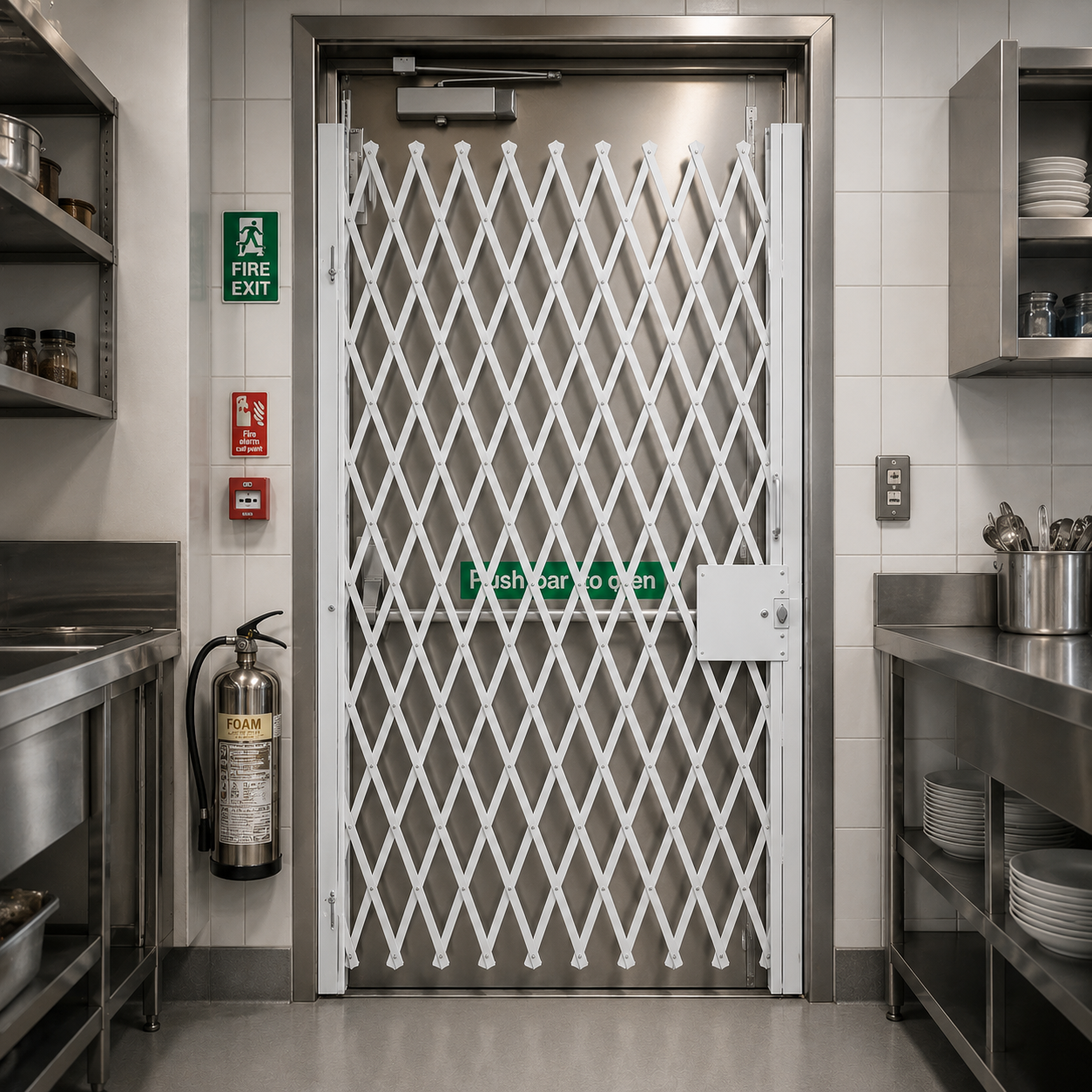

• Fire exit doors in commercial and industrial buildings
• Schools, hospitals, and public sector facilities
• Retail units and warehouses
• Areas requiring secure ventilation or controlled access

Design Focus

The CS80 is designed around:

• Life safety compliance
• Fast installation and availability
• Simple, reliable operation
• Effective security without compromising escape routes

These design and customisation options ensure the CS80 provides a practical, compliant, and easy-to-install solution for securing fire exits while maintaining full emergency functionality.

Product Type:

• Trackless fire exit folding security grille

Function:

• Designed to secure fire exit doors without restricting emergency egress
• Prevents unauthorised access while maintaining safety compliance

Construction:

• Steel lattice construction in diamond (“X”) pattern
• Durable design for commercial and public environments

Design:

• Trackless system – no top or bottom track
• Side-folding grille with 90° hinge-back capability
• Allows full clear opening when not in use

Operation:

• Manual operation
• Smooth folding action with hinged return
• Fitted with heavy-duty castor wheels for ease of movement

Locking System:

• Keyless thumbturn lock (internal) for emergency exit
• External security with lock protection plate
• Includes emergency locking post

Safety Features:

• Designed to allow instant exit without keys
• Anti-tamper lattice design prevents access to internal panic bars
• Eliminates trip hazards due to trackless design

Standard Sizes:

• Widths: 1010mm, 1330mm, 1650mm
• Height: 2000mm

Installation:

• Internal installation only
• Typically face fixed to wall adjacent to door opening
• Suitable for fixing into masonry or structural openings

Finish:

• Standard finish: Powder Coated White (RAL 9016)
• Durable, low-maintenance coating

Components Included:

• Folding grille
• Heavy-duty castor system
• Emergency locking post
• Lock protection plate
• Hinges and fixings

Durability:

• Designed for regular use in commercial and public environments
• Corrosion-resistant finish for long-term performance

Maintenance:

• Low maintenance system
• Periodic inspection of hinges, castors, and locking mechanism recommended

Lead Time:

• Typically available from stock
• Fast delivery (subject to availability)

Application:

• Fire exit doors
• Commercial and industrial premises
• Schools, hospitals, and public buildings
• Retail units and warehouses
• Compliance Consideration:
• Designed to support safe emergency egress
• Should be installed in line with fire safety and building regulations

Warranty:

• Typically supplied with a 12-month manufacturer’s warranty (subject to terms)

Lead Time

The CS80 Fire Exit Security Grille is a stocked product, allowing for fast delivery. Typical lead time is 2–3 working days from order confirmation.

If a cut-down service is required to adjust the grille height, this can extend the lead time by approximately 1 additional week, depending on workload and specification.

Installation

The CS80 is designed for quick and straightforward installation, making it suitable for both DIY fitting and professional installation.

Internal installation only

• Typically face fixed to the wall adjacent to the fire exit door
• Suitable for fixing into masonry or structural substrates
• No floor or head tracks required due to trackless design

Key installation benefits:

• No bottom track – eliminates trip hazards and simplifies fitting
• Minimal preparation required
• Supplied as a complete package including locking post, castor, hinges, and fixings

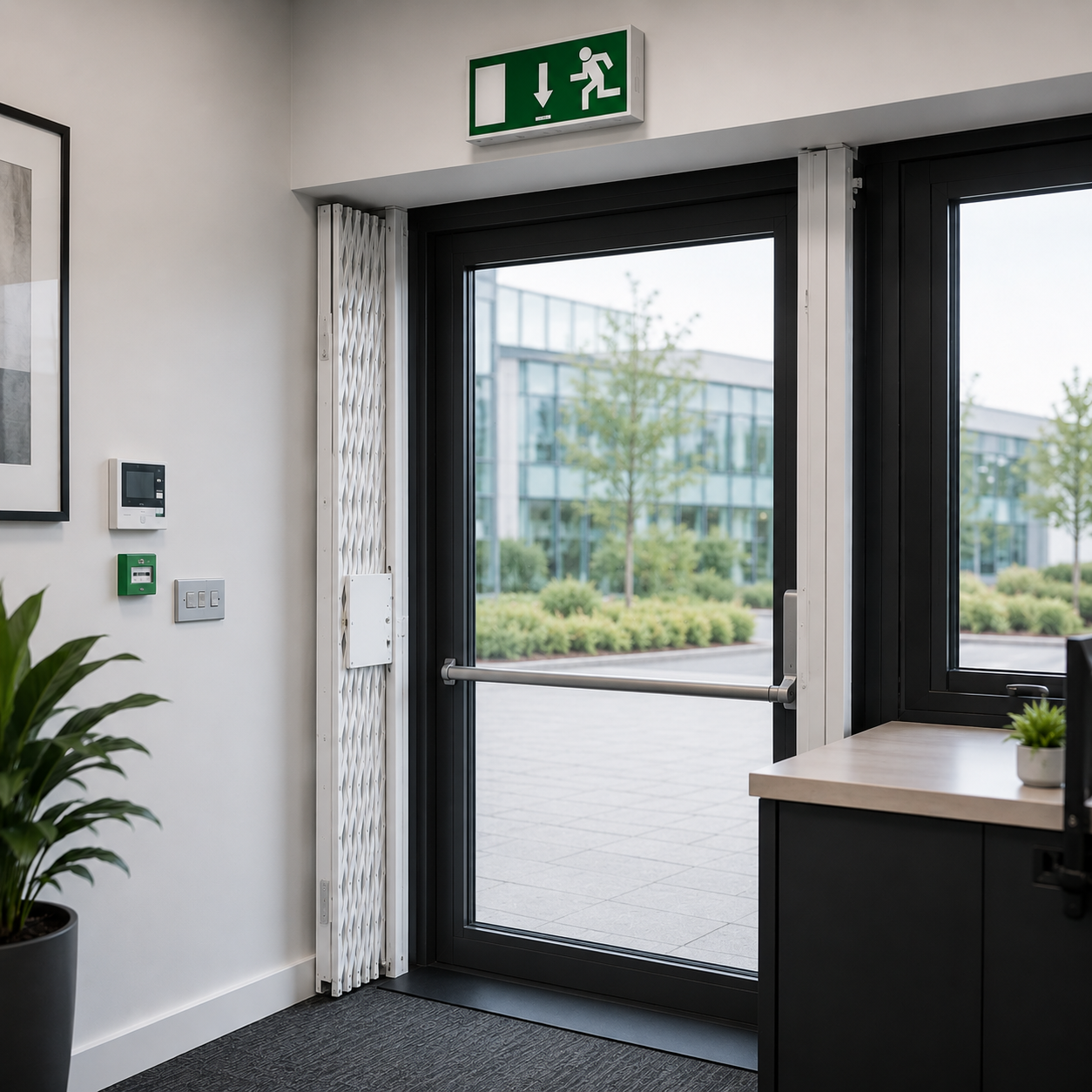

• Hinged design allows the grille to fold flat against the wall when open

For optimal performance, ensure installation is carried out on a solid, level fixing surface, with correct alignment to allow smooth operation and secure locking.

This combination of fast delivery and simple installation makes the CS80 an efficient solution for securing fire exits without disrupting building operations.

The CS80 Fire Exit Security Grille is a stocked, off-the-shelf solution, offering a cost-effective way to secure fire exit doors while maintaining compliance with emergency egress requirements.

Indicative Pricing

• Single Door Grille (Approx. 1000mm W x 2000mm H)From £620 + VAT (Supply Only)

Larger Standard Sizes:

• 1330mm W x 2000mm H: From £697 + VAT
• 1650mm W x 2000mm H: From £769 + VAT

Delivery:

• Typically charged in addition, depending on location and quantity

What’s Included

Each grille package includes:

• Diamond folding grille
• Emergency locking post
• Heavy-duty castor system
• Lock protection plate
• Hinges and fixings

Factors Affecting Price

• Grille width (standard sizes)
• Cut-down service (if height adjustment is required)
• Delivery location and quantity

Installation Costs

• DIY Installation: No additional cost
• Professional Installation (Optional):
• Typically £150 – £350 per door, depending on site conditions

Budget Guidance

• Standard single fire exit door: £620 – £800 + VAT
• Installed cost: £800 – £1,100 + VAT

Get an Accurate Quote

For delivery costs or multiple units, we recommend requesting a quick quote to ensure accurate pricing based on your location and requirements.
