Collection: Punched Roller Shutters

Punched roller shutters are available in several types, primarily defined by the material used and the level of visibility and security required. The main types of punched roller shutters include:

Steel Punched Roller Shutters

Steel punched roller shutters are designed for higher security applications while still allowing visibility and airflow. With elongated slots in the curtain, they typically provide up to 24% vision and airflow, making them suitable for shopfronts, commercial premises, and higher risk locations where strength is a priority.

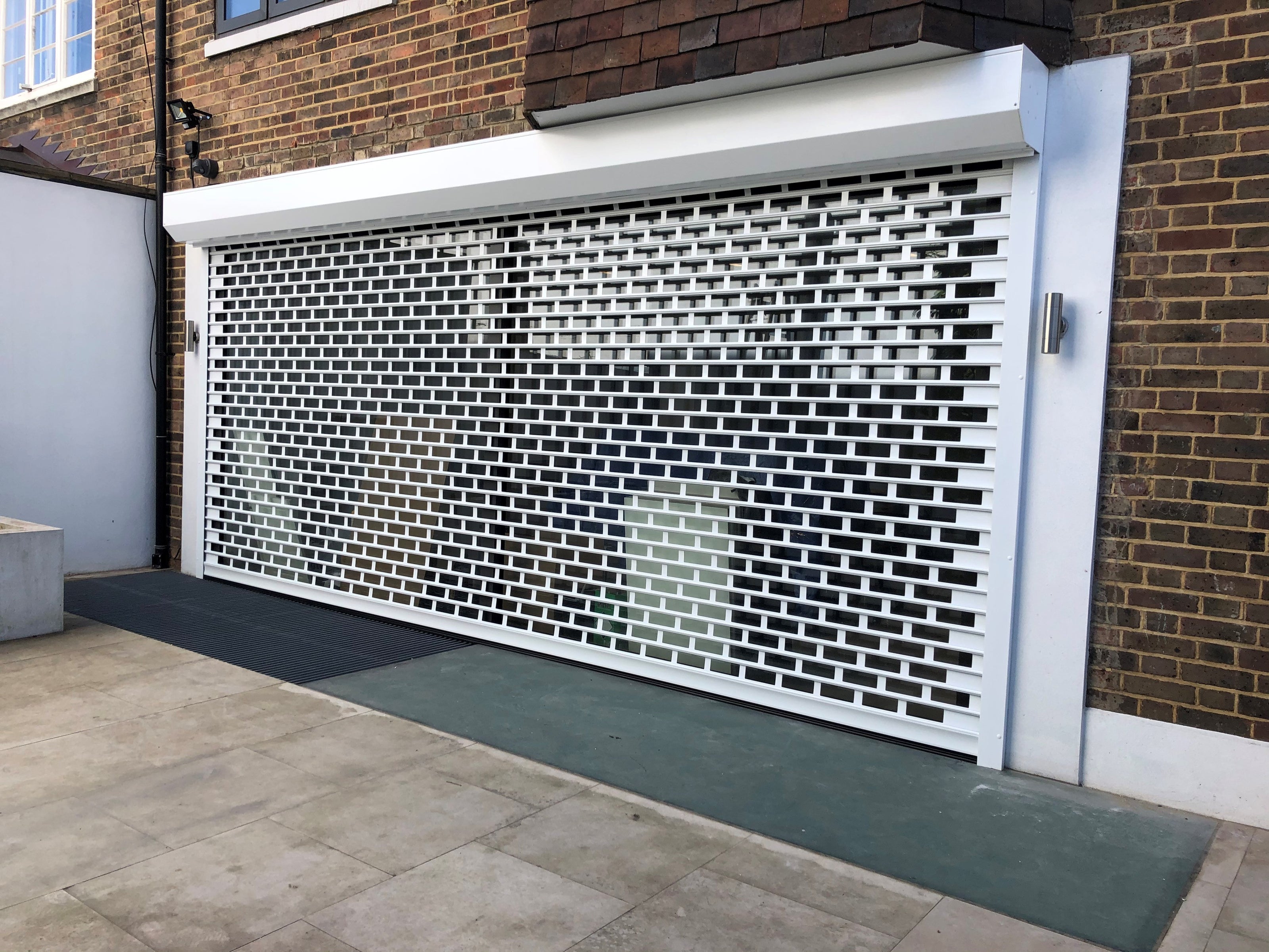

Aluminium Punched Roller Shutters

Aluminium punched roller shutters offer a higher level of openness, providing up to 58% vision and airflow. They are lightweight, corrosion resistant, and ideal for customer facing environments where maximum display visibility and ventilation are required.

Manual Punched Roller Shutters

Manually operated punched roller shutters use a spring assisted mechanism and are best suited to smaller openings or low frequency use. They provide a cost effective solution where electric operation is not required.

Electric Punched Roller Shutters

Electric punched roller shutters are powered by a motor and operated via wall switches, key switches, or remote controls. They are recommended for wider openings or frequent daily operation, offering smooth and convenient use.

Internal and External Punched Roller Shutters

Punched roller shutters can be installed internally behind glazing or externally on the building façade, depending on security requirements, planning considerations, and desired appearance.

Each type of punched roller shutter can be tailored in material, size, and operation to suit the specific balance of security, visibility, and airflow required.

Punched roller shutters can be customised to achieve the right balance of security, visibility, airflow, and appearance, making them well suited to retail and customer facing environments.

Punched roller shutters are manufactured to measure, ensuring a precise fit over doors, windows, and shopfront openings. They are available in steel or aluminium, allowing the level of strength and openness to be tailored to the risk level and application. The punched slot pattern determines the amount of vision and airflow, with steel offering up to 24% and aluminium up to 58%.

A wide range of colours and finishes is available, including durable powder-coated options suitable for internal or external installation. Shutters can be colour matched to shopfronts, branding, or surrounding façades, with shutter boxes and guide rails finished to match for a clean, professional look.

Operation can be specified as manual for smaller openings or electric for wider or frequently used shutters. Electric punched roller shutters can be operated via wall switches, key switches, remote controls, or integrated into alarm, access control, or building management systems.

Additional customisation options include enhanced security specifications, safety devices for remote operation, wind resistance upgrades for exposed locations, and bespoke fixing methods to suit different wall constructions. These options ensure punched roller shutters deliver strong security while maintaining high visibility and airflow.

Punched roller shutters are used where a high level of visibility and airflow is required alongside effective security. Their slotted design makes them particularly suitable for customer facing and retail environments.

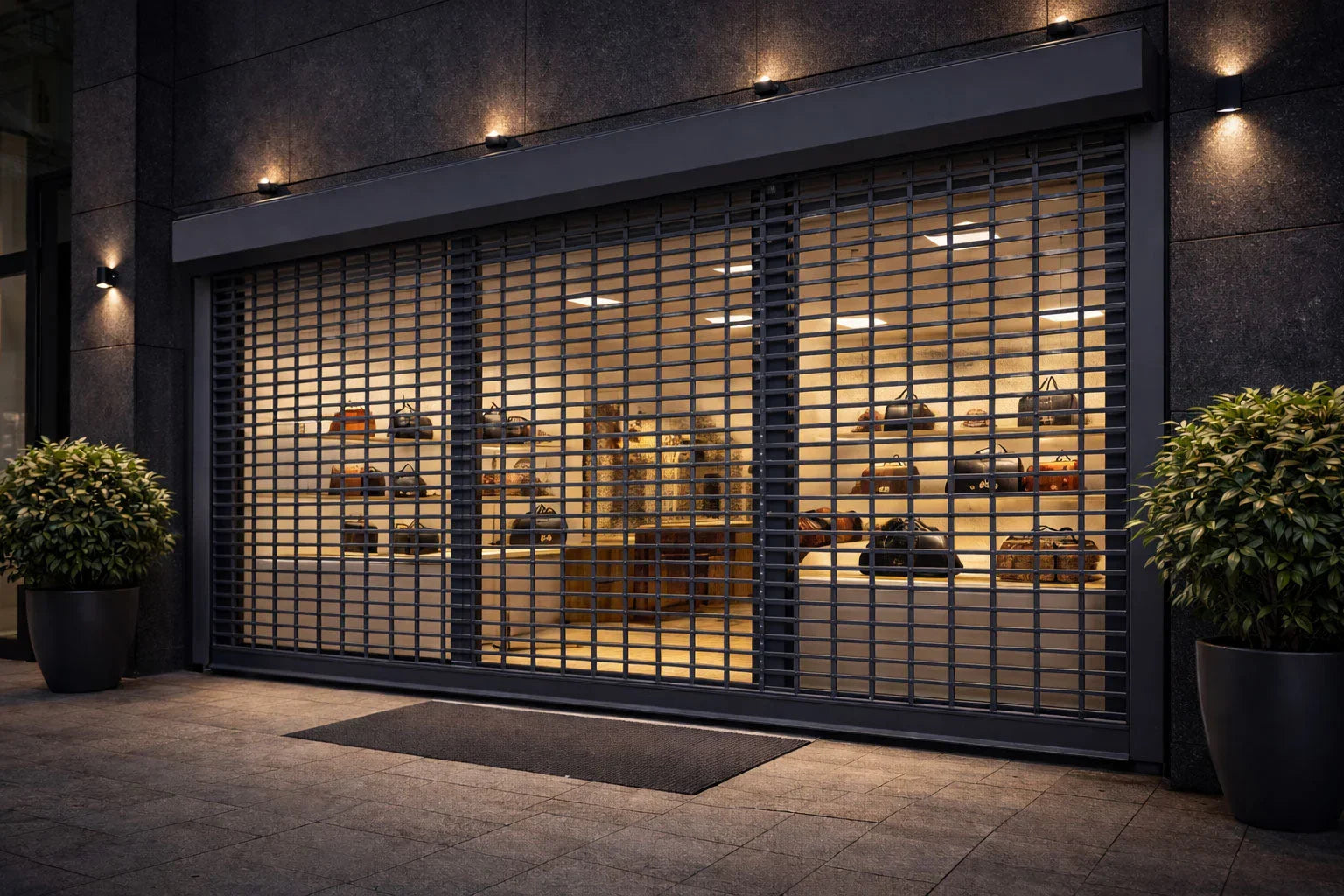

Shopfronts and Retail Units

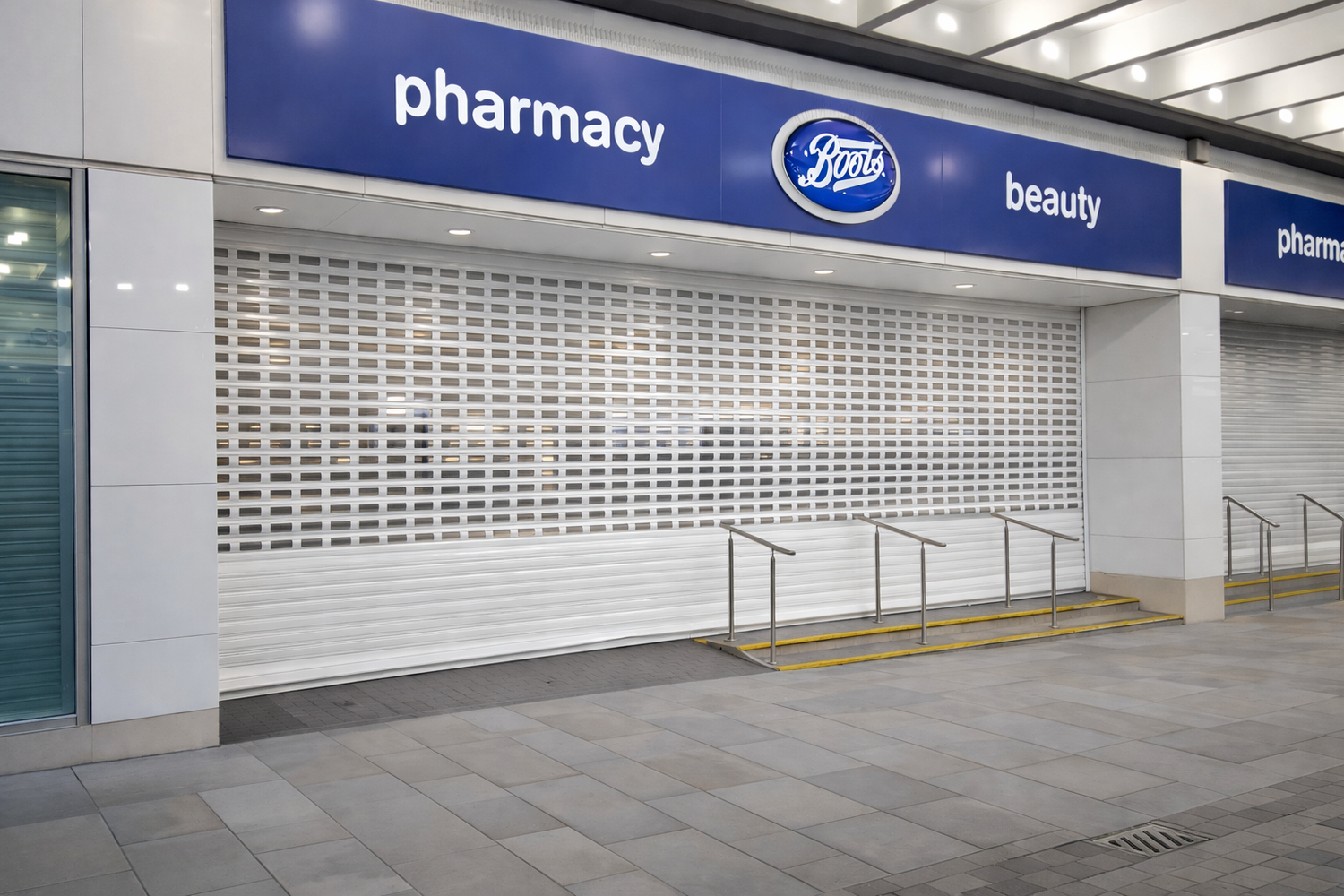

Punched roller shutters are ideal for shopfronts where maintaining display visibility outside trading hours is important. Aluminium punched shutters are commonly used to maximise visibility, while steel versions are specified where higher security is required.

Shopping Centres and Arcades

In shopping centres, punched roller shutters are often installed over internal units or behind glazing to provide security while preserving open sightlines and a bright, welcoming environment.

Bars, Restaurants, and Cafés

Hospitality venues use punched roller shutters to secure entrances, bar fronts, and serving areas while still allowing light and visibility into the premises when closed.

Commercial Buildings and Offices

Punched roller shutters can be used to protect ground floor windows, receptions, and internal openings where security is needed without creating a closed or industrial appearance.

Internal Counters and Displays

Inside buildings, punched shutters are commonly installed over counters, display units, and service hatches, providing security while maintaining visual access.

Ventilation Sensitive Areas

Due to the high airflow provided by punched designs, these shutters are suitable for areas that require ventilation, such as plant rooms, storage areas, or spaces containing heat generating equipment.

These applications highlight why punched roller shutters are a popular choice where security must be combined with high visibility and airflow.

Punched roller shutters are designed to deliver security while maximising visibility and airflow, making them ideal for retail and customer facing environments. Their slotted construction offers several practical benefits.

High Levels of Visibility and Airflow

The elongated slot design allows significantly more light and airflow than standard perforated shutters. Steel punched shutters provide up to 24% vision and airflow, while aluminium punched shutters offer up to 58%, helping keep premises visible and well ventilated.

Balanced Security

Manufactured from steel or aluminium, punched roller shutters provide a strong physical barrier against unauthorised access while offering a more open appearance than solid shutters.

Ideal for Customer Facing Premises

Punched roller shutters maintain visibility of displays and interiors outside trading hours, supporting visual merchandising and reducing the closed off look of shopfronts.

Manual or Electric Operation

Available with manual or electric operation, punched roller shutters can be tailored to suit smaller openings or high use, wide entrances requiring smooth, convenient operation.

Internal or External Installation

Punched roller shutters can be fitted internally behind glazing or externally on the building façade, offering flexibility based on security needs, planning considerations, and aesthetics.

Durable and Low Maintenance

Designed for long term use, punched roller shutters are built from robust materials and require minimal maintenance, particularly when powder coated for external environments.

Customisable Finish

A wide range of colours and finishes allows punched roller shutters to be matched to shopfronts, branding, or building exteriors for a clean, professional appearance.

These features make punched roller shutters an effective solution where security, openness, and visual impact must work together.

Compliance and safety are important when specifying punched roller shutters, particularly in retail, commercial, and public facing environments where powered operation and escape routes must be carefully considered.

Building Regulations and Risk Assessments

Punched roller shutters should be specified in line with Building Regulations and the site’s fire and security risk assessments. This is especially important where shutters are installed on shopfronts, internal malls, or areas accessible to the public.

Electrical Safety for Powered Shutters

Electric punched roller shutters must be installed in accordance with current electrical regulations. This includes compliant wiring, safe isolation, and correctly rated motors suitable for the shutter size and duty cycle.

Safety Devices for Remote Operation

Where punched roller shutters are operated by remote control or automatic systems, appropriate safety devices must be fitted. These may include obstacle detection, safety edges, emergency stop controls, or hold to run operation to reduce the risk of injury or damage.

Fire Safety and Escape Considerations

Punched roller shutters must not obstruct designated fire exits or escape routes unless they are specifically designed and approved as part of a fire rated system. This should be assessed as part of the building’s fire strategy.

Installation Standards

Punched roller shutters must be installed in accordance with manufacturer guidelines and relevant British Standards. Correct fixing into suitable substrates, accurate guide alignment, and secure shutter box installation are essential for safe and reliable operation.

Security and Insurance Requirements

Where higher security is required, steel punched roller shutters may need to meet recognised standards such as LPS 1175 to satisfy insurance or Secured By Design conditions.

Ongoing Inspection and Maintenance

Regular inspection and maintenance are required to ensure safe operation. Any signs of damage, misalignment, or irregular movement should be addressed promptly.

When correctly specified, installed, and maintained, punched roller shutters provide a compliant, safe, and effective balance of security, visibility, and airflow.

Correct installation and regular maintenance are essential to ensure punched roller shutters operate safely, reliably, and deliver long term performance in both internal and external applications.

Professional Installation

Punched roller shutters are typically manufactured to measure and installed by experienced engineers. Installation includes secure fixing of the guide rails and shutter box, accurate alignment of the curtain, and smooth commissioning of the shutter. For electric shutters, professional installation also includes safe electrical connection and testing of all control and safety devices.

Internal and External Installation

Punched roller shutters can be installed internally behind glazing or externally on the building façade. External installations require additional consideration for weather exposure, wind loading, and corrosion protection, particularly for aluminium shutters used in coastal or exposed areas.

Supply Only / Self Fit Options

Supply only punched roller shutters may be available for competent installers or experienced tradespeople. This option is most suitable for standard, non fire rated shutters in low risk environments. Accurate measuring, correct fixing into suitable substrates, and precise guide alignment are essential. Electric shutters will still require final electrical connection by a qualified electrician, and all safety devices must be fitted and tested correctly. DIY installation is not recommended for security rated shutters.

Routine Maintenance

Punched roller shutters are generally low maintenance. Regular cleaning of the curtain and guide rails helps prevent dirt build up, particularly in external installations. The punched slots should be kept clear to maintain airflow and smooth operation.

Servicing and Safety Checks

Electric punched roller shutters should be operated regularly and inspected periodically to ensure correct movement and performance of safety features such as obstacle detection or emergency stops. Any unusual noise, resistance, or visible damage should be addressed promptly.

With correct installation and routine maintenance, punched roller shutters provide a durable, secure, and visually open solution for protecting entrances and openings.

The cost of punched roller shutters depends on the material used, size of the opening, method of operation, and level of security required. The following prices are indicative and intended as a general guide.

All prices are approximate and exclude VAT unless stated.

Aluminium Punched Roller Shutters

Aluminium punched roller shutters, offering up to 58% vision and airflow, typically start from £1,000 – £1,800 supplied and installed. Prices vary depending on shutter size, finish, and whether the shutter is manually or electrically operated.

Steel Punched Roller Shutters

Steel punched roller shutters, providing up to 24% vision and airflow with increased strength, are usually priced from £1,400 – £2,800 installed, depending on size, curtain thickness, and control method.

Electric Operation Upgrade

Where not included as standard, electric operation typically adds £300 – £600 to the overall cost, depending on motor type and control options such as key switches or remote controls.

Security Rated Punched Roller Shutters

Steel punched roller shutters tested to enhanced security standards such as LPS 1175 are priced higher due to reinforced construction and certification. Indicative prices generally start from £2,000 – £3,800 installed, depending on security level and opening size.

Supply Only / Self Fit Pricing

Supply only punched roller shutters may be available for competent installers. Prices typically start from £800 – £1,400 supplied only, depending on material, size, and specification. Electric shutters will still require final electrical connection by a qualified electrician.

What Affects the Final Price

Final pricing may vary based on:

• Exact opening size and quantity
• Aluminium vs steel construction
• Manual or electric operation
• Security rating requirements
• Colour and finish selection
• Installation access and complexity

Getting an Accurate Quote

For an accurate price, a site survey or detailed measurements are recommended. This ensures the punched roller shutter is correctly specified for its intended application, compliant with regulations, and delivers the right balance of security, visibility, and airflow.
