Punched Aluminium Roller Shutter - 58% Vision

High Strength Aluminium Construction

Extruded aluminium slats provide excellent durability and reliable security for commercial use

58% Vision Punched Slats

High visibility design allows maximum product display while maintaining protection

Polycarbonate Insert Option

Upgrade with clear polycarbonate inserts for enhanced security with full visibility

Designed for Premium Retail & Shopfronts

Ideal for high-end environments where visibility and security are equally important

Manual or Electric Operation Available

Choose manual for cost-effectiveness or electric for convenience and frequent use

Compact & Neat Design

Fits neatly above openings, maintaining a clean, modern shopfront appearance

Made to Measure Design

Custom built to your exact opening for a precise and secure installation

Wide Range of Colour Options

Available in standard colours or full RAL/BS range to match branding and design

Low Maintenance

Aluminium construction resists corrosion, reducing ongoing servicing and upkeep

Suitable for Internal & External Use

Versatile solution for retail, commercial, and architectural applications

Proven Commercial Performance

Designed for daily use in busy environments such as shops, showrooms, and counters

The RA8 Punched Aluminium Roller Shutter is designed for applications where maximum visibility and security must work together. With its 58% vision punched slats, along with a range of control and finish options, the shutter can be tailored to suit premium retail, display, and commercial environments.

Slat Options

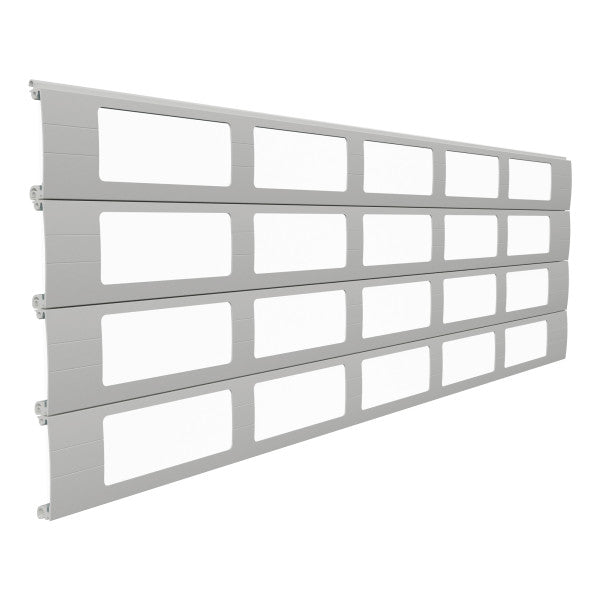

• Punched Aluminium Slats (58% Vision)
  High-visibility design allowing clear views into the premises while maintaining security. Ideal for shopfronts, showrooms, and high-end retail displays

• Polycarbonate Insert Option
  Clear inserts provide enhanced security with full visibility, ideal for higher-risk or premium environments

Operation & Control Options

Manual Operation (Cost-Effective & Simple):

• Spring & Lock (Push-Up Operation) – Suitable for smaller shutters with simple manual use

Electric Operation (Convenience & Frequent Use):

• Hold-to-Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button
• Somfy IO Automation – Smart control with timers, group operation, and integration with automation systems

Colour & Finish Options

Standard Finishes:

• White (RAL 9016)
• Cream (RAL 1015)
• Brown (RAL 8014)
• Black (RAL 9005)

Full Custom Powder Coating:
Available in any RAL or BS colour (subject to lead time and cost)

This flexibility makes the RA8 shutter ideal for high end retail and commercial spaces, delivering strong security while maximising visibility, light, and architectural appeal.

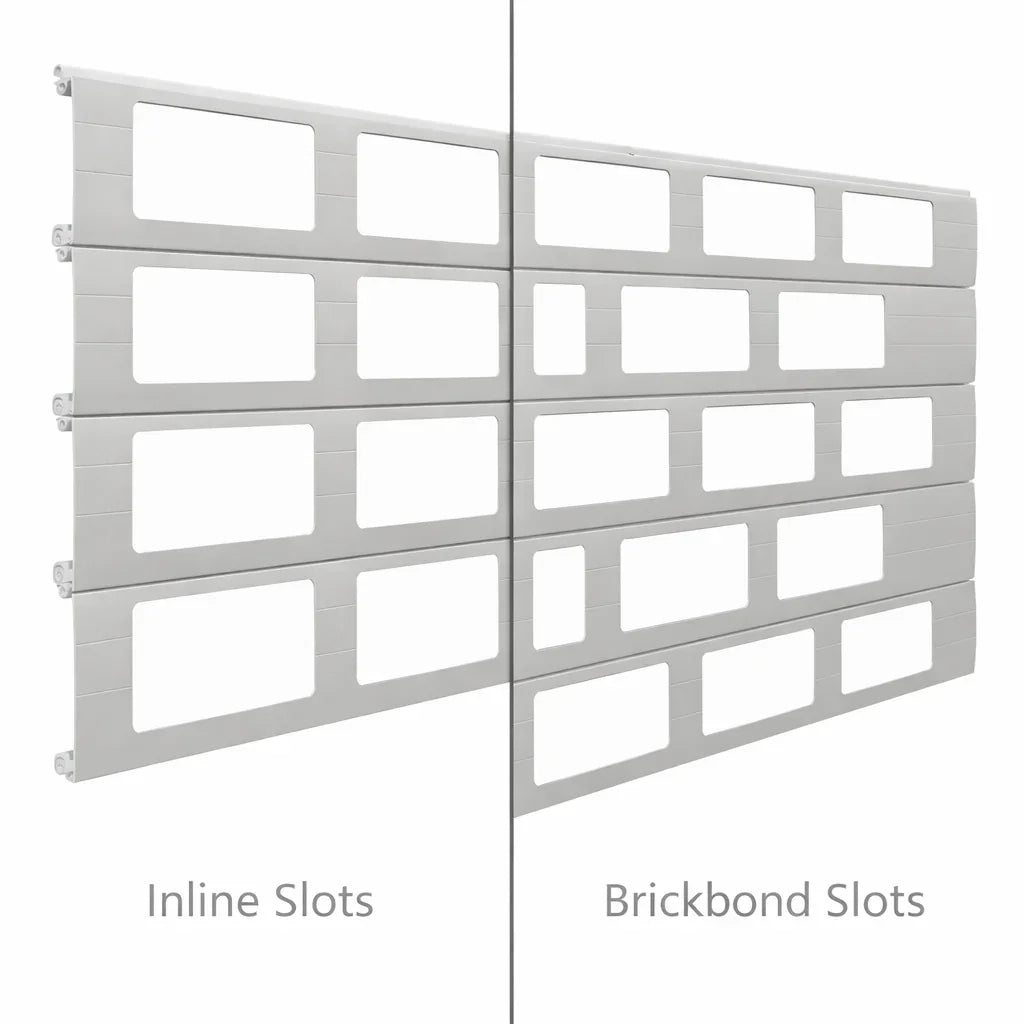

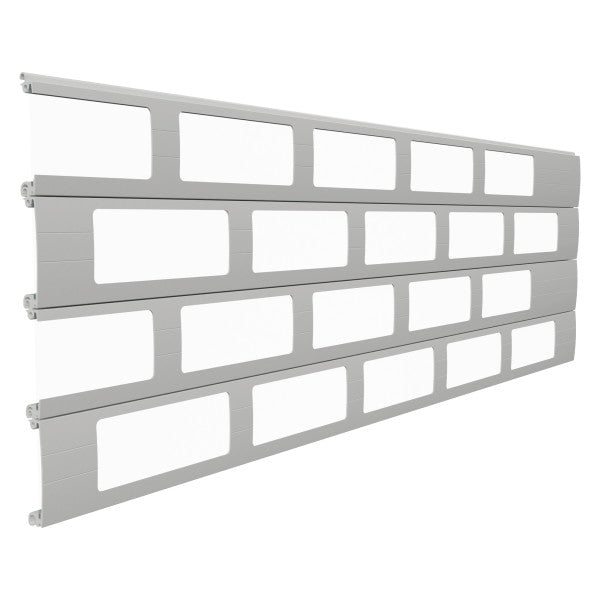

• Slat Type: Single Skin Extruded aluminium slats - Punched Slots (In-Line or Brickbond) - 58% Vision
• Slat Height: 77mm high
• Curtain Thickness: Approx. 18mm
• Weight: Approx. 7 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Punched Aluminium Roller Shutter - 58% Vision. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 3–5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The RA8 Punched Aluminium Roller Shutter is a premium, high visibility security solution, designed for high end retail and commercial environments where display and security are equally important.

Indicative Pricing (Guide Only)

Small (up to 1.5m x 1.5m)

• Supply Only – £1200 – £2,000
• Supply & Install – £2,000 – £3,500

Medium (up to 2.5m x 2.5m)

• Supply Only – £2,000 – £3,800
• Supply & Installation – £3,500 – £6,000

Large (up to 6m wide)

• Supply Only – £3,500 – £6,500
• Supply & Install – £5,500 – £9,500

What Affects the Price?

• High Vision Slat Design (58%) – Premium punched slats increase cost vs standard shutters
• Polycarbonate Insert Option – Adds cost but increases security and visibility
• Operation Type – Manual options reduce cost; electric operation increases price
• Colour Finish – Standard colours are more cost effective; custom RAL/BS adds cost
• Controls & Automation – Remote controls and smart systems (Somfy IO) increase price
• Installation Complexity – Shopfront type, access, and working conditions affect cost

Budget Guidance

• A premium upgrade from perforated shutters, offering maximum visibility
• Ideal for luxury retail, showrooms, and design led environments
  Best suited where display, branding, and visibility are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
