Collection:
Ellard Industrial Motors
Ellard industrial motors are a trusted and widely used automation solution for industrial roller shutters, fire shutters, and high security doors. Designed specifically for demanding commercial and industrial environments, Ellard motors deliver powerful, reliable, and consistent operation for large and heavy duty shutter systems. Available in a wide range of lifting capacities, voltages, and control configurations, these motors are engineered to integrate with standard industrial door control panels, fire alarm interfaces, and safety systems. Renowned for their durability, smooth operation, and long service life, Ellard industrial motors are commonly specified for warehouses, factories, retail units, data centres, and security sensitive applications where dependable performance is critical.
Choose your option
Choose your option
Choose your option
Choose your option

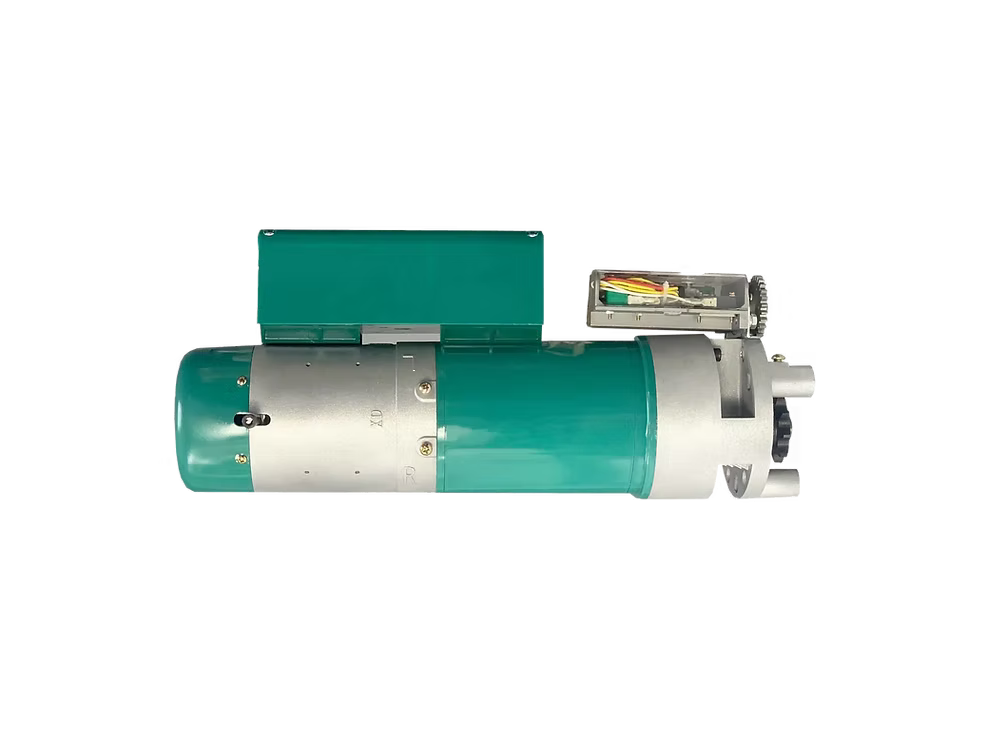

JM500 3 Phase Motor - Right Handed
Choose your option
JM500 3 Phase Motor - Left Handed
Choose your option
JM500 1 Phase Motor - Right Handed
Choose your option
JM500 1 Phase Motor - Left Handed
Choose your option
JM200 3 Phase Motor - Right Handed
Choose your option
JM200 3 Phase Motor - Left Handed
Choose your option

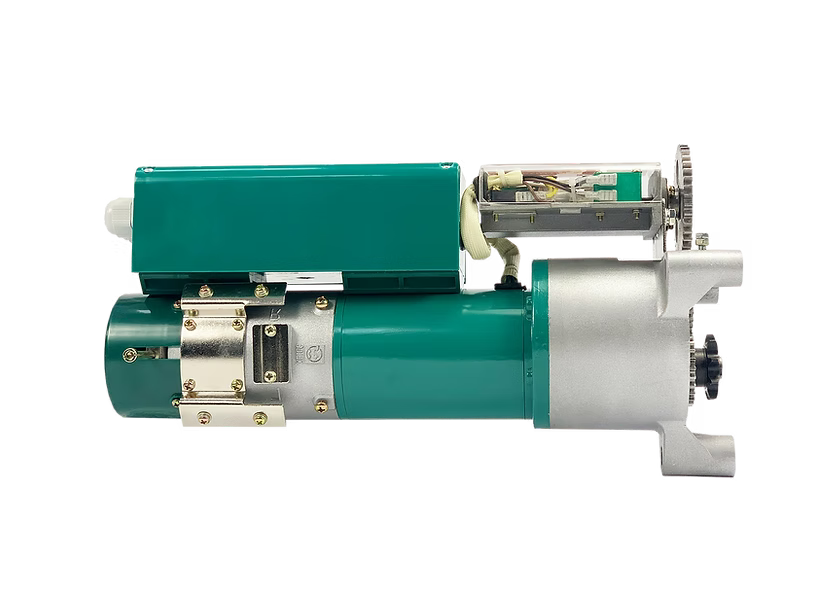

JM150 1 Phase Motor - Right Handed
Choose your option
JM150 1 Phase Motor - Left Handed
Choose your option
Choose your option
Choose your option
Choose your option
Choose your option
Ellard Information and Buying Guide
Ellard Industrial Motor and Control Options
Ellard Industrial Motor and Control Options

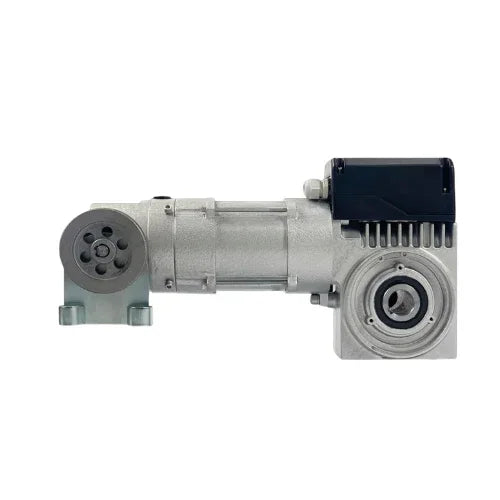

1. Direct Drive Motors
Direct drive operators are one of Ellard’s most common solutions for industrial roller shutters and grilles.
Key features:
- Shaft mounted design
- Integrated anti fall back protection
- High torque capability for large doors
- Available in mechanical or digital limit versions
Typical torque ranges include models from around 170Nm up to 1000Nm or more, suitable for heavy industrial shutters.
Typical applications:

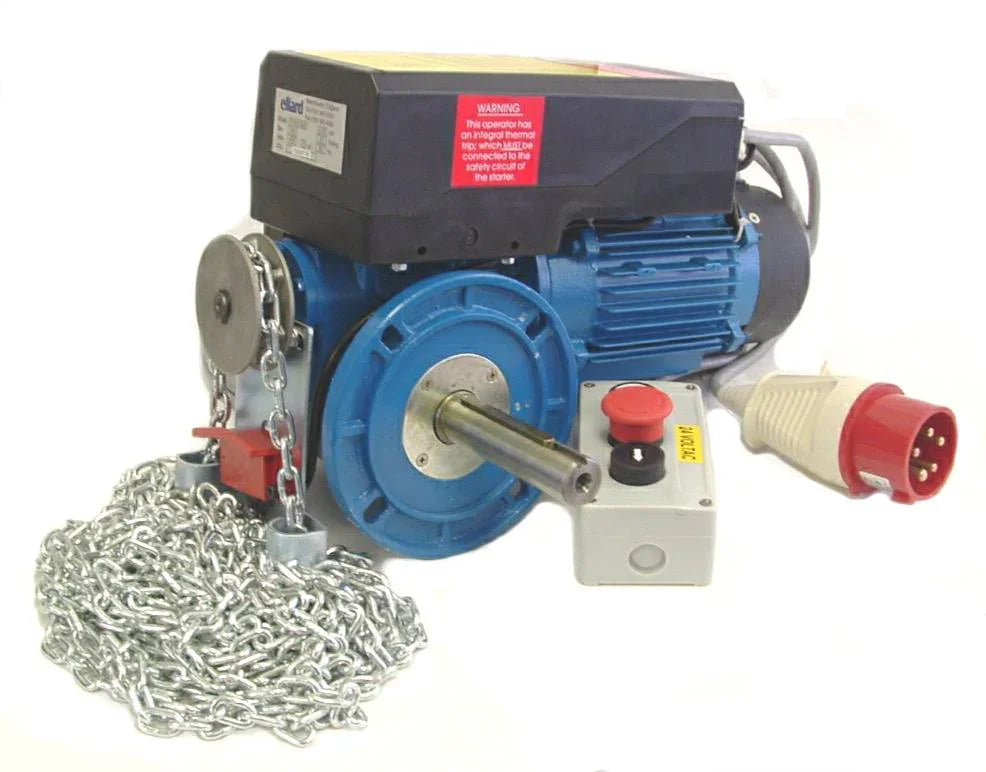

2. Flange Mounted Motors
Flange mounted motors are designed for applications where the motor is mounted alongside the shaft rather than directly onto it.
Key features:
- Chain driven operation
- Suitable for larger or heavier shutters
- Flexible installation options
Typical applications:
- Large industrial roller shutters
- Heavy duty commercial doors
3. Tubular Motors
Ellard also supplies a wide range of tube motors that fit inside the shutter barrel.
Key features:
- Compact design
- Multiple torque ratings
- Optional manual override systems
Typical torque examples include:
- 40Nm
- 50Nm
- 80Nm
- 100Nm
- 150Nm
- 180Nm
- 230Nm
- 350Nm
These motors are commonly used on smaller commercial shutters and security grilles.
4. Fire Door Motors
Ellard supplies specialist motors for fire shutters and fire curtains, such as the JM fire motor range.
Key features:
- Controlled descent during fire activation
- Integrated control electronics
- Designed to integrate with fire alarm systems
- Compliant with fire safety requirements
These motors allow the door to automatically close during a fire alarm event.
5. High Speed Door Motors
Ellard also manufactures motors specifically designed for high-speed industrial doors and rapid roll doors.
Key features:
- High operating speeds
- High cycle durability
- Designed for frequent use environments
Typical applications:
- Warehouses
- Food processing facilities
- Logistics and distribution centres
Ellard Control Panels
Ellard Control Panels
Ellard supplies a range of control panels designed to operate industrial door motors and manage safety systems.
ProMax Control Panel
The ProMax is Ellard’s most popular industrial door control panel.
Key features:
- Compatible with direct drive motors
- Integrated safety monitoring
- Diagnostic display on advanced models
Designed for heavy duty industrial doors - V3D Control Panel
The V3D controller is designed for industrial door automation where reliable motor control and safety integration are required.
Typical features:
- Up / Stop / Down controls
- Safety edge compatibility
- Connection for safety devices
- V7E Control Panel
The V7E control system offers expanded automation options and is used on more complex industrial door systems.
Features may include:
- Programmable operating modes
- Integration with safety devices
- Compatibility with additional automation accessories
Tube Motor Control Panels
Tube Motor Control Panels
Ellard also supplies dedicated controllers for tubular motors.
Examples include:
- Genesis control panel
- DC2 controller
- EasyGroup (controls up to four motors)
- EasyFit (tube motor controller with programmable run timers)
These are typically used for: - Small roller shutters
- Grilles
- Garage doors
Frequently Asked Questions - Ellard Industrial Motors & Controls
1. What are Ellard industrial door motors used for?
1. What are Ellard industrial door motors used for?
Ellard industrial motors are designed to automate heavy duty doors such as roller shutters, sectional doors, high speed doors, and fire shutters. They provide the power required to lift and lower large doors safely and reliably in commercial and industrial environments.
2. What types of motors does Ellard supply for industrial doors?
2. What types of motors does Ellard supply for industrial doors?
Ellard supplies several types of motors including direct drive motors, flange mounted motors, tubular motors, and specialist fire door motors. Each type is designed for different door sizes, weights, and installation requirements.
3. What is a direct drive motor?
3. What is a direct drive motor?
A direct drive motor mounts directly onto the door shaft and drives the shutter without the need for chains or additional transmission systems. These motors are commonly used on industrial roller shutters because they are compact, reliable, and capable of handling heavy loads.
4. What control panels are used with Ellard motors?
4. What control panels are used with Ellard motors?
Ellard supplies a range of control panels designed to operate their motors, including systems such as ProMax, V3D, and V7E control panels. These controllers manage door movement, safety devices, and automation functions.
5. Can Ellard control panels connect to safety devices?
5. Can Ellard control panels connect to safety devices?
Yes. Ellard control systems are designed to integrate with a variety of industrial door safety devices including safety edges, photocells, light curtains, and emergency stop systems to ensure safe door operation.
6. Are Ellard motors suitable for fire shutters?
6. Are Ellard motors suitable for fire shutters?
Yes. Ellard manufactures specialist motors and control systems designed for fire shutters and fire curtain applications. These systems can connect to fire alarm systems and automatically close the door during an alarm activation.
7. Can Ellard motors be serviced or repaired?
7. Can Ellard motors be serviced or repaired?
Yes. Ellard motors are designed for long term use in industrial environments and many components can be serviced or replaced if required. Regular maintenance helps ensure reliable operation and extends the lifespan of the motor.
8. Do Ellard industrial motors have manual override?
8. Do Ellard industrial motors have manual override?
Most Ellard industrial motors include a manual override system, such as a hand chain or emergency manual operation, allowing the door to be operated if there is a power failure.
9. Are Ellard motors suitable for high cycle industrial doors?
9. Are Ellard motors suitable for high cycle industrial doors?
Yes. Ellard motors are designed for demanding industrial environments and can be used on doors that operate frequently throughout the day, such as warehouse shutters and loading bay doors.
10. How do I choose the correct Ellard motor for an industrialdoor?
10. How do I choose the correct Ellard motor for an industrialdoor?
Selecting the correct motor depends on factors such as door size, weight, shaft size, and frequency of operation. The required torque and control system must be matched to the specific door application to ensure safe and reliable operation.
