Collection: FD30 Fire Doors

FD30 steel fire doors provide 30 minutes of certified fire resistance and are available in several configurations depending on application, security needs, and ventilation requirements. All variants must be supplied as complete door sets tested to BS EN 1634-1.

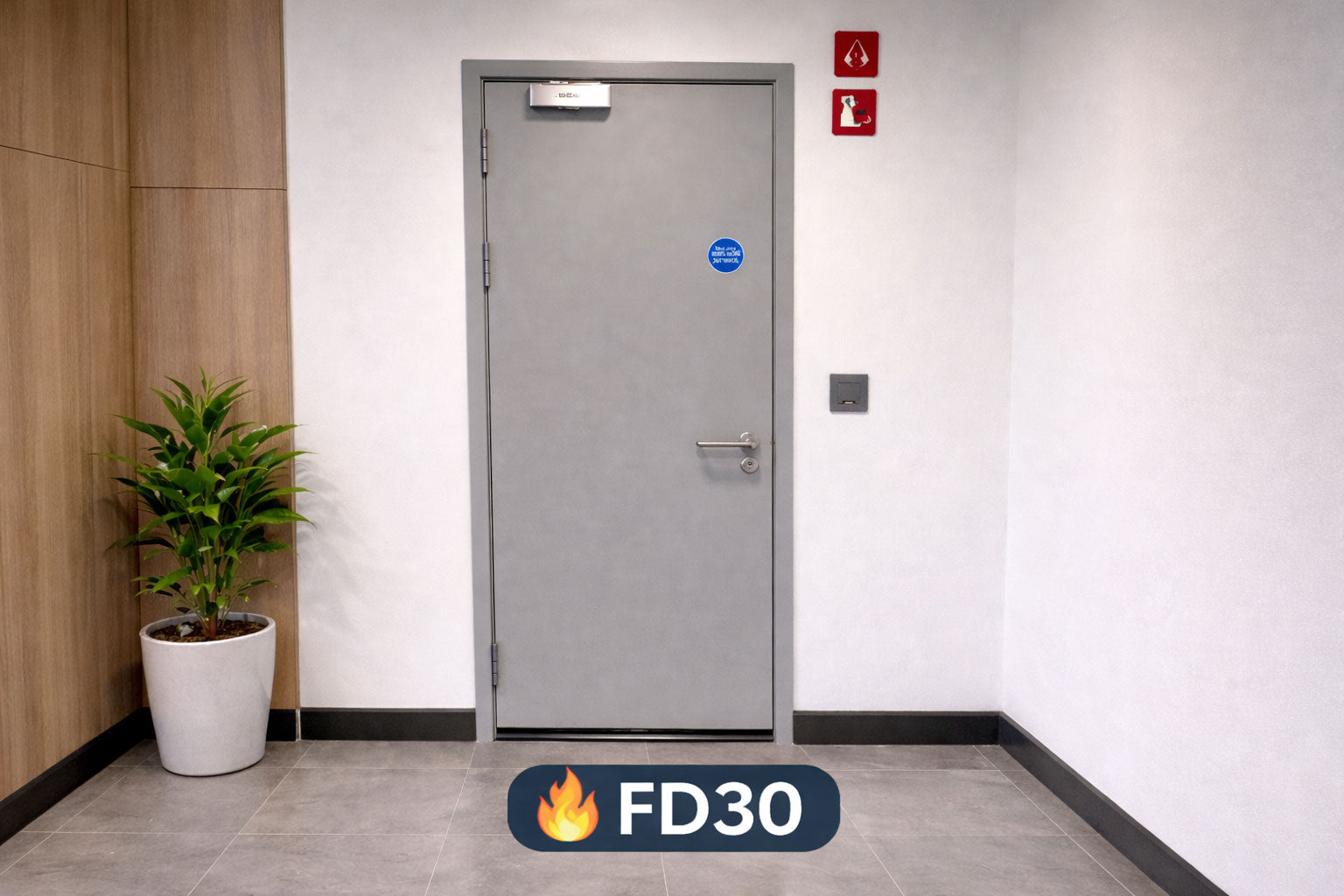

FD30 Steel Personnel Doors

Designed for everyday access within commercial and industrial buildings.

Common applications include:

• Internal corridors
• Service rooms
• Plant access points
• Back of house areas

They provide certified 30 minute fire resistance combined with durable steel construction for high traffic environments.

FD30 Steel Fire Exit Doors

These doors combine 30 minute fire resistance with compliant emergency escape hardware.

Typically fitted with:

• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)

Used on protected escape routes where fire compartmentation and safe egress are both required.

FD30 Security Rated Steel Fire Doors

Specified where both fire protection and enhanced resistance to forced entry are required.These doors may:

• Incorporate reinforced cores
• Feature upgraded locking systems
• Be tested to security standards (e.g. LPS 1175 and PAS24), where compatible with fire certification

Suitable for secure storage rooms, plant areas, and higher-risk environments.

FD30 Louvered Steel Fire Doors

These doors incorporate certified fire rated louvre panels to allow controlled airflow while maintaining 30 minute fire resistance.

Commonly installed in:

• Boiler rooms
• Electrical intake rooms
• Mechanical plant areas

The louvre system must be part of the tested configuration to maintain the FD30 rating.

FD30 Glazed Steel Fire Doors (Optional Variant)

FD30 doors can also include fire rated glazing panels, improving visibility along corridors while maintaining certified fire performance.

Each type of FD30 steel fire door must be specified in line with the building’s fire strategy and installed according to the manufacturer’s certified detail to ensure the declared 30 minute fire resistance is achieved.

FD30 steel fire doors can be tailored to suit building layout, operational requirements, and architectural preferences, provided all elements remain within the scope of the certified test evidence to BS EN 1634-1.

Fire Performance Classification

• FD30 (30 minutes fire resistance)
• FD30S (30 minutes fire resistance with smoke seals)

Smoke seals can be integrated where cold smoke restriction is required as part of the fire strategy.

Door Configuration

• Single leaf doors (most common)
• Double leaf doors for wider openings
• Side panels or overpanels (where within certification scope)

Doors are manufactured to measure for precise opening sizes.

Glazing Options

FD30 steel doors can incorporate certified fire rated glazing, including:

• Vision panels (various shapes and sizes)
• Clear or obscured fire glass
• Integrity (E) or insulation (EI) glass classifications

All glazing must be installed using approved systems within the tested configuration.

Louver Panels

Certified fire-rated louvre systems can be integrated to allow ventilation in plant and service rooms while maintaining FD30 performance.

Hardware and Ironmongery

Customisable hardware options include:

• Lever handles and locksets
• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)
• Door closers
• Access control integration
• Multi-point locking systems

All hardware must be fire-rated and approved for use within the door set.

Security Enhancements

FD30 steel fire doors can be upgraded with:

• Reinforced steel construction
• Anti-drill and anti-tamper hardware
• Security ratings (e.g. LPS 1175), where compatible

This is suitable for higher-risk internal areas.

Finish and Colour

• Polyester powder-coated finishes in a wide range of colours
• Frame and leaf colour matching
• Optional stainless steel finishes for hygiene-sensitive areas

Insulation Options

Insulated cores can be specified where improved acoustic or thermal performance is required.

Accessibility Features

• Low thresholds (where appropriate)
• Adjustable frames
• Compatibility with automatic door operators (subject to fire strategy)

All design and customisation choices must remain within the manufacturer’s certified configuration to ensure the FD30 fire rating is maintained and regulatory compliance is achieved.

FD30 steel fire doors are specified where 30 minutes of fire resistance is required to protect escape routes and maintain compartmentation within a building. Their steel construction makes them particularly suitable for commercial and industrial environments where durability is also important.

Commercial Buildings

Commonly installed in:

• Office corridors
• Internal compartment walls
• Service cupboards
• Storage rooms

They help slow fire spread and protect evacuation routes.

Industrial Units and Warehouses

Used for:

• Plant rooms
• Electrical intake rooms
• Internal access between production areas

Maintenance workshops

Steel construction provides impact resistance alongside fire protection.

Schools and Public Buildings

Installed in:

• Corridor doorways
• Staff rooms
• Service areas
• Back-of-house access points

FD30 doors support compartmentation in medium risk environments.

Residential and Multi-Occupancy Buildings

Specified for:

• Apartment entrance doors (where 30 minutes is permitted by the fire strategy)
• Protected corridors
• Internal riser cupboards
• Plant and service rooms

They help maintain safe escape routes in flats and shared accommodation.

Fire Exit Routes

FD30 steel fire exit doors are used on:

• Protected stairwells
• Escape corridors
• Secondary exit routes

When fitted with compliant panic or emergency hardware, they provide both fire protection and safe egress.

Ventilated Plant and Service Rooms

Louvered FD30 steel doors are commonly installed in:

• Boiler rooms
• Mechanical rooms
• Electrical switch rooms

They allow airflow while maintaining certified fire resistance.

FD30 steel fire doors are typically used in areas where a 30 minute fire resistance period is sufficient under the building’s fire strategy.

Correct specification should always align with the fire risk assessment and Approved Document B requirements.

FD30 steel fire doors provide 30 minutes of certified fire resistance, helping to slow the spread of fire and protect escape routes. Their steel construction offers additional durability compared to traditional timber alternatives.

30 Minute Fire Resistance (FD30)

Tested to BS EN 1634-1, FD30 steel doors are designed to:

• Maintain integrity (E) against flame penetration
• Provide insulation (EI) where specified
• Support compartmentation within the building’s fire strategy

Optional Smoke Control (FD30S)

Available with integrated smoke seals to restrict cold smoke movement, improving protection of escape routes and evacuation corridors.

Robust Steel Construction

Steel door leaves and frames provide:

• Impact resistance
• Long service life
• Resistance to warping or distortion
• Suitability for high traffic environments
• Ideal for commercial and industrial applications.

Security Enhancement Options

FD30 steel fire doors can incorporate:

• Reinforced steel cores
• Multi-point locking
• Upgraded hardware
• Optional security ratings (where compatible with fire certification)

This provides dual protection against fire and unauthorised access.

Glazing and Louvre Options

Available with:

• Certified fire rated vision panels
• Fire-rated louvre systems for ventilation

These options allow visibility or airflow while maintaining fire performance.

Wide Range of Finishes

• Polyester powder coated colours
• Frame and leaf matching
• Hygienic finishes for clean environments
• Steel doors can be tailored to suit commercial design schemes.

Compatible with Emergency Hardware

Can be fitted with:

• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)
• Door closers
• Access control systems

All hardware must remain within the certified door set configuration.

Low Maintenance

Compared to timber fire doors, steel doors:

• Resist damage from moisture
• Require minimal upkeep
• Offer long-term durability in demanding environments

Regulatory Compliance Support

When correctly specified and installed, FD30 steel fire doors support compliance with:

• BS EN 1634-1
• Approved Document B
• The building’s fire risk assessment

FD30 steel fire doors offer a practical combination of certified fire protection, durability, and optional security, making them suitable for commercial, industrial, and multi occupancy residential applications where 30 minute fire resistance is required.

FD30 steel fire doors are regulated life safety products and must comply with fire testing standards, Building Regulations, and hardware certification requirements. The declared 30-minute fire resistance is only valid when the door is supplied and installed as a complete certified door set.

Fire Resistance Testing – BS EN 1634-1

FD30 steel fire doors must be tested to BS EN 1634-1, confirming:

• Integrity (E) – Resistance to flame and hot gas passage
• Insulation (EI) – Heat transfer limitation (where specified)

Minimum 30 minutes fire resistance

The complete assembly, leaf, frame, seals, hinges, hardware, glazing, and louvres, must match the tested configuration.

Smoke Control (FD30S)

Where smoke protection is required, doors must include certified smoke seals and meet smoke leakage performance in accordance with relevant standards (often linked to EN 1634-3). These are classified as FD30S.

Building Regulations – Approved Document B

FD30 steel fire doors must align with Approved Document B (Fire Safety) and the building’s fire strategy, including:

• Correct fire resistance period
• Installation within designated compartment lines
• Protection of escape routes and stairwells

Specification should be based on the fire risk assessment.

Emergency Exit Hardware Standards (If Applicable)

Where forming part of an escape route, hardware must comply with:

• BS EN 1125 – Panic exit devices (public access areas)
• BS EN 179 – Emergency exit devices (staff-only areas)

All ironmongery must be approved for use within the certified fire door set.

CE / UKCA Marking (Where Applicable)

If supplied as an external fire door set, compliance may also require:

• EN 16034 – Fire resisting characteristics
• BS EN 14351-1 – External pedestrian doorsets
• CE and/or UKCA marking with Declaration of Performance

Security Standards (If Specified)

Where enhanced security is required, doors may also be tested to standards such as:

• LPS1175 ans PAS24
• Security upgrades must not compromise the fire certification.

Installation to Certified Detail

Installation must follow the manufacturer’s tested specification, including:

• Approved fixing methods
• Correct gap tolerances
• Compatible seals and hardware
• Certified glazing or louvre systems

Unauthorised modifications can invalidate the FD30 rating.

Ongoing Inspection and Maintenance

FD30 steel fire doors must be:

• Included in routine fire door inspections
• Checked for correct self-closing and latching
• Inspected for seal integrity and hardware condition
• Maintained in accordance with fire safety management procedures

When correctly specified, installed, and maintained, FD30 steel fire doors provide compliant 30 minute fire compartmentation in line with BS EN 1634-1, Building Regulations, and the building’s fire risk assessment.

FD30 steel fire doors must be installed and maintained in strict accordance with their certified test evidence. The 30 minute fire rating is only valid when the door is supplied, installed, and maintained as a complete approved door set.

Installation Requirements

Install as a Complete Certified Doorset

An FD30 steel fire door must include:

• Door leaf
• Frame
• Intumescent seals (and smoke seals if FD30S)
• HingesLatch/lockDoor closer

Glazing or louvre system (if specified)

All components must match the configuration tested to BS EN 1634-1.

Structural Fixing

The frame must be securely fixed into a suitable fire rated wall construction using:

• Approved fixings
• Correct fixing centres
• Appropriate packing materials
• Gaps between frame and wall must be fire-stopped with approved materials.

Correct Gap Tolerances

Clearances between the leaf and frame must comply with manufacturer guidance. Excessive gaps can compromise fire and smoke performance.

Self Closing Device

Most FD30 doors require a compliant door closer to ensure the door fully closes and latches after each use. The closer must be correctly adjusted at commissioning.

Glazing and Louvre Installation

If fitted, glazing panels or fire-rated louvres must:

• Be installed using certified glazing systems
• Match the tested configuration
• Not exceed approved size limits

Retrofitting non-certified components invalidates the fire rating.

Hardware Compliance

All ironmongery must be fire-rated and compatible with the certified door set. Emergency hardware must comply with:

• BS EN 1125 (panic bars)
• BS EN 179 (emergency push pads)

Supply Only Considerations

FD30 steel fire doors can be supplied for installation by competent contractors; however:

• Installation must follow certified instructions precisely
• Incorrect fitting may invalidate fire certification
• Compliance responsibility rests with the installer and building operator

Professional installation is strongly recommended for commercial and multi-occupancy buildings.

Maintenance Requirements

FD30 fire doors must form part of the building’s fire safety management plan.

Routine Inspection

Regular checks should confirm:

• Door self-closes fully
• Latch engages correctly
• Intumescent and smoke seals are intact
• Hinges are secure
• No distortion or damage to leaf or frame

Hardware Inspection

• Door closer functioning correctly
• Panic or emergency hardware operating smoothly
• Locks and latches secure

Repairs and Adjustments

Any repairs must use approved components that match the original certified specification. Unauthorised alterations can invalidate the FD30 rating.

Inspection Frequency

In commercial and multi occupancy buildings, fire doors should be inspected at regular intervals (often annually as a minimum, or more frequently in high-use environments).

When correctly installed and maintained in accordance with BS EN 1634-1 and Building Regulations, FD30 steel fire doors provide reliable 30 minute fire compartmentation and support safe evacuation strategies.

The cost of FD30 steel fire doors depends on size, configuration (single or double leaf), glazing or louvre options, hardware specification, finish, and installation complexity. As certified door sets tested to BS EN 1634-1, pricing reflects both fire performance and compliant hardware.

FD30 Steel Personnel Doors (Single Leaf)

Suitable for internal corridors, plant rooms, and service areas.

• Supply only: From £750 – £1,200
• Supplied and installed: From £1,400 – £2,200

Based on a standard single door size (approx. 900mm x 2100mm).

FD30 Steel Fire Exit Doors

Including compliant panic hardware.

• Supply only: From £950 – £1,500
• Supplied and installed: From £1,800 – £2,800

Pricing varies depending on hardware specification (BS EN 1125 vs BS EN 179).

FD30 Louvered Steel Fire Doors

Including certified fire-rated louvre panel.

• Supply only: From £1,100 – £1,800
• Supplied and installed: From £2,000 – £3,200

Cost depends on louvre size and airflow requirements.

FD30 Glazed Steel Fire Doors

Including certified fire-rated vision panels.

• Supply only: From £1,000 – £1,800
• Supplied and installed: From £1,900 – £3,000

Glazing size and specification affect final cost.

FD30 Security Rated Steel Fire Doors

Where additional security enhancements are required.

• Supply only: From £1,500 – £2,500
• Supplied and installed: From £2,800 – £4,500+

Pricing depends on reinforced construction and upgraded locking systems.

Double Leaf FD30 Steel Doors

For wider openings.

• Supply only: From £1,800 – £3,000
• Supplied and installed: From £3,000 – £5,500+

What Affects Final Pricing

• Door size and configuration
• FD30 vs FD30S (smoke seals)
• Glazing or louvre specification
• Panic hardware or access control integration
• Powder-coated finish
• Installation complexity and structural preparation

Getting an Accurate Quote

Because FD30 steel fire doors must be installed as certified door sets to maintain compliance with BS EN 1634-1 and Building Regulations, accurate opening measurements and hardware specification are essential. A site survey is recommended to ensure correct fire rating, hardware compliance, and installation detail.
