Collection: Glazed Steel Door Systems

Glazed steel door systems are available in a variety of configurations depending on architectural design, security requirements, fire performance, and building use.

Slimline Glazed Steel Doors

Designed with minimal steel framing to maximise glass area and sightlines.

Commonly used in:

• Office interiors
• Contemporary residential developments
• Internal partitions
• Feature entrances

These systems provide a modern aesthetic while maintaining structural strength.

Fire Rated Glazed Steel Doors

Engineered to provide certified fire resistance while incorporating fire-rated glazing.

• Internal doors tested to BS EN 1634-1
• External fire doors compliant with BS EN 16034 (in conjunction with BS EN 14351-1)

Available in ratings such as FD60 and FD120, depending on specification.

Security Rated Glazed Steel Doors

Designed to provide enhanced resistance to forced entry while maintaining glazed visibility.

Available with certifications such as:

• PAS 24
• LPS 1175 (graded security levels)

Security-rated glazing systems must be included within the tested configuration.

Single and Double Leaf Glazed Doors

Available as:

• Single leaf doors
• Double leaf doors for wider entrances
• Side panels and overpanels

Often specified for communal and commercial entrances.

External Glazed Steel Doors

Designed for external use and capable of complying with:

• BS EN 14351-1
• Weather resistance and wind load standards

Can be combined with fire or security performance where required.

Access Controlled Glazed Doors

Commonly integrated with:

• Intercom systems
• Electric locking
• Card or fob access
• Automatic door operators

Glazed steel door systems can combine slimline aesthetics with certified fire resistance, security ratings, and access control integration, making them suitable for a wide range of commercial, residential, and mixed-use applications.

Glazed steel door systems can be tailored to suit architectural style, security level, fire performance, and access control requirements, provided all enhancements remain within certified test evidence where applicable.

Glazing Design and Layout

• Full height glazing for maximum vision
• Slimline steel framing for contemporary aesthetics
• Partial glazed panels with solid kick plates
• Side panels and overpanels
• Single or double glazed configurations (where specified)
• Glass options may include clear, tinted, frosted, or patterned finishes.

Fire Rated Glazing Options

Where fire resistance is required:

• Fire rated glass tested to BS EN 1634-1 (internal)
• External fire-rated systems compliant with BS EN 16034 (used with BS EN 14351-1)
• Ratings such as FD60 or FD120
• Certified glazing beads and seal systems

All components must match the tested fire door assembly.

Security Rated Configurations

Available with:

• PAS 24 compliance
• LPS 1175 graded security levels

Security rated glazing systems are reinforced and certified as part of the door set.

Door Configuration

• Single leaf doors
• Double leaf doors
• Framed screens and partition systems
• Made to measure sizing
• Fixed glazed panels alongside doors

Ideal for entrance systems and internal glazed partitions.

Finish and Appearance

• Polyester powder-coated finishes
• Wide RAL colour selection
• Contrasting internal and external finishes
• Textured or metallic finishes
• Stainless steel detailing (where required)

Access Control Integration

Glazed steel doors can incorporate:

• Electric strikes
• Magnetic locks
• Intercom systems
• Card and fob access
• Automatic door operators

All systems must maintain safe internal egress where required.

External Performance Enhancements

For external installations:

• Weather seals
• Thermal breaks
• Insulated glazing units
• Compliance with BS EN 14351-1

Acoustic Options

Acoustic glazing and specialist seals can be specified to improve sound reduction where required.

Glazed steel door systems offer a flexible combination of slimline design, certified fire resistance, security performance, and access control integration, allowing high levels of customisation without compromising compliance or structural integrity.

Glazed steel door systems are used where visibility, natural light, and architectural design must be combined with strength, security, or fire performance. Their versatility makes them suitable for both internal and external applications across commercial and residential buildings.

Office Buildings

Commonly installed in:

• Main entrances
• Internal partitions
• Meeting rooms
• Reception areas

Slimline glazed systems maximise light flow while maintaining structural durability.

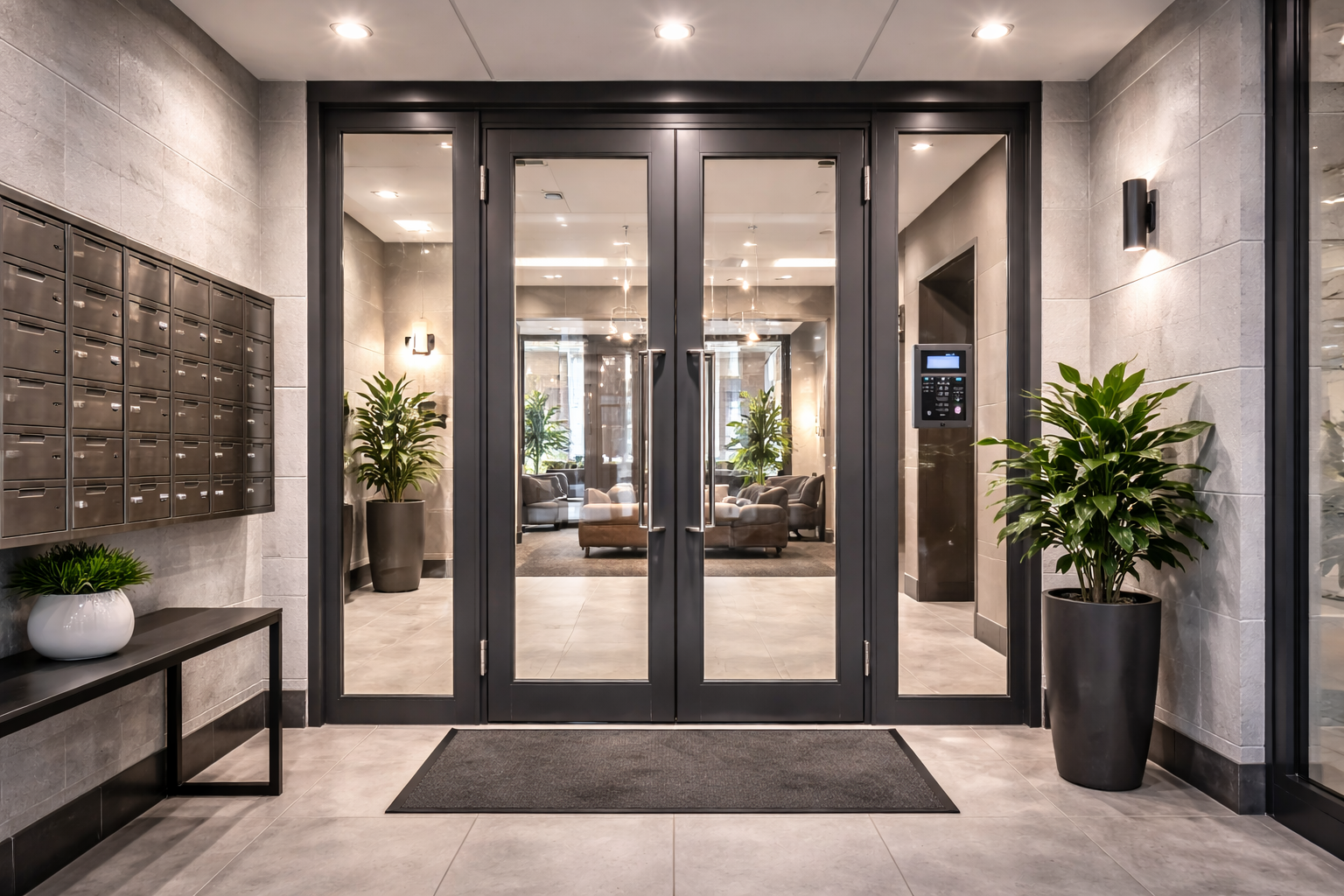

Apartment and Residential Developments

Used for:

• Communal entrance doors
• Lobby areas
• Internal shared corridors
• Stairwell enclosures

Often specified to PAS 24 or with fire rated glazing where required.

Mixed Use Developments

Installed in buildings combining:

• Retail units
• Offices
• Residential apartments

Security rated or fire rated configurations may be required depending on the risk profile.

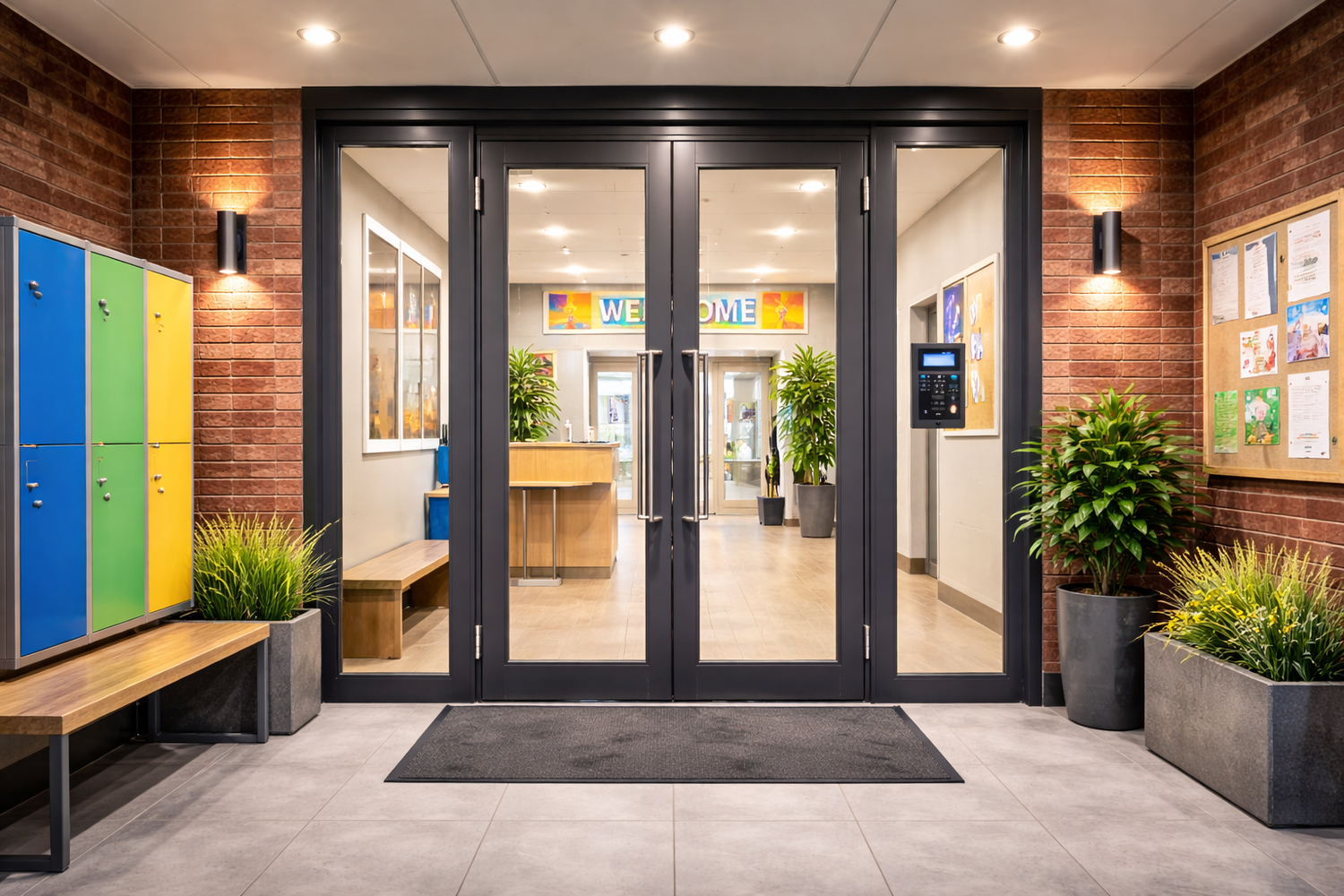

Schools and Public Buildings

Specified for:

• Classroom corridors
• Administrative offices
• Internal glazed partitions
• Entrance systems

Vision panels improve safety and supervision.

Healthcare Facilities

Used in:

• Reception areas
• Internal corridors
• Treatment rooms (with privacy glazing)

Fire rated and acoustic options are often required.

Commercial and Industrial Premises

Installed as:

• Internal office partitions within warehouses
• Plant room access doors
• External glazed entrances

Can combine security ratings such as LPS 1175 where higher protection is needed.

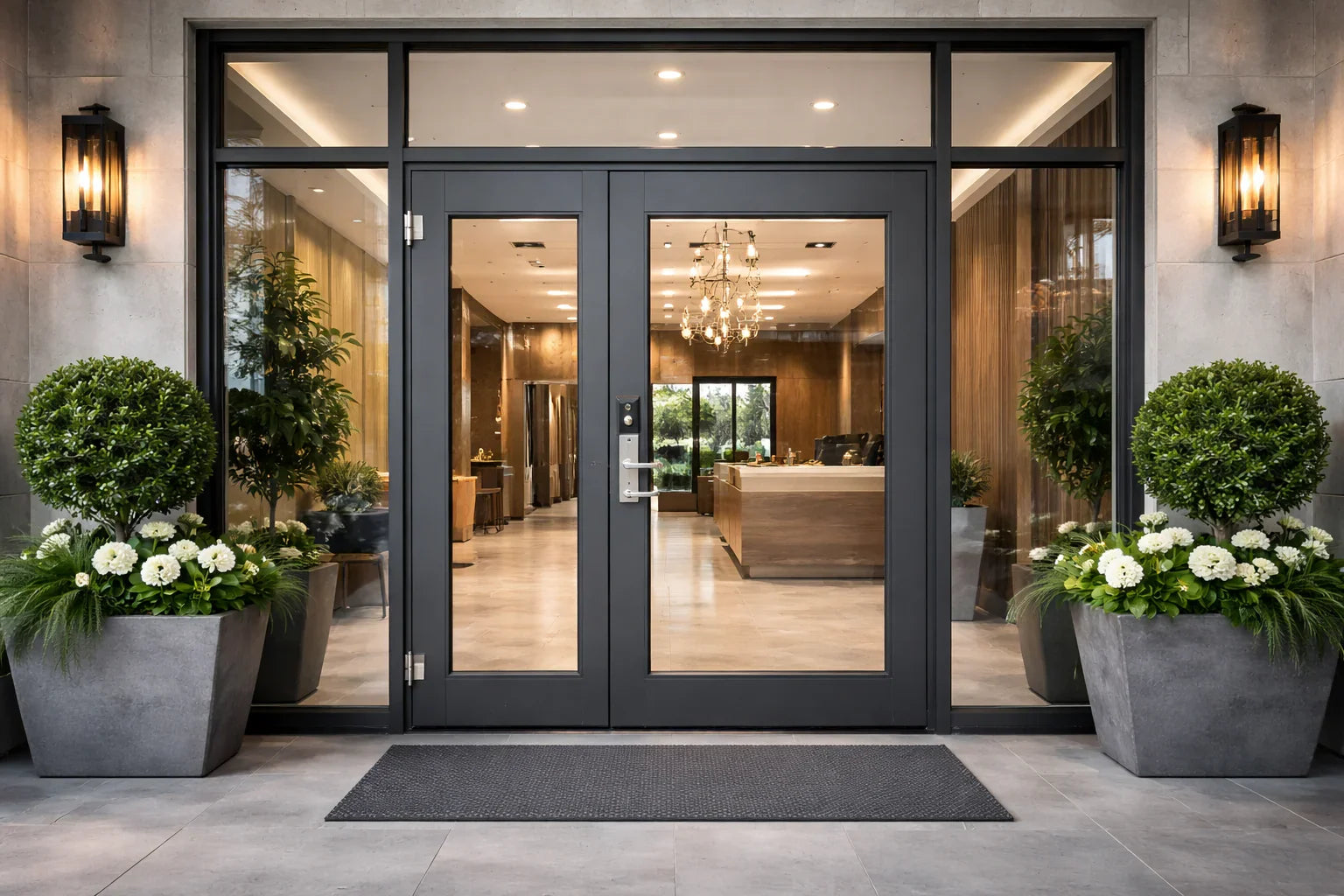

External Entrance Systems

Glazed steel doors are frequently specified as:

• Main commercial entrances
• Apartment block entry doors
• Controlled access points

External versions may comply with BS EN 14351-1, and fire-rated systems with BS EN 16034.

Glazed steel door systems are selected wherever a balance of transparency, durability, security, and compliance is required, making them ideal for modern, high-traffic, and regulated environments.

Glazed steel door systems combine architectural transparency with structural strength, delivering modern aesthetics alongside certified performance where required.

Maximum Visibility and Natural Light

Large glazed panels and slimline steel framing maximise sightlines.

Benefit: Creates brighter, more open environments while improving safety through increased visibility in circulation areas.

Robust Steel Construction

Manufactured with reinforced steel frames and door leaves.

Benefit: High durability, impact resistance, and suitability for high traffic commercial and residential buildings.

Fire Rated Options

Available as certified fire-rated door sets:

• Internal doors tested to BS EN 1634-1
• External fire doors compliant with BS EN 16034 (used with BS EN 14351-1)

Benefit: Maintains compartmentation while still allowing light transmission.

Security Rated Configurations

Can be specified to:

• PAS 24
• LPS 1175 graded levels

Security rated glazing systems form part of the certified assembly.

Benefit: Provides enhanced protection against forced entry without sacrificing visibility.

Suitable for Internal and External Use

External systems may comply with BS EN 14351-1 and include weather-resistant detailing.

Benefit: Versatile installation options for entrances and internal partitions.

Access Control Integration

Compatible with:

• Intercom systems
• Electric strikes and magnetic locks
• Card and fob access systems
• Automatic door operators

Benefit: Enables controlled access in communal and commercial settings.

Wide Range of Finishes

Available in multiple powder-coated RAL colours and contemporary finishes.

Benefit: Complements modern architectural designs while delivering performance.

Low Maintenance

Steel construction resists warping and environmental damage.

Benefit: Long service life with reduced maintenance compared to alternative materials.Glazed steel door systems offer a balanced solution for projects requiring visibility, strength, security, and regulatory compliance within a single, integrated door system.

Glazed steel door systems must comply with relevant fire, security, escape, and external product standards, depending on their application and performance specification. Because glazing forms part of the door assembly, both the steel frame and glazing system must be certified together where required.

Fire Resistance (If Fire Rated)

For fire rated glazed steel doors:

• Internal doors must be tested to BS EN 1634-1
• External fire doors must comply with BS EN 16034, used in conjunction with BS EN 14351-1

The fire rated glazing, seals, beads, and hardware must form part of the tested and certified door set. Common classifications include FD60 and FD120.

Security Certification (If Specified)

Where enhanced security is required, glazed steel doors may be tested to:

• PAS 24 – Enhanced residential security
• LPS 1175 – Graded resistance to forced entry

Security-rated glazing systems must be included within the certified configuration.

Emergency Escape Compliance (If Applicable)

If the door forms part of an escape route:

• Panic hardware must comply with BS EN 1125
• Emergency push pads must comply with BS EN 179
• Doors must allow immediate egress without the use of a key

Security or access control systems must not restrict safe internal escape.

External Door Compliance

For externally installed glazed steel doors:

• Must comply with BS EN 14351-1 (external pedestrian doorsets)
• Require CE and/or UKCA marking
• Must be supplied with a Declaration of Performance (DoP)

This covers weather resistance, wind load, air permeability, and thermal performance.

Building Regulations

Glazed steel door systems must align with:

• Approved Document B (Fire Safety)
• Approved Document M (Access to and Use of Buildings)
• Safety glazing requirements under building regulations

Safety glass must meet relevant impact standards (e.g. toughened or laminated safety glazing where required).

Electrical and Access Control Safety

Where fitted with electric locking, intercoms, or automation:

• Must comply with electrical safety regulations
• Must provide fail-safe internal egress
• Must align with the building’s fire strategy

Installation Compliance

To maintain certification:

• The complete door set must be installed according to manufacturer instructions
• Glazing systems must not be altered
• Fire-stopping must be correctly applied (if fire-rated)
• No unauthorised modifications to hardware or glass

When properly specified and installed, glazed steel door systems can meet UK security standards, fire regulations, external product compliance, and building safety requirements while maintaining architectural performance.

Glazed steel door systems must be installed and maintained in accordance with their certified specification to ensure continued structural integrity, security performance, fire compliance (if applicable), and safe operation.

Installation Requirements

Structural Frame Installation

• Frame must be securely fixed into suitable structural substrate (masonry, concrete, or structural steel)
• Correct fixing centres must be used
• Frame must be square, plumb, and level
• Packers must not compromise structural strength

Incorrect alignment can affect glazing stress, locking performance, and door operation.

Glazing Installation

• Glazing must be installed exactly as per manufacturer instructions
• Certified glazing beads and seal systems must be used
• Safety glazing must comply with relevant impact standards
• No substitution of glass types outside certified specification

For fire rated or security rated doors, glazing must match the tested configuration.

Fire Rated Installation (If Applicable)

For fire rated glazed steel doors:

• Installation must comply with BS EN 1634-1 (internal) or BS EN 16034 (external)
• Intumescent seals must be correctly fitted
• Approved fire-stopping materials must be used around the frame
• Self closing devices must ensure full latching

Improper installation can invalidate fire certification.

Security-Rated Installation (If Applicable)

For PAS 24 or LPS 1175 doors:

• Fixings must match tested detail
• Locking systems must align correctly
• Certified glazing must not be altered
• No unauthorised hardware changes

Access Control and Automation

Where fitted with:

• Electric strikes
• Magnetic locks
• Intercom systems
• Automatic operators

Installation must ensure:

• Safe and immediate internal egress
• Electrical compliance
• Proper alignment and commissioning

Supply Only Considerations

If supplied without installation:

• Installer assumes responsibility for maintaining certification
• Installation must follow technical drawings precisely
• Incorrect fitting may invalidate fire or security ratings

Professional installation is recommended for certified systems.

Maintenance Requirements

Glazed steel door systems are often installed in high-traffic environments and require routine inspection.

Routine Inspection (Recommended Quarterly)

Check for:

• Smooth opening and closing
• Correct latch engagement
• Secure hinge fixings
• Frame stability
• Seal condition
• No glass damage or movement

Glazing Maintenance

• Inspect for cracks or damage
• Ensure glazing beads remain secure
• Clean glazing regularly
• Check seal integrity

Hardware Maintenance

• Lubricate hinges and locks
• Adjust door closers
• Test panic hardware (if fitted)Confirm access control functionality

Fire Door Maintenance (If Fire-Rated)

• Inspect intumescent and smoke seals
• Confirm self closing action
• Ensure no unauthorised modifications

External Door Maintenance

• Inspect weather seals
• Check for corrosion
• Maintain powder coated finish
• Ensure drainage areas are clear

When correctly installed and regularly maintained, glazed steel door systems provide long term durability, certified performance, and continued compliance with fire, security, and building safety standards.

(Indicative UK pricing – excludes VAT unless stated)

The cost of glazed steel door systems depends on glazing size, slimline framing, fire rating, security certification (PAS 24 or LPS 1175), configuration (single or double leaf), and whether access control or automation is required.

Slimline Glazed Steel Doors (Internal)

Designed to maximise vision with minimal steel framing.

• Supply only: From £1,400 – £2,500
• Supplied and installed: From £2,800 – £4,500

Based on a standard single leaf door with large glazed panel.

Glazed Steel Door with Side Panels / Screens

Common for communal entrances and office partitions.

• Supply only: From £2,000 – £4,500+
• Supplied and installed: From £4,000 – £8,000+

Pricing increases with screen size and glazing specification.

Fire Rated Glazed Steel Doors (FD60 / FD120)

Internal doors tested to BS EN 1634-1, external doors compliant with BS EN 16034.

• Supply only: From £1,800 – £3,500+
• Supplied and installed: From £3,500 – £6,500+

Fire rated glazing significantly influences cost.

PAS 24 Glazed Steel Doors

Enhanced residential security compliance.

• Supply only: From £2,200 – £3,800
• Supplied and installed: From £4,000 – £7,000

LPS 1175 Rated Glazed Steel Doors

Graded security for higher-risk applications.

• Supply only: From £3,000 – £6,000+
• Supplied and installed: From £5,500 – £10,000+Higher

LPS grades significantly increase pricing.

Double Leaf Glazed Steel Doors

• Supply only: From £2,500 – £5,500+
• Supplied and installed: From £4,500 – £9,500+

Additional Costs to Consider

• Access control systems: £500 – £2,500+
• Automatic door operators: £1,200 – £3,500+
• Acoustic glazing upgrades
• Specialist finishes
• Structural alterations

What Affects Final Pricing

• Size of glazed area
• Slimline vs standard steel framing
• Fire rating (FD60 vs FD120)
• Security rating (PAS 24 vs LPS 1175 grade)
• External performance compliance
• Access control and automation
• Site access and structural preparation

Getting an Accurate Quote

Because glazed steel door systems often combine fire resistance, security certification, and specialist glazing, accurate opening sizes and performance requirements are essential. A site survey is recommended to ensure correct specification, compliance, and installation pricing.
