Collection: Roller Shutter Guide Rails

Roller shutter guide rails are the vertical channels fitted on either side of the shutter opening that guide the curtain as it opens and closes. The slats run inside these guides, helping keep the shutter aligned, secure, and operating smoothly.

Over time, guide rails can become bent, worn, or damaged, often due to vehicle impact, forced entry attempts, or general wear. Replacing damaged guides can restore smooth operation and prevent further damage to the shutter curtain.

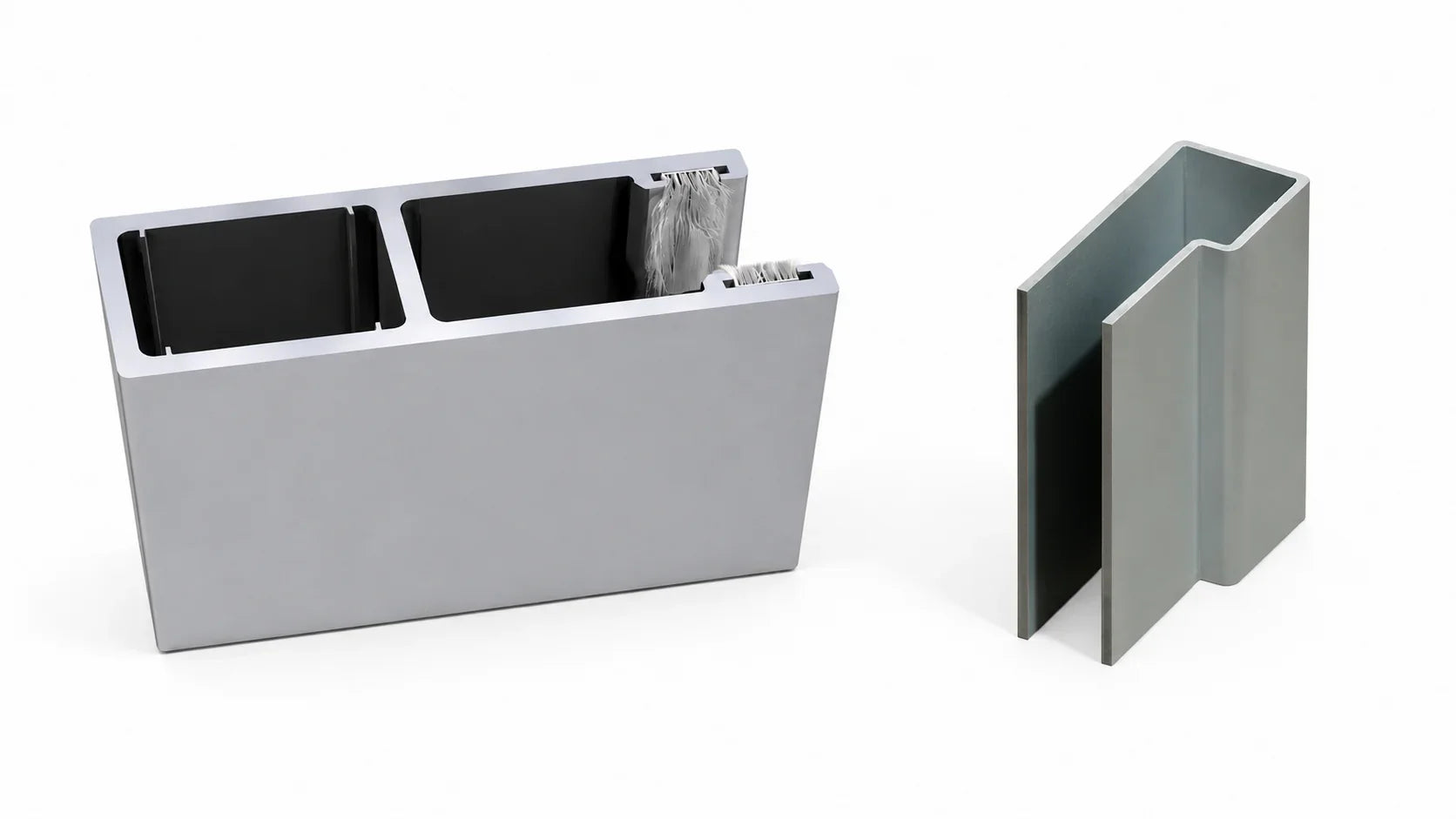

Roller shutter guides are typically manufactured from extruded aluminium or galvanised steel, depending on the type and size of the shutter.

Common guide types include:

• Extruded aluminium guides – typically used on domestic and lightweight commercial shutters

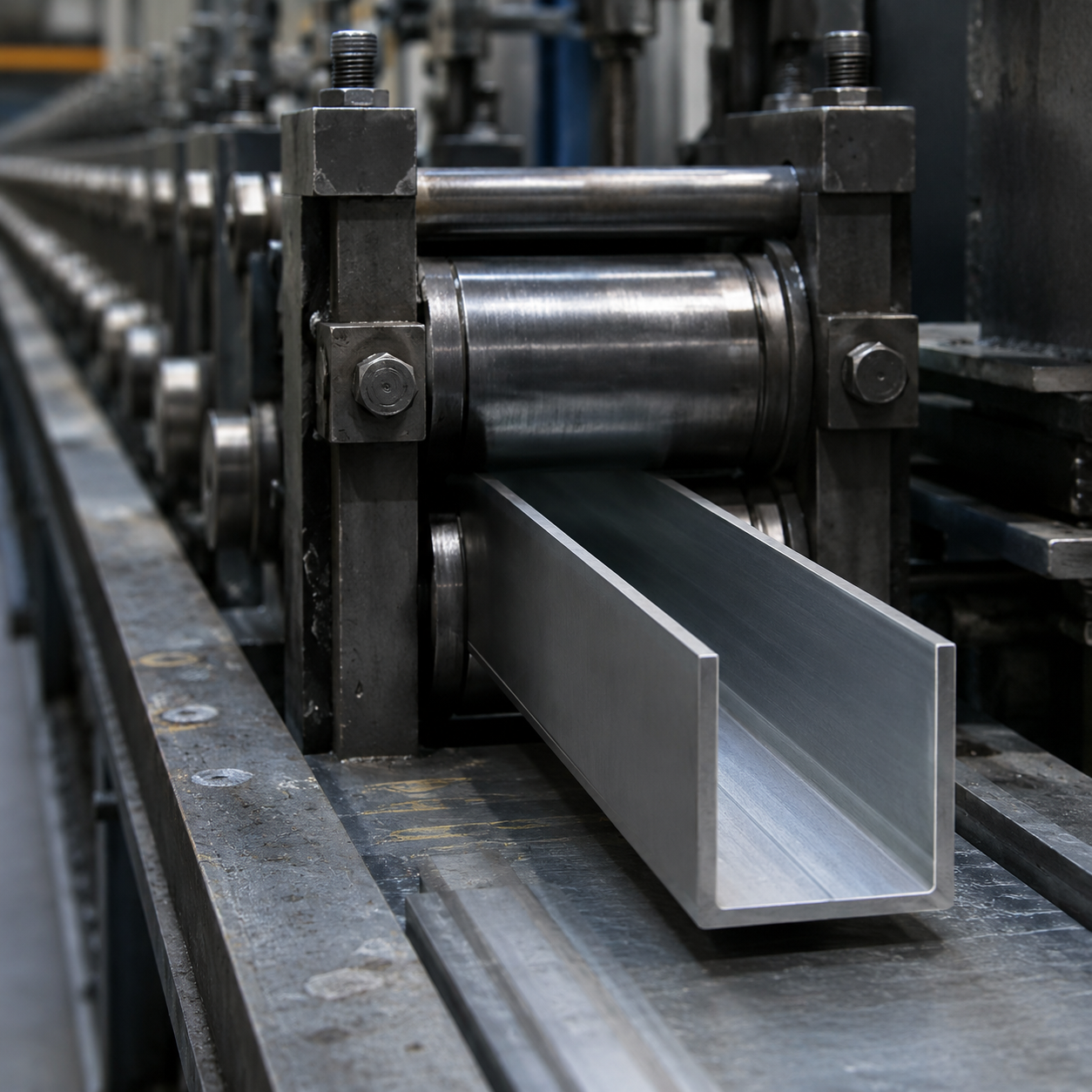

• Steel guides – used on heavier commercial and industrial shutters
• Wind guides – reinforced guides designed to retain the curtain during high wind conditions

Each guide is designed to suit a specific slat profile and shutter size.

When replacing roller shutter guide rails, it is essential to match the existing guide size and profile exactly.

The guide channel width must match the thickness and design of the slats. If the guide is too narrow, the shutter curtain may jam. If the guide is too wide, the curtain may move excessively or become unstable.

Before ordering replacement guides, always check:

• Guide channel width
• Guide depth and profile shape
• Material (steel or aluminium)
• Fixing positions and hole centres

Using the incorrect guide rail can affect the performance, safety, and security of the shutter.

To identify the correct replacement guide rail, measure the following:

1. Guide Channel Width

This is the internal width of the guide where the slats run. This measurement must match the slat thickness and end lock configuration.

2. Guide Depth

Measure the overall depth of the guide rail from the front edge to the back fixing face.

3. Guide Length

Measure the full height of the opening to determine the correct guide length.

4. Guide Profile

Check the shape of the guide profile, as different shutters use different extrusions or folded steel designs.

Guide rails may need replacing if you notice:

• The shutter jamming or catching during operation
• Bent or twisted guide rails
• Excessive noise or vibration
• The curtain coming out of the guides
• Damage caused by impact or forced entry

Replacing damaged guides can restore smooth operation and prevent further issues with the shutter curtain.

Replacing guide rails may involve:

• Removing the shutter curtain from the guides
• Removing existing fixings and brackets
• Reinstalling the new guides with correct alignment
• Ensuring the curtain runs smoothly before securing the shutter

Proper alignment is essential, as misaligned guides can cause the shutter to run unevenly or place strain on the motor.
