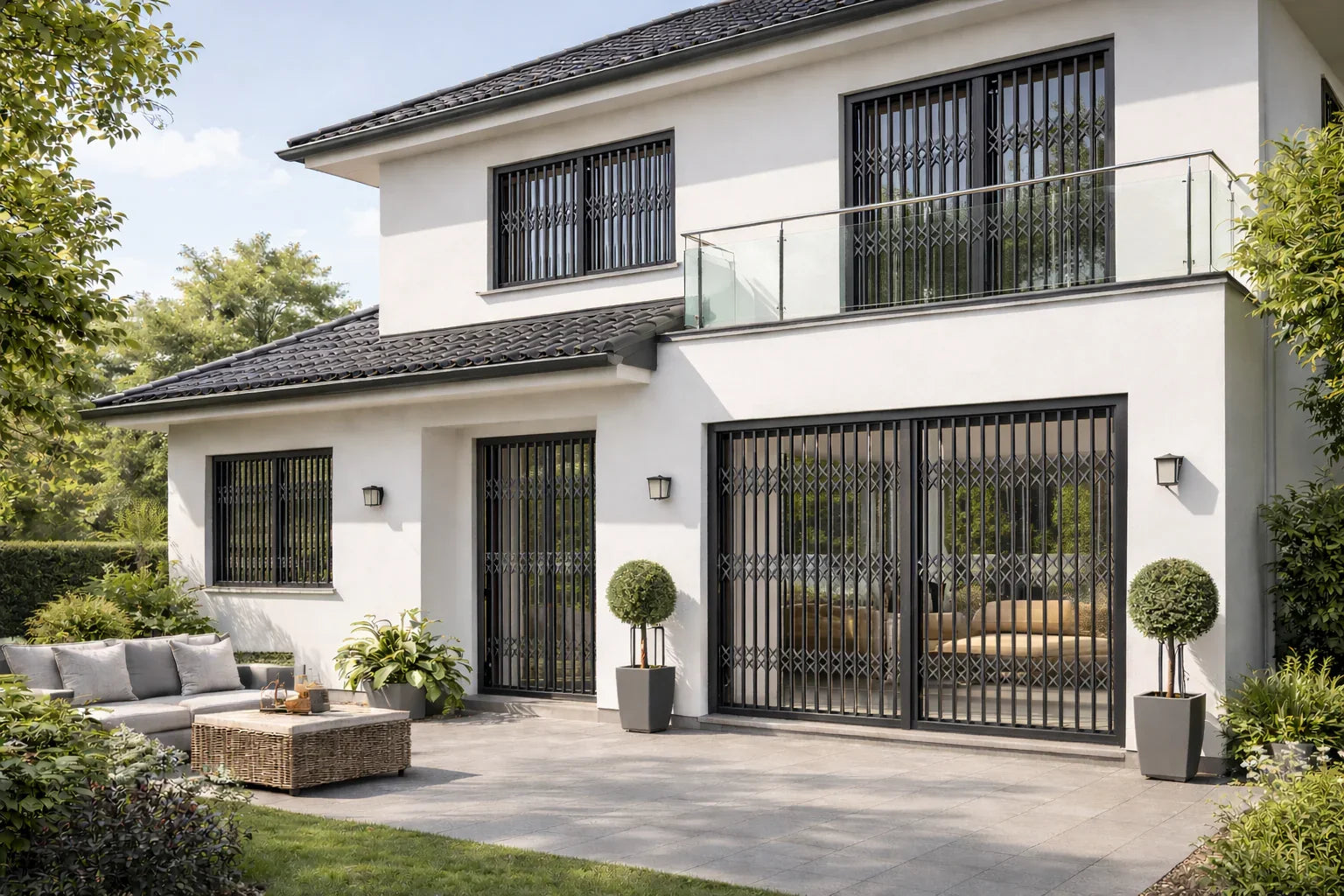

Collection: Domestic Security Grilles

Domestic Security grilles are available in several formats depending on the
required security level, performance and operational flexibility. Our
range covers both standard deterrent solutions and independently tested LPS1175 high security systems.

Fixed Window Bars

Permanently installed steel bar grilles fixed directly to the building structure.

Suitable for:

• Ground floor windows
• Basements
• Vulnerable access points

Provides strong physical protection with minimal moving parts.

Removable Window Bars

Steel bar systems designed to be removed internally when required.

Suitable for:

• Residential properties
• Escape windows
• Locations requiring occasional access

Offers security while maintaining emergency access flexibility.

LPS 1175 Security Rated Window Bars (Up to Level 3)

• Independently tested by LPCB to provide graded resistance to forced entry.
• Available up to LPS 1175 Level 4
• Certification applies to the complete installation

Suitable for higher-risk commercial and infrastructure applications.

Security Mesh Grilles (Up to LPS 1175 Level 3)

Heavy duty welded steel mesh panels providing strong resistance to attack.

• Available in standard or certified LPS 1175 configurations
• Tested up to Level 3

Ideal where smaller aperture protection is required.

Retractable Security Grilles (Up to LPS 1175 Level 3)

Collapsible lattice systems that slide open when not in use.

• Fully tracked or trackless systems
• Available up to LPS 1175 Level 3

Suitable for patio doors, internal compartmentation, and wider openings.

Domestic Security grilles can be specified as fixed, removable, retractable, mesh, or security rated systems with options ranging from visual deterrent protection to independently tested high security solutions up to LPS 1175 Level 4.

Domestic Security grilles can be tailored to suit the required security level, building type, and aesthetic preference, while ensuring structural strength and compliance where certification is required.

Security Level Specification

Available as:

• Standard deterrent grilles
• Secured By Design
• LPS 1175 security rated systems
• Window bars and mesh grilles up to Level 3
• Retractable grilles up to Level 3

The chosen level influences bar thickness, mesh gauge, fixing method, and reinforcement.

Bar & Mesh Design Options

Window Bars

• Vertical bar design
• Horizontal bar design
• Decorative bar layouts (where suitable)
• Internal or external fixing

Mesh Grilles

• Welded steel mesh panels
• Different mesh apertures
• Reinforced perimeter frames

Design must remain within certified scope for LPS1175 Security rated systems.

Retractable Grille Configuration

• Single stack (one-way opening)
• Bi parting (meeting in the centre)
• Fully tracked (top and bottom track)
• Trackless systems (no bottom track)

Allows adaptation to narrow openings or wide shopfronts.

Removable & Hinged Options

• Internal quick release removable bars
• Hinged grille panels
• Lockable removable sections

Useful where access or emergency escape flexibility is required.

Finish & Appearance

• Polyester powder coated finish
• Wide RAL colour range
• Match to window frames or building façade
• Internal/external colour options

Made to Measure Sizing

• Custom built to structural opening
• Suitable for irregular window shapes
• Designed for masonry, steel, or timber substrates

Locking Options

• Keyed locking systems
• Multi point locking (where applicable)
• Security rated cylinders

Lock selection must match certified configuration for LPS1175 systems.

Domestic Security grilles can therefore be customised in design, finish, configuration, and security level, from simple fixed bars to independently tested high-security systems, while ensuring performance remains aligned with the required risk level.

Domestic security grilles are installed where residential windows or doors are vulnerable to intrusion, particularly at ground level or in concealed locations around the property.

Ground Floor Windows

The most common application.

• Front facing windows
• Rear elevation windows
• Side alley windows

Provides protection against opportunist breakins.

Basement & Lower Ground Windows

Used on:

• Cellar windows
• Semi basement flats
• Lightwell windows

These openings are often at higher risk due to concealment and accessibility.

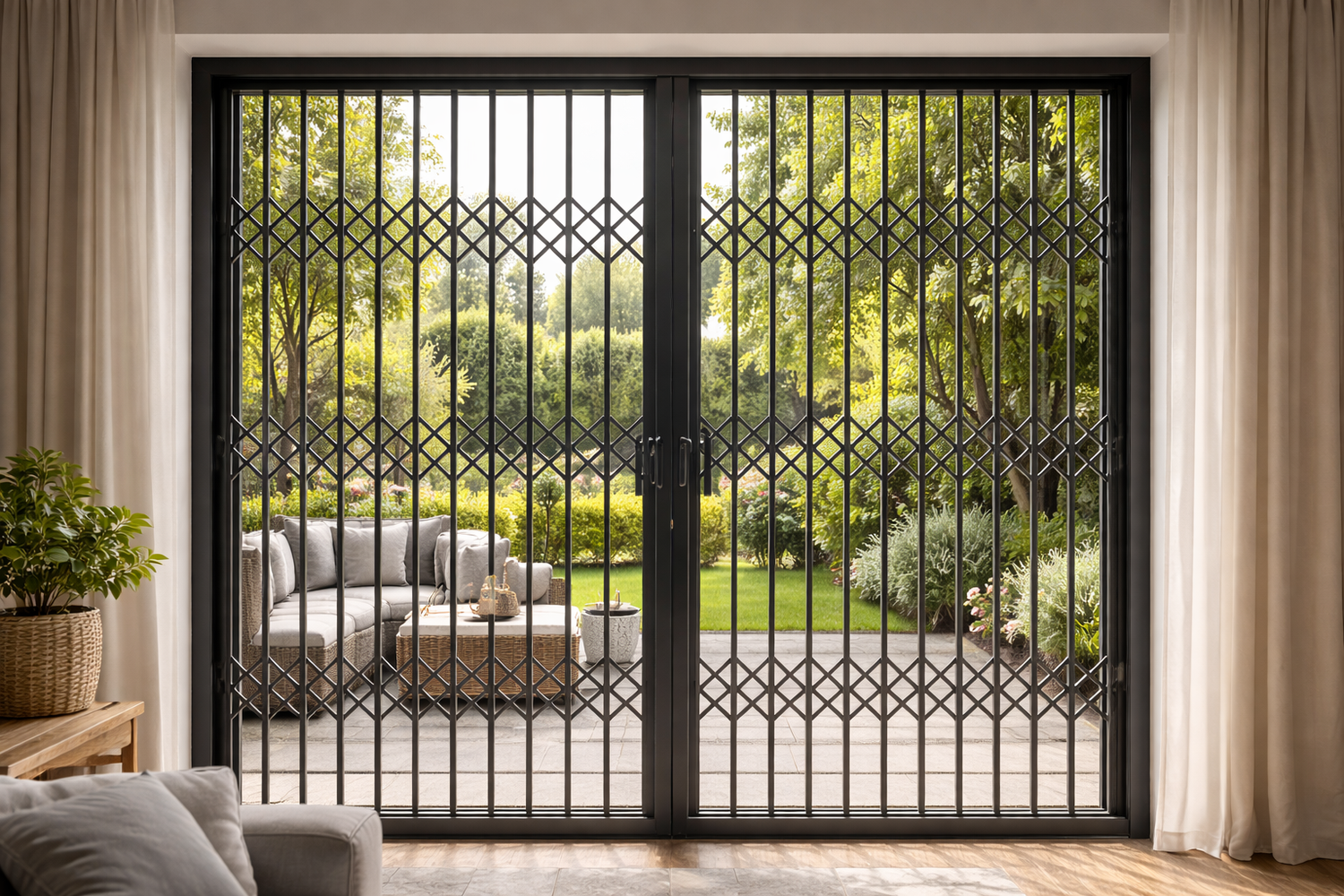

Patio & French Doors

Retractable grilles can be installed across:

• Sliding patio doors
• Bifold doors
• French doors

Allows secure closure overnight while maintaining visibility.

Rear & Side Access Points

Installed where doors or windows are:

• Not visible from the street
• Accessible via gardens or shared access routes

Helps secure areas that are typically targeted due to reduced visibility.

Apartments & Multi Occupancy Properties

Used in:

• Ground floor flats
• Converted houses
• Communal entrance glazing

Improves security without altering the building façade significantly.

Loft Conversions & Low Level Glazing

Where glazing extends closer to floor level and additional protection is desired.

Domestic security grilles are best suited to protecting vulnerable windows and doors around the home, particularly where there is increased exposure, concealment, or insurer-recommended security measures

Domestic Security grilles provide a practical and durable method of protecting vulnerable openings while maintaining visibility and ventilation. They are available from standard deterrent systems through to independently tested high security LPS1175 solutions.

Physical Intrusion Protection

Manufactured from steel bars, reinforced frames, or welded mesh panels.

Benefit:Creates a strong physical barrier that resists opportunist and, where specified, deliberate forced entry.

LPS 1175 Security Rated Options

• Window bars and mesh grilles available up to LPS 1175 Level 3
• Retractable grilles available up to Level 3

Benefit:Provides independently tested, graded security performance suitable for higher risk environments.

Maintains Visibility & Airflow

Open bar and mesh construction allows light and ventilation to pass through.

Benefit:Protects the property without blocking natural light or creating a “boarded up” appearance.

Fixed, Removable, or Retractable Options

Available as:

• Permanently fixed grilles
• Internally removable bars
• Sliding retractable systems

Benefit:Flexibility to suit operational and escape requirements.

Custom Finishes

Available in powder-coated finishes across a wide RAL colour range.

Benefit:Can match window frames or building façade for a discreet or coordinated appearance.

Made to Measure Construction

Custom built to fit specific openings.

Benefit:Ensures precise fit and structural strength for non-standard window or door sizes.

Durable & Low Maintenance

Heavy duty steel construction with corrosion resistant finishes.

Benefit:Long service life with minimal maintenance requirements.

Compatible with Escape & Safety Requirements

Removable or fire exit compatible systems available where required.

Benefit:Maintains life safety compliance while providing security.

Domestic Security grilles offer a cost effective, scalable security solution, from simple deterrent protection to certified high security systems, while preserving visibility, airflow, and architectural integrity.

Domestic security grilles must comply with relevant security certification standards, fire safety regulations, building regulations, and structural safety requirements, depending on their location and intended use.

Security Certification (Where Specified)

• LPS 1175 (Levels 1–3+)

Where enhanced protection is required, door security grilles can be specified to:

• LPS 1175 Issue 7 or 8
• Certified to graded security levels
• Independently tested by LPCB

Certification applies to:

• Grille construction
• Locking system
• Fixing method

Installation must follow the tested fixing detail to maintain certification.

Fire Safety & Means of Escape (Approved Document B)

If a door forms part of an escape route:

• The grille must not prevent safe and immediate egress
• Must not obstruct compliant panic hardware (BS EN 1125)
• Must not obstruct emergency exit devices (BS EN 179)
• Clear escape width must be maintained
• Security must never compromise life safety.

Retractable or hinged systems protecting escape doors may require internal release mechanisms.

Accessibility (Approved Document M)

Where installed along accessible routes:

• Must not reduce compliant door widths
• Trackless systems may be required to avoid trip hazards
• Threshold details must not create barriers

Bottom tracks must be carefully specified in public environments.

Structural Installation Requirements

• Must be securely fixed into structural substrate
• Appropriate anchor types must be used
• Installation must resist leverage and forced entry
• No reliance on non structural finishes

For certified systems, fixing must match tested specification.

External Durability

For externally installed grilles:

• Corrosion resistant finishes required
• Weather resistant fixings used
• Structural integrity maintained in exposed conditions

When correctly specified and installed, domestic security grilles can meet graded security certification requirements while remaining compliant with fire safety, accessibility, and structural safety regulations.

Domestic security grilles must be installed correctly to ensure structural integrity, smooth operation (where applicable), and compliance with security and life safety regulations.

Installation Requirements

Structural Fixing

• Must be securely fixed into structural substrate (brick, block, concrete, or structural steel)
• Correct anchor type and fixing centres must be used
• Door opening must be structurally sound and square
• No reliance on plasterboard or decorative finishes

For LPS 1175 certified systems, installation must follow the tested fixing specification.

Fixed Mesh or Hinged Security Gates

• Frame must be level and plumb
• Anti-tamper fixings used where required
• Hinges securely anchored and aligned
• Locking mechanism must fully engage
• Perimeter gaps must be minimised to prevent leverage.

Retractable Door Security Grilles

• Top track securely fixed to structural head
• Bottom track (if fitted) accurately aligned
• Trackless systems require precise side guide alignment
• Grille must slide freely without binding
• Locks must engage correctly at closing point
• Operational testing should be completed on handover.

Escape & Fire Route Considerations

If protecting a door that forms part of an escape route:

• Must not obstruct panic hardware (BS EN 1125)
• Must allow immediate internal release where required
• Must not reduce compliant escape width

Life safety must always take priority.

Supply Only Considerations

If supplied without installation:

• Installer assumes responsibility for structural suitability
• Installation must follow manufacturer technical drawings
• Certified systems must follow approved fixing detail

Professional installation is recommended for security-rated systems.

Maintenance Requirements

Maintenance requirements vary depending on system type.

Routine Inspection (Recommended Annually)

Check for:

• Secure fixings
• Frame stability
• Lock engagement
• Signs of corrosion
• Damage or deformation

Higher-use commercial environments may require 6 monthly inspections.

Retractable System Maintenance

• Keep tracks clear of debris
• Lightly lubricate pivot points and locks
• Check smooth operation
• Inspect top and bottom guides
• Avoid over lubrication, which can attract dirt.

Lock & Hardware Maintenance

• Inspect cylinders and locking mechanisms
• Replace worn components promptly
• Confirm internal release functions correctly (if fitted)

External Maintenance

• Inspect powder-coated or galvanised finish
• Touch up damaged coating
• Check for corrosion
• Ensure weather seals remain intact (where applicable)

When properly installed and maintained, domestic security grilles provide long term, reliable protection while remaining compliant with security certification, building regulations, and life safety requirements.

(Indicative UK pricing – excludes VAT unless stated)

The cost of domestic security grilles depends on type (fixed mesh, hinged gate, retractable, trackless), opening size, security rating, finish, and installation conditions.

Fixed Mesh Door Grilles(Protecting glazed door panels or rear doors)

• Supply only: From £250 – £500 per door
• Supplied and installed: From £450 – £900 per door

Based on a standard single door up to approx. 900mm wide.

Hinged External Security Gates(Domestic)

• Supply only: From £350 – £700 per door
• Supplied and installed: From £650 – £1,200 per door

Pricing varies depending on bar vs mesh design and locking specification.

Retractable Door Security Grilles

Priced per metre width.

• Standard retractable installed: From £900 – £1,300 per metre width
• Typical single doorway (1m wide): £900 – £1,500 installed

LPS 1175 Security Rated Door Grilles

Where certified protection is required:

Level 1–2 installed:

• From £1,200 – £2,000 per opening

Level 3+ installed:

• From £2,000 – £4,000+ per opening

Pricing depends on configuration and security level.

What Affects Final Pricing

• Opening width and height
• Fixed vs hinged vs retractable system
• Security level (standard vs LPS 1175)
• Locking specification
• Powder-coated finish
• Structural substrate condition
• Site access and installation complexity

Getting an Accurate Quote

Domestic security grilles are made to measure. Final pricing depends on exact dimensions, required security rating, and whether the door forms part of an escape route. A site survey is recommended to confirm structural fixing suitability, compliance requirements, and final installation cost.
