Window Security Bars

Strong Physical Window Protection

Window bars provide a robust barrier against break-ins, vandalism, and forced entry

Cost-Effective Security Solution

One of the most affordable ways to secure vulnerable windows

Internal or External Installation

Window bars can be fitted inside or outside depending on security needs

Custom Made to Measure

Each set of window bars is manufactured to suit your exact opening

Multiple Security Levels Available

Choose from 12mm, 16mm, or 20mm bars depending on risk level

Choice of Frame Types

Box section, flat bar, or angle frames to suit different installations

Fixed, Hinged or Removable Options

Flexible designs allow for access, cleaning, and emergency escape

Visual Deterrent Against Intruders

Externally fitted window bars act as a strong deterrent

Durable Powder-Coated Finish

Available in a range of standard and bespoke RAL/BS colours

Optional Galvanised Protection

Ideal for external window bars to prevent rust and corrosion

Suitable for Domestic & Commercial Use

Perfect for homes, shops, warehouses, and industrial buildings

Low Maintenance & Long Lasting

Designed for durability with minimal ongoing upkeep

Our Window Bars are fully customisable, allowing you to achieve the right balance of security, practicality, and appearance for your specific application. Whether for domestic, commercial, or high-security environments, each grille is manufactured to meet your exact requirements.

Made-to-Measure & Bespoke Design

All window bars are manufactured to your exact dimensions, ensuring a precise fit for any opening.

• Suitable for small domestic windows through to large commercial openings
• Bespoke specifications available for unique projects or non-standard requirements
• We can design grilles to meet specific site conditions, risk levels, or architectural constraints

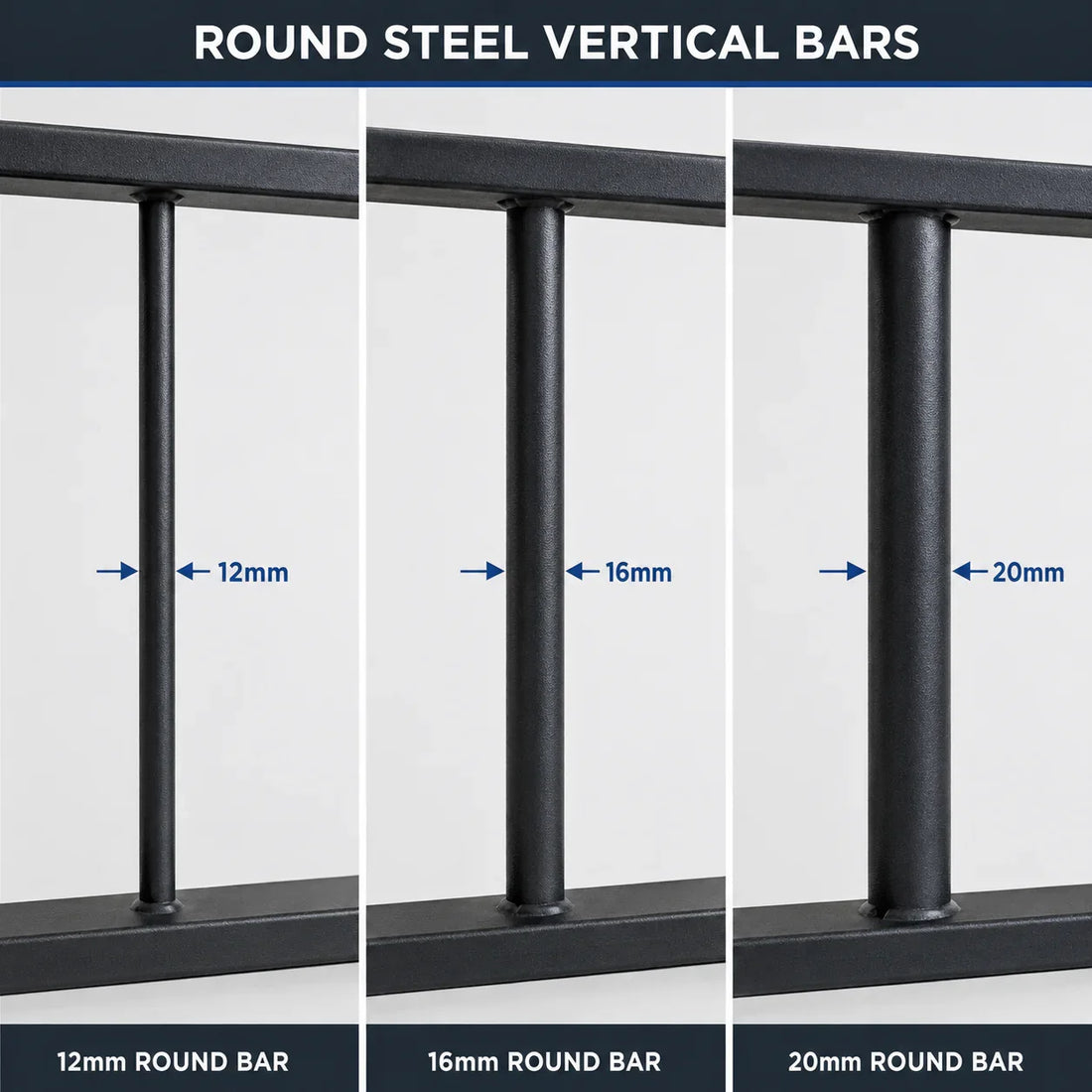

Security Levels & Bar Options

We offer a range of bar thicknesses to suit different levels of protection:

• 12mm Round Bars – Internal domestic use, lighter appearance
• 16mm Round Bars – External applications, strong and durable
• 20mm Round Bars – Heavy-duty, commercial and high-risk environments

For higher security requirements, we can also supply security-rated window bars, tested up to LPS1175 Security Rating Level 4, suitable for sites requiring certified protection.

Frame Types

Choose from a range of frame designs to suit your installation method:

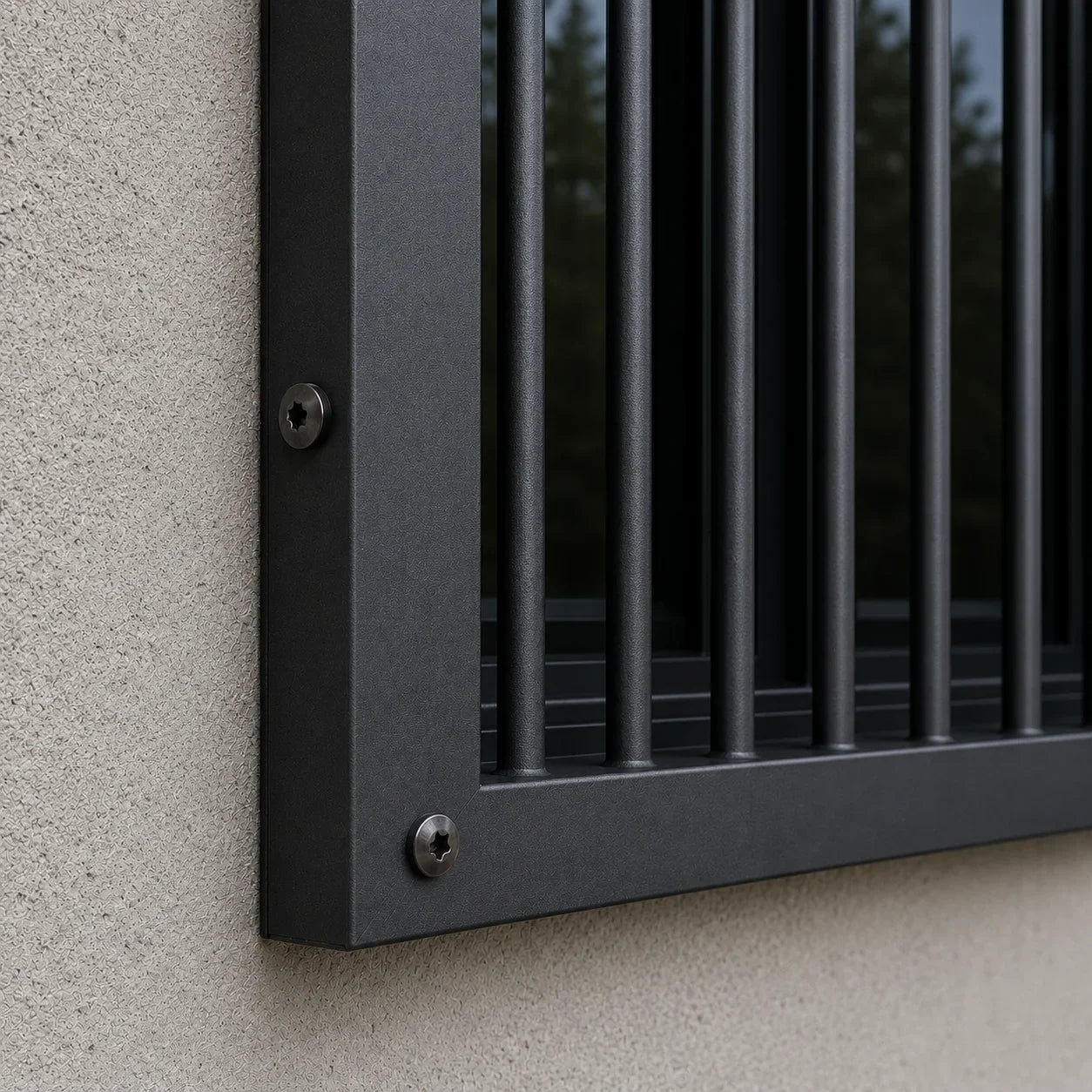

• Box Section Frame (Standard) – Strong, clean finish with concealed fixings
• Flat Bar Frame – Ideal for face fixing onto walls or doors
• Angle Frame – Economical and practical for industrial environments

Installation Options

Window bars can be installed in different ways depending on the application:

• Face fix to the wall or structure
• Reveal fix within the window opening
• Suitable for both internal and external installations

Access & Operation Options

To suit different operational needs, window bars can be supplied as:

• Fixed Panels – Standard and most secure option
• Hinged Panels – Openable for cleaning, maintenance, or escape routes
• Lift-Out Panels – Removable option for occasional access

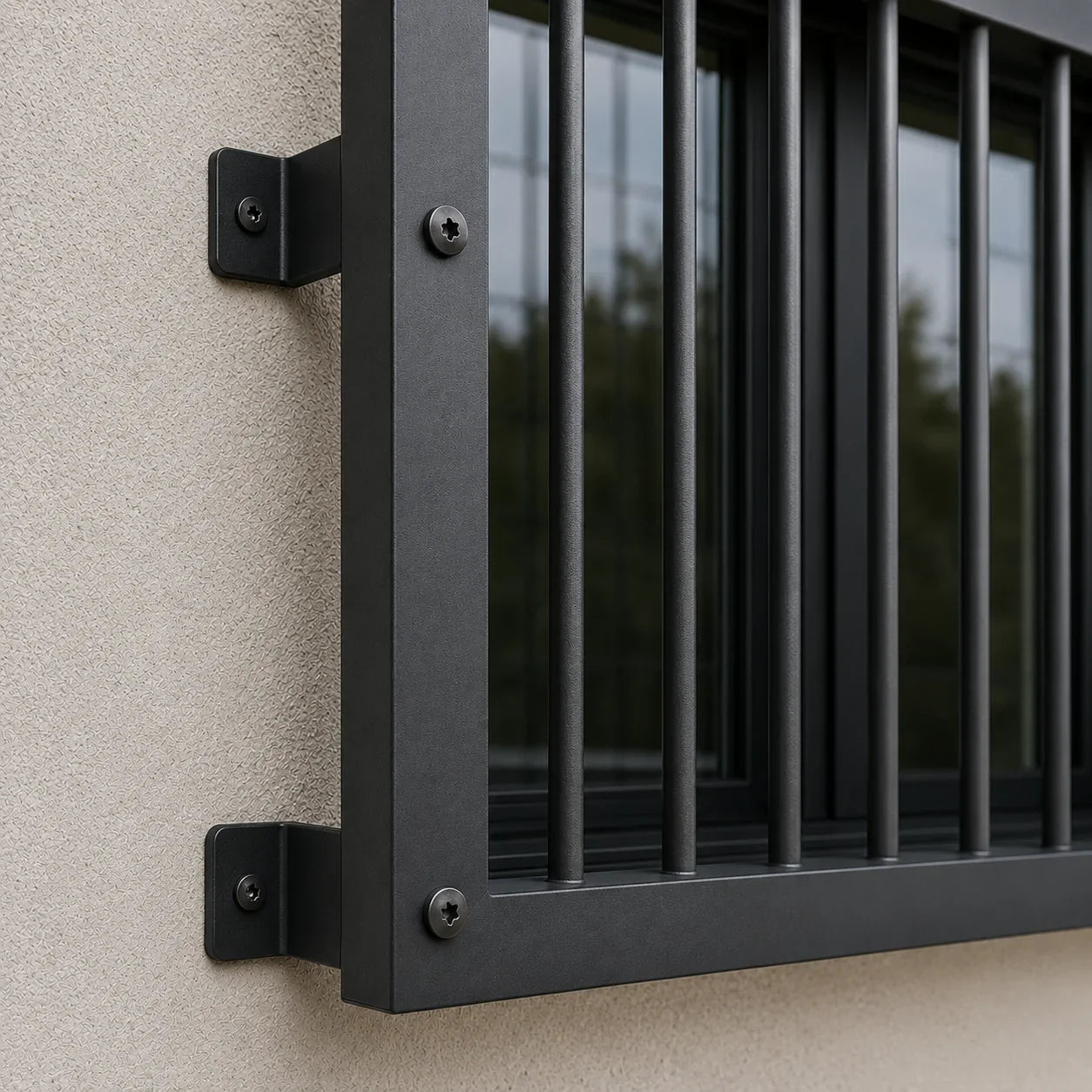

Stand-Off & Clearance Options

Optional stand-off legs allow the bars to be mounted away from the wall:

• Enables windows to open behind the grille
• Ideal for ventilation and usability without compromising security

Colour & Finish Options

• Supplied in 13 standard RAL colours
• Full RAL and BS colour matching available for bespoke projects
• Designed to complement both residential and commercial properties

Corrosion Protection (External Use)

For external installations:

• Optional hot-dip galvanising for long-term rust protection
• Can be combined with powder coating for maximum durability

Additional Reinforcement Options

• Intermediate tie bars added on larger grilles (over 1200mm high)
• Enhanced rigidity for high-risk or large-span installations

These design and customisation options ensure your window bars are tailored to deliver the right combination of security, durability, and visual appeal, from simple domestic protection to certified high-security applications.

Product Type:

• Fixed steel window bars / security grilles

Construction:

• Solid steel round bar infill
• Precision welded construction
• Fully welded frame or bracket-mounted design

Bar Options (Infill):

• 12mm Round Bar – Light duty (internal / domestic use)
• 16mm Round Bar – Medium duty (external use)
• 20mm Round Bar – Heavy duty (commercial / high security)

Frame Types:

• Box Section Frame (Standard) – Fully welded with concealed fixings
• Flat Bar Frame – Suitable for face fixing
• Angle Frame – Durable, economical option for industrial use

Panel Types:

• Fixed panels (standard)
• Hinged opening panels
• Lift-out removable panels

Reinforcement:

• Intermediate tie bars included on grilles over 1200mm high
• Additional reinforcement for high-risk applications

Installation Options:

• Face fix or reveal fix
• Suitable for internal or external installation
• Fixing into masonry, brickwork, or structural openings

Stand-Off Options:

• Optional stand-off legs to allow window operation behind bars

Security Rating (Optional):

• Available as security-rated window bars up to LPS1175 Security Rating Level 4

Finish:

• Powder coated as standard
• Available in 13 standard RAL colours
• Full RAL / BS colour range available on request

Corrosion Protection (External Use):

• Optional zinc primer coating
• Optional hot-dip galvanised finish for enhanced durability

Sizes:

• Made to measure to suit individual openings
• Panels may be split for large openings and assembled on site

Operation:

• Fixed or manually operated (hinged / removable options)

Usage:

• Suitable for domestic, commercial, and industrial applications

Durability:

• Designed for long-term use in internal and external environments

Maintenance:

• Low maintenance with periodic inspection recommended

Compliance:

• Can be manufactured to meet project-specific security requirements
• Optional compliance with LPS1175 security standards

Warranty:

• Typically supplied with 12-month manufacturer’s warranty (subject to specification)

Our window bars are manufactured to order, with a typical production lead time of approximately 4 weeks from order confirmation and final specification. This ensures each grille is built to the correct size, design, and security requirement.

Where hot-dip galvanising is specified for external installations, please allow an additional 1 week, bringing the total lead time to approximately 5 weeks. This extra process provides enhanced corrosion resistance and long-term durability.

Lead times may vary slightly depending on order volume, bespoke design requirements, or high-security specifications, such as LPS1175-rated window bars. We will always confirm accurate timescales at quotation stage to support your project programme.

The cost of window bars is typically very competitive, making them one of the most cost-effective physical security solutions for windows. Pricing will vary depending on size, bar specification, frame type, and finish.

Indicative Pricing

Small Windows (Up to 1m²)

• Supply Only: £80 – £200
• Supply & Install: £150 – £350

Medium Windows (1m² – 2m²)

• Supply Only: £150 – £350
• Supply & Install: £250 – £500

Large Windows (2m²+)

• Supply Only: £300 – £700+
• Supply & Install: £450 – £900+

Hinged or Removable Window Bars

• Supply Only: £250 – £600+
• Supply & Install: £400 – £900+

High Security / LPS1175 Rated Window Bars

• Supply Only: £500 – £1,500+
• Supply & Install: £800 – £2,000+

Factors Affecting Price

Several factors will influence the final cost:

• Bar Thickness: 12mm, 16mm, or 20mm steel bars
• Size of Opening: Larger windows require more material and fabrication
• Frame Type: Box section, flat bar, or angle frame
• Design Type: Fixed, hinged, or lift-out panels
• Finish: Standard powder coating vs galvanised and powder-coated
• Security Rating: LPS1175-rated window bars increase cost significantly
• Installation Complexity: Access, fixing method, and site conditions

Additional Costs to Consider

• Hot-dip galvanising for external installations
• Specialist fixings for high-security applications
• Installation into difficult substrates or at height
• Removal of existing grilles or obstructions

Budget Guidance

For most domestic properties, a typical budget for window bars is:

• £200 – £500 per window installed

For commercial or higher-risk sites:

• £500 – £1,500+ per window installed, depending on specification

Get an Accurate Quote

As all window bars are made to measure, we recommend requesting a tailored quotation. Our team can advise on the most suitable specification to achieve the right balance of security, appearance, and budget.
