Security Rated Window Bars

LPCB Certified High Security Protection

Security rated window bars tested to LPS1175 Levels 2, 3, and 4 for proven resistance against forced entry

Insurance Approved & Secured by Design

Meets police and insurer requirements for high-risk and commercial properties

Heavy-Duty Steel Bar Construction

Manufactured using 20mm or 25mm solid steel bars with reduced spacing for maximum strength

Enhanced Anti-Attack Design

Reinforced with additional tie bars to resist cutting, prying, and impact attacks

Optional Mesh Infill Available

Can be combined with mesh panels for added protection against vandalism and debris

Internal or External Installation

Suitable for a wide range of applications and building types

Face Fix or Reveal Fix Options

Flexible installation methods to suit different structural requirements

Designed for High-Risk Environments

Ideal for warehouses, retail units, banks, public buildings, and secure residential properties

Custom Made to Measure

Manufactured to exact sizes while maintaining certification standards

Durable Powder-Coated Finish

Supplied in RAL 9016 white as standard with bespoke colour options available

Optional Galvanised Protection

Recommended for external installations to prevent corrosion and extend lifespan

Low Maintenance, Long-Term Security

Fixed design provides continuous protection with minimal upkeep

Our Security Rated Window Bars are designed to meet strict LPS1175 certification requirements, while still offering a level of flexibility to suit different buildings, layouts, and project specifications. Each system is carefully configured to maintain compliance while delivering the required level of protection.

Made-to-Measure Design

All security rated window bars are manufactured to your exact opening sizes:

• Designed to suit a wide range of window dimensions
• Suitable for both small openings and large commercial glazing
• Engineered to meet LPCB certification standards for each security level

Security Levels & Bar Specification

Available in multiple certified security levels:

LPS1175 Security Level 2

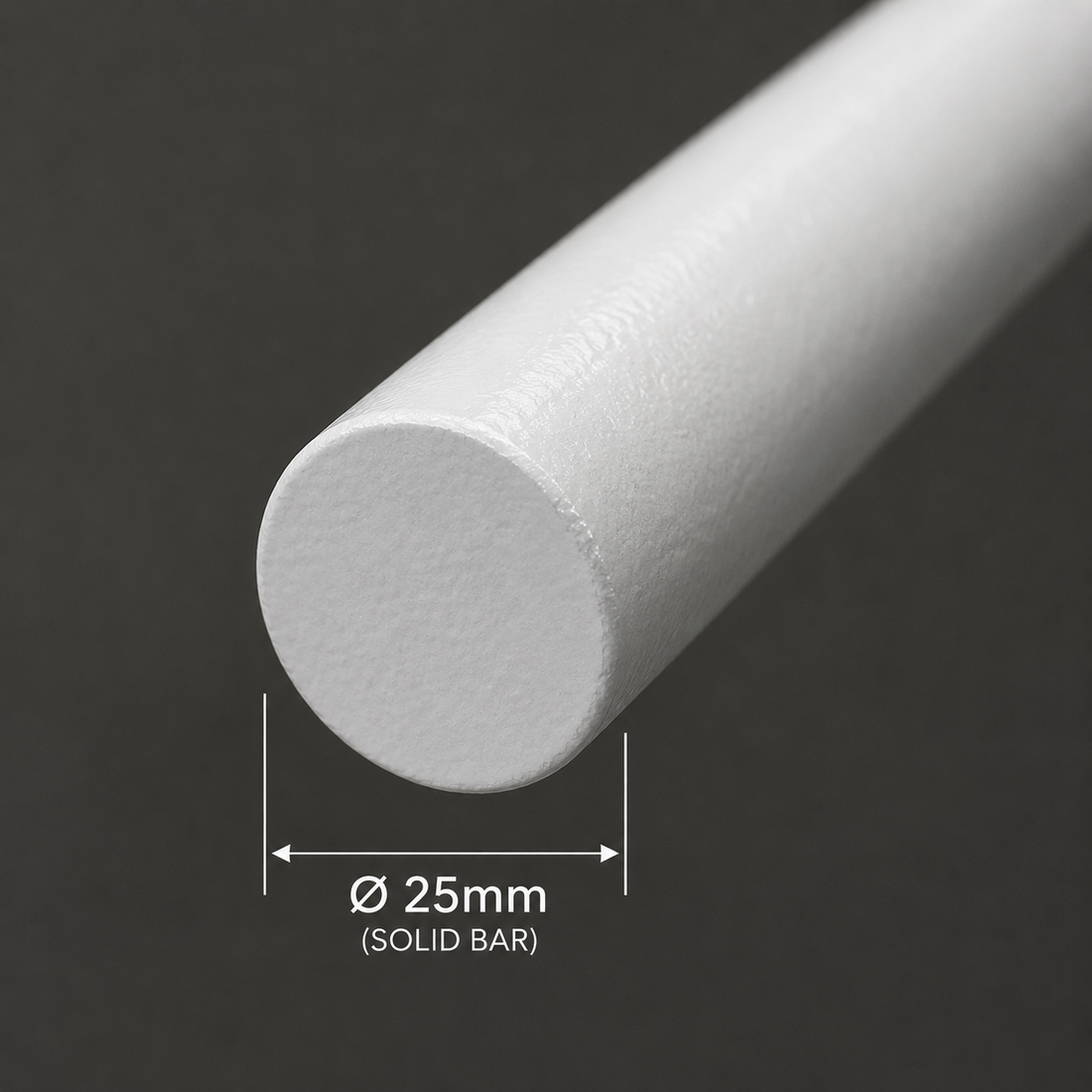

• 20mm solid steel bars
• Installed within a 3mm thick angle frame

LPS1175 Security Level 3 & 4

• 25mm solid steel bars
• Installed within a 5mm thick angle frame

Reduced bar spacing and additional tie bars for enhanced resistance to attack

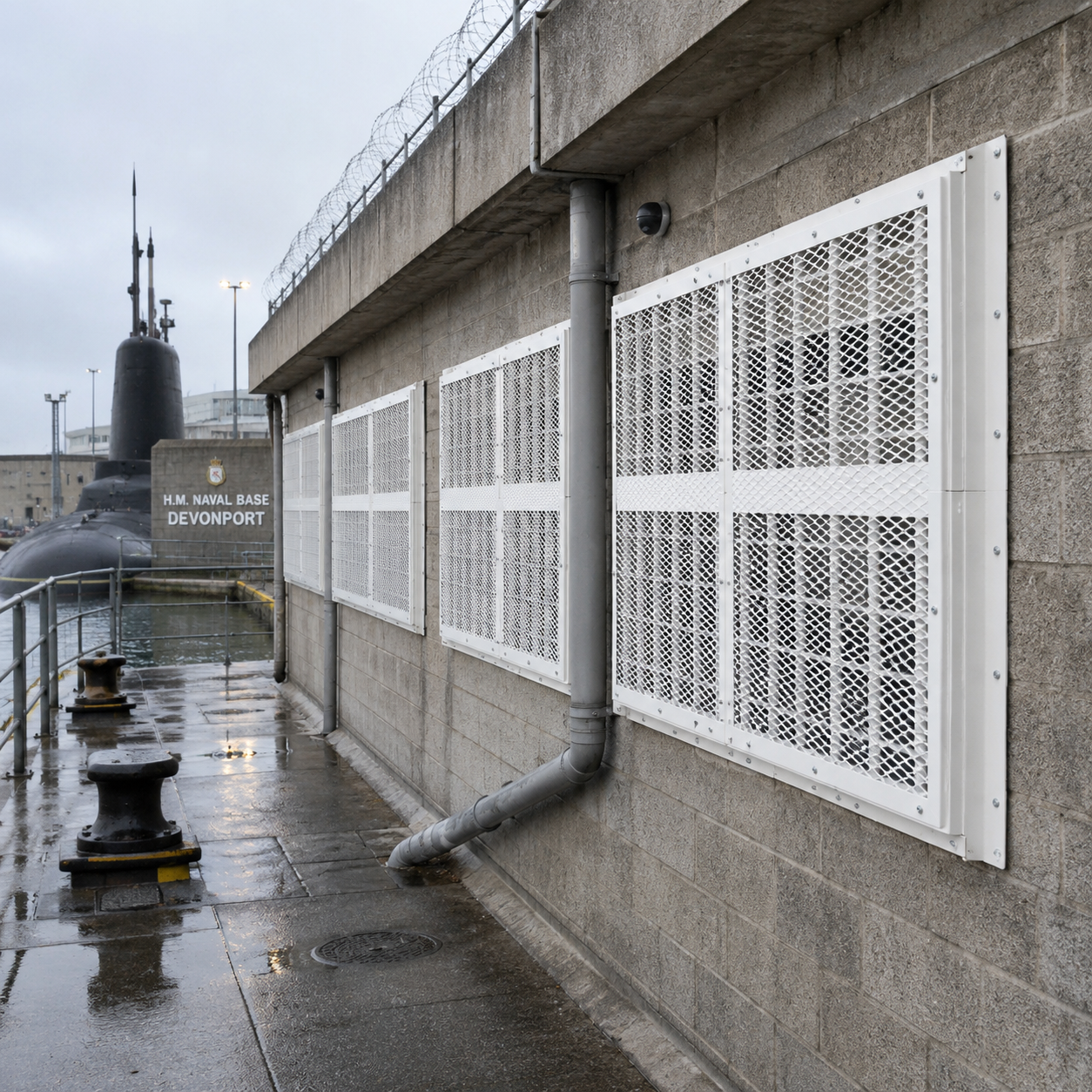

Optional Mesh Infill

• Can be supplied with integrated mesh infill panels
• Adds protection against vandalism, debris, and smaller object penetration
• Suitable for environments requiring both security and screening

Frame & Installation Options

• Designed for face fix or reveal fix installation
• Fixing methods must comply with LPCB-approved installation standards
• Suitable for installation into masonry or structural openings

Internal & External Applications

Certified for both internal and external useSuitable for a wide range of environments including commercial, industrial, and residential

Colour & Finish Options

• Supplied in RAL 9016 White as standard
• Full RAL / BS colour range available for bespoke projects
• Designed to complement building aesthetics without compromising security

Corrosion Protection (External Use)

• Optional hot-dip galvanising for enhanced durability
• Recommended for exposed or harsh environments
• Can be combined with powder coating for maximum lifespan

Compliance & Installation Requirements

• Manufactured and installed in line with LPS1175 certification criteria
• Fixing methods, materials, and installation must meet strict tested standards
• Our team can advise on approved installation methods to maintain certification

Bespoke & Project-Specific Solutions

• Can be adapted to suit complex openings or site conditions
• Suitable for projects requiring insurance-approved or police-preferred specifications
• Designed to integrate into wider security strategies

These design and customisation options ensure security rated window bars provide a fully compliant solution that delivers maximum protection, durability, and confidence, even in the most demanding environments.

Product Type:

• LPCB certified security rated window bars

Security Rating:

• Tested and certified to LPS1175 Issue 7

Available security levels:

• SR2 (Security Rating 2)
• SR3 (Security Rating 3)
• SR4 (Security Rating 4)

Certification:

• Certified by the Loss Prevention Certification Board (LPCB)
• Complies with Secured by Design (SBD) requirements

Construction:

• Solid steel bar construction with reinforced design
• Engineered to resist cutting, prying, and impact attacks

Bar Specification:

• SR2: 20mm solid steel bars
• SR3 & SR4: 25mm solid steel bars
• Reduced bar spacing for enhanced security
• Additional reinforced tie bars for increased rigidity

Frame Construction:

• SR2: 3mm thick steel angle frame
• SR3 & SR4: 5mm thick steel angle frame
• Fully welded construction for maximum strength

Optional Infill:

• Available with mesh infill panels
• Provides additional protection against vandalism and debris

Installation Options:

• Face fix or reveal fix
• Suitable for installation into masonry or structural openings
• Installation must comply with LPCB-approved fixing methods

Application:

• Suitable for both internal and external installations
• Designed for commercial, industrial, public sector, and high
• security residential use

Finish:

• Powder coated as standard
• Standard colour: RAL 9016 White
• Full RAL / BS colour range available on request

Corrosion Protection (External Use):

• Optional hot-dip galvanised finish
• Recommended for long-term external durability

Sizes:

• Made to measure to suit specific window openings
• Designed in accordance with certification requirements

Durability:

• Heavy-duty construction for long-term performance
• Suitable for high-risk and exposed environments

Maintenance:

• Low maintenance fixed design
• Periodic inspection of fixings recommended

Compliance:

• Must be installed in line with LPS1175 certification requirements
• Installation directly affects certification validity

Warranty:

• Typically supplied with a 12-month manufacturer’s warranty (subject to specification)

Our security rated window bars are manufactured to order, with a typical lead time of 4–6 weeks from order confirmation and final specification. This reflects the additional manufacturing processes and strict quality controls required to meet LPS1175 certification standards.

Where hot-dip galvanising is specified for external installations, an additional 1–2 weeks should be allowed. This extended process ensures maximum corrosion resistance and long-term durability, particularly in exposed environments.

Lead times may vary depending on security rating (SR2, SR3, SR4), project size, and installation requirements, as certified products must be produced and installed in line with approved specifications. We will always confirm accurate timescales at quotation stage to align with your project programme.

The cost of security rated window bars reflects their certified performance, heavy-duty construction, and compliance with LPS1175 standards. As a high-security product, they sit at the upper end of the window protection range, particularly at higher security levels (SR3 & SR4).

Indicative Pricing

LPS1175 SR2 (Security Rating 2)

• Supply Only: £300 – £700
• Supply & Install: £500 – £1,000

LPS1175 SR3 (Security Rating 3)

• Supply Only: £500 – £1,200
• Supply & Install: £800 – £1,800

LPS1175 SR4 (Security Rating 4)

• Supply Only: £800 – £2,000+
• Supply & Install: £1,200 – £3,000+

With Mesh Infill (All Ratings)

• Add approximately £150 – £500+ per window depending on mesh type and specification

Factors Affecting Price

Several key factors influence the final cost:

• Security Rating: SR2, SR3, or SR4 (higher ratings significantly increase cost)
• Bar Specification: 20mm vs 25mm solid steel bars
• Opening Size: Larger windows require more material and fabrication
• Frame Construction: 3mm vs 5mm thick angle frames
• Mesh Infill: Optional mesh panels add cost and complexity
• Finish: Standard powder coating vs galvanised and powder-coated
• Installation Requirements: Must comply with LPCB-approved fixing methods

Installation Considerations

Security rated systems often require:

• Installation in line with strict LPCB certification standards
• Fixing into approved substrates (typically masonry)
• Careful installation to maintain certification validity
• Additional time for commissioning and compliance checks

This can increase installation costs compared to standard window bars.

Additional Costs to Consider

• Hot-dip galvanising for external installations
• Bespoke colour finishes
• Access equipment (e.g. scaffolding or lifts)
• Structural preparation or builder’s works

Budget Guidance

Typical project budgets are:

Standard commercial applications (SR2–SR3):

• £600 – £1,500 per window installed

High-security applications (SR4):

• £1,200 – £3,000+ per window installed

Get an Accurate Quote

Due to the certified nature of these products, we recommend requesting a project-specific quotation. Our team can ensure the correct specification is selected to meet insurance, Secured by Design, and LPCB requirements, while balancing security and budget.
