Trackless Retractable Barrier

Trackless Barrier System for Flexible Access Control

Provides a safe, movable barrier solution without the need for floor tracks

Commercial & Industrial Options Available

Choose between lightweight commercial or heavy-duty industrial systems

Unlimited Width Capability

Modular design allows barriers to be linked together to cover any opening

Multiple Configuration Options

Available as single stack, double stack, or fully removable systems

Smooth, Mobile Operation

Mounted on heavy-duty castors or T-trolleys for easy movement

Ideal for Safety & Security Applications

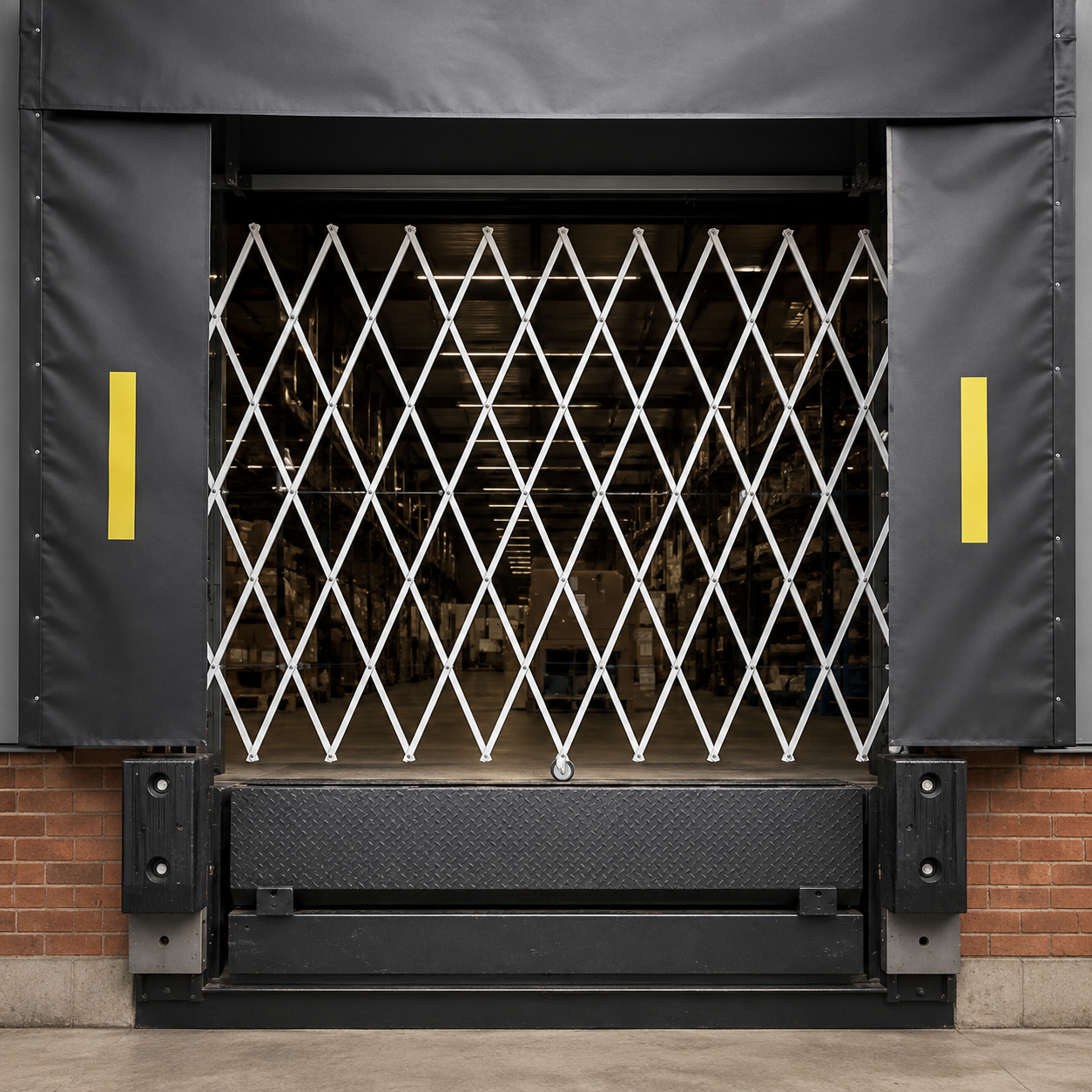

Perfect for loading bays, warehouses, retail spaces, and public areas

Flexible Locking Options

Choose from padlockable systems or full-height locking posts with euro profile locks

90° Fold-Back Functionality

Barrier can hinge out of the way to maximise clear access when not in use

Standard & Bespoke Sizes Available

Commercial: typically 2m high with flexible widths

Industrial: 1.8m high with standard 3m–6m widths

Durable Finishes for All Environments

Available in White (RAL 9016) or Black (RAL 9005) with optional custom colours

Optional Galvanised Finish for External Use

Hot-dip galvanising available for increased corrosion resistance

Quick Turnaround Options

Commercial systems available in 5–7 working days, with industrial options depending on finish

The Trackless Retractable Barrier is designed to offer maximum flexibility, allowing it to be configured for a wide range of safety, security, and access control applications. With both Commercial and Industrial versions available, the system can be tailored to suit different environments, usage levels, and security requirements.

System Options

Commercial Version (Light–Medium Duty):

• Utilises Diamond Folding Grilles mounted on T-trolleys
• Standard height: 2000mm (alternative heights achievable using smaller grilles)
• Designed for smooth, level floors

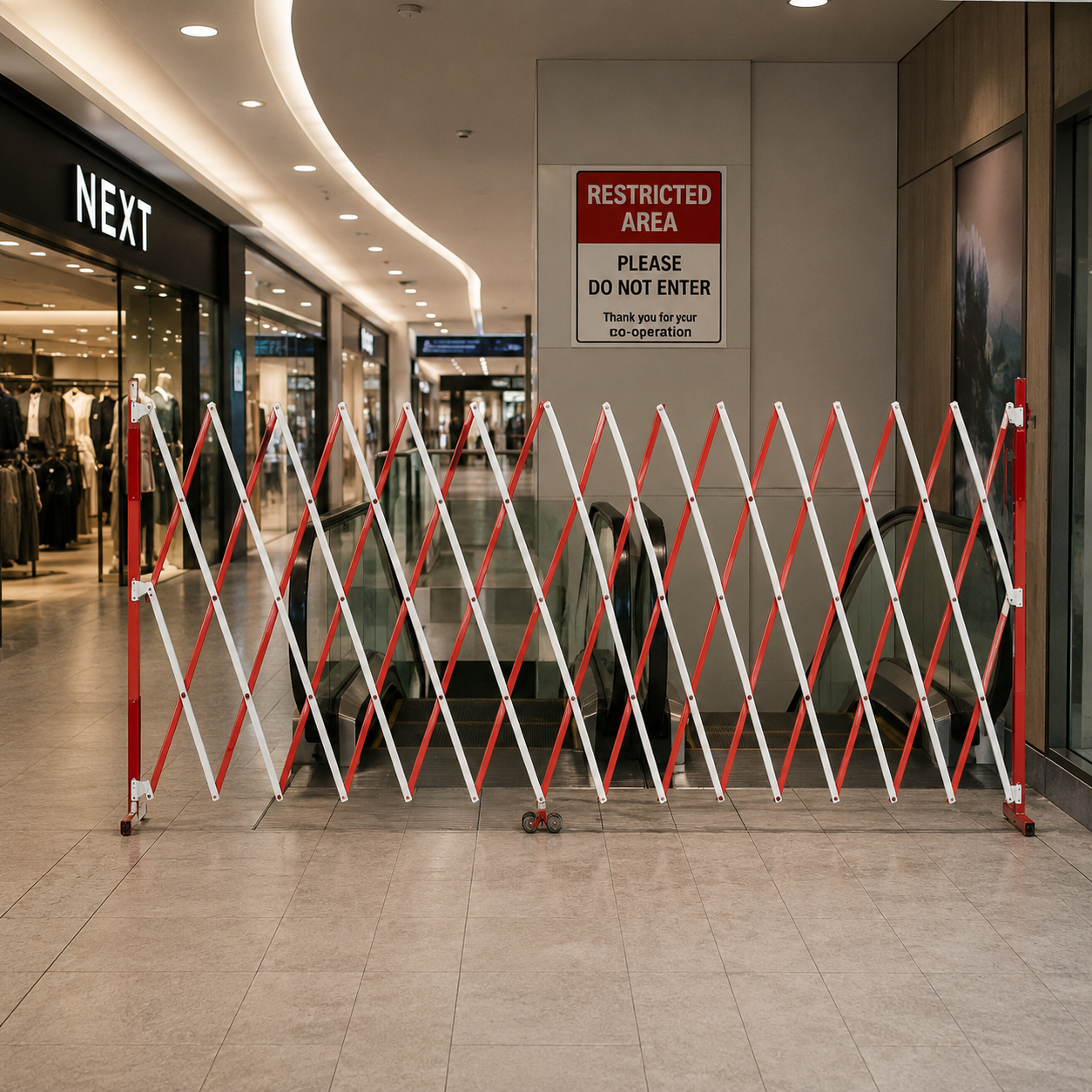

• Ideal for retail, commercial, and light industrial environments
• Stock product with fast lead times (typically 5–7 working days)
• Supplied in White (RAL 9016) only

Industrial Version (Heavy Duty):

• Robust, heavy-duty construction for demanding environments
• Standard height: 1800mm
• Standard widths: 3000mm, 4000mm, 5000mm, 6000mm

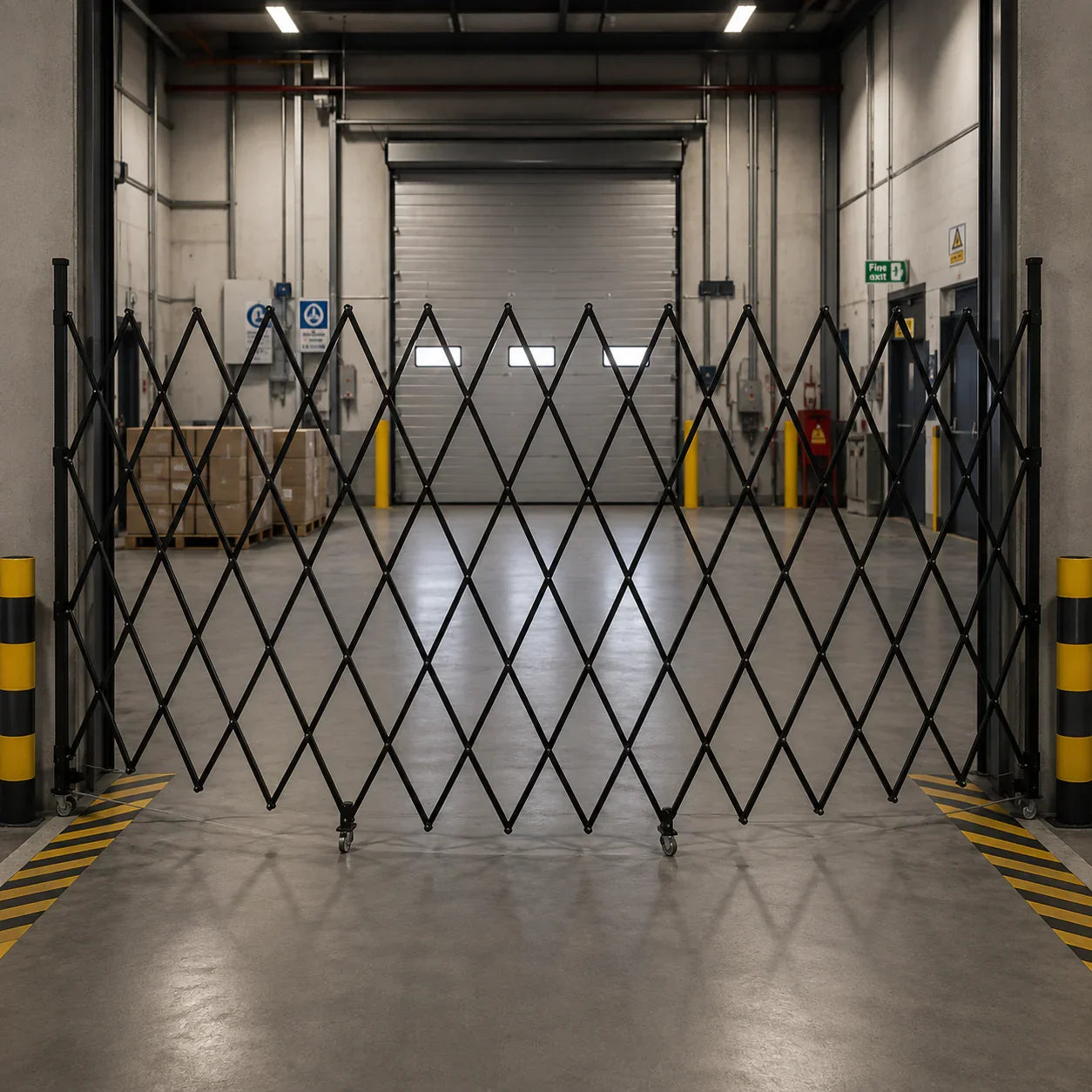

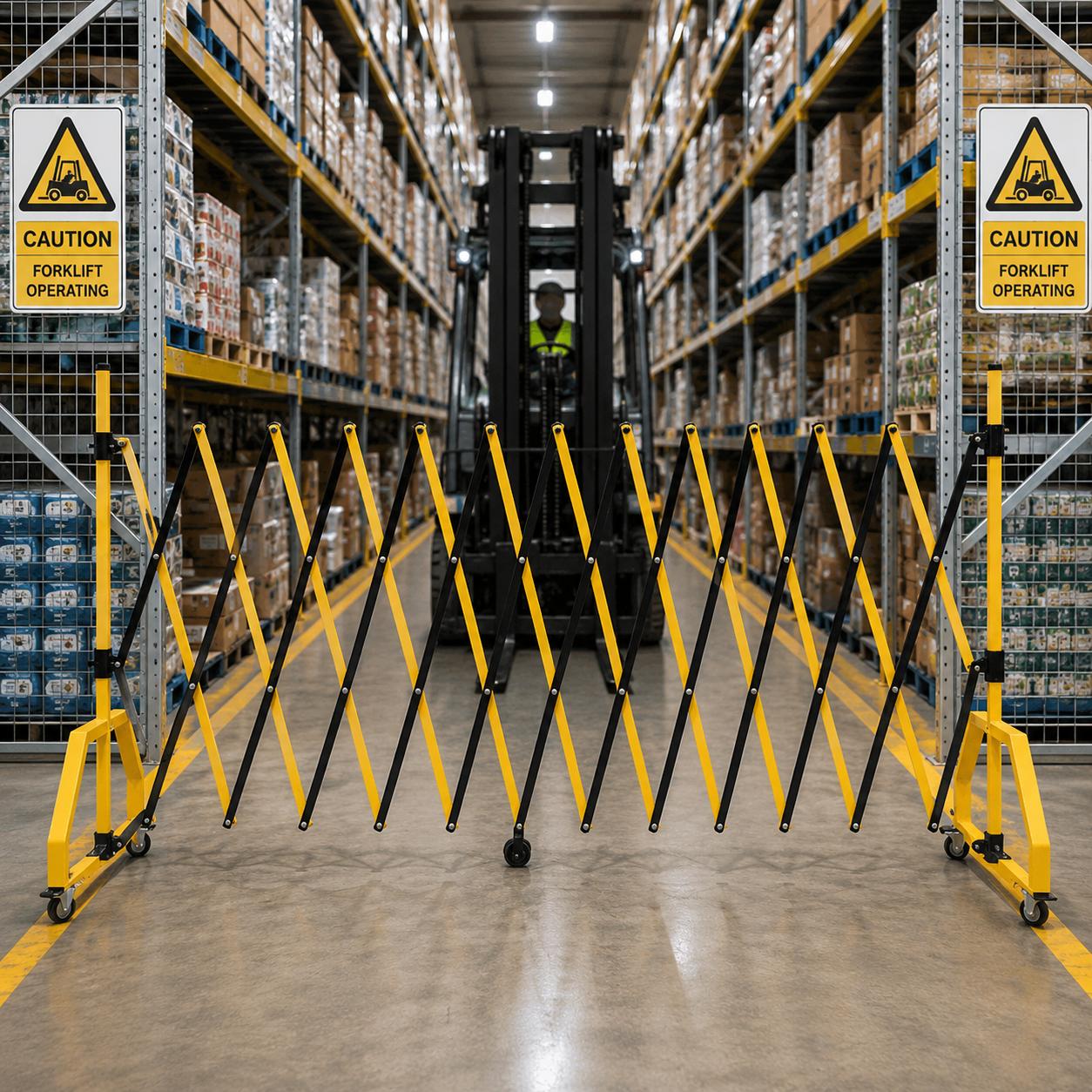

• Suitable for warehouses, factories, and high-use areas
• Designed for durability and frequent operation

Configuration Options

Both systems can be configured to suit site requirements:

Single Stack

• Fixed to one side, stacking to the opposite side
• Most common and practical option

Double Stack

• Locks centrally and stacks back to both sides
• Ideal for wider openings requiring balanced access

Fully Removable

• Barrier can be locked at both ends and completely removed
• Suitable for temporary or flexible installations

Modular & Expandable Design

• Barriers can be linked together to create continuous runs
• Suitable for unlimited widthsIdeal for large openings, loading bays, or partitioning large areas

Locking Options (Industrial Version)

• Padlockable Option
• Simple hasp and staple design (padlock not included)
• Cost-effective security solution

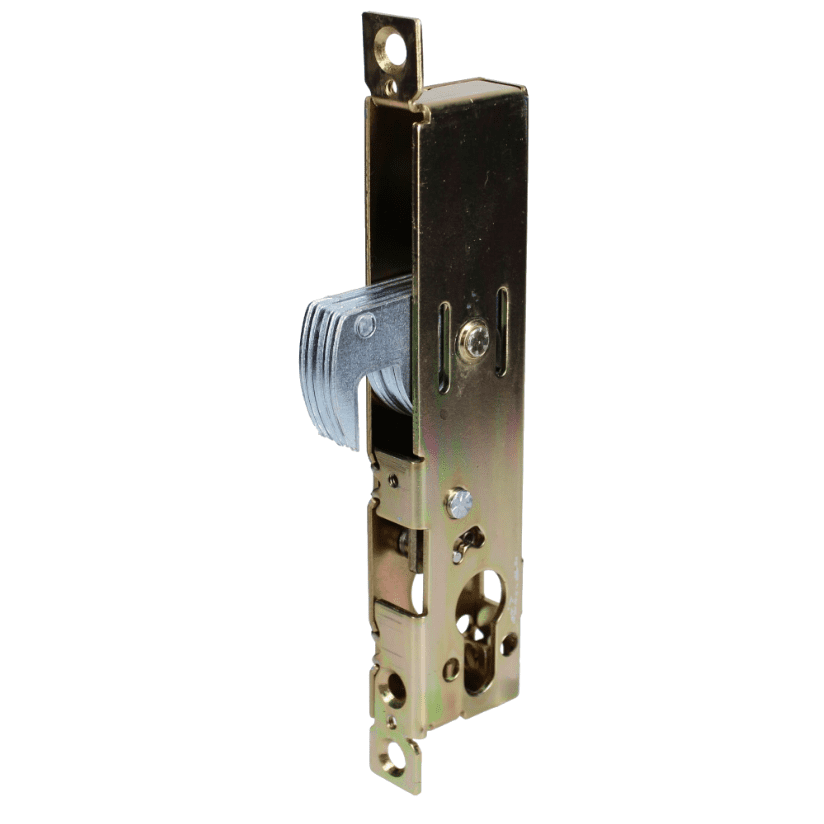

• Full Height Locking Post
• Integrated Euro profile locking system
• Provides enhanced security across the full height of the barrier

Mobility & Operation

• Mounted on heavy-duty castors or T-trolleys
• Designed for smooth, trackless operation
• Industrial version includes 90° hinge-back functionality, allowing the barrier to fold out of the way when not in use

Installation Options

• Wall-mounted (fixed one side)
• Free-standing / removable systems
• Minimal installation required due to trackless design
• Suitable for both temporary and permanent applications

Finish & Colour Options

Commercial Version:

• Standard finish: White (RAL 9016)

Industrial Version:

Standard finishes:

• White (RAL 9016)
• Black (RAL 9005)
• Custom RAL / BS colours available (extended lead times)
• Hot-Dip Galvanised option for external or harsh environments

Lead Time Considerations

• Commercial (Stock): 5–7 working days
• Industrial (Standard Colours): 2–3 weeks
• Custom Colours: 8–12 weeks
• Galvanised Finish: Extended lead time due to additional process

Bespoke & Project-Specific Solutions

• Custom configurations for non-standard openings
• Suitable for large-scale commercial and industrial projects
• Can be adapted for specific operational or safety requirements

• Barrier type: Trackless retractable security barrier

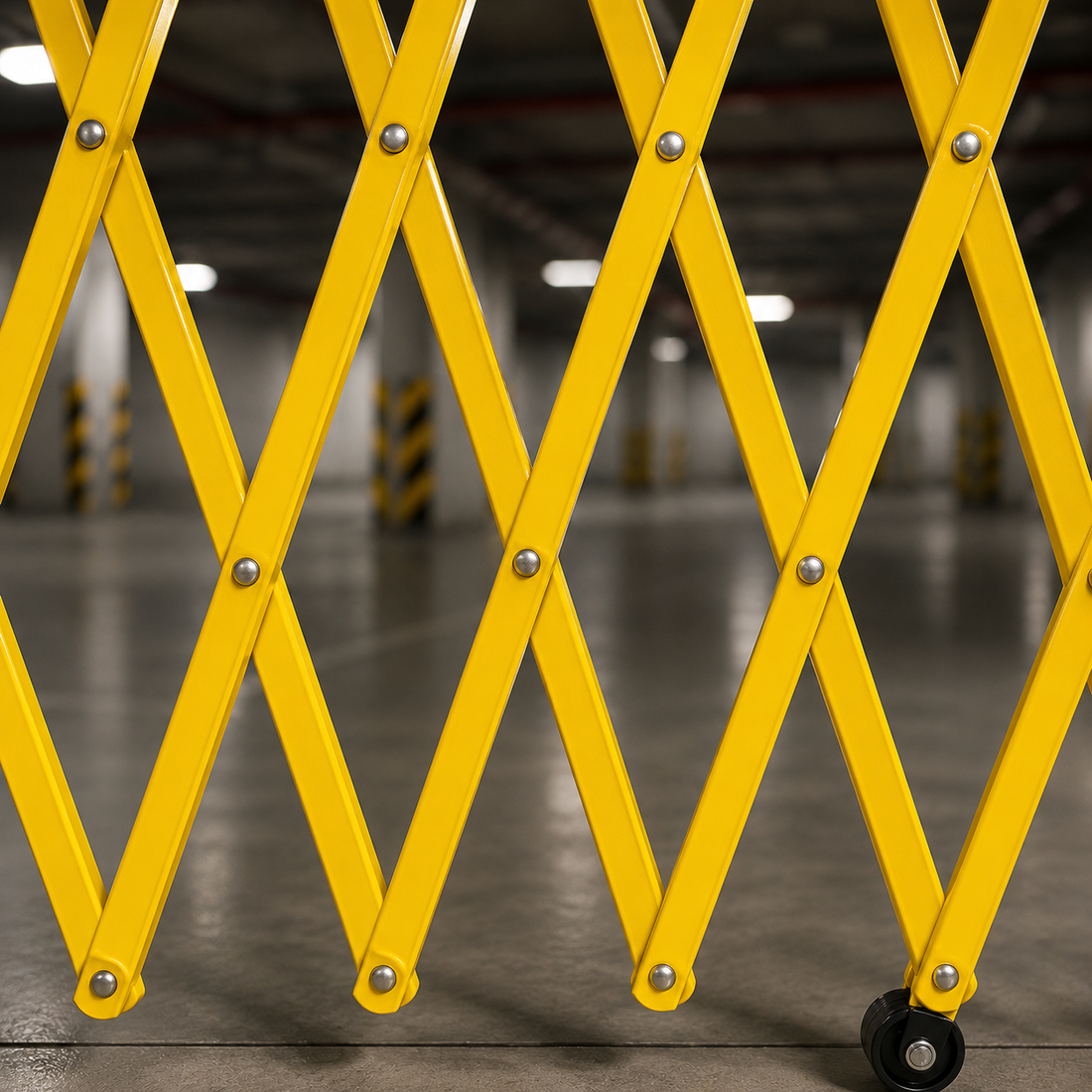

• Construction: Steel lattice design
• Operation: Manual sliding and folding
• Locking: Mechanical locking system
• Finish: Powder-coated
• Installation: Internal mounting
• Application: Retail, schools and commercial premises
• Available as: Supply only or for full installation

Lead Times

The Trackless Retractable Barrier is available in both commercial (stock) and industrial (made-to-order) versions, with lead times depending on specification and finish:

Commercial Version (Stock Product):

• Typically 5–7 working days from order
• Ideal for fast deployment and urgent requirements

Industrial Version:

• Standard Colours (White or Black): Approx. 2–3 weeks
• Custom RAL / BS Colours: Approx. 8–12 weeks
• Hot-Dip Galvanised Finish: Extended lead times due to additional processing

Lead times may vary depending on order size, configuration, and project complexity, and will be confirmed at quotation stage.

Installation

The Trackless Barrier is designed for simple and flexible installation, with minimal site preparation required due to its trackless design.

• No floor or ceiling tracks required
• Suitable for smooth, level surfaces (especially for commercial version)

Can be installed as:

• Wall-mounted (fixed one side)
• Free-standing / removable system
• Linked modular barrier runs

Key Installation Benefits

• Quick setup with minimal disruption to operations
• No need for floor cutting or structural alterations
• Supplied largely pre-assembled for ease of installation
• Can be repositioned or reconfigured if requirements change

Installation Considerations

• Ensure floor surface is smooth and level for optimal movement
• Secure fixing required where barriers are wall-mounted
• Adequate space required for stacking and folding back
• For larger or industrial systems, two-person installation may be recommended

Operation After Installation

• Barriers move freely on heavy-duty castors or T-trolleys
• Can be locked in position depending on configuration

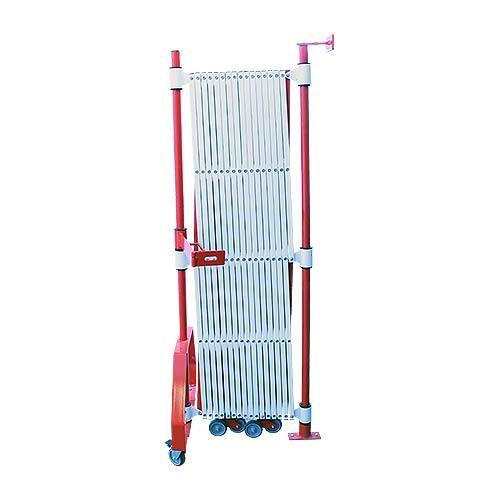

• Fold neatly to the side or hinge out of the way when not in use

This combination of fast lead times (especially for commercial systems) and simple installation makes the Trackless Retractable Barrier an ideal solution for projects requiring flexibility, speed, and minimal disruption.

The Trackless Retractable Barrier is a flexible system, with pricing varying depending on whether you select the Commercial (stock) or Industrial (heavy-duty) version, as well as the size, configuration, and locking options.

Indicative Pricing – Commercial Version (Stock)

Small Barrier Runs (Up to 3m width)

• From £800 – £1,500 + VAT

Medium Runs (3m – 6m width)

• From £1,500 – £3,000 + VAT

Large / Extended Runs (6m+)

• From £3,000 – £6,000+ + VAT
• Supplied using Diamond folding grilles on T-trolleys
• Typically white only (RAL 9016)
• Fast lead time (5–7 working days)

Indicative Pricing – Industrial Version (Heavy Duty)

• 3m Wide Barrier (1.8m High)

From £1,500 – £2,500 + VAT

• 4m – 6m Wide Barrier

From £2,500 – £5,000 + VAT

• Large / Multi-Section Systems

From £5,000 – £10,000+ + VAT

Optional Upgrades (Industrial)

• Padlockable System: Included / minimal cost

Full Height Locking Post (Euro Profile Lock):

• Add £200 – £600+ per barrier

Custom RAL / BS Colours:

• Typically +10–20%

Hot-Dip Galvanised Finish (External Use):

• Typically +20–40% depending on size

Factors Affecting Price

• Barrier Width & Height
• Commercial vs Industrial specification
• Configuration: Single stack, double stack, or fully removable
• Locking type: Standard vs full-height locking post
• Finish: Standard vs custom or galvanised
• Quantity / project size

Installation Costs

• DIY / Self Installation: Often feasible for commercial systems

Professional Installation:

• Typically £300 – £1,500+ depending on size and complexity

Budget Guidance

• Light commercial use: £1,000 – £3,000 + VAT
• Standard industrial applications: £2,000 – £5,000 + VAT
• Large or high-security installations: £5,000 – £10,000+ + VAT

Get an Accurate Quote

Due to the modular nature of the system, we recommend requesting a tailored quotation. This ensures the barrier is configured correctly for your application, balancing security, usability, and budget.
