Collection: Window Safety Bars

We offer two main types of window safety bars designed to provide compliant fall protection for low level windows.

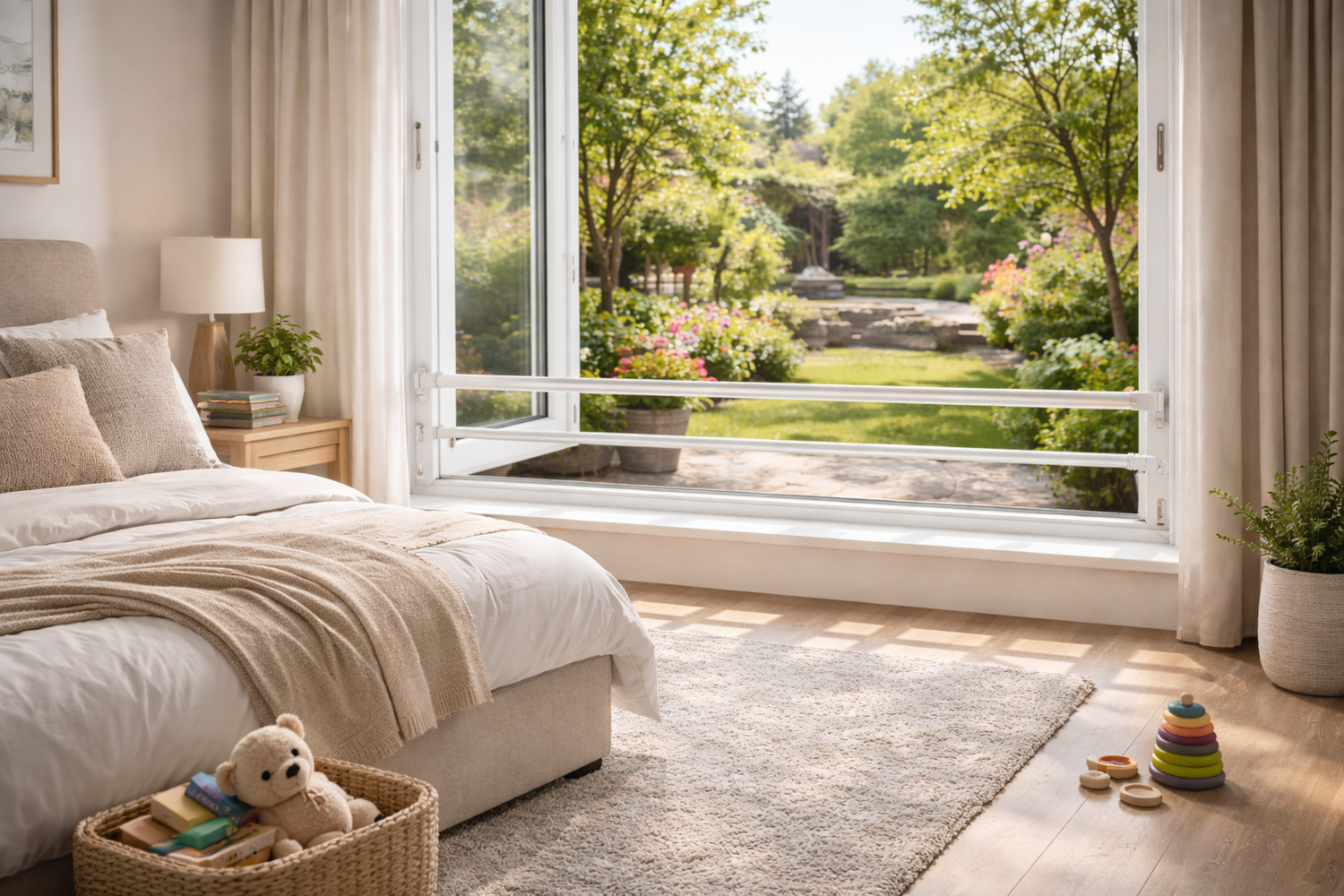

Single Chrome Tube Safety Bars

A simple, discreet barrier consisting of a polished chrome tube fixed horizontally across the window opening.

• Tested to BS 6180:2011
• Minimal visual impact
• Suitable for residential and apartment settings
• Designed to prevent falls while allowing ventilation

Ideal where a low profile safety solution is required.

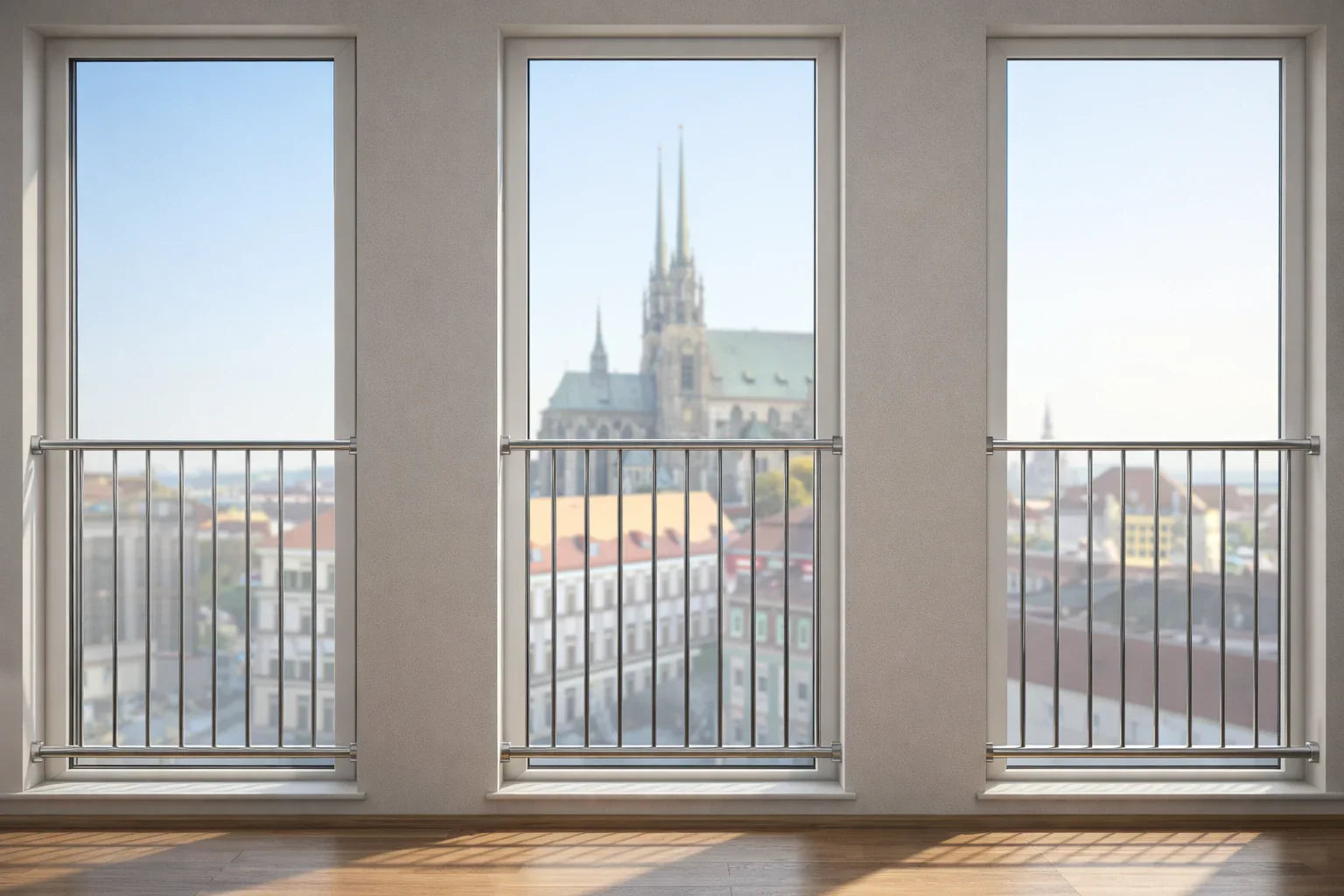

Stainless Steel Barrier Systems

A more substantial guarding solution manufactured from stainless steel, available in:

• 900mm height
• 1100mm height

Designed to comply with updated Part O Building Regulations, these systems are suitable for larger openings and higher-risk environments where full guarding protection is required.

Both systems are designed to prevent falls from windows that are less than 1100mm from floor level while maintaining airflow and natural light.

Window safety bars can be tailored to meet safety regulations, opening sizes, finish preferences, and functional requirements while ensuring compliance with updated building standards such as Part O.

Size and Height Options

900 mm and 1100 mm heights for stainless steel barrier systems to align with regulatory requirements for low level openings.

Made to measure widths to fit specific window openings precisely.

Bar Type and Style

• Single chrome tube bars for a minimalist and discreet appearance.
• Stainless steel safety barriers with multiple bars for more robust fall protection.

Fixed and removable configurations may also be offered, depending on product selection and ease of cleaning or maintenance.

Finish and Material Choice

• Chrome plated tube finish for a sleek internal look.
• Stainless steel (304 or 316) options for durability and corrosion resistance, especially useful in coastal or high-moisture environments.

Optional powder coated finishes in BS or RAL colours for custom aesthetics (additional cost).

Mounting and Installation Style

• Bars can be mounted across the window opening or within the window recess for a flush finish.
• Custom brackets and fixing kits available to suit different wall substrates (e.g., masonry, timber, plasterboard).

Optional Functional Features

• Removable options for maintenance access and window cleaning.
• Reinforced fixings to meet structural safety and load bearing requirements in compliance with BS 6180:2011, the relevant barrier design code.

These customisation options ensure window safety bars can be specified to suit both compliance requirements and architectural preferences, delivering effective fall protection without compromising design.

Window safety bars are installed where low level windows present a fall risk, particularly in residential and multi occupancy buildings. They provide compliant fall protection while maintaining ventilation and natural light.

Residential Homes

Used in:

• Ground floor windows with low internal cill heights
• First floor bedrooms
• Stairwell windows
• Split level living spaces

Common in family homes to reduce fall risk for young children.

Apartments & Multi Occupancy Buildings

Installed in:

• Apartment bedrooms
• Living rooms with low glazing
• Communal corridors
• Converted buildings

Often required to meet updated Part O Building Regulations for new build or refurbishment projects.

Schools & Educational Buildings

Fitted to:

• Classrooms
• Nurseries
• Dormitories
• Learning support rooms

Provides fall protection while allowing safe ventilation.

Healthcare & Care Facilities

Used in:

• Care homes
• Assisted living properties
• Hospitals
• Rehabilitation centres

Helps protect vulnerable occupants where window safety is critical

New Build & Refurbishment Projects

Specified where:

• Window openings are less than 1100mm from floor level
• Opening gaps exceed 100mm
• Compliance with Part O or BS 6180:2011 is required

Common in modern apartment developments and loft conversions.

Roof Windows & Loft Conversions

Installed on:

• Rooflights
• Velux style windows
• Loft conversion windows

Prevents falls where glazing extends close to floor level.

Window safety bars are therefore suitable for any environment where low-level glazing creates a fall risk and compliance with modern building regulations is required.

Window safety bars are designed to provide compliant fall protection at low level windows while maintaining ventilation and visibility. The key features focus on strength, durability, and regulatory compliance.

Fall Protection Barrier

Creates a physical guard across low level window openings.

• Prevents falls from windows less than 1100mm from floor level
• Limits opening gaps wider than 100mm
• Designed to align with Part O Building Regulations requirements.

Compliant Height Options

• Stainless steel barriers available in 900mm or 1100mm heights
• Suitable for residential and multi-occupancy buildings

Height selection depends on regulatory and risk requirements.

Structural Strength

• Chrome tube systems tested to BS 6180:2011
• Stainless steel barriers designed for load-bearing performance
• Secure mechanical fixing into structural substrate

Provides reliable long-term guarding performance.

Minimal Visual Impact

• Slim chrome tube design available
• Open bar construction maintains light and airflow
• Does not fully obstruct the window opening

Offers safety without creating a heavy or enclosed appearance.

Fixed Installation

• Permanently installed for consistent protection
• No moving parts
• Designed to withstand daily use and ventilation operation
• Durable Materials
• Chrome plated steel tube
• Stainless steel construction (corrosion resistant)

Suitable for internal environments and high humidity areas

Made to Measure Options

• Manufactured to suit specific window widths
• Suitable for standard and non standard openings
• Ensures accurate fit and structural integrity.

Window safety bars combine regulatory compliance, structural strength, and discreet design to provide effective fall protection without compromising ventilation or natural light.

Window safety bars must comply with relevant building regulations, guarding standards, and structural performance requirements to ensure safe fall protection at low-level windows.

Part O – Building Regulations (England)

Under updated Approved Document O (Overheating & Window Safety), fall protection is required where:

• The window opening is less than 1100mm from finished floor level, and
• The clear opening could allow a 100mm sphere to pass through

Window safety bars provide a compliant guarding solution to prevent accidental falls while allowing ventilation.

BS 6180:2011 – Barriers in and About Buildings

This British Standard sets out the structural design and load performance requirements for guarding systems.

• Single chrome tube systems tested to BS 6180:2011
• Defines required load resistance for domestic and commercial applications
• Ensures barrier strength under horizontal loading

Compliance confirms the barrier can withstand foreseeable impact and crowd loading.

Approved Document K – Protection from Falling

Part K requires guarding where there is a risk of falling from height within buildings. Window safety bars contribute to compliance where glazing extends to low sill heights.

Multi Occupancy & Residential Standards

In apartment developments, HMOs, and care environments, guarding must:

• Prevent falls from accessible windows
• Be securely fixed to structural elements
• Not create climbable hazards

Structural Installation Requirements

To remain compliant:

• Bars must be fixed into structural substrate (not plasterboard alone)
• Fixings must meet load bearing requirements
• Installation must follow manufacturer guidance

Improper fixing can invalidate compliance.

Safety Considerations

Window safety bars must:

• Maintain safe ventilation
• Avoid sharp edges or protrusions
• Not obstruct required means of escape where applicable
• Life safety and regulatory compliance must take priority in specification.

When correctly specified and installed, window safety bars can meet Part O Building Regulations, BS 6180:2011 structural standards, and general fall-protection requirements, providing compliant and durable low-level window guarding.

Window safety bars must be installed correctly to ensure compliance with Part O Building Regulations and structural performance standards such as BS 6180:2011.

Installation Requirements

Structural Fixing

• Must be securely fixed into structural substrate (brick, block, concrete, or structural timber)
• Must not rely solely on plasterboard or non-load-bearing finishes
• Correct anchor type and fixing centres must be used
• Fixings must meet load requirements set out in BS 6180:2011

Improper fixing can compromise compliance and safety.

Height & Positioning

• Installed at the correct finished floor height (typically up to 1100mm)
• Gaps must not allow passage of a 100mm sphere where fall protection is required
• Bar or barrier must sit level and square
• Positioning must align with Part O and Part K requirements.

Integration with Window Operation

• Must not interfere with safe window operation
• Ventilation function must remain usable
• Any removable systems must be securely refitted after maintenance
• Life safety and escape considerations must always be confirmed.

Material Suitability

• Chrome tube systems installed in dry internal environments
• Stainless steel systems suitable for higher humidity or coastal areas
• Corrosion resistant fixings used where required

Supply Only Considerations

If supplied without installation:

• Installer assumes responsibility for structural suitability
• Installation must follow manufacturer fixing guidance
• Load bearing requirements under BS 6180:2011 must be achieved

Professional installation is recommended to ensure regulatory compliance.

Maintenance Requirements

Window safety bars are low maintenance due to their static design but should be inspected periodically.

Routine Inspection (Annually Recommended)

Check for:

• Secure fixings
• Movement or looseness
• Signs of corrosion
• Damage to chrome or stainless finish
• Structural integrity of brackets

Higher-use or public environments may require more frequent inspection.

Cleaning & Finish Care

• Clean chrome or stainless steel with appropriate non-abrasive cleaner
• Avoid harsh chemicals that may damage finish
• Touch up any minor coating damage (if powder-coated systems used)

Ongoing Compliance

To maintain compliance:

• Ensure no unauthorised modifications are made
• Confirm barrier height and gap spacing remain unchanged
• Replace damaged components promptly

When correctly installed and periodically inspected, window safety bars provide long-term, compliant fall protection while requiring minimal ongoing maintenance.

(Indicative UK pricing – excludes VAT unless stated)

The cost of window safety bars depends on bar type, width of opening, height required (900mm or 1100mm), material finish, and installation conditions.

Single Chrome Tube Safety Bars(Tested to BS 6180:2011)

A discreet horizontal tube fitted across the window opening.

• Supply only: From £120 – £250 per window
• Supplied and installed: From £250 – £450 per window

Pricing based on typical domestic window widths up to approx. 1200mm.

Stainless Steel Barrier Systems(900mm or 1100mm Height – Part O Compliant)

More substantial guarding system providing full fall protection.

900mm Height

• Supply only: From £280 – £550 per opening
• Supplied and installed: From £500 – £900 per opening

1100mm Height

• Supply only: From £350 – £700 per opening
• Supplied and installed: From £600 – £1,100 per opening

Higher cost reflects additional material and structural fixing requirements.

Larger or Commercial Installations

For wider openings or multi-unit projects:

• Installed from £700 – £1,500+ per opening

Project pricing may reduce on volume orders.

What Affects Final Pricing

• Width of window opening
• Required height (900mm vs 1100mm)
• Chrome vs stainless steel finish
• Structural substrate condition
• Access and installation complexity
• Quantity ordered (multi-unit discounts may apply)

Getting an Accurate Quote

Window safety bars are made to measure and must be installed in accordance with Part O Building Regulations and BS 6180:2011 load requirements. Final pricing depends on exact dimensions and installation conditions. A site survey is recommended to confirm fixing suitability and compliance before issuing a final quotation.
