Collection: PAS24 Rated Steel Doors

PAS 24 steel doors are available in several configurations to suit different building layouts, escape requirements, and ventilation needs,while maintaining certified enhanced security performance.

PAS 24 Personnel Steel Doors

Standard single leaf doors designed for everyday access.

Commonly used for:

• Apartment block entrances
• Communal access doors
• Rear service doors
• Utility rooms

Provide enhanced resistance to opportunist forced entry.

PAS 24 Emergency Exit Steel Doors

Fitted with compliant escape hardware:

• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)

Designed for escape routes while maintaining PAS 24 security certification.

PAS 24 Louvred Steel Doors

Incorporate reinforced ventilation panels within the certified door set.

Used where:

• Secure airflow is required
• Plant rooms in residential developments
• Service areas within communal buildings

The louvre system must be part of the tested PAS 24 configuration.

PAS 24 Fire Rated Steel Doors (Up to E120)

Combine enhanced security with certified fire resistance.

• Internal fire doors tested to BS EN 1634-1
• Available with fire integrity ratings up to E120

Used where compartmentation and enhanced security are both required.

PAS 24 Double Leaf Steel Doors

For wider openings and main entrances.

Maintain PAS 24 compliance when tested as a complete assembly.

PAS 24 Glazed Steel Door

Incorporate security rated glazing within the certified configuration.

Common in communal entrance systems where visibility is required.

PAS 24 steel doors can therefore be tailored to provide standard access, emergency escape, ventilation, glazing, and fire resistance, provided all elements remain within the scope of the tested PAS 24 door set certification.

PAS 24 steel doors can be tailored to suit building design, escape requirements, and operational needs, provided all elements remain within the scope of the certified PAS 24 test evidence. Because certification applies to the complete door set, hardware and glazing choices must match the tested configuration.

Door Configuration

• Single leaf doors
• Double leaf doors
• Made to measure sizing
• Side panels and overpanels (where certified)

Suitable for personnel access and communal entrance applications.

Locking and Hardware Options

Within certified configurations, options may include:

• Multi point locking systems
• High-security cylinders
• Lever handle sets
• Electric strikes (where tested)
• Panic hardware compliant with BS EN 1125
• Emergency push pads compliant with BS EN 179

All hardware must form part of the PAS 24 approved assembly.

Louvred Panels

Reinforced louvre systems can be incorporated for secure ventilation.The louvre design must be included within the PAS 24 test certification to maintain compliance.

Glazing Options

Available with certified security glazing, including:

• Laminated safety glass
• Security rated glazing units

Glazing size and specification must match tested evidence.

Fire Rated Versions (Up to E120)

PAS 24 doors can be combined with fire resistance:

• Tested to BS EN 1634-1
• Fire ratings available up to E120

All fire and security elements must be certified together.

Finish and Appearance

• Polyester powder-coated finishes
• Wide RAL colour range
• Internal/external colour matching
• Textured or metallic finishes

Access Control Integration

PAS 24 doors can be prepared for:

• Intercom systems
• Fob or card access
• Electric locking

Access control must not compromise security or safe egress compliance.

PAS 24 steel doors offer flexibility in configuration, glazing, ventilation, and hardware, while delivering independently tested enhanced security performance when installed as a complete certified door set.

PAS 24 steel doors are specified where enhanced security against opportunist attack is required, particularly in residential and multi occupancy buildings. They are commonly used in projects where compliance with Secured by Design or developer specifications is necessary.

Apartment Blocks and Communal Entrances

Installed as:

• Main entrance doors
• Secondary access doors
• Communal corridor doors

Often required for new build residential developments to meet enhanced security standards.

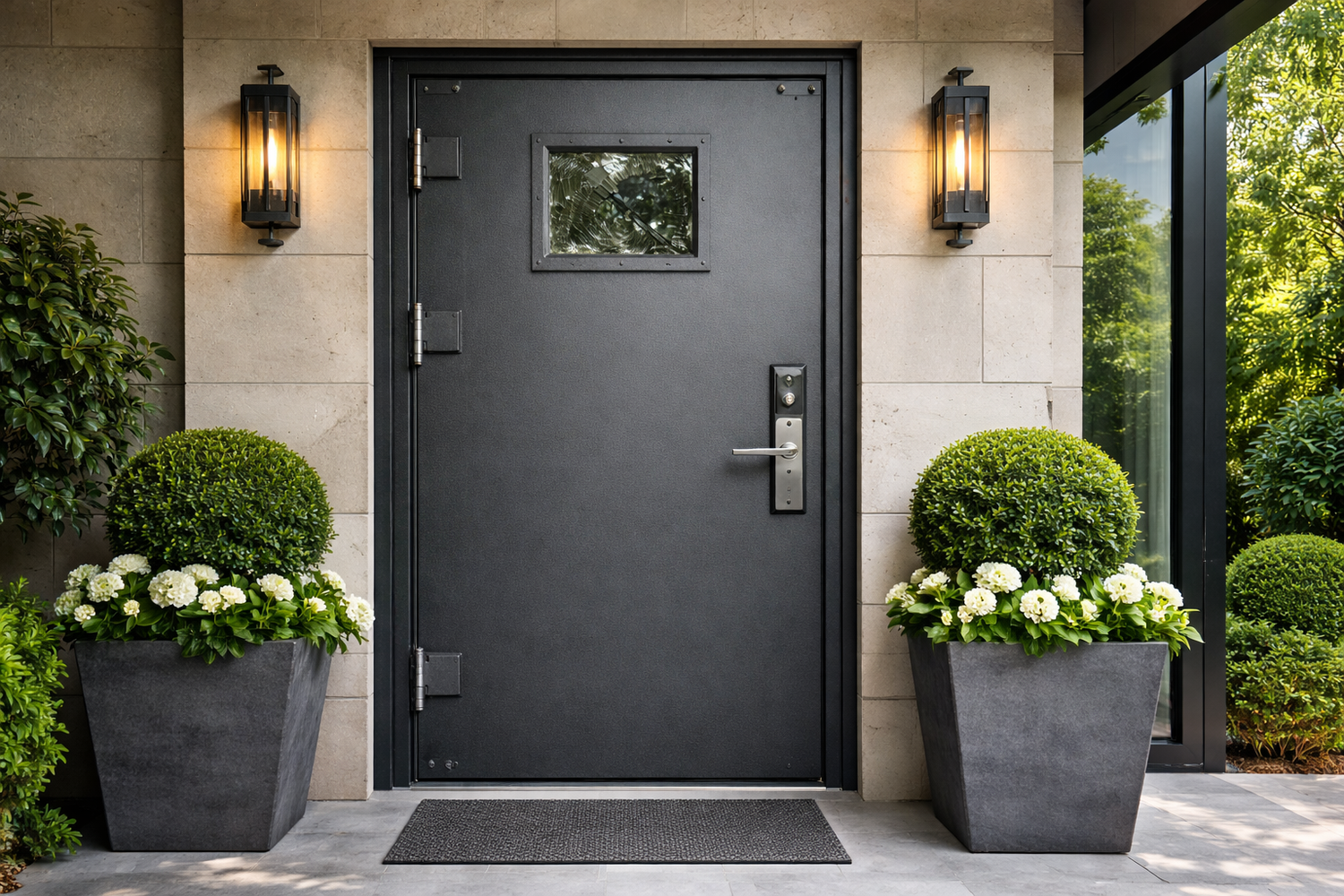

Residential Developments

Used in:

• Private housing schemes
• Gated communities
• Rear access and service doors
• PAS 24 certification supports compliance with residential security requirements

Mixed Use Developments

Specified in buildings combining:

• Retail units
• Offices
• Residential apartments

Provides enhanced protection at shared access points.

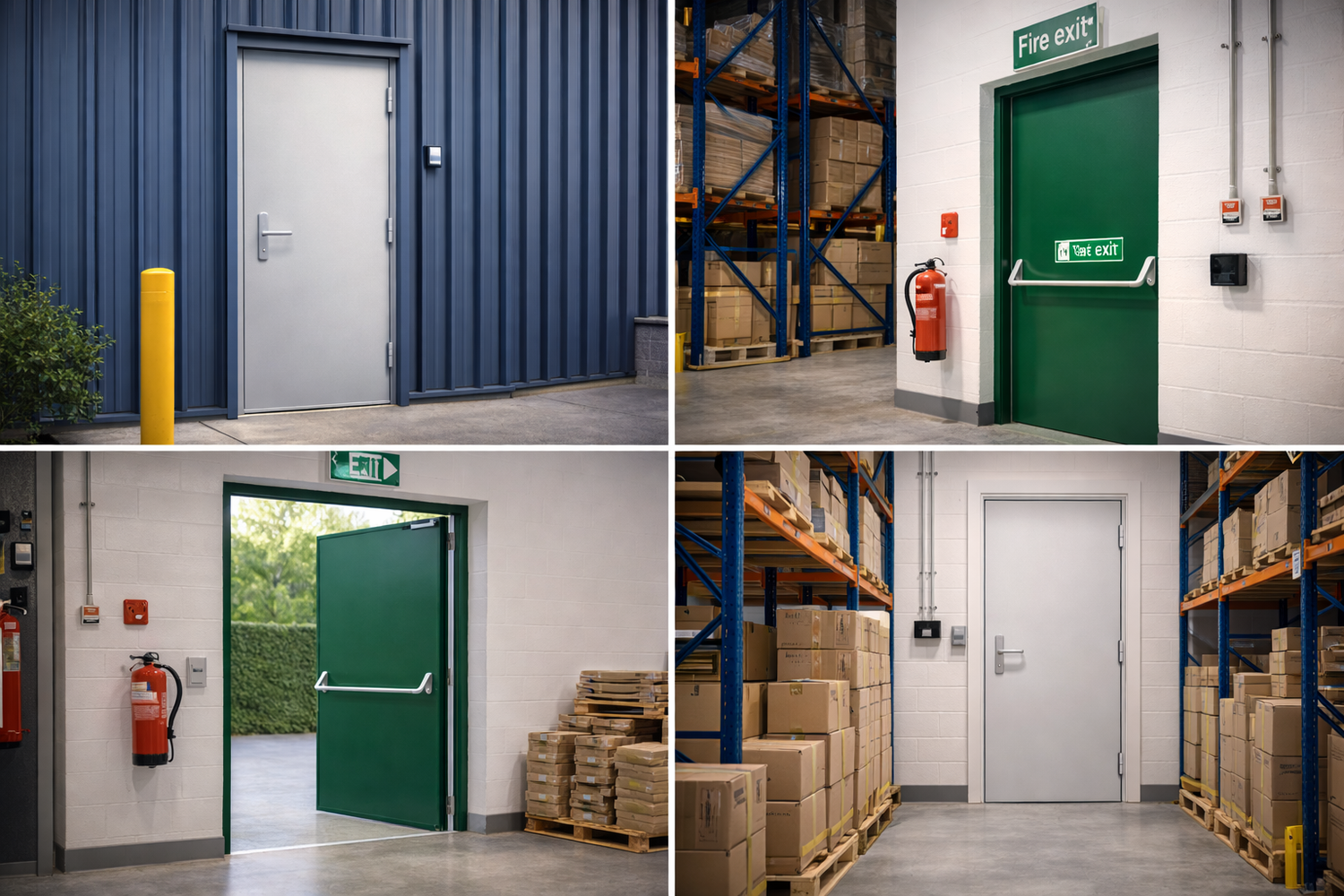

Emergency Exit Doors

Used on escape routes where both:

• Enhanced security
• Compliant panic hardware (BS EN 1125 / BS EN 179)are required.

Plant and Service Areas (Louvred PAS 24 Doors)

Installed where secure ventilation is needed in residential or communal buildings.

Fire Compartmentation Areas

PAS 24 doors can be combined with fire resistance up to E120, making them suitable for:

• Protected corridors
• Stair enclosures
• Compartment walls

PAS 24 steel doors are typically selected wherever enhanced residential security is required, particularly in apartment buildings, communal access points, and regulated developments where independently tested performance is specified.

PAS 24 steel doors are engineered to provide independently tested enhanced security performance, while maintaining durability, fire protection (where specified), and regulatory compliance.

Independently Tested Security Performance

Certified to PAS24, which assesses resistance to opportunist forced entry using common attack methods and tools.

Benefit: Provides measurable, recognised security performance suitable for residential and multi-occupancy buildings.

Reinforced Steel Construction

Manufactured with strengthened steel door leaves, frames, and locking systems.

Benefit: High durability, impact resistance, and long service life in high traffic environments.

Multi Point Locking Systems

Typically fitted with advanced locking mechanisms and high security cylinders.

Benefit: Improved resistance to forced entry and enhanced compression sealing.

Emergency Exit Compatibility

Available with compliant hardware:

• Panic bars (BS EN 1125)
• Emergency push pads (BS EN 179)

Benefit: Maintains safe and compliant escape while retaining enhanced security.

Fire Rated Options (Up to E120)

Can be combined with fire resistance tested to BS EN 1634-1, offering ratings up to E120.

Benefit: Delivers both security and compartmentation within a single certified door set.

Louvred Configurations

Reinforced ventilation panels can be incorporated within certified configurations.

Benefit: Allows secure airflow without compromising PAS 24 performance.

Security Glazing Options

Can include security rated glazing systems as part of the tested assembly.

Benefit: Maintains visibility while preserving enhanced security.

Wide Range of Finishes

Available in multiple RAL powder-coated colours.

Benefit: Matches architectural design without compromising performance.

Supports Secured by Design Projects

Often specified for developments requiring enhanced residential security standards.

Benefit: Helps meet developer, insurer, and planning security requirements.

PAS 24 steel doors provide a reliable combination of enhanced security, durability, fire resistance, and escape compliance, making them well suited to residential and multi occupancy buildings requiring independently tested performance.

PAS 24 steel doors must comply with a combination of security, escape, fire, and external product standards, depending on their application and specification.

PAS 24 – Enhanced Security Standard

PAS 24 is a UK security standard assessing resistance to opportunist forced entry.It evaluates the complete door set, including:

• Door leaf
• Frame
• Locking system
• Hinges
• Glazing (if fitted)
• Hardware

Certification confirms the door has passed mechanical loading, manual attack, and tool based testing.

PAS 24 is commonly required for:

• Residential developments
• Apartment buildings
• Secured by Design projects

Secured by Design (Where Applicable)

PAS 24 doors are often specified to meet Secured by Design (SBD) guidance for enhanced residential security.

Fire Resistance (If Fire Rated)

Where PAS 24 doors are also fire rated:

• Internal fire doors must be tested to BS EN 1634-1

Fire ratings may be available up to E120Fire and security certification must apply to the same tested assembly

Emergency Escape Compliance

If the door forms part of an escape route:

• Panic hardware must comply with BS EN 1125
• Emergency push pads must comply with BS EN 179
• The door must allow immediate internal egress

Security features must not compromise life safety.

External Door Compliance

For externally installed PAS 24 steel doors:

• Must comply with BS EN 14351-1 (external pedestrian doorsets)
• CE and/or UKCA marking required
• Declaration of Performance (DoP) provided

This covers weather resistance, wind load, and air permeability.

Accessibility Requirements

Where installed on accessible routes, doors must align with:

• Approved Document M (Access to and Use of Buildings)

This may affect clear opening widths, thresholds, and hardware usability.

Installation Compliance

To maintain PAS 24 certification:

• Installation must follow manufacturer instructions
• Fixings must match tested detail
• Hardware substitutions are not permitted
• Glazing must match certified specification

When properly specified and installed, PAS 24 steel doors can meet enhanced residential security requirements while also complying with fire safety, escape regulations, and external product standards where applicable.

PAS 24 steel doors must be installed exactly in accordance with the tested and certified door set specification. Because PAS 24 applies to the complete assembly, incorrect installation or unauthorised hardware changes can invalidate certification.

Installation Requirements

Install as a Complete Certified Door Set

The following components must match the tested configuration:

• Steel door leaf
• Frame
• Hinges
• Locking system (often multi-point)
• Cylinders
• Glazing (if fitted)
• Louvres (if certified)
• Seals and hardware

Substituting components can void PAS 24 compliance.

Structural Fixing

• Frame must be securely fixed into structural substrate (masonry, concrete, or steel)
• Fixing centres must follow manufacturer guidance
• Frame must be square, plumb, and level
• Packers must not compromise fixing strength

Incorrect fixing reduces security performance.

Locking and Alignment

• Multi point locking systems must align correctly
• Door must close and latch fully
• Compression seals must engage properly
• Cylinders must be correctly installed

Poor alignment affects both security and weather performance.

Emergency Exit Installation (If Applicable)

Where fitted with panic hardware:

• Must comply with BS EN 1125 or BS EN 179
• Internal egress must be immediate and unobstructed

Security features must not compromise escape function

Fire Rated PAS 24 Installation (If Applicable)

For fire rated PAS 24 doors (up to E120):

• Installation must comply with BS EN 1634-1
• Intumescent seals must be correctly fitted
• Approved fire-stopping materials must be used
• Self closing device must ensure full latching

External Installation

For externally installed PAS 24 doors:

• Weather seals must be properly fitted
• Threshold detail must prevent water ingress
• Installation must align with BS EN 14351-1 compliance

Supply Only Considerations

If supplied without installation:

• Installer assumes responsibility for maintaining PAS 24 certification
• Installation must strictly follow technical drawings
• Hardware substitutions are not permitted

Professional installation is strongly recommended for certified systems.

Maintenance Requirements

PAS 24 doors are commonly installed in high traffic residential and communal environments and require regular inspection.

Routine Inspection (Recommended Quarterly in Communal Buildings)

Check for:

• Smooth operation
• Secure hinge fixings
• Correct multi-point lock engagement
• Frame stability
• Seal condition
• Glazing security

Hardware Maintenance

• Lubricate locks and hinges
• Check cylinder operation
• Adjust closers if fitted
• Test panic hardware regularly

Fire Door Maintenance (If Fire Rated)

• Inspect intumescent seals
• Confirm self closing action
• Ensure no unauthorised alterations

External Maintenance

• Inspect weather seals
• Check for corrosion
• Maintain powder-coated finish
• Ensure drainage remains clear

When properly installed and maintained, PAS 24 steel doors provide long term enhanced security performance while maintaining compliance with fire safety, escape regulations, and external product standards.

(Indicative UK pricing – excludes VAT unless stated)

The cost of PAS 24 steel doors depends on configuration (personnel or emergency exit), glazing or louvre inclusion, fire rating (if required), and installation complexity.

PAS 24 Personnel Steel Doors (Single Leaf)

Enhanced security door set for standard access points.

• Supply only: From £1,500 – £2,500
• Supplied and installed: From £2,800 – £4,500

Based on a typical 900mm x 2100mm opening.

PAS 24 Emergency Exit Steel Doors

Fitted with compliant panic hardware (BS EN 1125 / BS EN 179).

• Supply only: From £1,800 – £3,000
• Supplied and installed: From £3,200 – £5,500

Hardware specification influences pricing.

PAS 24 Louvred Steel Doors

Reinforced ventilation panels within certified configuration.

• Supply only: From £1,900 – £3,200
• Supplied and installed: From £3,500 – £6,000

Cost varies depending on ventilation size and reinforcement level.

PAS 24 Fire Rated Steel Doors (Up to E120)

Enhanced security combined with certified fire resistance.

• Supply only: From £2,200 – £3,800+
• Supplied and installed: From £4,000 – £6,800+

Fire rating and configuration will affect final cost.

PAS 24 Double Leaf Steel Doors

For wider openings and main entrances.

• Supply only: From £2,800 – £4,800+
• Supplied and installed: From £5,000 – £8,500+

PAS 24 Glazed Steel Doors

Security rated glazing within certified configuration.

Additional cost:

• Typically £400 – £1,200+ depending on size and glass specification.

Additional Cost Considerations

• Access control preparation
• Electric locking
• Powder-coated colour upgrades
• Structural alterations
• Site access and installation conditions

What Affects Final Pricing

• Personnel vs emergency exit configuration
• Inclusion of louvres or glazing
• Fire rating (if required)Single vs double leaf
• Access control integration
• Installation access and structural preparation

Getting an Accurate Quote

Because PAS 24 certification applies to the complete tested door set, accurate opening sizes and required configuration are essential. A site survey is recommended to ensure correct specification, compliance, and installation pricing.
