Fire Curtains - FC2

Up to 180 Minutes Fire Resistance

Tested to BS EN 1634-1, providing certified fire protection and compartmentation

Automatic Fire Curtain Deployment

Activates via fire alarm system to create a barrier against fire and smoke

Fail-Safe Gravity Descent

Ensures curtain deployment even during power failure for maximum safety

Compact & Concealed Design

Slim headbox allows discreet integration into ceilings and bulkheads

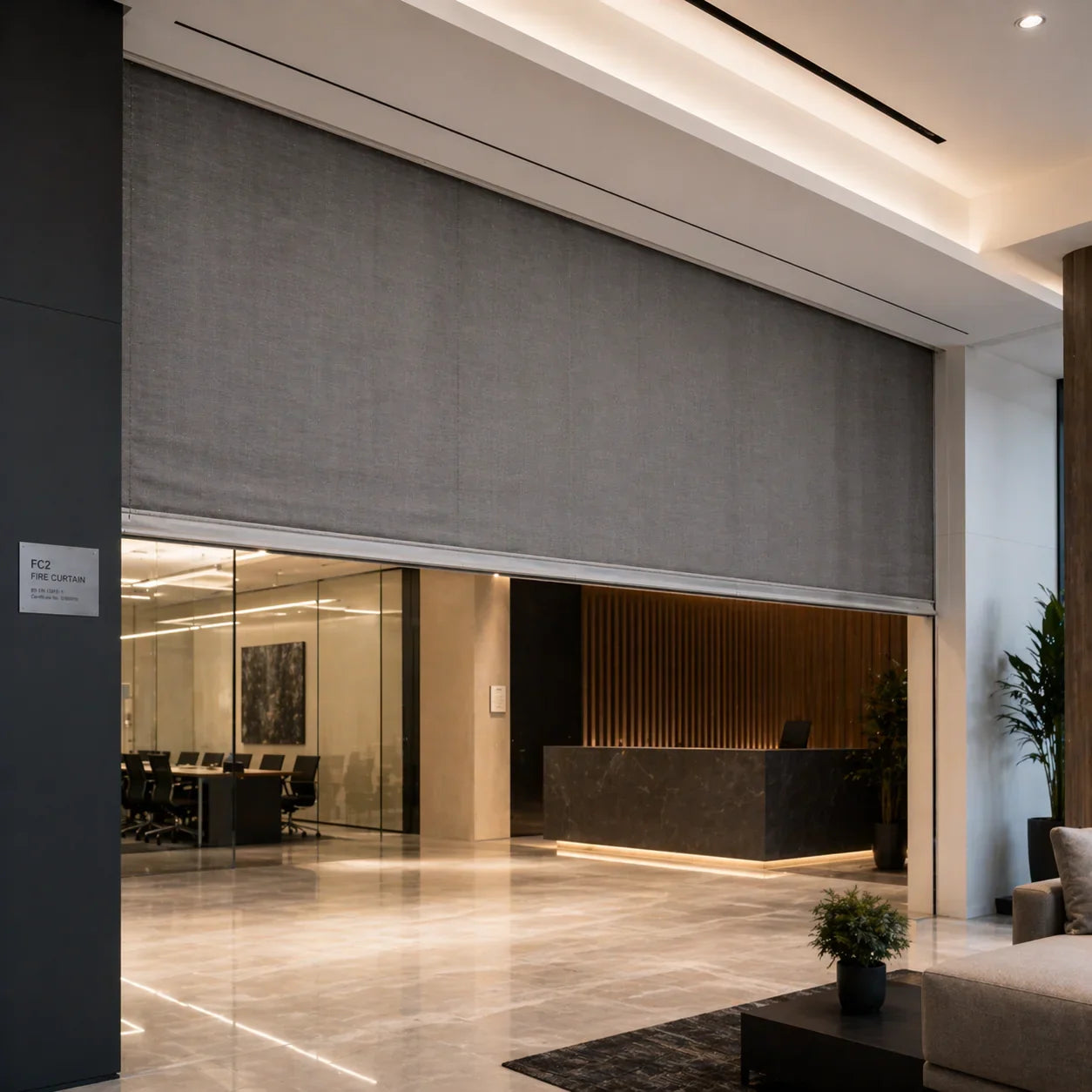

Ideal for Open-Plan Spaces

Perfect for atriums, offices, retail units, and large open areas

Custom Made to Measure

Manufactured to suit your exact opening width and drop requirements

Optional Smoke Control Capability

Helps reduce smoke spread and supports safe evacuation routes

High-Performance Curtain Fabric

Glass fibre material reinforced with stainless steel wire for durability

Integration with Fire & BMS Systems

Fully compatible with fire alarms and building management systems

Flexible Installation Options

Suitable for face fix or soffit fix depending on project requirements

Wide Range of Finish Options

Headboxes and guides available in RAL/BS colours to match interiors

Low Maintenance & Reliable Operation

Designed for long-term performance with minimal upkeep

The FC2 Fire Curtain is designed to offer maximum flexibility in both performance and aesthetics, making it suitable for a wide range of commercial and public building applications. With multiple configuration and finish options available, the system can be tailored to meet specific fire strategy and architectural requirements.

Size & Made-to-Measure Design

Each curtain is custom manufactured to suit your exact opening dimensions, including:

• Bespoke widths and drop heights

Suitable for small openings through to large spans in open-plan areas

Headbox & Integration Options

The system features a compact headbox design, allowing for:

• Concealed installation within ceilings or bulkheads
• Minimal visual impact when retracted

Ideal for modern interiors and refurbishment projects

Installation Methods

Flexible installation options to suit different structures:

• Face fix installation
• Soffit fix installation

Designed for integration into masonry or structural steel openings

Structural Support Requirements

• Suitable for installation into masonry substrates
• Can also be installed with structural steel support sections (e.g. 80mm x 80mm box section)
• Ensures structural integrity and maintains fire certification

Curtain Fabric Options

• Standard grey fire-resistant fabric
• Optional specialist coatings or finishes
• Potential for branding or aesthetic enhancements (project dependent)

Colour & Finish Options

Headboxes and side guides available in:

• RAL 9005 (Black)
• RAL 9010 (White)
• Full RAL / BS colour matching available for bespoke projects

Smoke Control Upgrade

Optional smoke-rated performance can be added to:

• Help control smoke migration
• Support evacuation routes and fire strategy compliance

Control & Operation Options

A range of control features can be specified, including:

• Integration with fire alarm systems
• Connection to building management systems (BMS)
• Manual override and reset functions
• Delay timers for staged deployment

Audio & Visual Alerts

Optional safety enhancements include:

• Audible alarms
• Visual warning indicators

To alert occupants before curtain deployment

Safety & Power Options

• 24V DC motor system for safe operation

Battery backup system for continued function during power failureBuilt-in fail-safe gravity descent mechanism

Product Type:

• Automatic fire curtain system for compartmentation

Fire Rating:

• Tested to BS EN 1634-1
• Provides up to E180 integrity classification (up to 180 minutes)
• Additional classification to EN 13501-2 (E120) depending on specification

Certification:

• CE marked to EN 16034CE marked to EN 13241

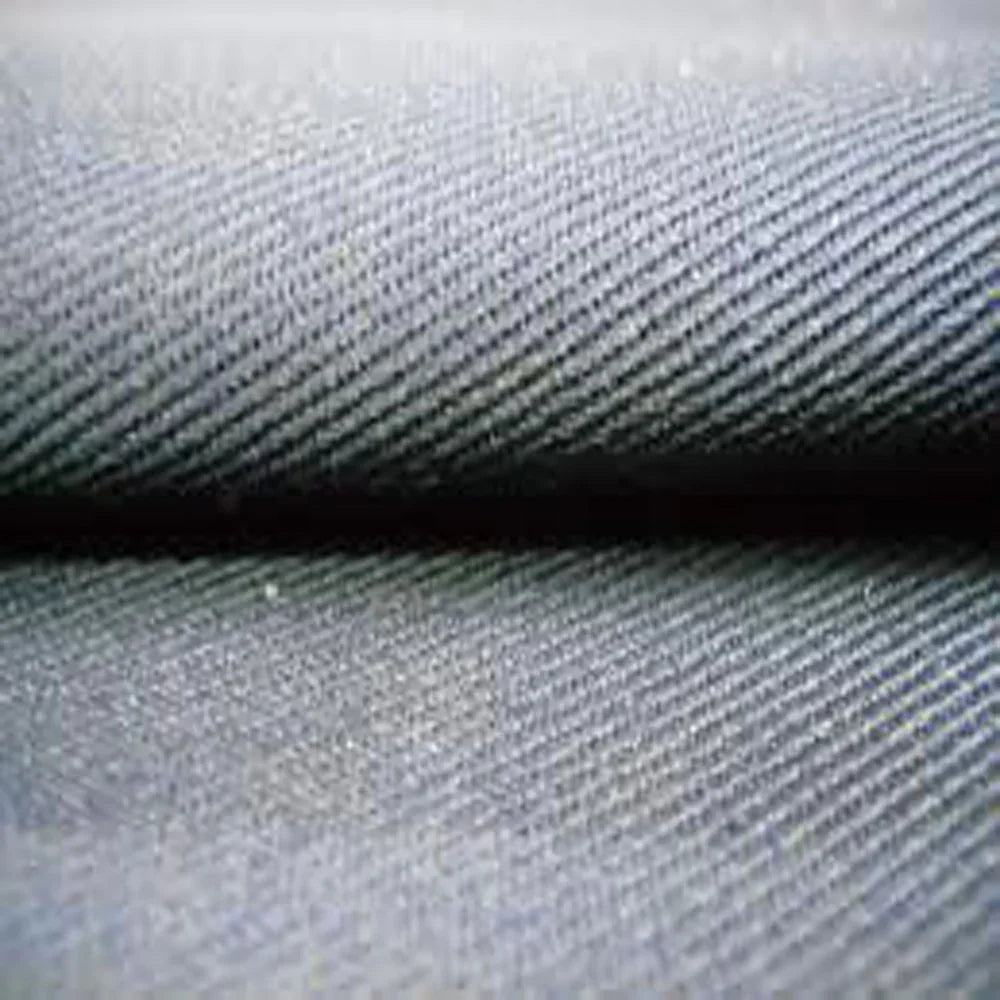

Curtain Material:

• Glass fibre fabric reinforced with stainless steel wire
• Coated to resist ignition and reflect radiant heat

Operation:

• 24V DC tubular motor system
• Automatic deployment via fire alarm signal
• Fail-safe gravity descent in the event of power failure

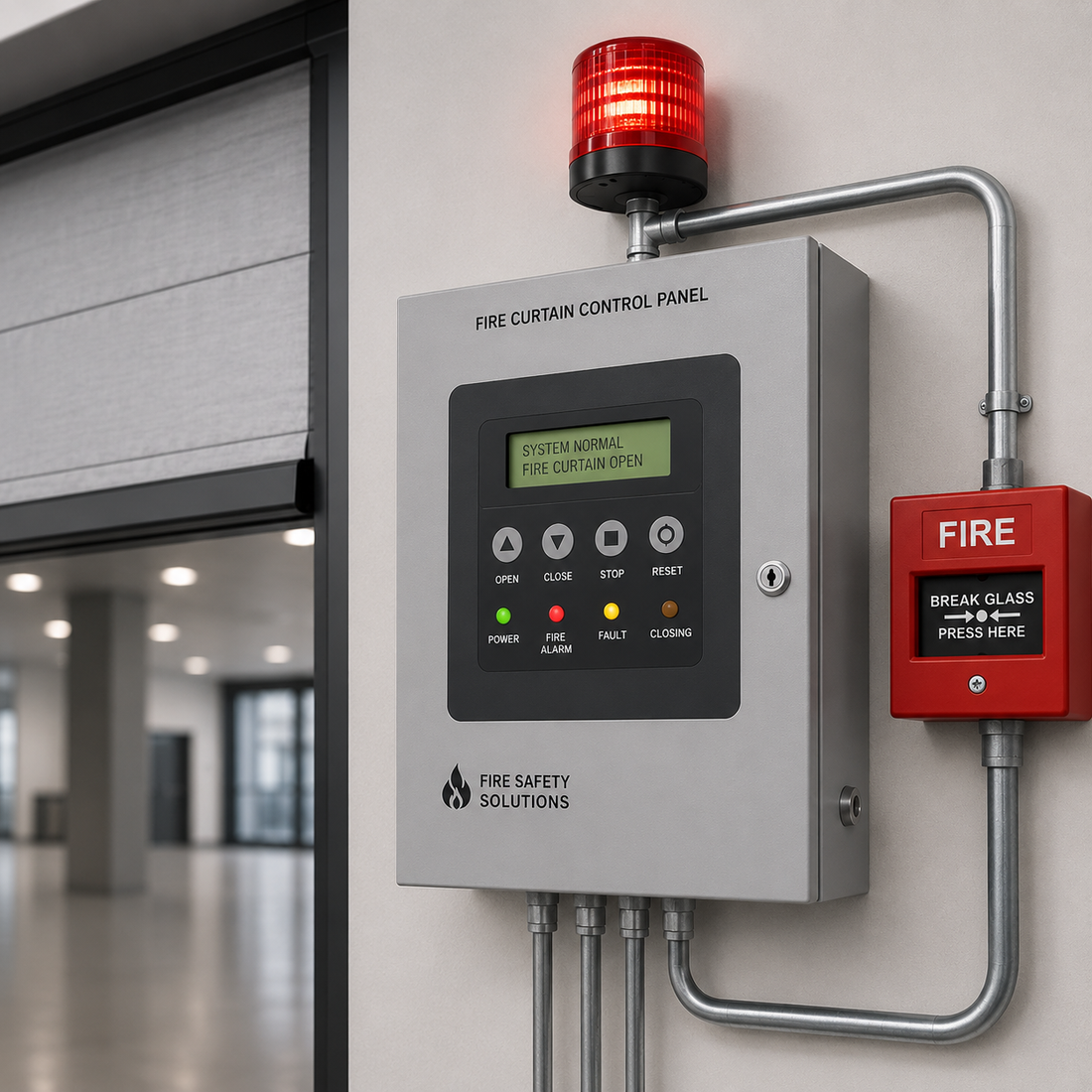

Control System:

• Integrated control panel
• Compatible with fire alarm systems
• Compatible with building management systems (BMS)
• Includes manual reset and test functionality

Power Supply:

• Mains powered with battery backup system
• Ensures operation during power failure

Deployment Features:

• Automatic descent on alarm activation
• Optional delay timers
• Optional audible and visual warning systems

Smoke Control:

• Optional smoke-rated performance available

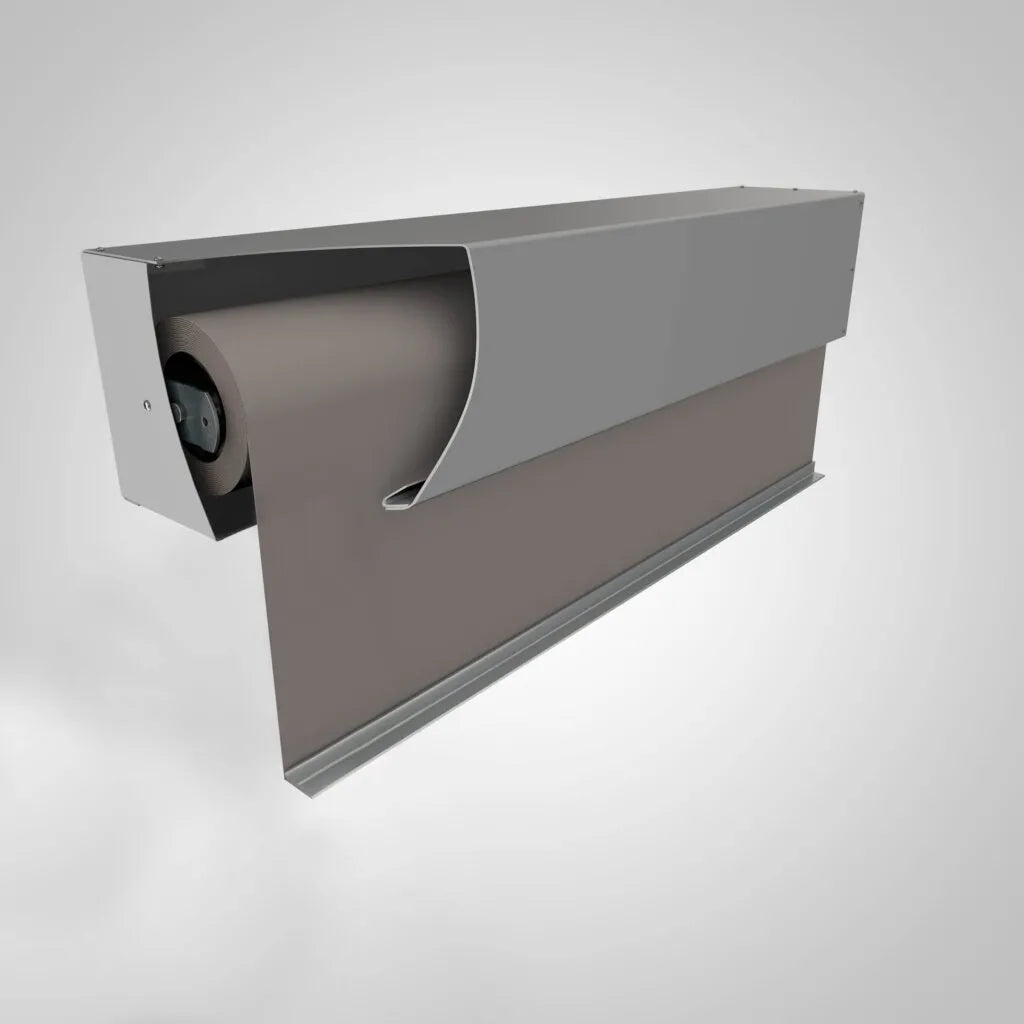

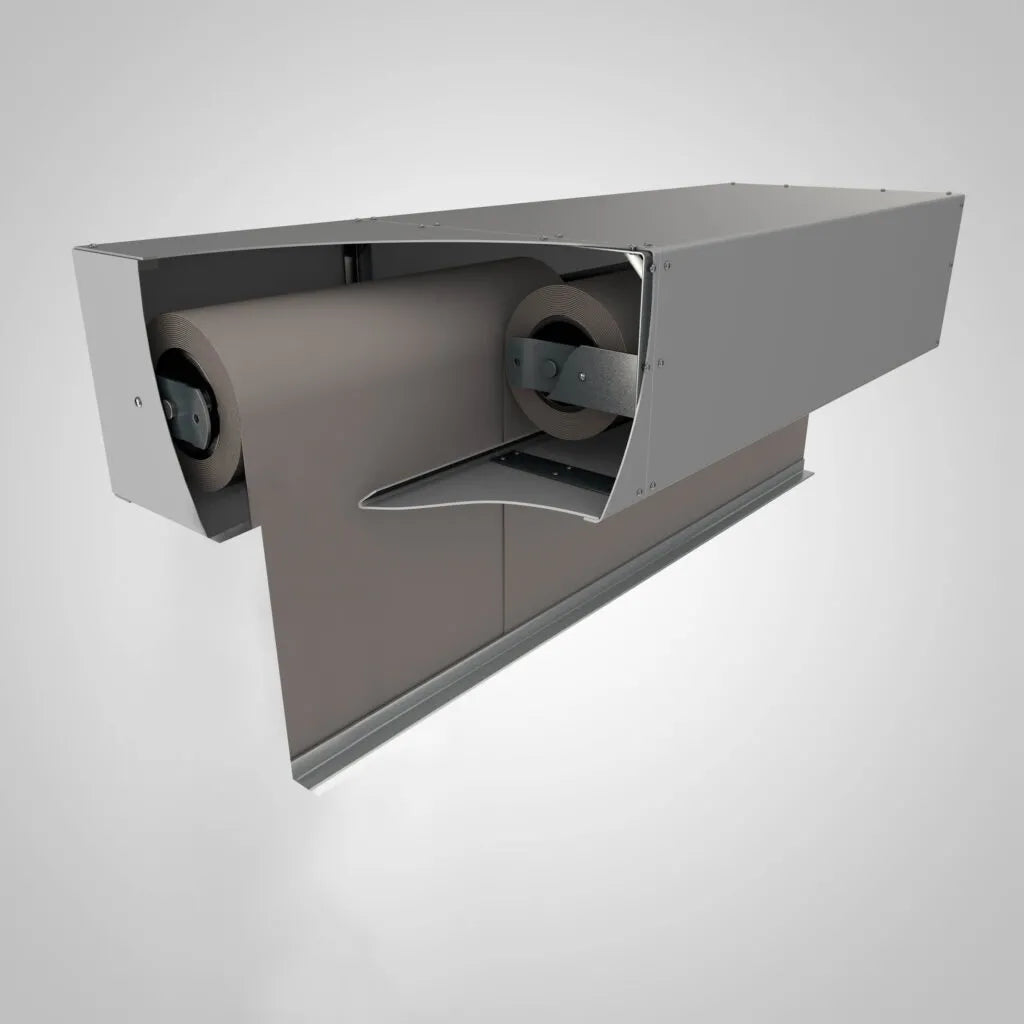

Headbox:

• Compact, slimline design for concealed installation
• Suitable for ceiling or soffit integration

Finish:

• Curtain fabric in standard grey
• Headbox and side guides in RAL 9005 (Black) or RAL 9010 (White)
• Custom RAL / BS colours available

Installation Options:

• Face fix or soffit fix installation
• Suitable for masonry or structural steel substrates

Structural Requirements:

• Can be installed into masonry openings
• Steel support (e.g. 80mm x 80mm x 5mm box section) where required

Sizes:

• Custom made to measure (widths and drops to suit opening)

Usage:

• Suitable for corridors, atriums, lobbies, stairwells, and open-plan spaces

Safety Features:

• Fail-safe gravity operation
• Battery backup
• Fire alarm integration
• Designed for life safety and fire containment

Warranty:

• 12-month standard warranty (extendable with maintenance plans)

Maintenance:

• Requires regular servicing to maintain compliance and performance

Lead Time

• Typically 3–5 weeks depending on size and specification

Our FC2 Fire Curtains are manufactured to order, with a typical lead time of 4–5 weeks from order confirmation and final specification. This ensures each system is produced to the required size, fire rating, and integration requirements for your project.

Please note that larger openings, bespoke configurations, or additional features, such as smoke control, specialist finishes, or advanced control options, may extend the lead time slightly. We will always confirm accurate timescales at quotation stage to support your project programme.

We offer a professional supply and installation service, ensuring the curtain is installed correctly into masonry or structural steel substrates and fully integrated with fire alarm and building management systems. Installation includes alignment, commissioning, and testing to ensure full operational performance. For supply-only orders, we provide detailed installation guidance to ensure compliance with fire safety standards and correct system operation.

The cost of FC2 Fire Curtains will vary depending on size, configuration, fire rating, and control system requirements. As a specialist life safety product, pricing reflects the level of certification, automation, and integration with fire systems.

Indicative Pricing

Small Openings (Up to 2m wide)

• Supply Only: £2,000 – £4,000
• Supply & Install: £3,500 – £6,000

Medium Openings (2m – 4m wide)

• Supply Only: £3,500 – £7,000
• Supply & Install: £5,500 – £10,000

Large Openings (4m+ wide / Atriums & Open Plan Areas)

• Supply Only: £6,000 – £15,000+
• Supply & Install: £9,000 – £20,000+

Multiple Curtain Systems / Complex Layouts

• Supply Only: £10,000+
• Supply & Install: £15,000+

Factors Affecting Price

Several factors will influence the final cost:

• Opening Size: Width and drop height significantly impact cost
• Fire Rating: Higher performance levels (e.g. E120–E180)
• Control Systems: Integration with fire alarms and BMS
• Smoke Control: Additional smoke-rated performance
• Installation Type: Face fix vs soffit fix
• Finish Options: Powder coating and bespoke finishes
• Site Conditions: Access, working height, and structural requirements

Installation Considerations

Fire curtain installation is more complex than standard door systems due to:

• Integration with fire alarm systems and control panels
• Requirement for structural support (masonry or steel)
• Working at height for larger openings
• Commissioning and testing to meet compliance standards

This means installation costs are typically higher than standard fire protection products.

Additional Costs to Consider

• Electrical works for control systems
• Builder’s works or structural steel supports
• Access equipment (e.g. scaffolding or lifts)
• Ongoing maintenance and servicing

Get an Accurate Quote

Every fire curtain installation is unique, so we recommend requesting a tailored quotation. Our team can assess your layout and fire strategy to provide the most suitable and compliant solution, ensuring the right balance of performance, design, and budget.
