Punched Steel Roller Shutter - 24% Vision

Strong Galvanised Steel Construction

Single skin galvanised steel provides durable, reliable protection for commercial use

Punched Slat Design (24% Vision)

Allows increased visibility and airflow while maintaining effective security

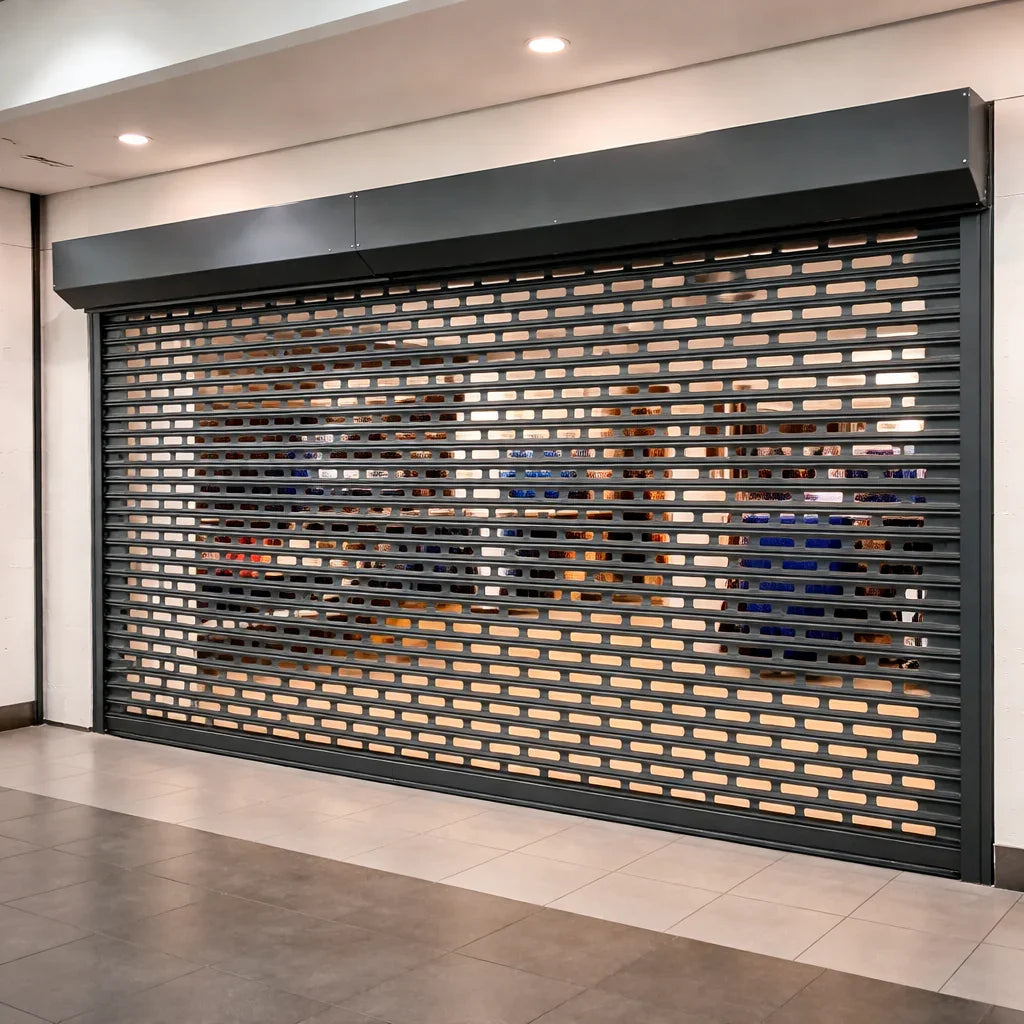

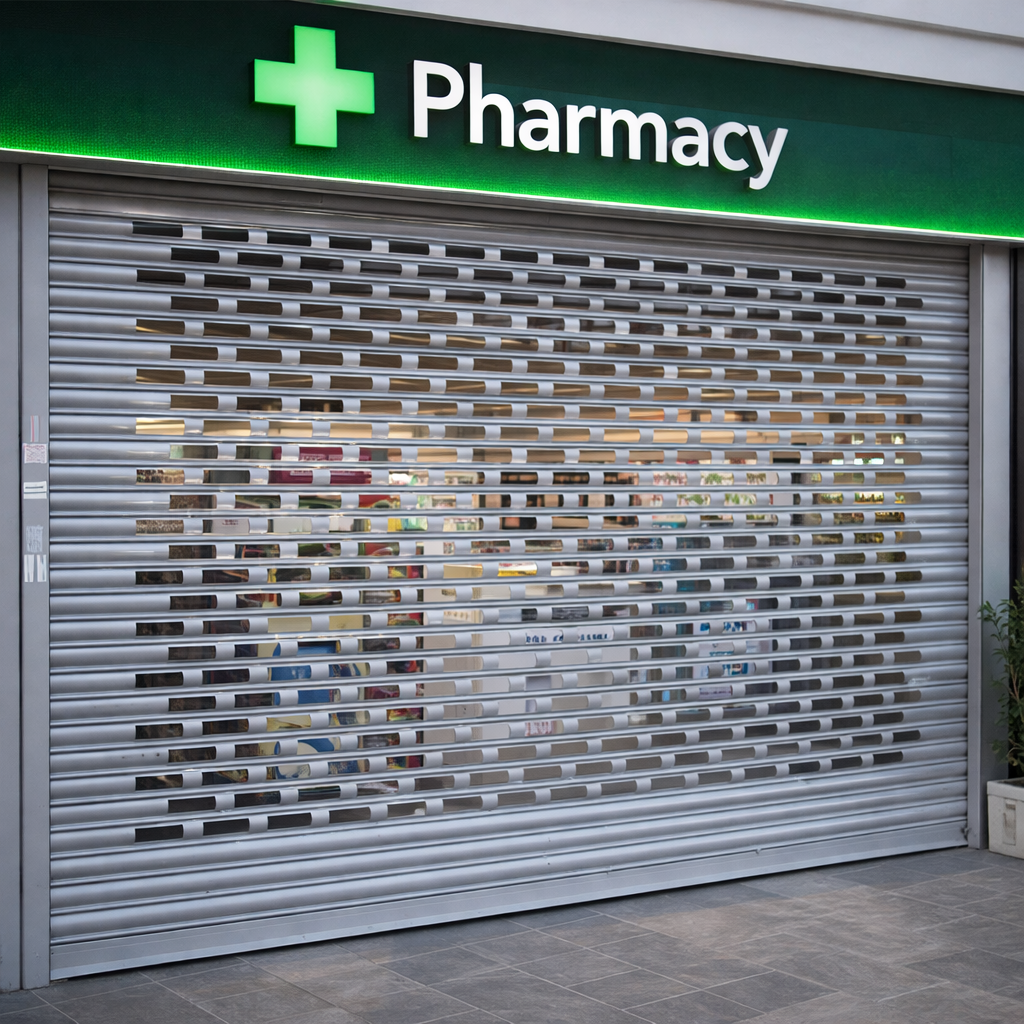

Ideal for Retail & Shopfronts

Perfect for environments where product visibility and security are both important

Manual or Electric Operation Available

Spring loaded for smaller shutters or electric for larger, frequent use

Wide Span Capability

Suitable for larger openings, with spans of up to 7 metres

Made-to-Measure Design

Custom-built to suit your exact opening for a precise, secure installation

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Upgrade Options Available

Can be enhanced with wind guides and additional locking for increased security

Low Maintenance

Robust steel construction ensures long-term durability with minimal upkeep

Suitable for Internal & External Use

Versatile solution for retail, commercial, and industrial applications

Proven Commercial Performance

Designed for regular use in busy environments such as shops, units, and counters

Perforated steel roller shutters offer a practical balance of security, visibility, and cost, with flexible options to suit different commercial environments.

Slat Options

• Perforated Slats (18% Vision)
  Allows light and limited visibility while maintaining good security
  Commonly used for shopfronts and retail displays

Operation & Control Options

Manual Operation (Smaller Openings):

• Spring & Lock (Push-Up Operation) – Simple, cost-effective solution for smaller shutters

Electric Operation (Larger / Frequent Use):

• Hold-to-Run Switch – Standard controlled operation
• Key Switch Control – Secure access for authorised users
• Remote Control (Fob Operation) – Convenient operation at the touch of a button
• Automation Systems (e.g. Somfy) – Smart control, timers, and integration options

Finish & Colour Options

• Galvanised Finish (Standard)
  Durable, industrial appearance with corrosion resistance
• Powder Coated Finish
  Available in any RAL or BS colour to match branding or architecture
  Suitable for retail and customer-facing environments

Security & Performance Upgrades

• Wind Guides
  Improves stability and performance in exposed or external locations
• Additional Manual Locking
  Enhances security, particularly for higher-risk applications

Size & Configuration

• Wide Span Capability
  Suitable for openings up to 7 metres wide
• Made to Measure Design
  Custom built for a precise fit and clean installation

These options make perforated steel shutters ideal for retail shopfronts, counters, and commercial units, delivering a balance of visibility, security, and affordability.

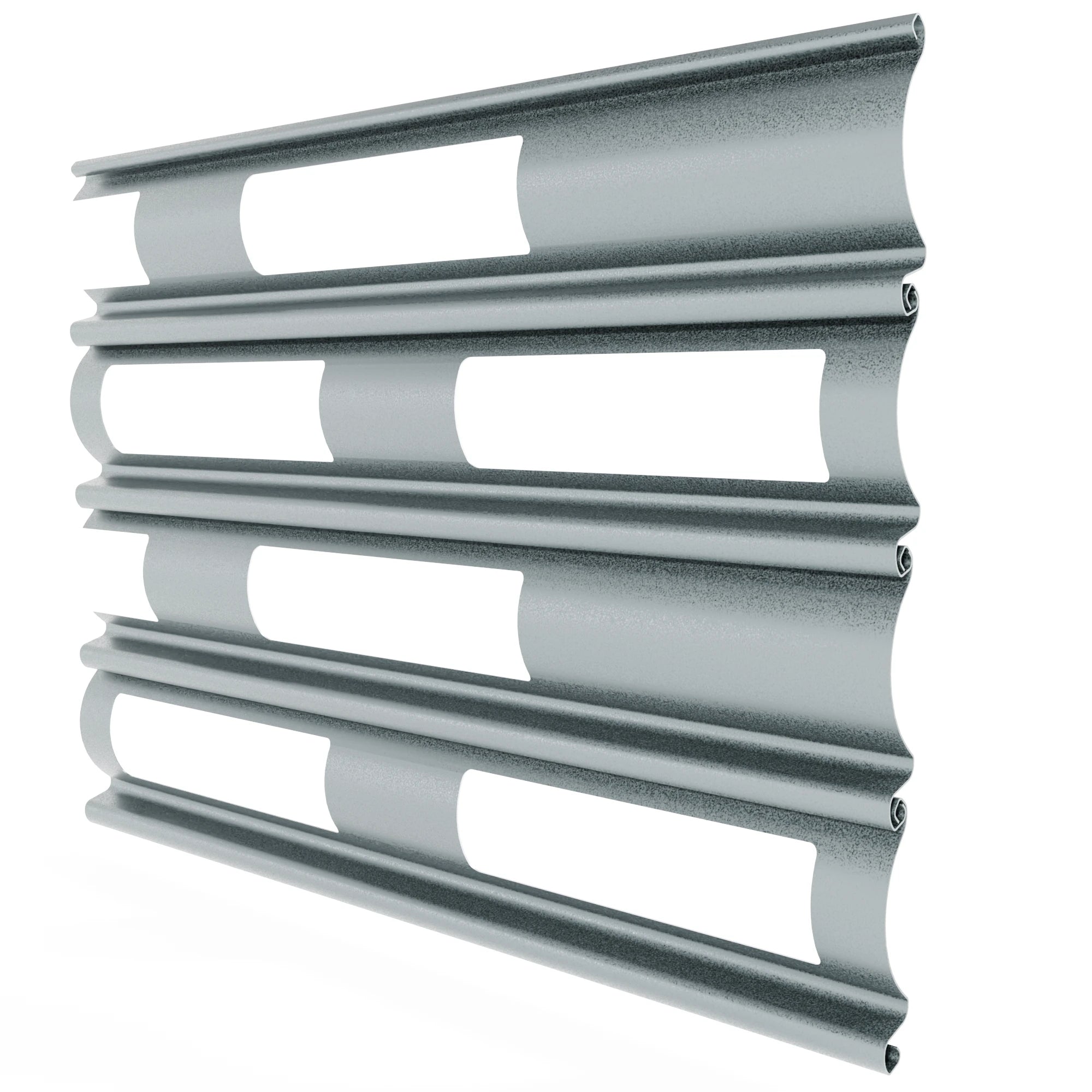

• Slat Type: Punched Single skin galvanised steel slats (24% Vision)
• Slat Height: 75mm high
• Curtain Thickness: 22G (0.7mm), 20G (0.9mm), or 18G (1.2mm) (depending on shutter size and security)
• Weight: Approx. 10 kg/m² (depending on specification)
• Maximum Width: Up to approx. 7000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Galvanised Steel U Channel fixed to 50mm x 75mm guide fixing angle
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Galvanised Finish.
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Perforated Steel Roller Shutter. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the steel roller shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 4-5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

Punched Steel Roller Shutters are a cost effective commercial solution, offering a balance of security, visibility, and airflow, making them ideal for shopfronts and retail environments.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £600 – £1,200
• Supply & Install – £1,000 – £1,800

Medium (up to 4m x 4m)

• Supply Only – £1,200 – £2,400
• Supply & Installation – £2,000 – £3,800

Large (up to 7m wide)

• Supply Only – £4,500 – £6,500
• Supply & Install – £6,500 – £8,500

What Affects the Price?

• Operation Type – Manual options reduce cost; electric operation adds convenience and increases price
• Punched Slat Design – Slightly higher cost than solid due to manufacturing
• Colour Finish – Galvanised finish is more cost-effective; custom RAL/BS colours add cost and lead time
• Controls & Automation – Remote controls and smart systems (e.g. Somfy IO) increase price
• Installation Complexity – Structure type, access, and working conditions can impact installation cost

Budget Guidance

• A cost effective upgrade from solid shutters, adding visibility and light
• Ideal for retail shopfronts and customer facing environments
• Best suited where security and product visibility are both important

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
