Steel Roller Shutter

Strong Galvanised Steel Construction

Single skin galvanised steel provides durable, reliable protection for commercial use

Flexible Slat Options

Available in solid, perforated (18% vision), or punched (24% vision) slats

Ideal for Retail & Commercial Applications

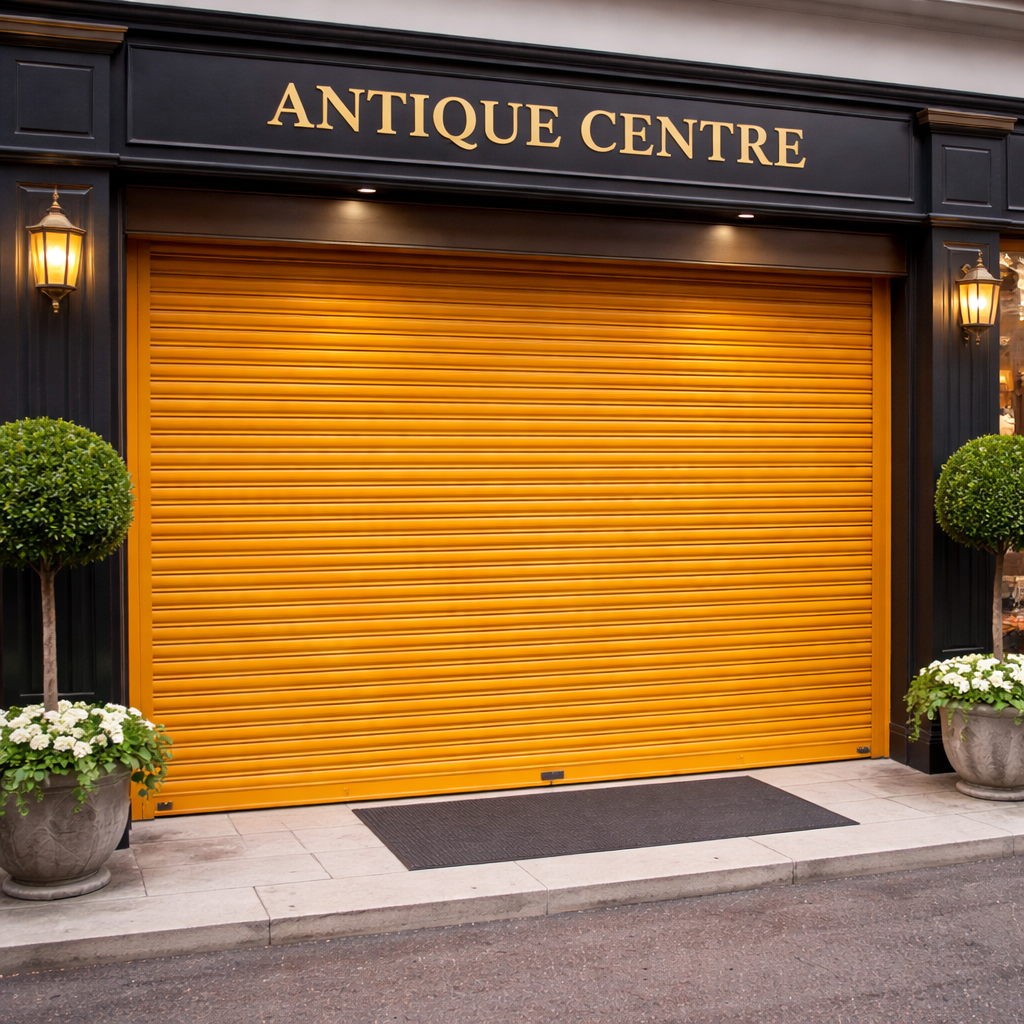

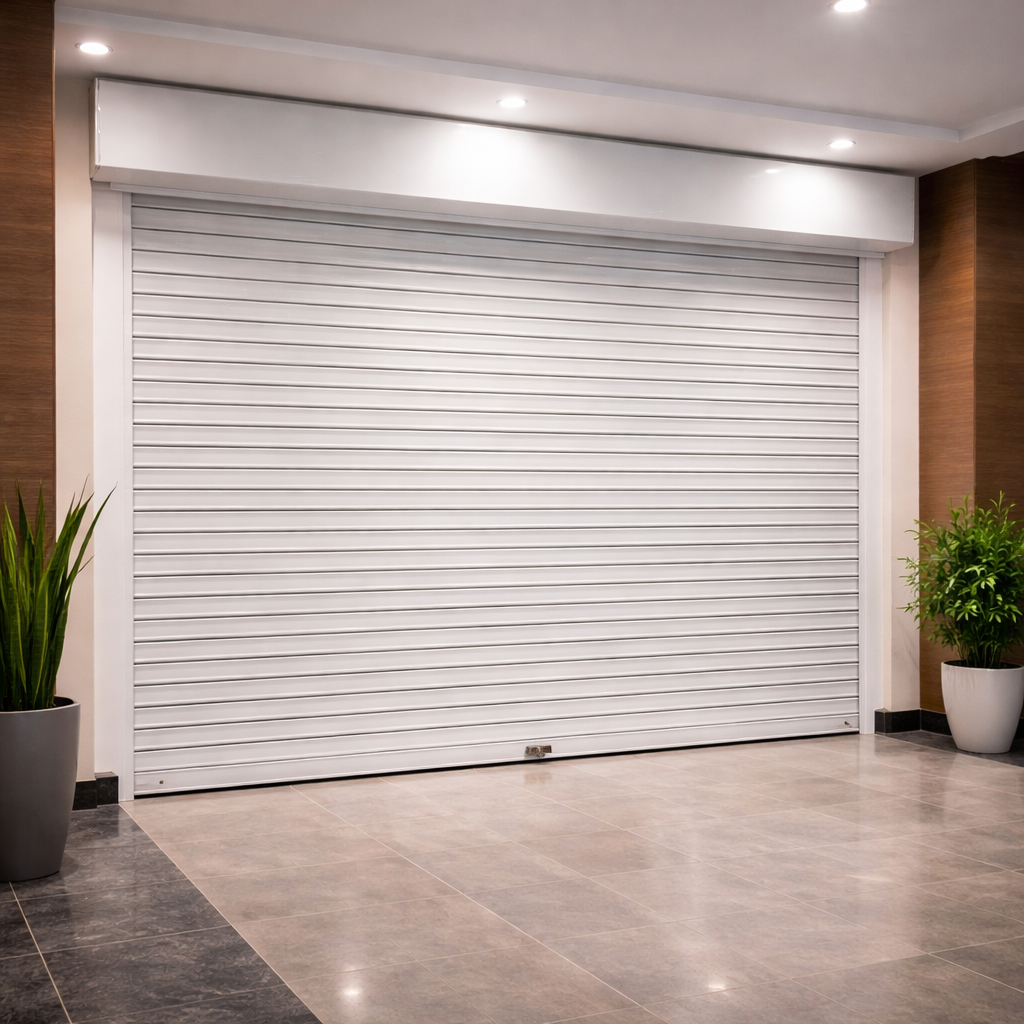

Perfect for shopfronts, offices, warehouses, and kitchen serveries

Manual or Electric Operation Available

Spring loaded for smaller shutters or electric for larger, frequent use

Wide Span Capability

Suitable for larger openings, with spans of up to 7 metres

Made to Measure Design

Custom-built to suit your exact opening for a precise, secure installation

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Upgrade Options Available

Can be enhanced with wind guides and additional locking for increased security

Low Maintenance

Robust steel construction ensures long-term durability with minimal upkeep

Suitable for Internal & External Use

Versatile solution for a wide range of commercial and industrial applications

Proven Commercial Performance

Designed for regular use in busy environments such as shops, units, and counters

Steel roller shutters offer a high level of flexibility in design, operation, and finish, allowing you to tailor the system to your security, visibility, and budget requirements.

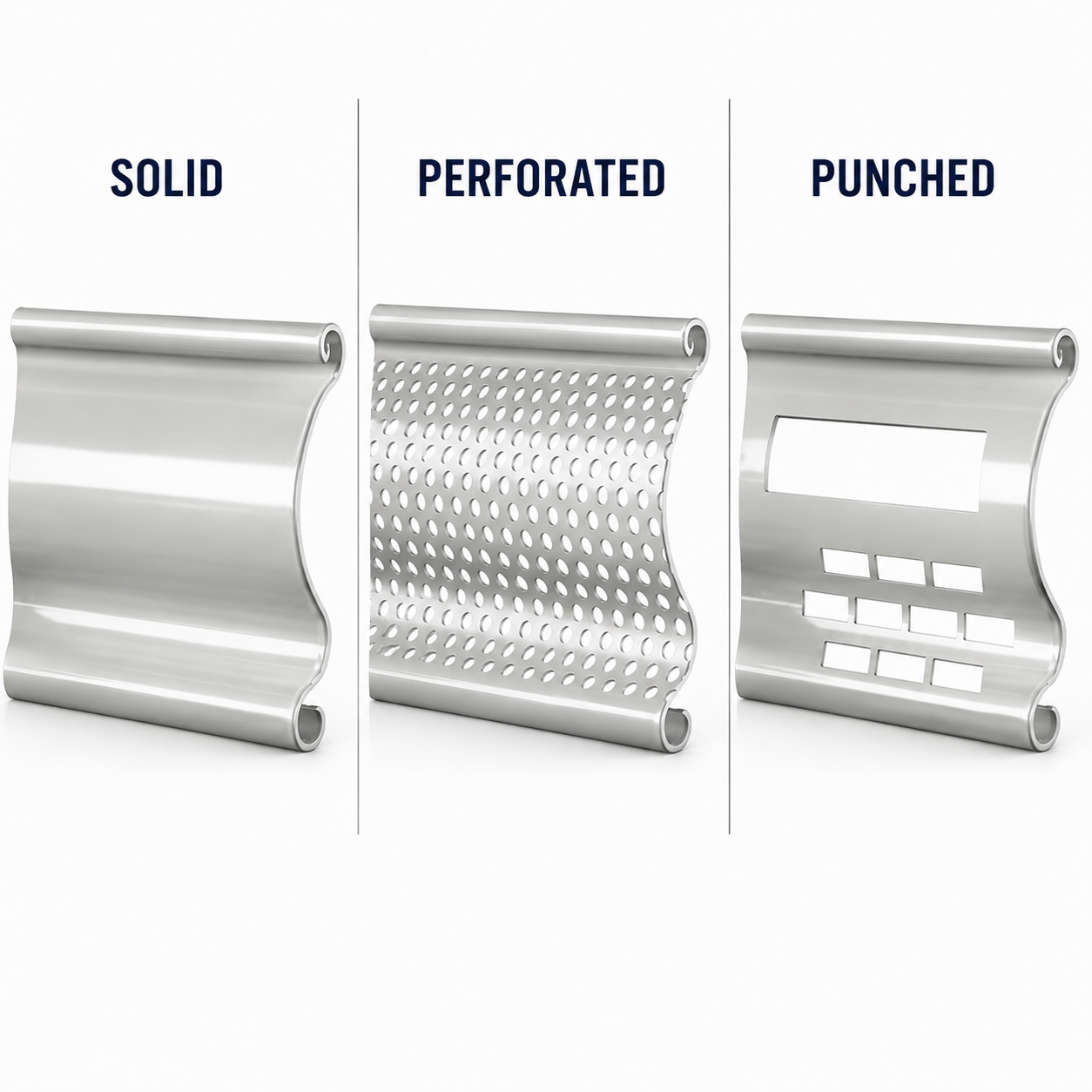

Slat Options

• Solid Slats
  Provides maximum security and privacy
  Ideal for high-risk areas, storage units, and back of house openings
• Perforated Slats (18% Vision)
  Allows light and limited visibility while maintaining good security
  Commonly used for shopfronts and retail displays

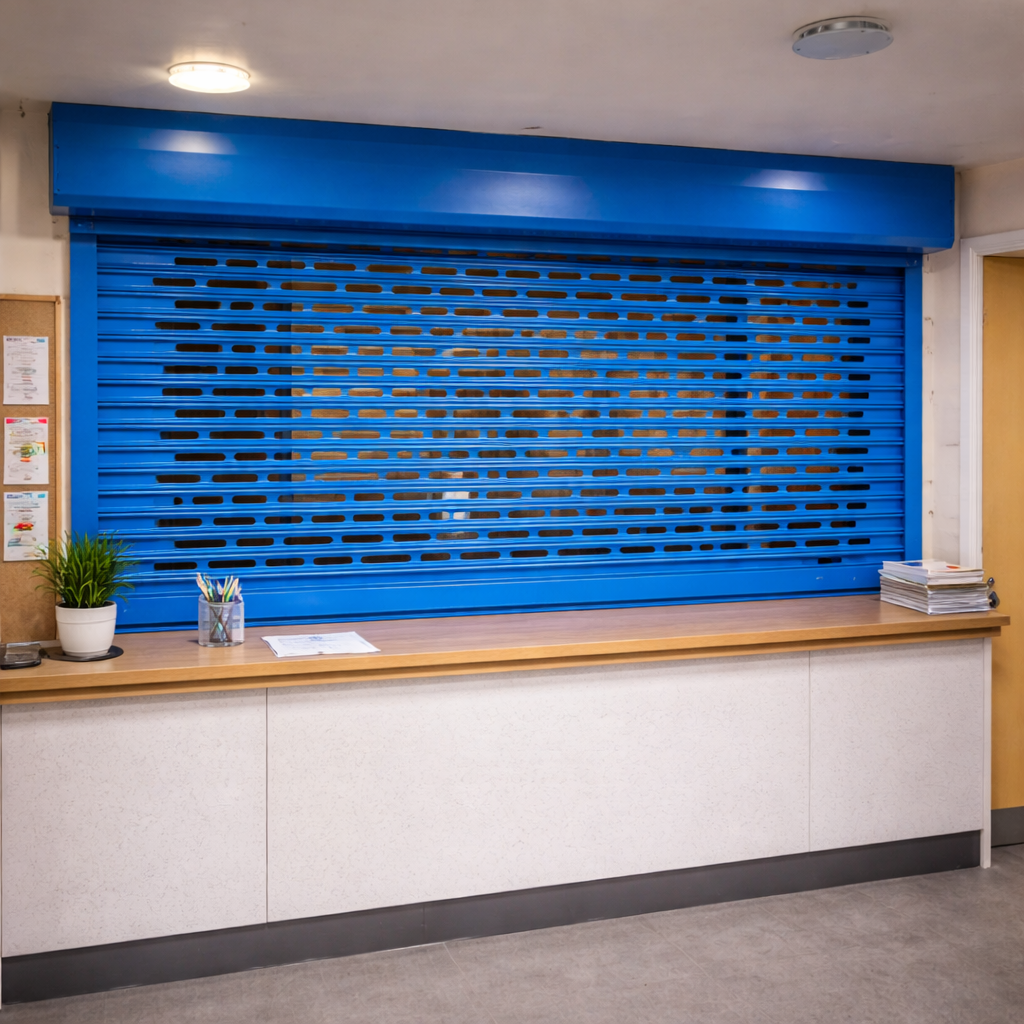

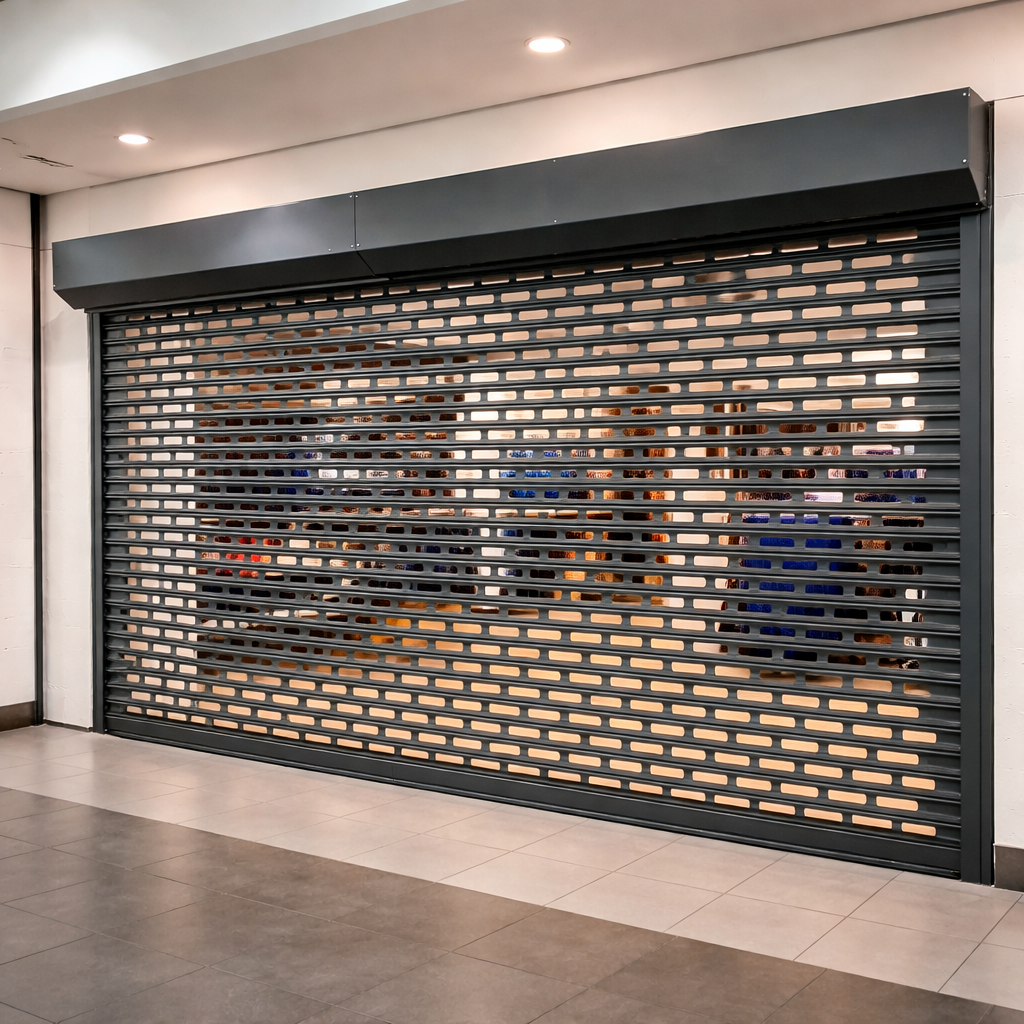

• Punched Slats (24% Vision)
  Offers greater visibility and airflow than perforated options
  Ideal for retail environments where display is important

Operation & Control Options

Manual Operation (Smaller Openings):

• Spring & Lock (Push-Up Operation) – Simple, cost-effective solution for smaller shutters

Electric Operation (Larger / Frequent Use):

• Hold-to-Run Switch – Standard controlled operation
• Key Switch Control – Secure access for authorised users
• Remote Control (Fob Operation) – Convenient operation at the touch of a button
• Automation Systems (e.g. Somfy) – Smart control, timers, and integration options

Finish & Colour Options

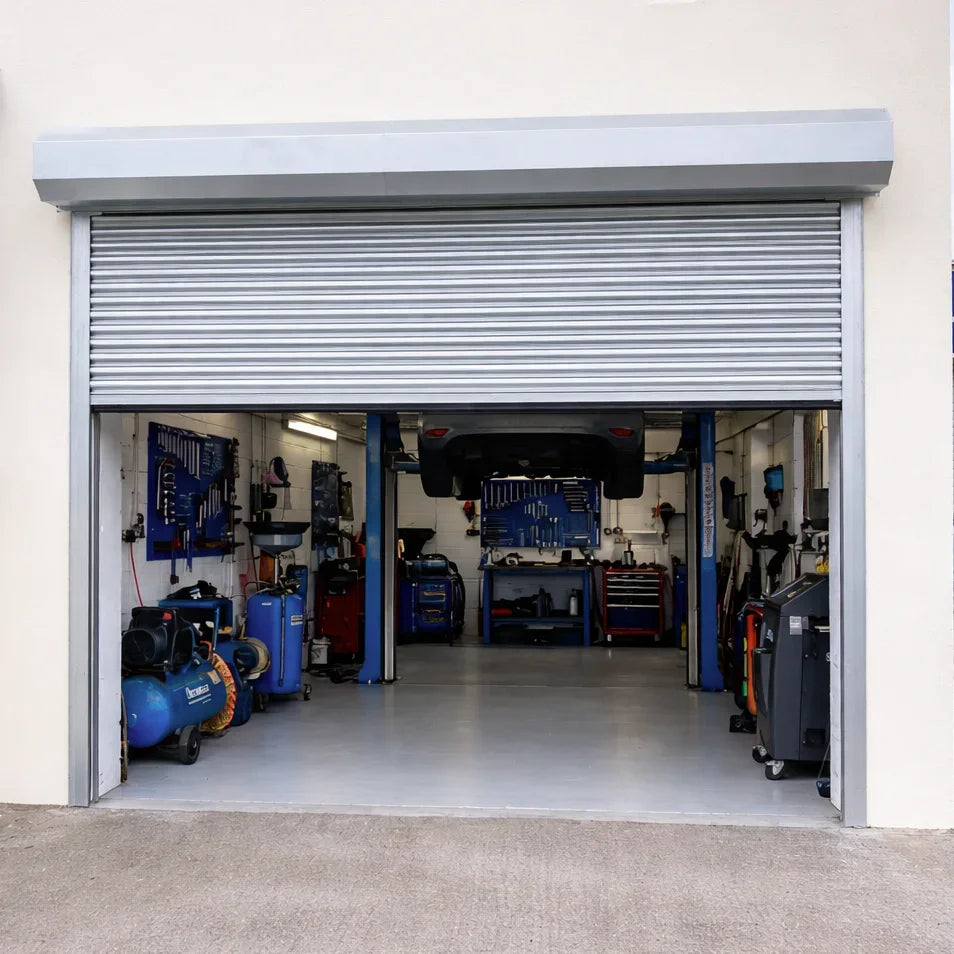

• Galvanised Finish (Standard)
  Durable, industrial appearance with corrosion resistance
• Powder Coated Finish
  Available in any RAL or BS colour to match branding or architecture
  Suitable for retail and customer-facing environments

Security & Performance Upgrades

• Wind Guides
  Improves stability and performance in exposed or external locations
• Additional Manual Locking
  Enhances security, particularly for higher-risk applications

Size & Configuration

• Wide Span Capability
  Suitable for openings up to 7 metres wide
• Made to Measure Design
  Custom-built for a precise fit and clean installation

This flexibility makes steel roller shutters ideal for shopfronts, commercial units, warehouses, and serveries, delivering a balance of cost, strength, and performance.

• Slat Type: Single skin galvanised steel slats (solid, perforated, or punched options)
• Slat Height: 75mm high
• Curtain Thickness: 22G (0.7mm), 20G (0.9mm), or 18G (1.2mm) (depending on shutter size and security)
• Weight: Approx. 12 kg/m² (depending on specification)
• Maximum Width: Up to approx. 7000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Galvanised Steel U Channel fixed to 50mm x 75mm guide fixing anfgle
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Galvanised Finish.
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Steel Roller Shutter. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the steel roller shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 4-5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

Steel Roller Shutters are a cost effective, medium security solution, making them one of the most popular choices for shopfronts, commercial units, and larger openings.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £500 – £1,000
• Supply & Install – £1,000 – £1,800

Medium (up to 4m x 4m)

• Supply Only – £1,000 – £2,000
• Supply & Installation – £1,800 – £3,500

Large (up to 7m wide)

• Supply Only – £4,00 – £6,000
• Supply & Install – £6,000 – £8,00

What Affects the Price?

• Operation Type – Manual options reduce cost; electric operation adds convenience and increases price
• Slat Type – Solid, perforated, or punched slats can influence pricing
• Colour Finish – Galvanised finish is more cost-effective; custom RAL/BS colours add cost and lead time
• Controls & Automation – Remote controls and smart systems (e.g. Somfy IO) increase price
• Installation Complexity – Structure type, access, and working conditions can impact installation cost

Budget Guidance

• One of the most cost effective commercial shutter options
• Ideal for retail, industrial, and wide span openings
• Best suited where budget and durability are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
