Steel Security Shutter - LPS1175 Level 1

LPS1175 Security Rated Construction (SR1)

Independently tested to Security Rating 1 and approved for Secured by Design

Strong Galvanised Steel Construction

Single skin galvanised steel provides durable, reliable high-security protection

Solid or Perforated Slat Options

Available in solid or perforated (18% vision) slats to suit security and visibility needs

Internal Installation for Enhanced Security

Installed internally to protect guides and shutter box from attack

Electric Operation with Manual Locking

Electrically operated as standard with additional manual locking for extra protection

Made to Measure Design

Custom built to suit your exact opening for a precise and secure installation

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Designed for High Security Applications

Ideal for retail, commercial premises, and areas requiring certified protection

Low Maintenance

Robust steel construction ensures long-term durability with minimal upkeep

Internal Use Only

Specifically designed for internal installation to maximise security performance

Proven Commercial Performance

Engineered for reliable, regular use in security-sensitive environments

The RS7501 Steel Security Shutter is designed to deliver certified security performance, with controlled options to ensure compliance while still allowing flexibility in appearance and operation.

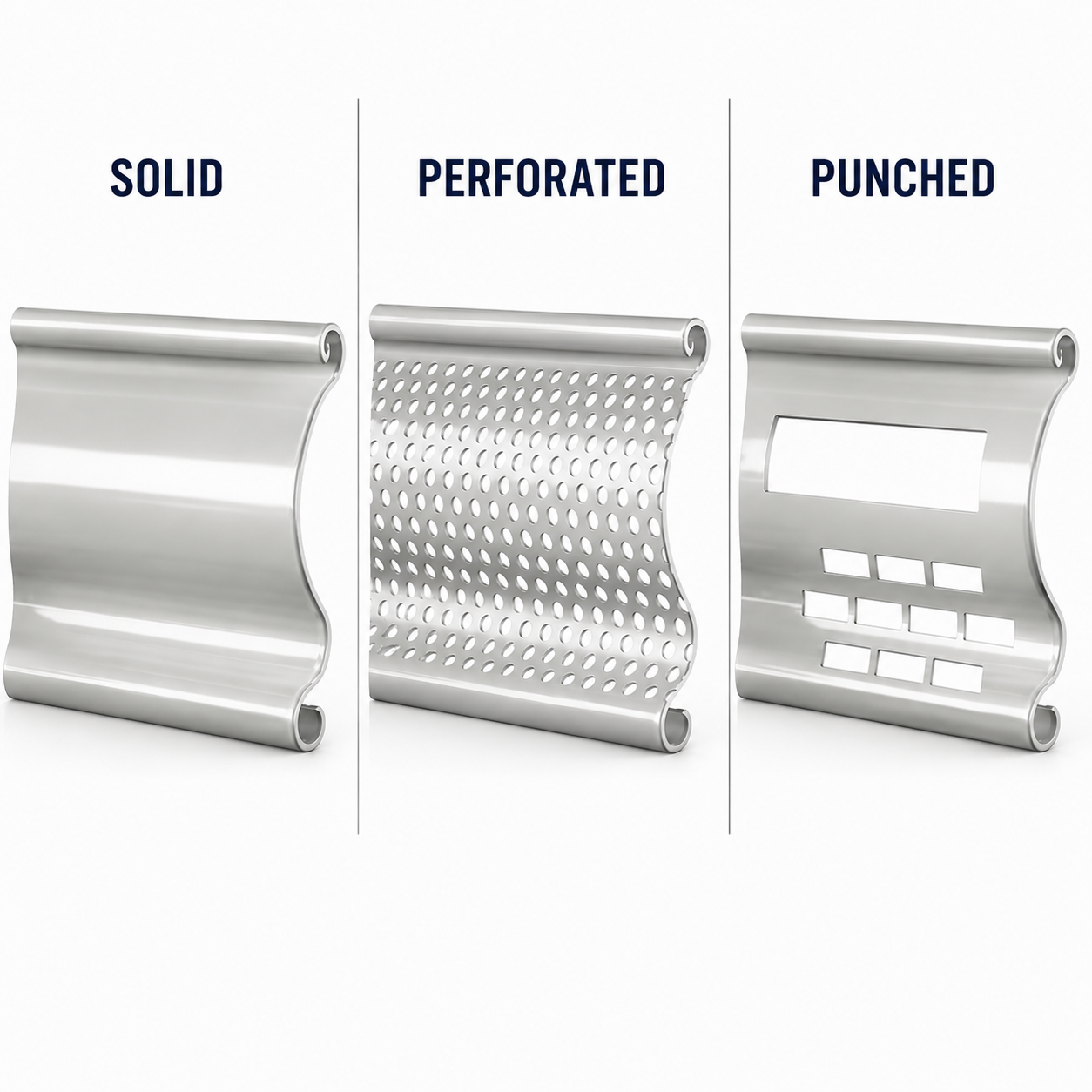

Slat Options

• Solid Slats
  Provides maximum security and privacy
  Ideal for high-risk areas, storage units, and back of house openings
• Perforated Slats (18% Vision)
  Allows light and limited visibility while maintaining security rating
  Suitable for retail where some visibility is required

Operation & Control Options

Electric Operation (Standard)

• Hold-to-Run Switch – Standard controlled operation
• Key Switch Control – Secure access for authorised users
• Remote Control (Fob Operation) – Convenient operation at the touch of a button
• Automation Systems (e.g. Somfy) – Smart control, timers, and integration options

Note: Electric operation is standard to maintain security integrity

Finish & Colour Options

• Galvanised Finish (Standard)
  Durable, industrial appearance with corrosion resistance
• Powder Coated Finish
  Available in any RAL or BS colour to match branding or architecture
  Suitable for retail and customer-facing environments

Security & Performance Upgrades

• Wind Guides
  Improves stability and performance in exposed or external locations
• Additional Manual Locking
  Enhances security, particularly for higher-risk applications

Size & Configuration

• Wide Span Capability
  Suitable for openings up to 7 metres wide
• Made to Measure Design
  Custom-built for a precise fit and clean installation

This flexibility makes steel roller shutters ideal for shopfronts, commercial units, warehouses, and serveries, delivering a balance of cost, strength, and performance.

• Security Rating: LPS1175 Security Level 1
• Slat Type: Single skin galvanised steel slats (solid or perforated options)
• Slat Height: 75mm high
• Curtain Thickness: 22G (0.7mm), 20G (0.9mm), or 18G (1.2mm) (depending on shutter size and security)
• Weight: Approx. 12 kg/m² (depending on specification)
• Maximum Width: Up to approx. 4000mm (height dependent)
• Maximum Height: Up to approx. 4400mm (width dependent)
• Guide Rails: Galvanised Steel 65mm Wind Guide U Channel fixed to 50mm x 75mm guide fixing angle
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Electric motor operation with manual lock
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch
• Finish: Galvanised Finish.
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Internal Manual override, safety brake, obstacle detection

We aim to keep lead times as efficient as possible for the Steel Security Shutter. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the steel roller shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 4-5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The RS7501 Steel Security Shutter is a premium, certified security solution, designed for applications where insurance approved protection and forced entry resistance are required.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £1,200 – £2,200
• Supply & Install – £2,200 – £3,800

Medium (up to 4m x 4m)

• Supply Only – £2,000 – £4,000
• Supply & Installation – £3,500 – £6,500

What Affects the Price?

• Security Specification (LPS1175 SR1) – Certified components increase cost vs standard shutters
• Internal Installation Requirements – Additional preparation may be required for compliant fitting
• Slat Type – Solid is standard; perforated (18% vision) may increase cost
• Motor & Controls – Electric operation is standard; upgrades (remote/automation) add cost
• Colour Finish – Galvanised is standard; powder coating (RAL/BS) increases cost
• Installation Complexity – Access, structure, and fixing requirements impact pricing

Budget Guidance

• A premium upgrade from standard steel shutters, offering certified security
• Ideal for retail, commercial, and high risk environments requiring compliance
• Best suited where security and insurance requirements outweigh budget constraints

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
