E130 Security Shutter - C5 (SR3)

Tested, Not Just Claimed Independently tested against the LPS1175 Issue 8 Category C tool set for at least five minutes.

No Extra Locks The anti-lift profile is built into the slats, so the curtain resists lifting on its own.

Lighter Curtain At 18–25kg/m², it's the lightest curtain in the E130 range.

Large Spans One shutter can cover openings up to 10m wide, 10m high and 100m².

Flexible Fixing External face, internal face or reveal fitted, to suit the building.

Room to Grow The same E130 shutter is available at D10 (SR4) and E10 (SR5) if your risk assessment calls for more.

The E130 C5 is a certified system, so options are limited to protect its rating.

Curtain

• 130mm profile: 105mm double-skinned extruded aluminium slat (standard)
• 25mm self-locking anti-lift quirk

Installation

• External face fix, internal face fix or reveal fix, within the certified configuration

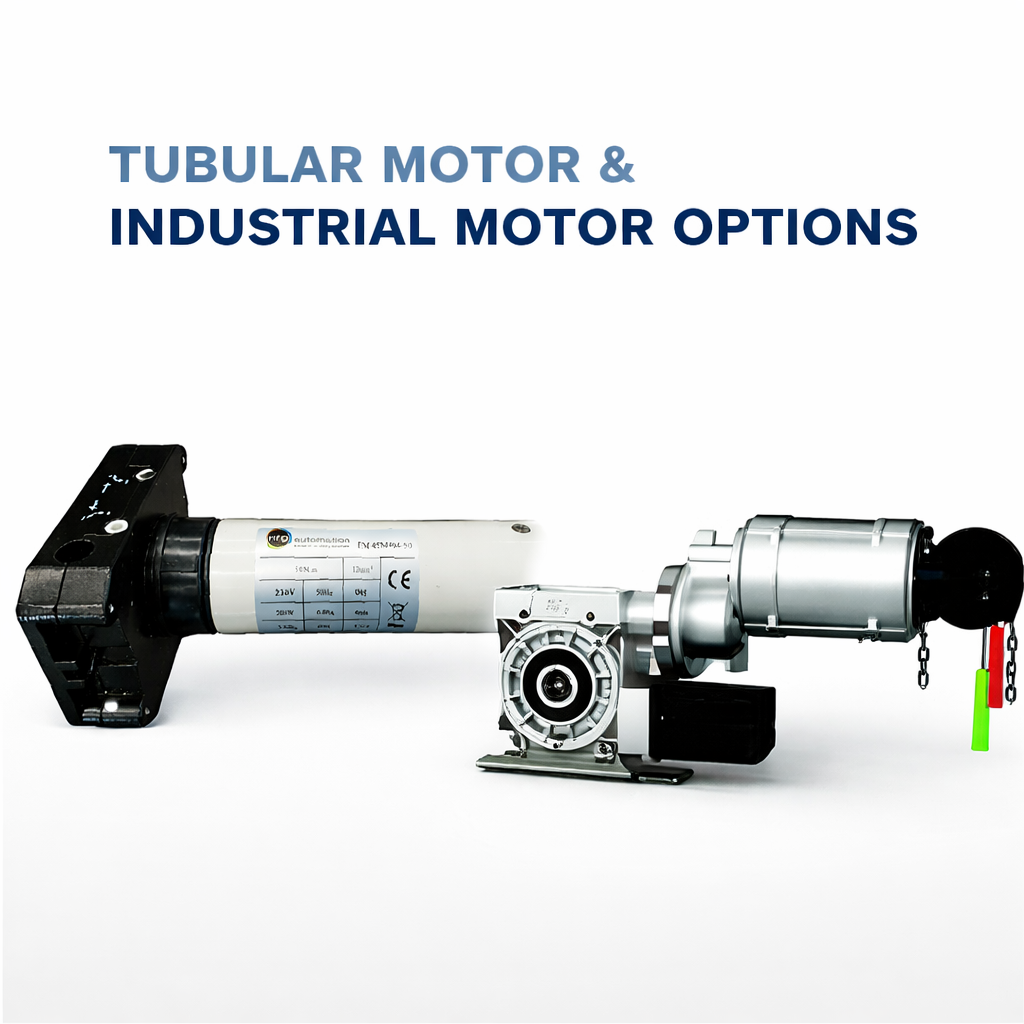

Motor

• Tubular motor – smaller shutters
• GfA industrial motor, outboard (direct drive) or inboard – larger shutters
• 230V single phase or 415V 3 phase (recommended for large or high-cycle doors)

Controls

• Hold-to-run switch (standard)
• Key switch
• Remote control / fobs
• Access control or building management integration

Safety

• Safety edges
• Photocells / light curtains
• Emergency stop
• Manual override (depends on motor)

Finish

• Mill aluminium (standard)
• Powder coated in any RAL or BS colour

• Slats: 130mm profile; 105mm double-skinned extruded aluminium with 25mm self-locking anti-lift quirk
• Weight: approx. 18–25kg/m²
• Maximum width: 10,000mm
• Maximum size: 10,000mm wide x 10,000mm high; maximum area 100m²
• Guide rails: 120mm x 70mm extruded aluminium with rubber weather seal; standard guide heights 3000, 4800, 6200, 7800 and 9800mm
• Bottom slat: extruded aluminium with solid aluminium defenders
• Enclosure: not supplied as standard; steel casing available on request
• Fixing: external face, internal face or reveal fix, within the certified configuration
• Operation: electric only. Tubular motor with safety brake (manual override and crank handle optional), or GfA single or three phase direct drive motor with integrated safety brake, chain manual override and push-button station as standard
• Controls: hold-to-run standard; key switch, remotes, access control optional
• Finish: mill aluminium; any RAL/BS powder coat
• Security: LPS1175 Issue 8 C5 (SR3)

Manufacture: up to 4–5 weeks. Larger doors, specialist motors and powder coating can take a little longer.

Supply and fit: up to 5–8 weeks, including site survey, manufacture and installation.

Installation: the C5 rating depends on fitting it in its certified configuration, so we strongly recommend professional installation. Send us your proposed fixing and we'll confirm it's covered.

Prices from £3,500 for a 1000mm x 1000mm shutter

The final price depends on:

• Opening width, height and area
• Fixing method
• Motor: tubular or GfA industrial, 230V or 415V
• Controls and access control integration
• Safety devices
• Finish: mill or powder coated

Which rating do you need? Choose the rating your risk assessment, insurer or security consultant specifies. For tougher attack, see the E130 D10 (SR4) or E130 E10 (SR5).
