E130 Security Shutter - E10 (SR5)

LPS1175 E10 (SR5) Certified Security

Tested to the highest level for resistance against prolonged and aggressive attacks

130mm Insulated Aluminium Slat System

Double skinned extruded aluminium slats with integrated anti-lift design

Built In Anti Lift Mechanism

Enhanced security without the need for additional locking systems

Designed for Large Openings

Suitable for openings up to 10 metres wide and large industrial areas

Internal Face Fix Installation (Mandatory)

Installed behind the opening so guides and box are not exposed to attack

Flexible Motor Options

Tubular motors for smaller shutters or GFA industrial motors for larger doors

Designed for High Security Applications

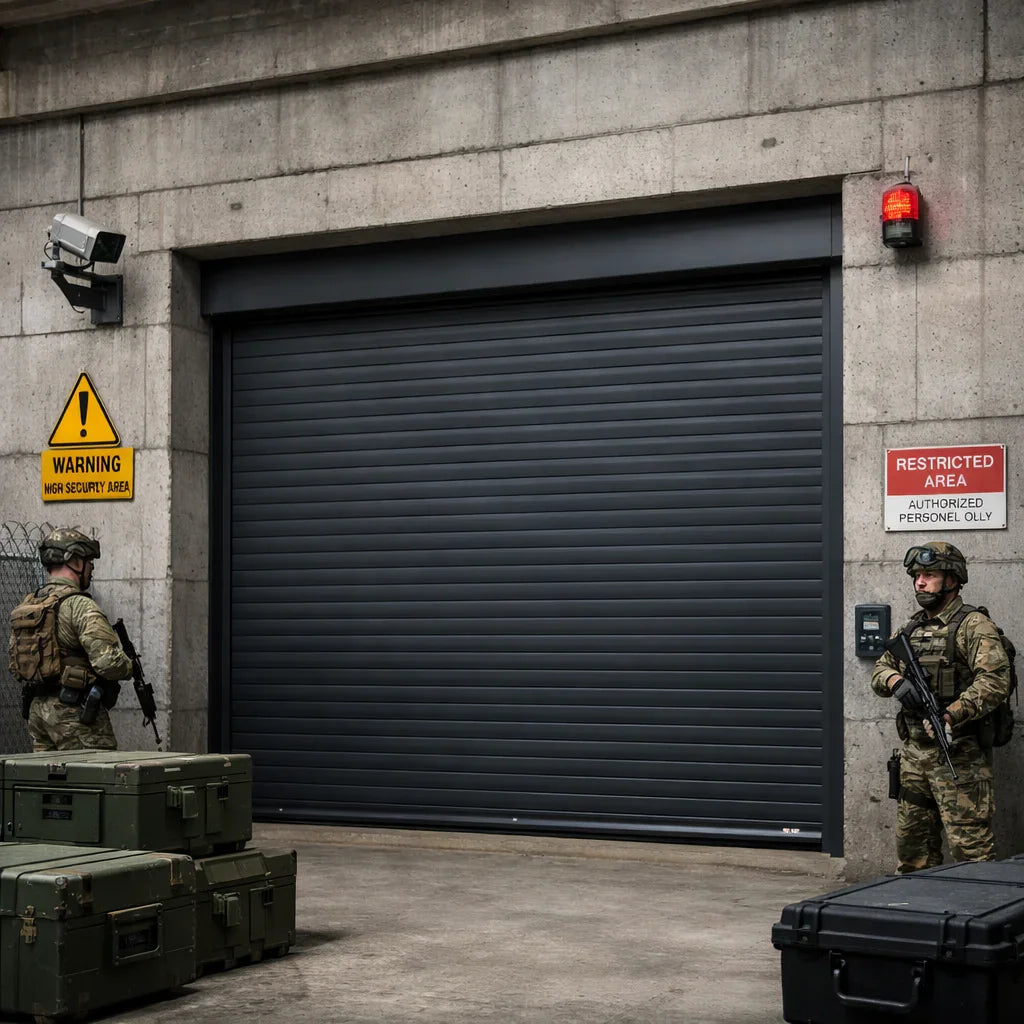

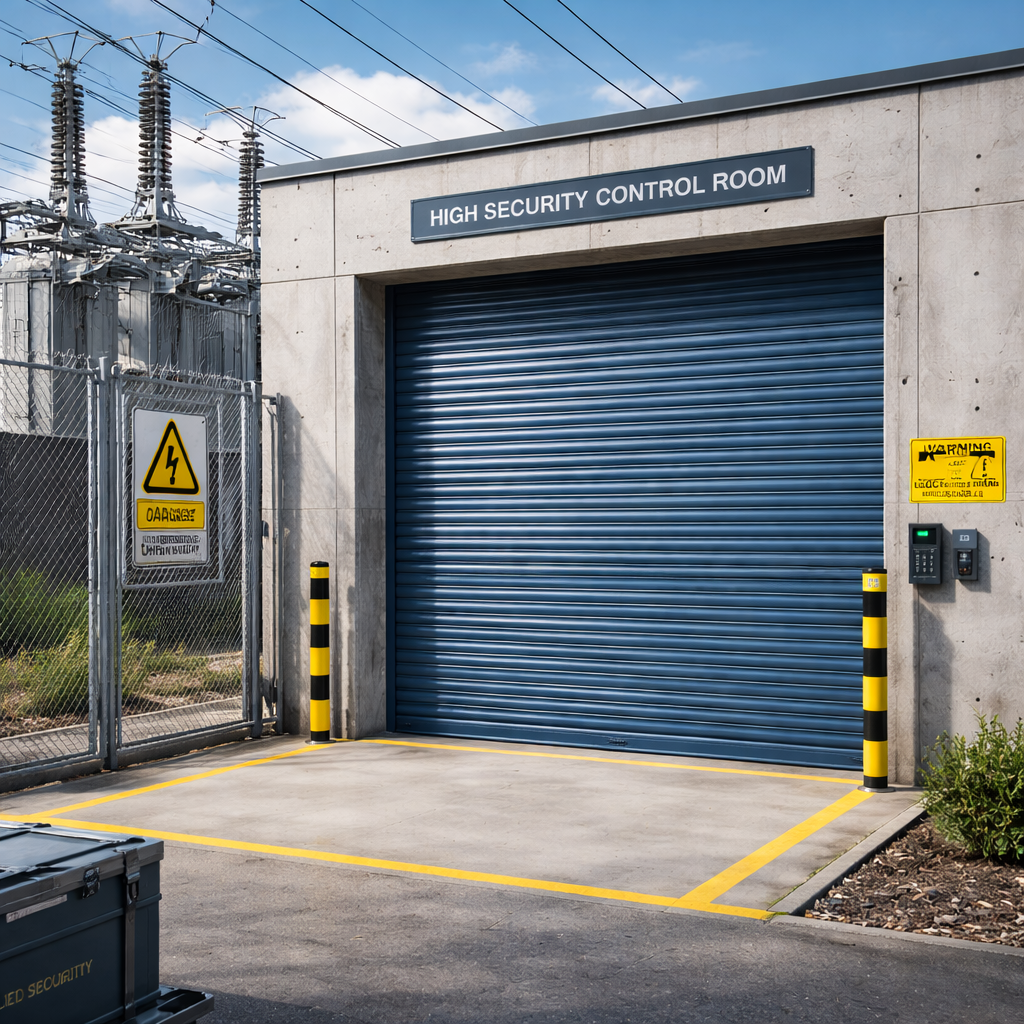

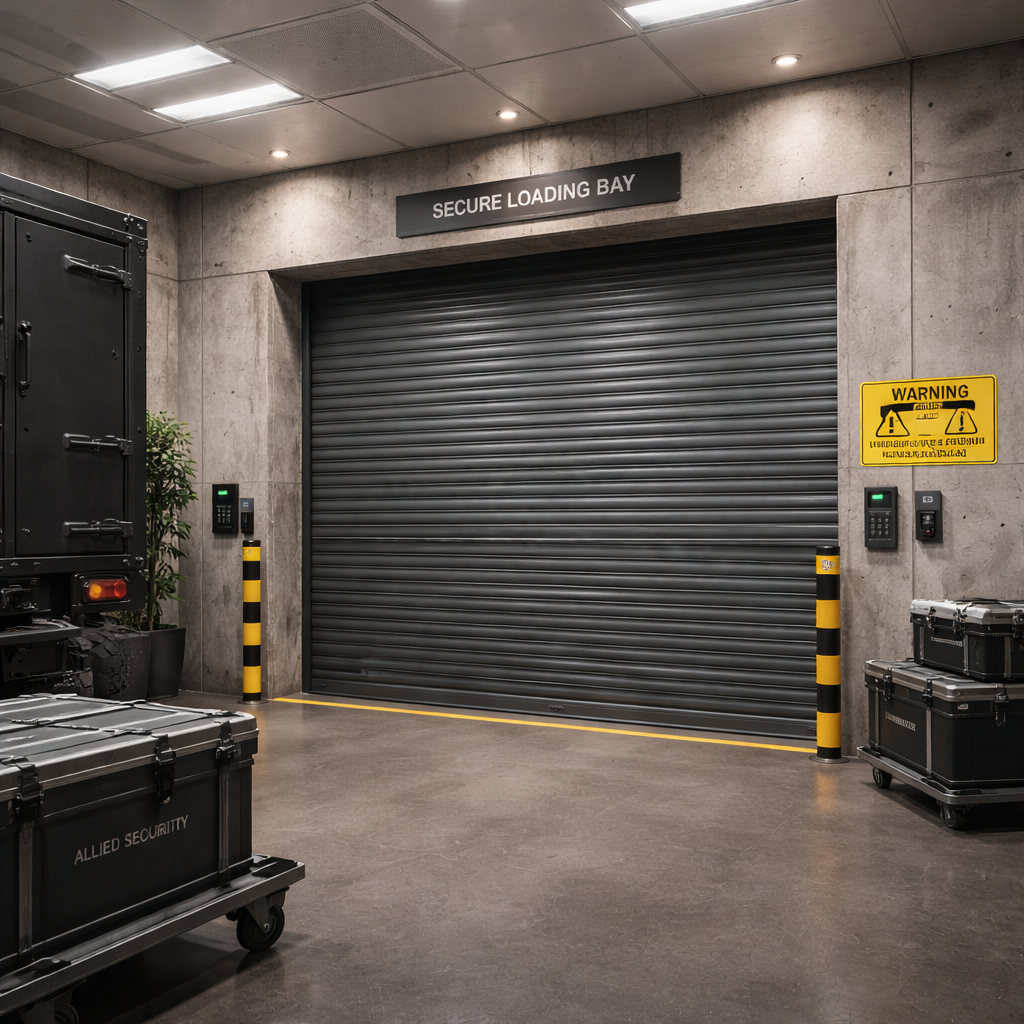

Ideal for critical infrastructure, military sites, and high risk facilities

Made to Measure Design

Custom-built to suit your exact opening and project requirements

Wide Range of Colour Options

Mill finish as standard or powder coated in any RAL or BS colour

Clean, Architectural Appearance

High-security performance combined with a modern aluminium design

The E130 Elite is a high security, engineered system, so design flexibility is controlled to maintain its C5 (SR3) certification, but there are still key configurable elements.

Curtain / Slat System

• 130mm Double Skinned Aluminium Slats (Standard)
  Extruded aluminium with insulated core
  Provides strength with reduced weight vs steel
• Integrated Anti Lift Design
  Built into the slat profile
  Removes need for additional locking systems

Installation Configuration

• Internal or External Installation
  Face or Reveal Fixed
• Critical for achieving LPS1175 C5 (SR3) certification

Motor & Operation Options

Electric Operation Only (Standard):

• Tubular Motors
  Suitable for smaller shutters
• GFA Industrial Motors
  Outboard (Direct Drive) – for larger shutters
  Inboard options where applicable

Power Supply Options:

• 230V single phase
• 415V 3-phase (recommended for large / high-cycle doors)

Control Options

• Hold-to-run switch (standard)
• Key switch for secure access
• Remote control / fobs
• Integration with access control or building management systems

Finish & Colour Options

• Mill Aluminium Finish (Standard)
  Clean, modern industrial appearance
• Powder Coated Finish (Optional)
  Available in any RAL or BS colour
  Ideal for branding or architectural integration

Performance & Safety Options

• Safety edges (for electric operation)
• Photocells / light curtains
• Emergency stop systems
• Manual override depending on motor type

Size & Configuration

• Maximum Width: Up to approx. 10,000mm
• Large Area Capability: Up to approx. 90m²Made-to-Measure Design
• Manufactured to suit structural opening and usage requirements

Key Considerations

• Designed primarily for security + performance, not visual openness
• Limited curtain variations to maintain certified attack resistance
• Ideal where insurance compliance and high-risk protection are required

This configuration ensures the E130 delivers high security certification, operational reliability, and scalable performance, while still allowing controlled customisation for different site requirements.

Curtain & Slat Construction

• Slat Type: Double-skinned extruded aluminium with insulated core
• Slat Profile: 130mm high slats
• Slat Design: Solid profile with integrated anti-lift mechanism
• Curtain Weight: Approx. 32 kg/m² (depending on size and specification)

Size Capabilities

• Maximum Width: Up to 10,000mm
• Maximum Height: Dependent on width and configuration
• Maximum Area: Up to approx. 100m²

Guide Rails & Bottom Rail

• Guide Rails: Heavy duty extruded aluminium guides (security rated)
• Fixing Method: Internal face fix (mandatory)
• Bottom Rail: Reinforced aluminium bottom rail with security design
• Anti-Lift System: Integrated within slat profile (no additional locks required)

Operation & Motor Options

• Operation Type: Electric only
• Motor Options: Tubular Motors – For smaller shutters
• GFA Industrial Motors (Outboard / Inboard) – For larger, heavy-duty applications
• Power Supply:230V single phase415V 3-phase (recommended for larger shutters)

Control Options

• Hold-to-run switch (standard)
• Key switch control
• Remote control / fob operation
• Integration with access control or building management systems

Finish

• Standard Finish: Mill aluminium
• Optional Finish: Powder coated in any RAL or BS colour

Installation Requirements

• Installation Type: Internal Face
• Box and Guides must not be accessible from the attack side.
• Essential for maintaining LPS1175 E10 (SR5) certification

Compliance & Security

• Security Rating: LPS1175 Issue 8 – E10 (SR5)
• Independently tested for resistance to sustained and aggressive forced entry

Safety Features

• Safety edge (electric operation)
• Photocells / light curtain (optional)
• Emergency stop (where specified)
• Manual override (motor dependent)

This specification ensures the E130 Elite delivers high level certified security, large span capability, and reliable industrial performance for demanding environments.

We aim to keep lead times as efficient as possible for the E130 Elite high security roller shutter, with typical manufacturing taking approximately 6–8 weeks. Delivery is usually arranged shortly after completion. Please note that larger doors, specialist motor requirements, or custom powder coated finishes may extend lead times slightly depending on project specification.

For supply and installation projects, the full process typically takes 7–10 weeks. This includes an initial site survey to confirm sizes, structural requirements, and installation method, followed by manufacture and scheduling of installation.

Due to the LPS1175 E10 (SR5) security rating, the shutter must be installed internally behind the opening, ensuring the guides, curtain edges, and shutter box are protected from the attack side. This is critical to achieving and maintaining certification, so professional installation is strongly recommended to ensure compliance, performance, and long-term reliability.

The E130 Elite is a high security, LPCB certified solution, positioned at the top end of the market due to its SR3 (C5) rating, advanced slat design, and large span capability.

Indicative Pricing (Guide Only)

Small (up to 3m x 3m)

• Supply Only – £5,000 – £9,000
• Supply & Install – £8,000 – £14,000

Medium (up to 5m x 5m)

• Supply Only – £9,000 – £18,000
• Supply & Installation – £14,000 – £28,000

Large (up to 8m x 6m)

• Supply Only – £18,000 – £35,000
• Supply & Install – £28,000 – £50,000

What Affects the Price?

• LPS1175 SR5 (E10) Certification – Highest level of tested security significantly increases cost
• Reinforced 130mm Slat System – Premium construction with integrated anti-lift design
• Door Size & Area – Larger shutters require higher spec motors and structural components
• Motor Specification – 415V industrial motors increase cost for larger doors
• Internal Installation Requirements – Face fixing behind structure adds complexity
• Finish – Powder coating (RAL/BS) increases cost and lead time
• Control Systems – Integration, automation, and advanced controls increase price

Budget Guidance

• A premium upgrade from SR4 shutters, offering the highest certified protection available
• Ideal for critical infrastructure, military, and high-risk secure facilities
• Best suited where maximum security, compliance, and risk mitigation are non negotiable

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, security requirements, and site details.
