Compact Aluminium Roller Shutter

• Built to resist forced entry: twin-walled extruded aluminium laths give a strong, rigid curtain.
• Fits where space is tight: the small box suits openings with little room above.
• A finish that lasts: polyester powder coating is tough, flexible and protects against corrosion.
• Protects the floor: the bottom rail's rubber insert seals at ground level and protects surfaces.

Choose the lath, guides, operation and colour.

• Laths: solid (twin walled) as standard. Perforated and punched laths are also available. See their own listings.
• Guide rails: four options to match the security you need. Sizes are in Technical Specifications.
• Bottom rail: with a rubber insert, or with a reinforcing handle.
• Manual: swivel belt, geared belt, or spring and lock.
• Electric: Single phase tube motor on a hold-to-run switch as standard. Upgrade to a Somfy io or Somfy RTS motor for remote and smart control. Override or non-override motors. Safety brake, safety edge and obstacle detection available.
• Colours: White (RAL 9016), Cream (RAL 1015), Brown (RAL 8014) or Black (RAL 9005) as standard. Other colours on request. See our colour chart

• Security Level: High (depends on guide choice)
• Solid lath: 38mm x 9mm, twin walled extruded aluminium
• Perforated lath: 38mm x 9mm, single skin 18% vision and airflow
• Punched lath: 38mm x 9mm, single skin 44% vision and airflow
• Curtain weight: Approx 8kg/m²
• Maximum size: 5000mm high. Width: 4000mm solid; 3000mm perforated or punched (up to 4000mm with no more than 10 perforated or punched laths, the rest solid)
• Box (height x depth): 165mm (up to 1600mm high), 180mm (1900mm), 205mm (2800mm), 250mm (5000mm)

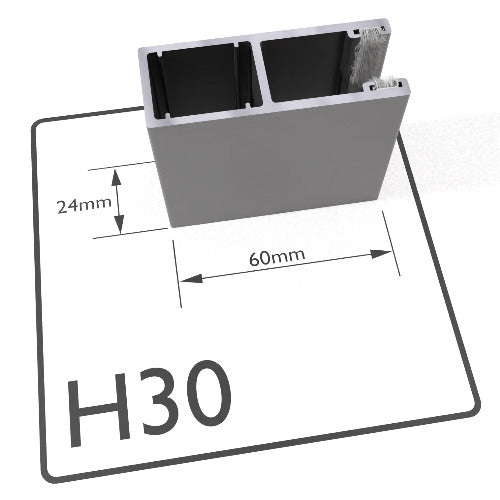

• Guide rails: H17 low security, 45 x 22mm · H25 medium, 53 x 22mm · H30 medium/high, 60 x 24mm · H40 high, 70 x 27mm
• Bottom rail: AEG with rubber insert, or AEG with reinforcing handle
• Motor: Single phase tube motor on hold-to-run switch; Somfy io or RTS upgrade; override or non-override
• Finish: Polyester powder coated
• Compliance: CE marked, UKCA

Supply only: Manufactured in 7–10 working days in a standard colour, or about 5 weeks in a custom colour.
Supply and installation: about 3–4 weeks. We survey the opening to confirm sizes and guide choice, then manufacture and book your installation date.

Prices from £323 (supply only)

Every Compact Aluminium Roller Shutter is made to measure, so there is no one-size price. Our from-price of £323 is based on a 1000mm x 1000mm solid shutter, supplied only, with manual operation and a standard colour.

Starting prices across the compact range (supply only)

• Compact Aluminium Roller Shutter (solid): from £323
• Compact Perforated Roller Shutter (18% vision): from £358
• Compact Punched Roller Shutter (44% vision): from £358
• Compact Aluminium LPS1175 Security Level 1: from £837

What affects your price

• Size: larger openings need more laths and a bigger box. Solid shutters go up to 4000mm wide and 5000mm high.
• Lath type: perforated and punched laths cost more than solid laths.
• Guide rails: the guide you choose (H17 to H40) depends on the size and fixing, and affects the price.
• Operation: manual is the lowest-cost option. Electric adds a tube motor on a hold-to-run switch, and a Somfy io or RTS remote upgrade adds a little more.
• Safety options: safety edges and photocells add to the cost where they are needed.
• Colour: White, Cream (RAL 1015), Brown and Black are standard. A custom RAL or BS colour costs more.
• Installation: access, working height and the surrounding structure all affect the fitting cost.

Supply only or supply and install?

• Supply only: we make the shutter to your measurements and deliver it, with installation manuals and videos so you or your builder can fit it.
• Supply and install: our team surveys, manufactures and fits your shutter, with installation available nationwide.

Get an exact quote

Use our online quote builder or call 0800 046 6380. To get your price quickly, have these ready: width and height, solid, perforated or punched laths, manual or electric, colour, supply only or installed, and your postcode.
