Compact Perforated Roller Shutter - 18% Vision

High-Strength Aluminium Construction

Extruded aluminium slats provide excellent durability and enhanced security for commercial applications

18% Vision Perforated Slats

Allows visibility into the premises while maintaining security, ideal for retail displays after hours

Designed for Retail & Shopfronts

Perfect for customer facing environments where both security and product visibility are important

Manual or Electric Operation Available

Choose from cost-effective manual options or convenient electric operation for frequent use

Compact & Neat Design

Fits neatly above openings, maintaining a clean and professional shopfront appearance

Made to Measure Design

Custom-built to suit your exact opening for a precise and secure installation

Wide Range of Colour Options

Available in standard colours including White (RAL 9016), Cream (RAL 1015), Brown (RAL 8014), and Black (RAL 9005), as well as full RAL/BS range

Low Maintenance

Aluminium construction resists corrosion, reducing ongoing servicing and upkeep

Suitable for Internal & External Use

Versatile solution for retail, commercial, and display applications

Proven Commercial Performance

Designed for regular use in busy retail environments such as shops, kiosks, and counters

The Compact Perforated Roller Shutter is specifically designed for applications where security and visibility need to work together. With its 18% vision perforated slats, along with a range of control and finish options, the shutter can be configured to suit retail, display, and commercial environments.

Slat Options

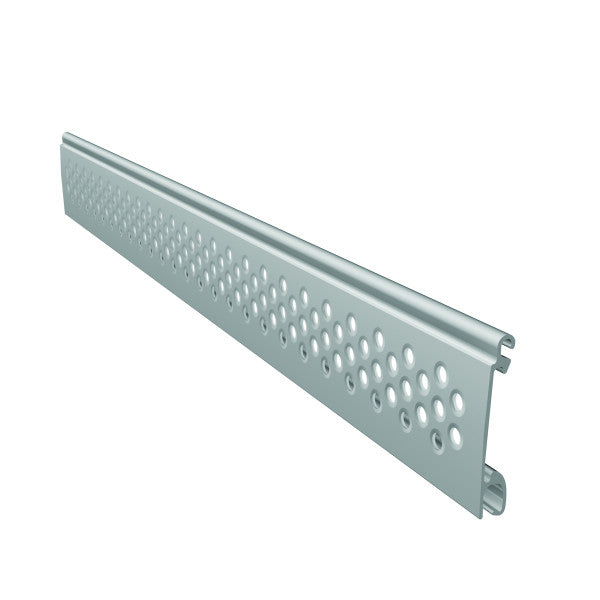

• Perforated Slats (Small Holes)- 18% Vision
  Provides a balance of security and visibility, allowing customers to view displays while the premises remain protected. Ideal for shopfronts, showrooms, and retail environments

Operation & Control Options

Manual Operation (Cost-Effective & Simple):

• Spring & Lock (Push-Up Operation) – Suitable for smaller shutters with simple manual use
• Rod Crank (Gear Operated) – Provides smoother control for medium-sized shutters

Electric Operation (Convenience & Frequent Use):

• Hold to Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button
• Somfy IO Automation – Smart control with timers, group operation, and integration with automation systems

Colour & Finish Options

• Standard Finish: White (RAL 9016), Cream (RAL1015), Brown (RAL8014) and Black (RAL9005).
• Full Custom Powder Coating: Available in any RAL or BS colour (subject to lead time and cost)

This flexibility makes the compact perforated shutter ideal for retail shopfronts and commercial spaces, delivering security while maintaining visibility, light, and a professional appearance.

• Slat Type: Single Skin Extruded aluminium slats - Perforated Holes - 18% Vision
• Slat Height: 38mm high
• Curtain Thickness: Approx. 9mm

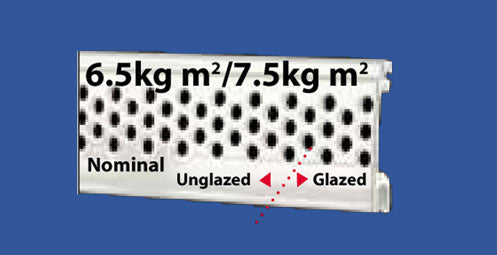

• Weight: Approx. 6.5 kg/m²
• Maximum Width: Up to approx. 3000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V) and Somfy RTS / IO motors
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Compact Perforated Roller Shutter - 18% Vision. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 3–5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The Compact Perforated Aluminium Roller Shutter is a mid-range security solution, designed for retail shopfronts and commercial applications where visibility and protection are equally important.

Indicative Pricing (Guide Only)

Small (up to 1.5m x 1.5m)

• Supply Only – £800 – £1,400
• Supply & Install – £1,500 – £2,500

Medium (up to 2.5m x 2.5m)

• Supply Only – £1,200 – £2,500
• Supply & Installation – £2,000 – £4,000

Large (up to 3m x 3m)

• Supply Only – £2,000 – £4,000
• Supply & Install – £3,500 – £6,500

What Affects the Price?

• Operation Type – Manual options reduce cost; electric operation adds convenience and increases price
• Perforated Slat Design – Higher-spec extruded slats increase cost compared to lightweight systems
• Colour Finish – Standard colours are more cost-effective; custom RAL/BS colours add cost and lead time
• Controls & Automation – Remote controls and smart systems (e.g. Somfy IO) increase price
• Installation Complexity – Shopfront structure, access, and working conditions can impact installation cost

Budget Guidance

• A premium option compared to lightweight shutters, offering improved security and retail visibility
• Ideal for shopfronts and display areas where appearance and function are critical
• Electric operation is recommended for frequent daily use in retail environments

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
