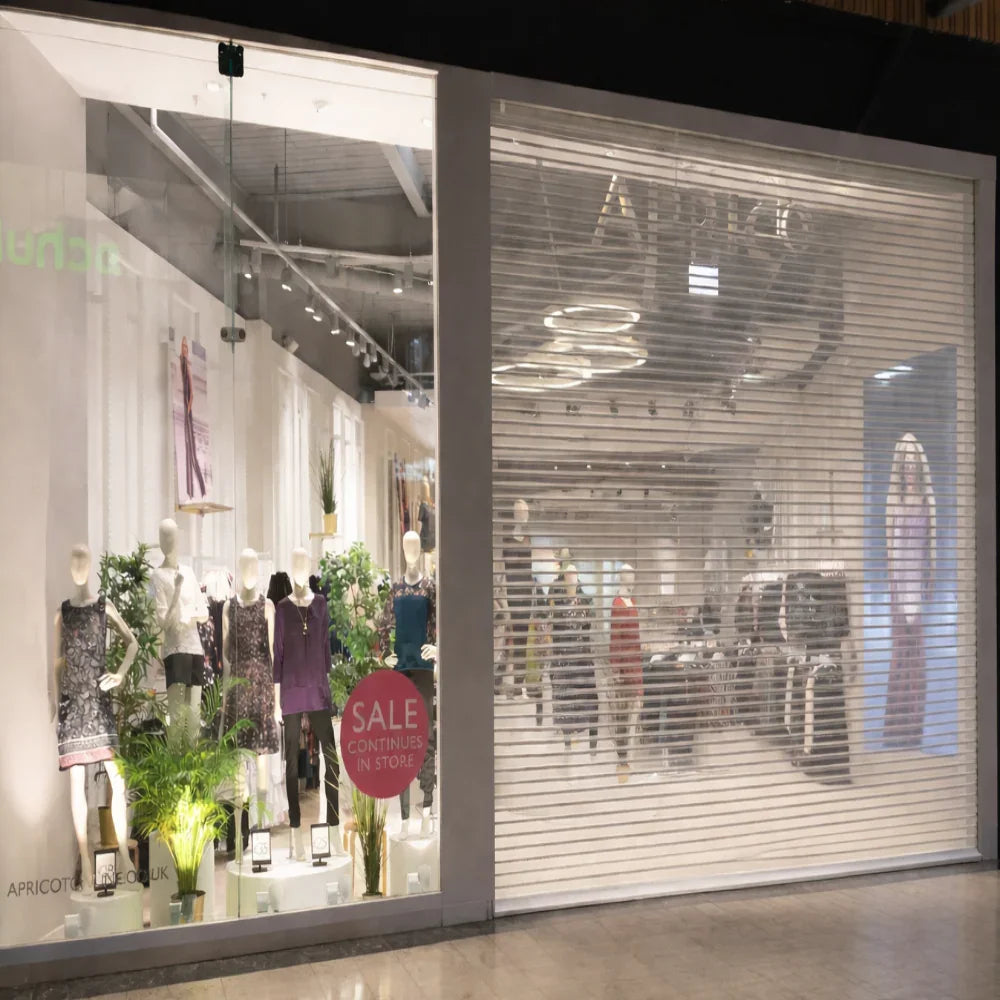

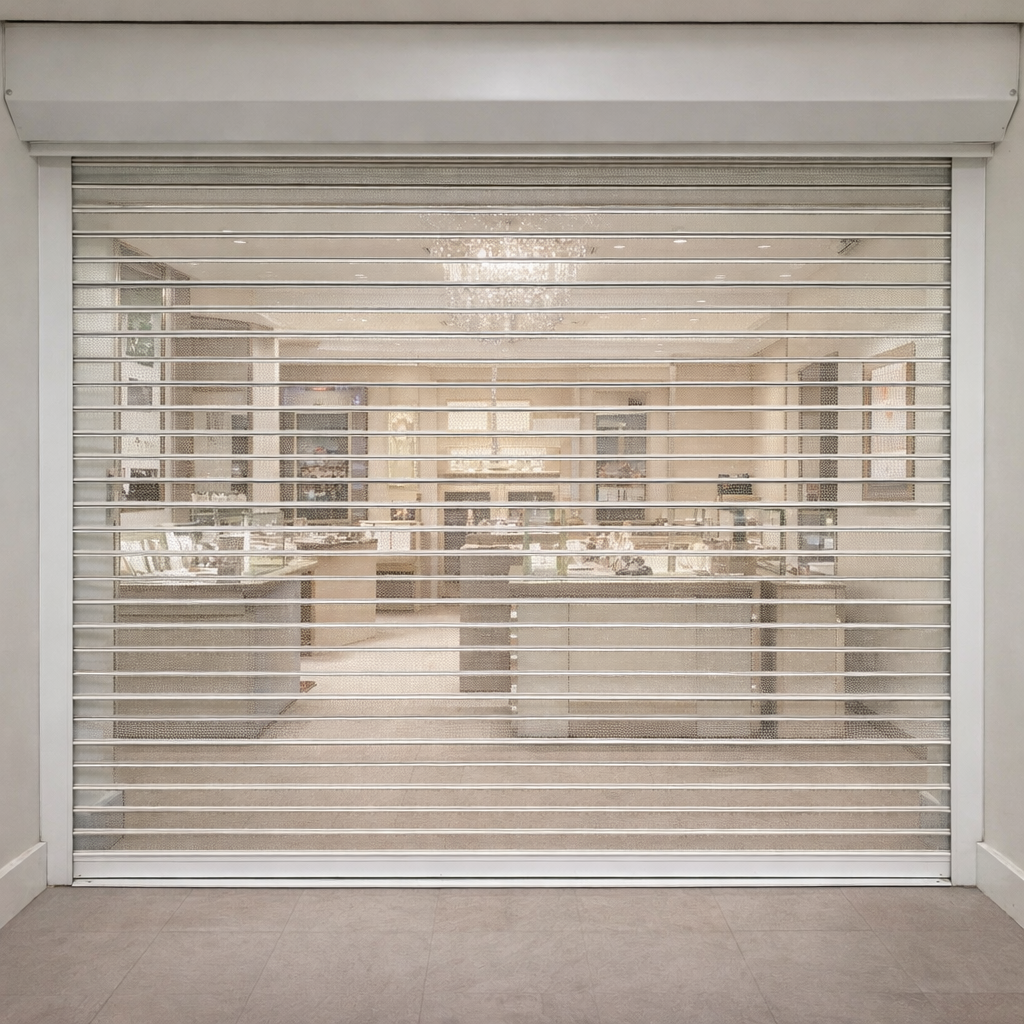

Perforated Steel Roller Shutter - 18% Vision

Light Without Opening Up Serveries and counters keep some daylight when the shutter is down.

Air Keeps Moving The perforations let air through, which suits bin stores and other ventilated areas.

Between Solid and Punched At 18% vision, it shows more than a solid lath and less than our punched lath (24%).

Secure When Closed A medium security curtain that locks down with a two-point bottom lath lock.

Hand or Motor Spring and lock for smaller openings, or a tube motor for everyday electric use.

Fits Your Front Galvanised, or powder coated in four standard colours or any RAL or BS colour.

Lath

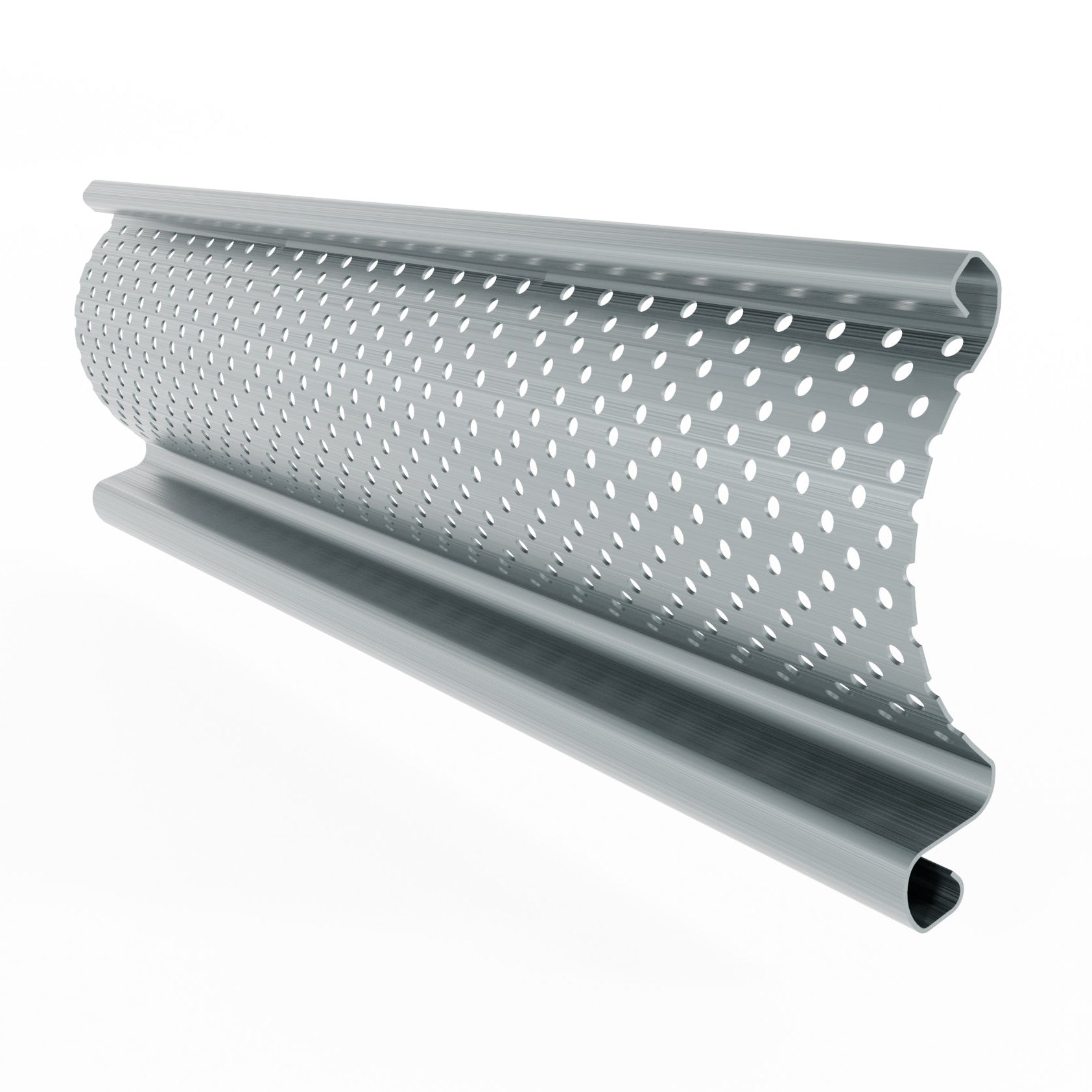

• 75mm galvanised steel, perforated (18% vision)
• 0.7mm, 0.9mm or 1.2mm steel, depending on width

Operation

• Manual: spring and lock
• Electric: single phase tube motor with manual override

Controls (electric)

• Toggle switch (standard)
• External key switch, keypad, remote control, smartphone control or high security tag system (optional)

Locking

• Two-point bottom lath lock (standard)
• Bullet locks (optional)

Guides and bottom rail

• 50mm, 65mm or 100mm U guides; windlocking guides optional
• Galvanised steel T rail; L rail, rubber seal and safety edge optional

Fascia and hood

• Optional, to cover the roll

Finish

• Galvanised (standard)
• Powder coated White, Brown, Black or Cream (standard colours)
• Other RAL or BS colours at extra cost

• Lath: 75mm single skin galvanised steel, perforated
• Vision: 18%
• Steel thickness: 0.7mm (22G), 0.9mm (20G) or 1.2mm (18G), depending on width
• Maximum size: 7000mm wide x 5000mm high
• Weight: 12kg/m²
• Guides: 50mm, 65mm or 100mm U guides on 50mm x 75mm angle; windlocking optional
• Bottom rail: galvanised steel T rail; L rail optional
• Manual operation: spring and lock
• Motor: single phase tube motor, 3–4 operations a day; 5-year parts warranty
• Safety: safety edge (optional); manual override
• Security: medium
• Compliance: CE marked / UKCA (where applicable)

Manufacture: up to 10–15 working days, with delivery arranged within a few days of completion. Custom colours take up to 5 weeks.

Supply and fit: up to 4–5 weeks, including a site survey to confirm sizes.

Installation: supply only is available too, and our team can help you measure.

Prices from £601 for a 1000mm x 1000mm shutter

The final price depends on:

• Width and height
• Steel thickness
• Manual or electric operation
• Controls
• Colour
• Locks, guides and fascia options

Using it more than 3–4 times a day? See our Steel Industrial Doors.
