Steel Industrial Doors

Heavy Duty Galvanised Steel Construction

Single skin galvanised steel provides strong, durable protection for industrial use

Industrial Motor Operation (240V / 415V)

Fitted with GFA inboard or outboard motors designed for frequent, heavy-duty use

Designed for Large Openings

Suitable for openings up to 7m x 7m as standard, with larger sizes available

Flexible Slat Options

Available in solid, perforated (18% vision), or punched (24% vision) slats

Ideal for Industrial Applications

Perfect for warehouses, loading bays, factories, and car parks

Made to Measure Design

Custom-built to suit your exact opening for a precise and secure fit

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Upgrade Options Available

Includes wind guides, additional locking, and safety features

Low Maintenance & Long Lasting

Robust construction ensures reliable performance with minimal upkeep

Proven Commercial & Industrial Performance

Designed for demanding environments with regular daily operation

Steel Industrial Doors are built for performance, durability, and flexibility, allowing you to tailor the system to suit opening size, usage levels, and site conditions.

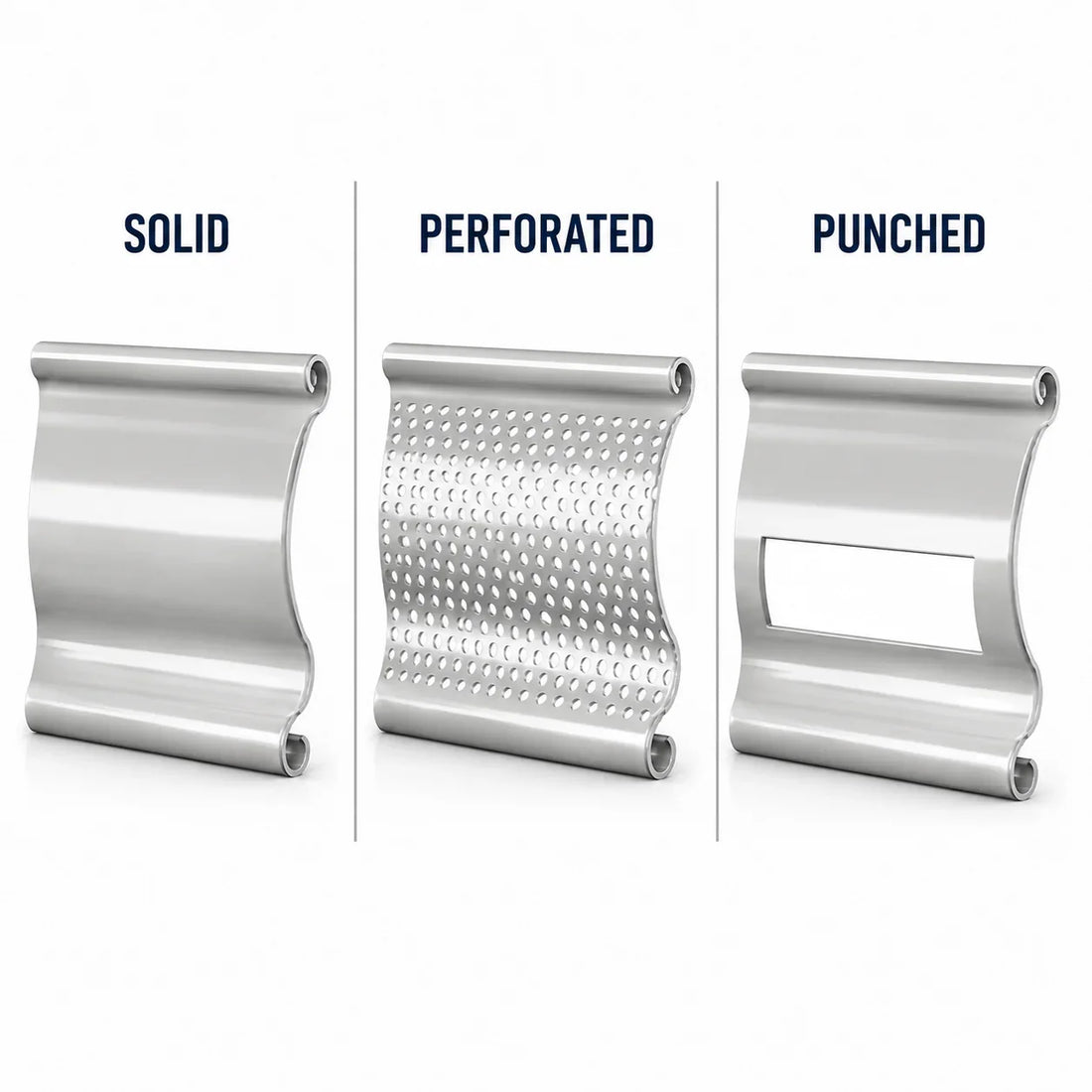

Curtain / Slat Options

• Solid Slats
  Maximum security and privacy
  Ideal for warehouses, storage units, and high-risk areas
• Perforated Slats (18% Vision)
  Allows light and limited visibility
  Suitable for areas requiring airflow or partial visibility
• Punched Slats (24% Vision)
  Greater visibility and airflow
  Common for car parks and mixed-use industrial environments

Motor & Operation Options

Industrial Electric Operation (Standard):

• 240V Motors – Suitable for standard industrial use
• 415V 3 Phase Motors – Ideal for larger, heavier, high-cycle doors

GFA Industrial Motors:

• Inboard Motors – Compact design within the barrel
• Outboard Motors – Heavy-duty external drive for larger shutters

Control Options:

• Hold-to-Run Switch – Standard safe operation
• Key Switch – Secure authorised access
• Remote Control / Fobs – Optional for convenience
• Automation Integration – Can connect to access control systems

Finish & Colour Options

• Galvanised Finish (Standard)
  Durable, corrosion-resistant industrial finish
• Powder Coated Finish
  Available in any RAL or BS colour
  Ideal for branding or improving visual appearance

Security & Performance Upgrades

• Wind Guides
  Improves stability for large or exposed openings
• Additional Locking Options
  Enhances security for high-risk environments
• Safety Systems
  Including safety edges, photocells, and emergency stop systems

Size & Configuration

• Standard Sizes - Up to 7m x 7m
• Oversized Doors Larger sizes available on request for specialist applications

Made to Measure Design

Manufactured to suit your exact opening and structural requirements

These options make industrial steel roller shutters ideal for warehouses, factories, loading bays, and car parks, delivering a balance of strength, reliability, and operational performance in demanding environments.

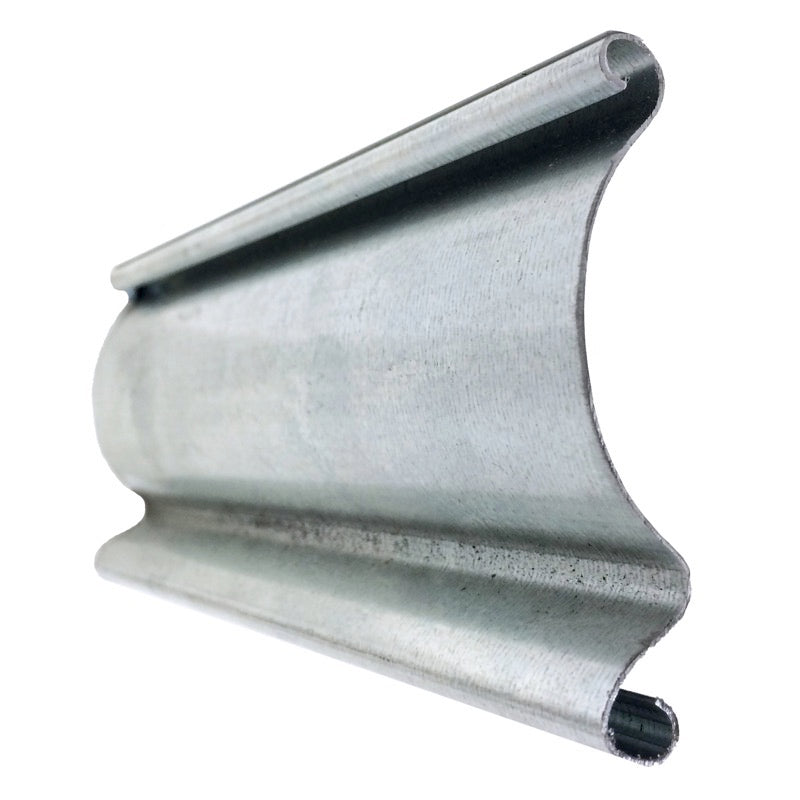

• Slat Type: Single skin galvanised steel slats (solid, perforated, or punched options)
• Slat Height: 75mm high
• Curtain Thickness: 22G (0.7mm), 20G (0.9mm), or 18G (1.2mm) (depending on shutter size and security)
• Weight: Approx. 12 kg/m² (depending on specification)
• Maximum Width: Up to approx. 7000mm (height dependent)
• Maximum Height: Up to approx. 7000mm (width dependent)
• Guide Rails: Galvanised Steel U Channel fixed to 50mm x 75mm guide fixing anfgle
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Industrial Motor with Chain Override
• Motor Options: Inboard (Chain Drive) or Outboard (Direct Drive) - 230V and 415V Options
• Control Options: Key switch, rocker switch, remote control, access control systems
• Finish: Galvanised Finish.
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Industrial Steel Roller Shutter, with typical manufacturing taking approximately 4 weeks. Delivery is usually arranged shortly after completion. Please note that larger doors and powder coated finishes may extend lead times by up to an additional 2 weeks, depending on specification and requirements.

For supply and installation projects, the full process typically takes 4–7 weeks. This includes an initial site survey to confirm sizes, structural requirements, and motor specification, followed by manufacture and scheduling of installation.

Due to the size and weight of industrial shutters, professional installation is strongly recommended, particularly where GFA industrial motors (240V or 415V) are specified. Our team will guide you through the process to ensure accurate measurements, correct motor selection, and a smooth, reliable installation.

Industrial Steel Roller Shutters are a heavy duty, high performance solution, designed for large openings and demanding environments, with pricing reflecting their size, motor specification, and duty cycle.

Indicative Pricing (Guide Only)

Small (up to 3m x 3m)

• Supply Only – £1500 – £3,000
• Supply & Install – £2.500 – £5,000

Medium (up to 5m x 5m)

• Supply Only – £3,000 – £6,500
• Supply & Installation – £5,000 – £10,000

Large (up to 7m x 7m)

• Supply Only – £6,00 – £12,000
• Supply & Install – £10,000 – £18,000

What Affects the Price?

• Motor Type (240V vs 415V) – Single phase industrial motors increase cost
• Door Size & Weight – Larger shutters require stronger components and motors
• Usage Frequency – High cycle applications may require upgraded motor specification
• Slat Type – Perforated or punched options increase cost vs solid
• Finish – Powder coating (RAL/BS) adds cost and lead time
• Installation Complexity – Access, structure, and lifting requirements impact pricing

Budget Guidance

• A step up from standard steel shutters, designed for heavy duty industrial use
• Ideal for warehouses, loading bays, and large commercial openings
• Best suited where reliability, size, and frequency of use are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, usage requirements, and site details.
