Insulated Industrial Doors

Double Skinned Insulated Slat Construction

Available in 77mm, 95mm, and 100mm profiles for improved thermal and acoustic performance

Enhanced Thermal & Noise Reduction

Helps maintain internal temperatures and reduce noise in industrial environments

Industrial Motor Operation (240V / 415V)

Fitted with GFA inboard or outboard motors for heavy duty, frequent use

High Speed Motor Option Available

3 phase high-speed motors available for faster operation on busy sites

Vision Slat Options (95mm & 100mm Only)

Optional glazed sections provide visibility while maintaining insulation

Designed for Large Openings

Suitable for openings up to 7m x 7m, with larger sizes available on request

Made to Measure Design

Custom-built for a precise fit and reliable performance

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Upgrade Options Available

Includes wind guides, safety systems, and additional control options

Low Maintenance & Long Lasting

Durable insulated construction ensures reliable, long-term operation

Ideal for Industrial Applications

Perfect for warehouses, loading bays, factories, and temperature-sensitive areas

Insulated industrial roller shutters are designed to deliver performance, efficiency, and flexibility, allowing you to tailor the system to suit opening size, usage levels, and environmental requirements.

Curtain / Slat Options

• 77mm Insulated Slats
  Suitable for smaller industrial openings
  Provides thermal and acoustic benefits with a compact design
• 95mm Insulated Slats
  Ideal for medium to large openings
  Available with vision slats for added visibility
• 100mm Insulated Slats
  Designed for larger, heavy-duty applications
  Can also include vision sections for light and visibility

Vision Options

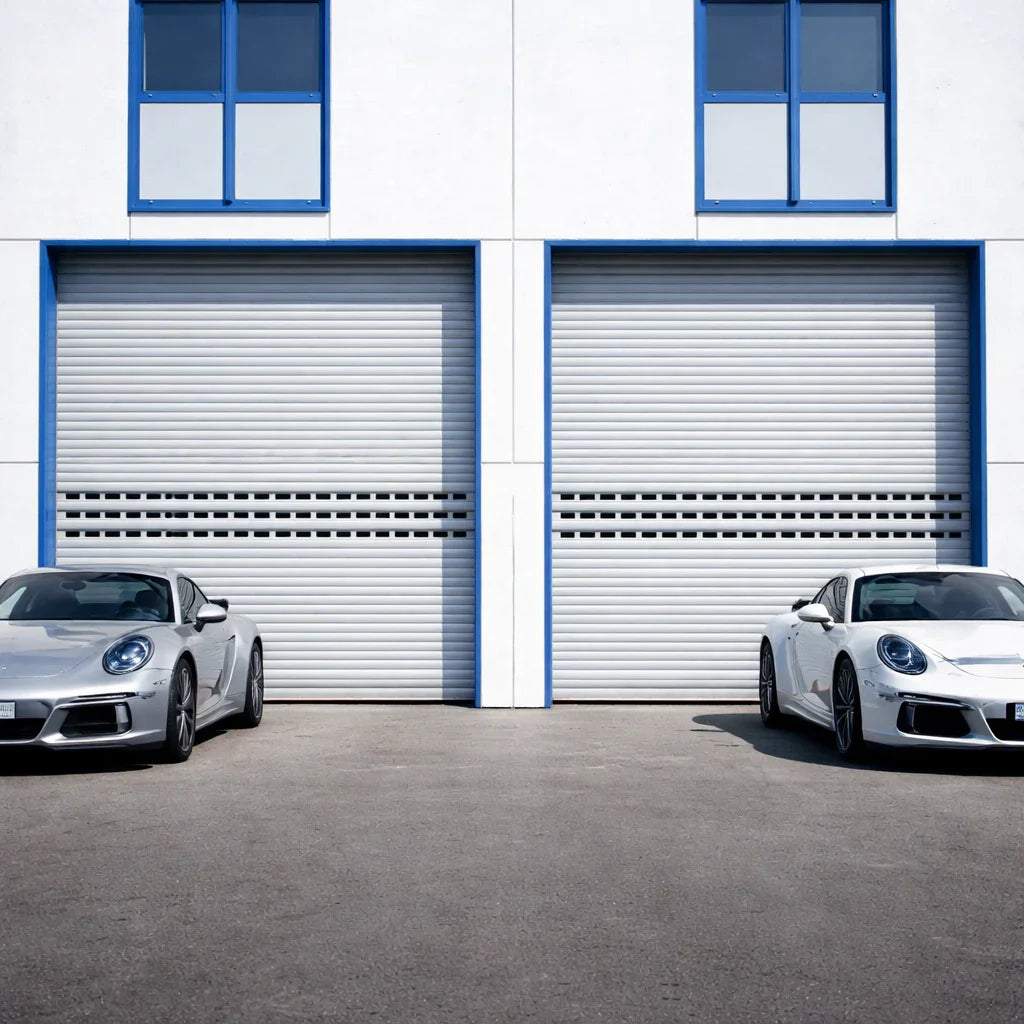

• Vision Slats (95mm & 100mm Only)
  Glazed inserts allow visibility and light transmission
  Ideal for loading bays, warehouses, and operational areas

Motor & Operation Options

Industrial Electric Operation (Standard):

• 240V Motors – Suitable for standard industrial applications
• 415V 3 Phase Motors – Ideal for larger, heavier, high-cycle doors

GFA Industrial Motors:

• Inboard Motors – Compact and efficient design
• Outboard Motors – Heavy-duty external drive for larger shutters

High-Speed Motor Option:

• 3 Phase High-Speed Motors
  Faster opening and closing for high-traffic environments

Control Options:

• Hold to Run Switch – Standard safe operation
• Key Switch – Secure access control
• Remote Control / Fobs – Optional convenience
• Automation Integration – Compatible with access control systems

Finish & Colour Options

• Galvanised Finish (Standard)
  Durable and corrosion-resistant for industrial use
• Powder Coated Finish
  Available in any RAL or BS colour
  Ideal for branding or improving building aesthetics

Performance & Safety Upgrades

• Wind Guides
  Improves stability for large or exposed openings
• Safety Systems
  Includes safety edges, photocells, and emergency stop functions
• Additional Controls & Automation
  Tailored to suit operational and safety requirements

Size & Configuration

• Standard Sizes
  Up to 7m x 7m
• Oversized Doors
  Larger sizes available on request for specialist applications
• Made to Measure Design
  Manufactured to suit your exact opening and structural requirements

These options make insulated industrial roller shutters ideal for warehouses, loading bays, and temperature-sensitive environments, delivering a balance of thermal efficiency, strength, and operational performance in demanding conditions.

Slat Type

Twin walled galvanised steel insulated slats

Slat Options

77mm Insulated Slats

• Slat Thickness: 15mm
• Maximum Width: Up to 6000mm
• Thermal Performance: 4.01 W/m²K
• Wind Rating: Class 2
• Weight: Approx. 11 kg/m²

95mm Insulated Slats

• Slat Thickness: 20mm
• Maximum Width: Up to 7000mm
• Thermal Performance: 1.1 W/m²K (centre value)
• Wind Rating: Class 5
• Weight: Approx. 13 kg/m²
• Vision Slats Available: 160mm (W) x 58mm (H) slots

100mm Insulated Slats

• Slat Thickness: 24mm
• Maximum Width: Up to 7000mm
• Thermal Performance: 0.533 W/m²K
• Wind Rating: Class 2
• Weight: Approx. 18 kg/m²
• Vision Slats Available: 200mm (W) x 55mm (H) slots

Curtain & Structure

• Curtain Thickness:
  77mm (15mm), 95mm (20mm), 100mm (24mm)
• Maximum Size:
  Up to approx. 7000mm wide x 7000mm high (subject to specification)

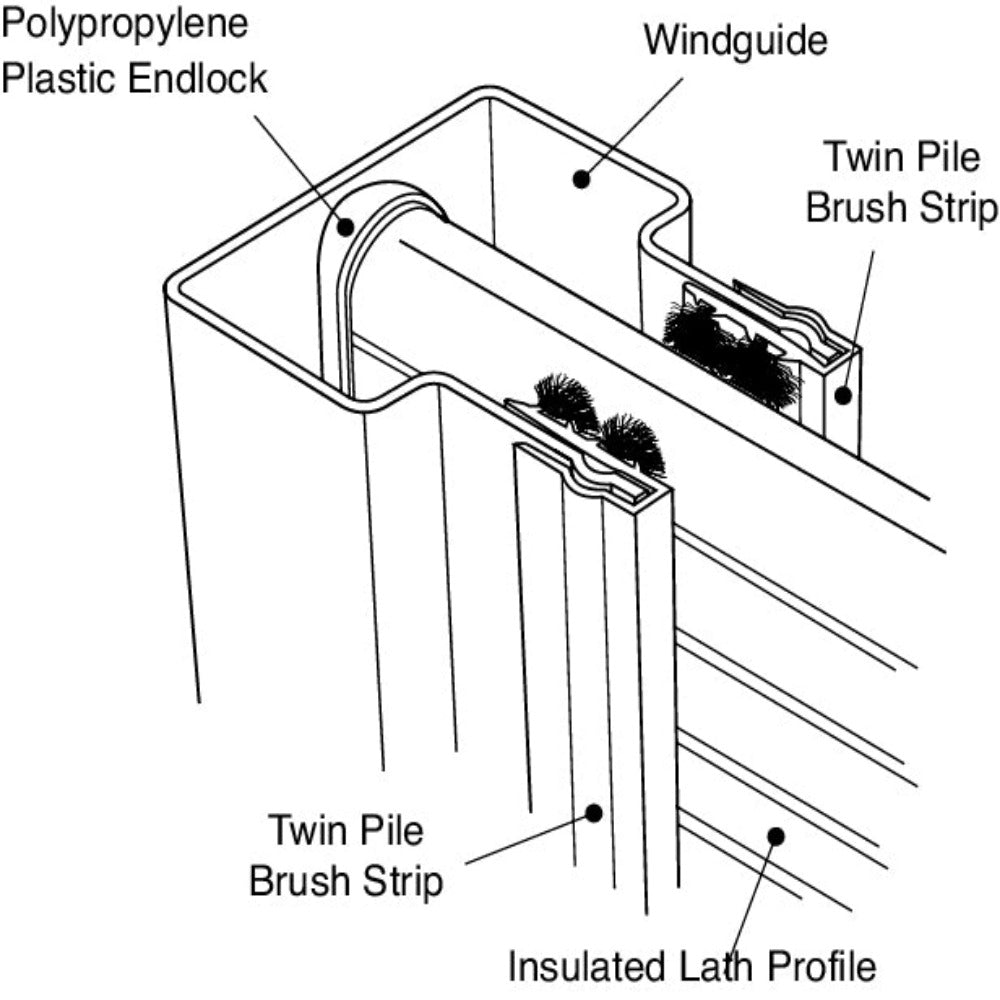

• Guide Rails:
  Galvanised steel U-channel - Profile depends on the slat type
• Bottom Rail:
  Extruded Steel Bottom Rail with Rubber Seal

Operation & Motor Options

Operation Type:

• Industrial electric motor with chain override

Motor Options:

• Inboard (Chain Drive)
• Outboard (Direct Drive)
• Available in 230V single phase or 415V 3-phase

Control Options

• Hold to run rocker switch
• Key switch control
• Remote control / fob operation
• Integration with access control systems

Finish

• Galvanised finish (standard)
• Optional powder coating in any RAL or BS colour

Compliance & Safety

CE Marked / UKCA compliant (where applicable)

Safety Features Include:

• Manual override
• Safety brake
• Obstacle detection systems
• Safety edge (for electric operation)

This specification ensures insulated industrial roller shutters deliver thermal efficiency, structural strength, and reliable operation across demanding industrial applications.

We aim to keep lead times as efficient as possible for the Insulated Industrial Roller Shutter, with typical manufacturing taking approximately 4–5 weeks as standard. Delivery is usually arranged shortly after completion. Please note that high speed motors and powder coated finishes may extend lead times by a few additional weeks, depending on specification and requirements.

For supply and installation projects, the full process typically takes 5–8 weeks. This includes an initial site survey to confirm sizes, structural requirements, slat specification, and motor selection, followed by manufacture and scheduling of installation.

Due to the size, weight, and complexity of insulated industrial doors, professional installation is strongly recommended, particularly where GFA industrial motors and high speed options are specified. Our team will guide you through the process to ensure accurate measurements, correct specification, and a smooth, reliable installation.

Insulated Industrial Roller Shutters are a premium industrial solution, offering thermal efficiency, noise reduction, and heavy duty performance, with pricing reflecting the insulated construction and motor specification.

Indicative Pricing (Guide Only)

Small (up to 3m x 3m)

• Supply Only – £2,500 – £4,500
• Supply & Install – £4,000 – £7,000

Medium (up to 5m x 5m)

• Supply Only – £4,500 – £9,000
• Supply & Installation – £7,000 – £13,000

Large (up to 7m x 7m)

• Supply Only – £8,000 – £16,000
• Supply & Install – £12,000 – £22,000

What Affects the Price?

• Insulated Slat Type (77mm / 95mm / 100mm) – Larger, thicker slats increase cost
• Motor Specification – 415V and high-speed motors add significant cost
• Door Size & Weight – Larger doors require stronger components and motors
• Vision Slats – Glazed sections increase cost but add functionality
• Finish – Powder coating (RAL/BS) adds cost and lead time
• Installation Complexity – Access, structure, and lifting requirements impact pricing

Budget Guidance

• A premium upgrade from standard industrial shutters, adding insulation and performance
• Ideal for warehouses, factories, and temperature controlled environments
• Best suited where energy efficiency, noise control, and durability are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, usage requirements, and site details.
