Wide Span Aluminium Roller Shutter

High Strength Aluminium Construction

55mm solid extruded aluminium slats provide enhanced strength for wider openings

Wide Span Capability

Designed for openings up to 6m wide where standard compact shutters are not suitable

Ideal for Large Openings

Perfect for patio doors, shopfronts, showrooms, and wide access points

Electric Operation as Standard

Motorised operation ensures smooth and reliable use for larger shutters

Robust & Professional Design

Engineered for strength while maintaining a clean, modern appearance

Made to Measure Design

Custom built to suit your exact opening for a precise and secure fit

Wide Range of Colour Options

Available in standard colours or any RAL/BS finish to match your building

Low Maintenance

Aluminium construction resists corrosion, reducing ongoing upkeep

Internal & External Installation

Suitable for both internal and external applications depending on requirements

Proven Commercial Performance

Designed for regular use in busy commercial and retail environments

The Compact Aluminium Roller Shutter can be tailored to suit your opening, security requirements, and visual preferences. From slat style to control method and finish, there are multiple configuration options available.

Slat Options

• Solid Slats
  Provides maximum security and privacy

Operation & Control Options

Manual Operation (Cost-Effective & Simple):

• Spring & Lock (Push-Up Operation) – Suitable for smaller shutters with simple manual use
• Rod Crank (Gear Operated) – Provides smoother control for medium-sized shutters

Electric Operation (Convenience & Frequent Use):

• Hold to Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button
• Somfy IO Automation – Smart control with timers, group operation, and integration with automation systems

Colour & Finish Options

• Standard Finish: White (RAL 9016), Cream (RAL1015), Brown (RAL8014) and Black (RAL9005).
• Full Custom Powder Coating: Available in any RAL or BS colour (subject to lead time and cost)

This flexibility allows the compact aluminium shutter to be configured for everything from secure retail shopfronts to modern commercial installations, balancing visibility, security, and aesthetics.

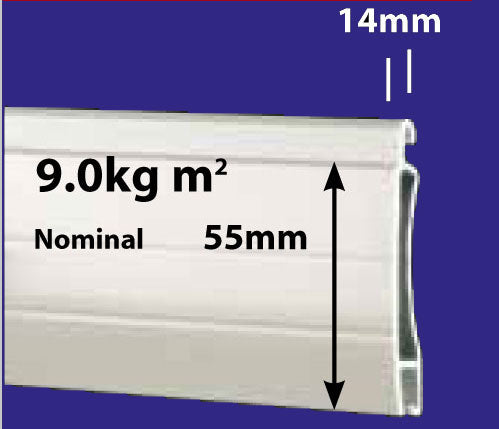

• Slat Type: Extruded twin walled aluminium slats
• Slat Height: 55mm high
• Curtain Thickness: Approx. 14mm
• Weight: Approx. 9 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Wide Span Aluminium Roller Shutter. Typical manufacturing time is 7–10 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 3–4 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The RA6 Wide Span Aluminium Roller Shutter is a mid to high-range solution, designed for larger openings up to 6m wide where increased strength and stability are required.

Indicative Pricing (Guide Only)

Small (up to 2.5m x 2.5m)

• Supply Only – £1,200 – £2,200
• Supply & Install – £2,000 – £3,500

Medium (up to 4m x 4m)

• Supply Only – £2,000 – £4,000
• Supply & Installation – £3,500 – £6,500

Large (up to 6m wide)

• Supply Only – £3,500 – £7,000
• Supply & Install – £6,000 – £8,000

What Affects the Price?

• Size & Span – Larger widths significantly increase cost due to heavier-duty components
• Motor Specification – Larger shutters require more powerful motors
• Colour Finish – Standard colours are more cost-effective; custom RAL/BS adds cost
• Control Options – Remote control and automation systems increase price
• Installation Complexity – Access equipment, structural openings, and site conditions impact cost

Budget Guidance

• A step up from compact aluminium shutters, designed for wider openings
• Ideal for retail, commercial, and large access points
• Best suited where span and strength are key requirements

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
