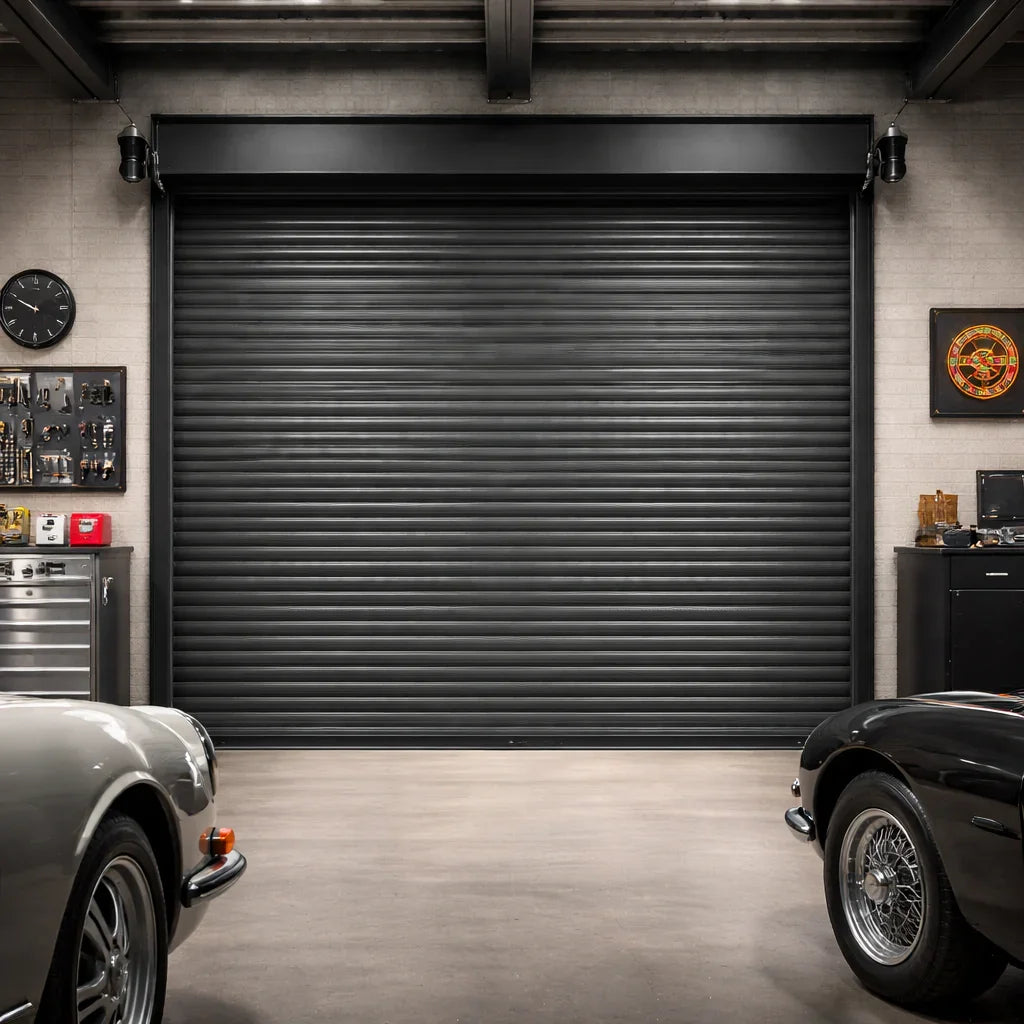

Aluminium Roller Shutter - LPS1175 Security Level 2

LPS1175 Security Rated Construction (SR2)

Independently tested to Security Rating 2 for enhanced resistance to sustained attack

Twin Walled Solid Aluminium Slats

Extruded double-skinned aluminium profile for increased strength and rigidity

Solid Security Solution

Provides maximum physical protection without visibility, ideal for higher risk sites

Punched Aluminium with Polycarbonate Inserts

Combines 58% vision with high-impact glazing for visibility and increased protection

High Visibility Security Solution

Maintains product display and clear sightlines while delivering certified security

Internal Installation for Maximum Protection

Installed behind the opening to protect guides and shutter box from attack

Electric Operation (Standard)

Smooth, reliable motorised operation for controlled daily use

Made to Measure Design

Custom built to your exact opening for a precise, secure installation

Wide Range of Colour Options

Available in any RAL or BS colour to match branding and architecture

Ideal for High-Security Retail & Commercial

Perfect for shopfronts, commercial units, and security sensitive environments

Low Maintenance Construction

Durable aluminium and polycarbonate materials reduce ongoing upkeep

Certified Commercial Performance

Designed for regular use in environments requiring tested security standards

The RA802 Solid Aluminium Roller Shutter (LPS1175 SR2) is a high security, tested system, so design options are more controlled to maintain certification, while still allowing flexibility in finish and operation.

Slat Options

• Solid Twin Walled Aluminium Slats
  Fully solid design providing maximum privacy and security. Ideal for high risk retail, commercial units, and secure premises where visibility is not required.

Operation & Control Options

Electric Operation (Standard Only):

• Hold-to-Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button

Colour & Finish Options

Standard Finishes:

• White (RAL 9016)
• Brown (RAL 8014)

Full Custom Powder Coating:
Available in any RAL or BS colour (subject to lead time and cost)

Installation Requirements

• Internal / Behind Opening Installation (Mandatory)
  Must be fitted behind the structural opening
  Ensures guides and shutter box are protected from attack side

This is critical to achieving and maintaining the SR2 security rating

Size & Configuration

• Made to Measure Design
  Manufactured to your exact opening for precise fit and compliance
• Security Focused Specification
  Dimensions and components are configured to meet LPS1175 SR2 standards

The RA802 is designed for applications where certified security cannot be compromised, while still delivering high visibility and a clean, architectural finish for retail and commercial environments.

• Slat Type: Solid Twin Walled Extruded aluminium slats
• Slat Height: 77mm high
• Curtain Thickness: Approx. 18mm
• Weight: Approx. 8.5 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 6000mm (width dependent)
• Guide Rails: Extruded aluminium 150mm deep guide channels and bottom slat with brush and rubber weather seals. Guide channels must be fitted 30mm from the opening, giving 180mm from opening edge to back of guide.
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control)
• Finish: Powder coated aluminium (standard RAL 9016, RAL8014 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the RA802 high security roller shutter, however due to its tested construction and certification requirements, manufacturing typically takes approximately 4–5 weeks. Delivery is usually arranged shortly after completion. Please note that custom colours or project-specific requirements may extend lead times slightly depending on powder coating and specification.

For supply and installation projects, the full process typically takes 5–7 weeks. This includes an initial site survey to confirm sizes, structural requirements, and installation positioning, followed by manufacture and scheduling of installation.

Due to the LPS1175 SR2 security rating, installation must be carried out behind the structural opening, ensuring the guides and shutter box are protected from the attack side. This is a critical requirement to maintain certification, meaning professional installation is strongly recommended to ensure compliance, performance, and long-term reliability.

The RA802 is a high security, certified solution, positioned at the premium end of the market due to its LPS1175 SR2 rating, polycarbonate inserts, and specialist installation requirements.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £2,000 – £3,500
• Supply & Install – £3,500 – £6,000

Medium (up to 4m x 4m)

• Supply Only – £3,500 – £7,00
• Supply & Installation – £6,000 – £11,000

What Affects the Price?

• LPS1175 SR2 Certification – Tested, high-security components increase cost significantly
• Polycarbonate Inserts – Adds material cost but improves visibility and impact resistance
• Installation Method – Internal/behind opening installation increases labour and complexity
• Size of Opening – Larger shutters require stronger components and higher spec motors
• Control Systems – Remote control and integration options increase cost
• Colour Finish – Powder coating (RAL/BS) adds cost and lead time

Budget Guidance

• A premium upgrade from standard punched shutters, offering certified high security
• Ideal for high risk retail, commercial, and security-sensitive environments
• Best suited where insurance compliance, visibility, and security are critical

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, installation details, and security requirements.
