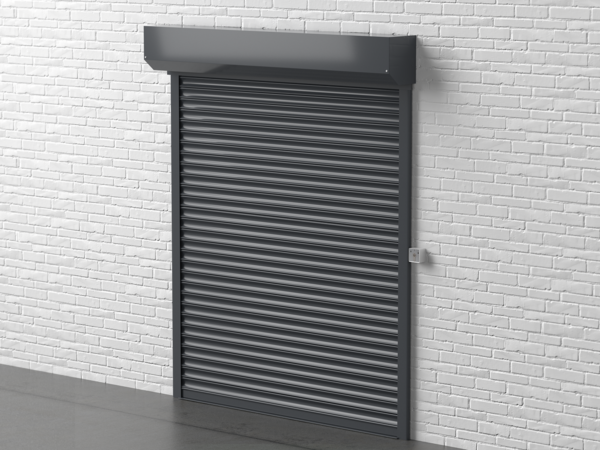

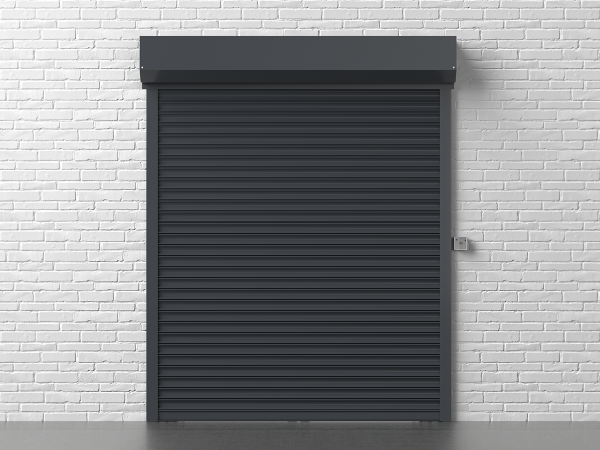

Commercial Metal Shutters

Security Features

•    Medium-security rating suitable for offices, shopfronts, bin stores, and serveries.
•  Constructed from single-skin 75mm curved galvanised steel laths.
•  Available in 0.7mm (22G), 0.9mm (20G), and 1.2mm (18G) wall thicknesses for varying security needs.
•  Solid laths supplied as standard; optional perforated (18% vision) or punched (25% vision) laths provide visibility and airflow while maintaining protection.
•  Secure Two-Point Bottom Lath Lock is standard on manual versions.
•  Optional bullet locks for enhanced manual security.
•  Windlocking guide channels available for high-security or wind-exposed installations.


Safety Features

•    Manual override system available for electric shutters to ensure operation during power outages.
•  Optional safety edge sensors and rubber bottom seals improve user safety and protection during operation.
•  CE-marked components compliant with safety standards.
•  Galvanised steel bottom rails (“T” or optional “L” shape) help ensure secure closure and can be equipped with safety enhancements.


Insulation & Energy Efficiency

•    Steel construction helps with basic thermal retention and weather protection.
•  Optional rubber seals enhance draught-proofing and help with energy efficiency.
•  Lath weight of approx. 12 kg/m² contributes to robust insulation and soundproofing properties.

Operation & Controls

•    Manual Operation: Spring & Lock mechanism suitable for smaller openings.
•  Electric Operation: Single-phase tube motor discreetly integrated within the barrel.
  •      Ideal for low-frequency use (3–4 operations per day).
  •      Supplied with a 5-year manufacturer's part warranty.
  •      Toggle switch provided as standard for internal operation.
  •      Optional controls: external key switch, digital keypads, remote control, smartphone integration, or high-security tag system.
•  Electric motors include a manual override function for emergency use.


Installation & Warranty

•    Made-to-measure to fit up to 7m wide and 5m high openings.
•  Guide channels available in 50mm, 65mm, or 100mm widths depending on opening size and application.
•  Suitable for both face fix and reveal fix installations.
•  Motor includes a 5-year manufacturer's parts warranty.


Lead Time & Common Applications

•    Standard lead time: 10–15 working days (subject to change).
•  Widely used across various commercial sectors:
  •      Office buildings
  •      Retail store fronts
  •      Bin storage areas
  •      Cafeteria or kitchen serveries
  •      Car parks

Design & Customisation

The standard finish for our Commercial Metal Shutter is Galvanised finish.

We also offer powder coating in a wider range of colours, categorised as follows:

   Band A – Popular colours we regularly stock. These incur a small additional cost.

   Band B – Less common colours we may have in stock. These come with a slightly higher additional cost.

   Band C – Special order colours not typically stocked but available quickly without affecting lead times. These colours are priced at a premium.

In addition, we can powder coat shutters in any BS or RAL colour. These are quoted on a Price Per Application basis and may extend lead times slightly.
