Why choose the Industrial Steel Roller Shutters?

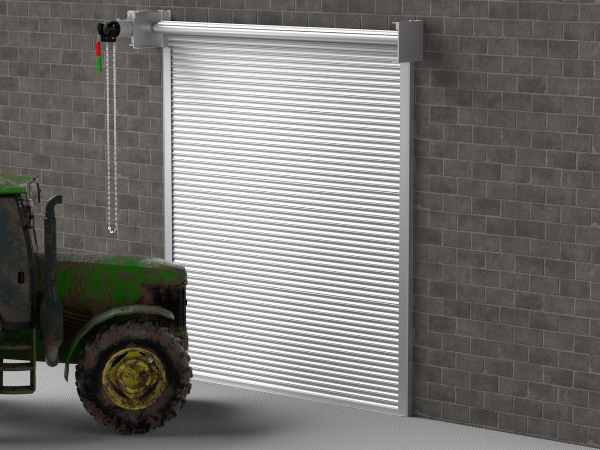

The Galvanised Steel Industrial Roller Shutters are the most popular shutters for industrial and Agricultural applications.   It's one of the most versatile and cost effective types of roller shutter and goes up to 7m wide and 7m high.  The 75mm curved steel laths, are available in 22G (0.7mm), 20G (0.9mm) and 18G (1.2mm), depending on the size of the roller shutter and the security level required.   The industrial steel roller shutter is also available with a Wicket Door, for pedestrian access without having to fully open the shutter.

The Industrial Steel Roller Shutter Doors are available Manual Chain Operation, ideal when there is no power available.   We have a range of Motors available, which can be selected based on the Size of the Shutter and the usage the shutter will get on a daily basis.   The single phase Tube Motors are ideal for smaller openings and light usage ie; 2-3 times per day.   The single phase industrial motors comes with a chain override and will provide several operations a day.   We then have a range of 3 Phase Motors, which are heavy duty and as standard will provide around 10-15 operations per hour.  The 3 Phase Motors are also available with High Speed and High Usage motor options.    We also have a large of controls and sensors for example Radar Sensors for Fork Lift Traffic, Traffic Lights and Safety devices.

The Industrial Steel  roller shutters, are ideal for use in industrial warehouses and come in Galvanised Finish as standard.   The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
ApplicationWarehouses, Loading Bays, Agriculture
Product RatingMedium
MaterialGalvanised Steel
Lath TypesSolid, Perforated, Punched
Manual OperationChain Operation
Electric OperationSingle and 3 Phase Motors
Max Width7000mm
Max Height - Manual4000mm (Depending on Width)
Max Height - Electric7000mm
Box & Guides - Standard FinishGalvanised
Curtain - Standard FinishGalvanised
Lead Times10-15 working days


    SLATS SPECIFICATION
 Description
The standard Galvanised Steel Laths are 75mm high, curved single skin laths.  The laths are available in different thicknesses depending on the size of the shutter and the security required - 22G (0.7mm), 20G (0.9mm) and 18G (1.2mm).


Galvanised Steel Laths curved single skin laths



Perforated Laths are available at an additional cost - Provides 18% Vision.


Perforated Laths  Slat Version Provides 18% Vision.


Punched Laths are available at an additional cost - Provides 32% Vision.
Punched Laths  Provides 32% Vision.



At the Bottom of the Curtain you get the Option of a "T" Rail or "L" Rail.   "T" Rail comes as standard.   You can fit a Rubber Bottom Seal or Safety Edge to the bottom of the "L" and "T" Rail, at an extra cost.

T Rail L Rail



The Industrial Steel Roller Shutters are available with a Wicket Door.  This is a door that is built into the Shutter Curtain.   This is a pedestrian door that can be used, instead of opening and closing the shutter.  The Wicket Doors are available in Two Sizes and generally inward opening.  We recommend that the Wicket Doors are Powder Coated.


Industrial Roller Shutters With Wicket Door

Roller Shutter Wicket Door

    BOX SPECIFICATION
 Description
Industrial Doors come with a universal steel side end plates.  The end plates are pre-drilled for different motors and motor configurations.   As standard the shutter does not come with a Shutter Hood or Fascia , this is available at an extra cost if required.


universal steel side end plates for Industrial Roller Doors




Box Sizes
This varies between 350mm - 550mm, dependent on the width of the opening, please contact us for the exact clear opening height for the particular width of shutter you require.


    GUIDE RAIL SPECIFICATION

Description
Traditional Guides are supplied with galvanised Steel guide angle.  The angle can be inset or outset if preferred, this must be clearly stated on your order.

There are two types of Guide Rails  -  Standard "U" Channel, is provided as standard and comes is different sizes, depending on the size of the shutter.

    galvanised Steel guide angle   galvanised Steel guide angle



Wind Lock Lock Guides are available at an extra cost.  Ideal when the shutter is fitted is windy locations or for extra security.


Wind Lock Lock Guides for roller shutters    Wind Lock Lock Guides for roller shutters




    OPERATION

The Industrial Doors are available in Manual Chain Operation, Single (240V) or 3 Phase (415V) motors available.  This depends on the Size of the opening, the usage the door will be operated and if the shutter s face or reveal fixed.


MANUAL CHAIN OPERATION

CHAIN OPERATION  -   This is ideal when there is no power on site ie; agricultural buildings.  Chain operation is usually the same price as an electric operation.

roller shutter chain operation


SINGLE PHASE (240V) MOTOR OPTIONS

TUBE MOTOR  -   The motor is concealed within the Shutter Barrel and is ideal when headroom is limited.  Only used on smaller openings and applications where the shutter will be operated a few times per day.  Available with a Manual Winding Handle.  Motors come with a 5 Year Manufacturers Parts Warranty.
SINGLE PHASE (240V) MOTOR OPTIONS for industrial roller shutters

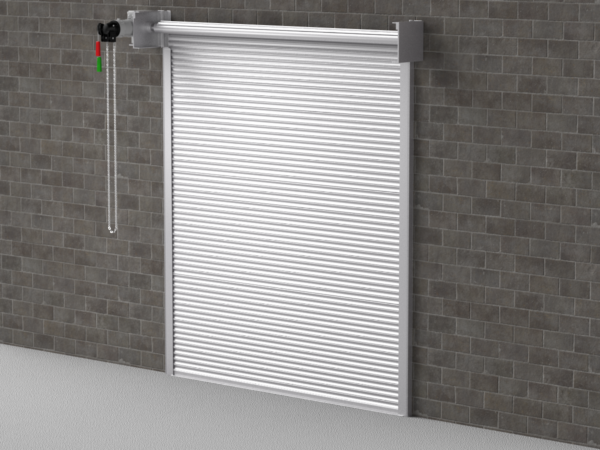

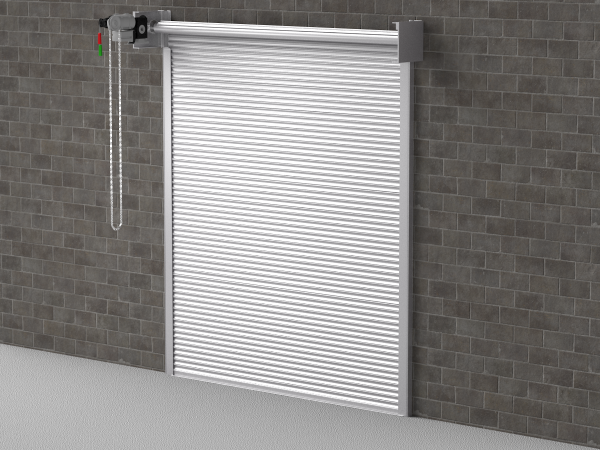

INDUSTRIAL MOTOR  -   They can be fitted Inboard Chain Drive, which is used for Reveal Fixing and is only suitable for Medium use.  Where possible we use the Direct Drive motors that are bolted onto the endplates.  The Direct Drive motors are Heavier Duty, more reliable and operate quicker.   As standard, all Industrial Motors come with a Chain Override and Push Button Station.  They come with a 1 Year Manufacturer's Warranty.

INDUSTRIAL MOTOR for Roller Shutters



THREE PHASE (415V) MOTOR OPTIONS

We mainly use GFA motors as they are German made, very reliable and easy to maintain.   We can use Ellard and Link motors if you the customer prefers.   3 Phase motors are very Heavy Duty, they allow from 10 to 40 operation per hour and they also operate at a higher speed.  As standard, the motors come with a Chain Overrideand Push button station.    We can get a 3 phase motor to suit most requirements, including High Usage, High Speed and Hazardous Environments.  All these motors come with a 2 Year Manufacturer Warranty.

THREE PHASE (415V) MOTOR OPTIONS For Industrial Roller Doors GFA Ellard
.





The standard finish on the Traditional Industrial Steel Roller Shutters is Galvanised.

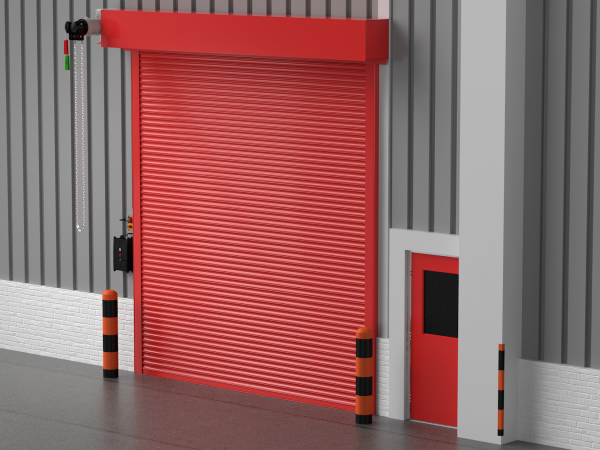

The Shutter can be Powder Coated one of our Stock Colours below.  Depending on the Band A, B or C will depend on the additional cost.
colourchart

LB Technical Drawings Industrial Roller Shutters Motorised Operation Installation Instructions  Roller Shutters Order Form
