PVC High Speed Doors

Ultra High Speed Operation

Opening speeds up to 1 metre per second for maximum efficiency

Flexible PVC Curtain Design

Lightweight curtain reduces damage risk and allows safe operation

Ideal for High Traffic Environments

Perfect for warehouses, logistics centres, and production areas

Improves Environmental Control

Helps maintain temperature, reduce dust, and improve cleanliness

Fully Automated Operation

Compatible with radar sensors, induction loops, push buttons, and remotes

Energy Efficient Performance

Fast cycle times reduce heat loss and improve energy savings

Low Maintenance System

Fewer mechanical components compared to steel shutters

Internal & External Applications

Suitable for internal separation or external openings (model dependent)

Custom Made to Measure

Designed to suit your exact opening and operational requirements

Wide Range of Colours & Finishes

PVC curtains available in various colours and visibility options

Enhanced Workflow Efficiency

Reduces downtime and supports smooth movement of goods and personnel

PVC High Speed Doors are designed for flexibility and performance, with a wide range of options to suit different environments, traffic levels, and operational requirements.

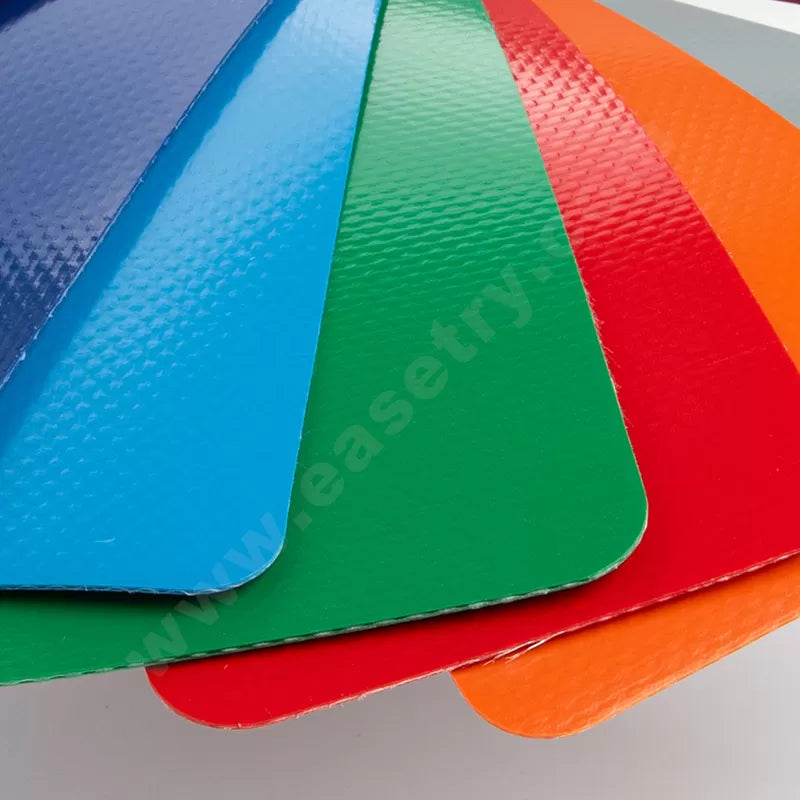

Curtain Options

• Standard PVC Curtain
  Durable and flexible for general industrial use
• Vision Panels / Transparent Sections
  Allows visibility through the door for improved safety and awareness
• Full Vision Curtain (Clear PVC)
  Ideal for areas requiring maximum visibility and light transmission
• Reinforced / Ribbed Curtains
  Increased strength for higher traffic or more demanding environments

Door Configurations

• Internal High Speed Doors
  Ideal for separating areas within warehouses or production facilities
• External High Speed Doors
  Designed with additional wind resistance for external openings
• High Wind / Storm Resistant Models
  Reinforced structure for exposed or high wind locations
• Chill / Freezer Applications
  Suitable for temperature-controlled and cold storage environments

Operation & Control Options

• Radar Motion Sensors
  Automatic opening for vehicles and pedestrians
• Induction Ground Loops
  Detect vehicles for seamless access
• Push Button Operation
  Simple and reliable manual activation
• Remote Control / Fobs
  Convenient operation from a distance
• Pull Cord / Touchless Sensors
  Additional options for hygiene-sensitive environments

Safety Features

• Soft Bottom Edge
  Flexible edge reduces risk of injury or damage
• Photocells / Safety Sensors
  Detect obstructions to prevent accidents
• Self-Repairing Curtain (Optional)
  Curtain can reset itself after minor impact

Finish & Colour Options

• Range of PVC Colours
  Match your building or operational zones
• Branding Options
  Logos or coloured sections for identification

Size & Configuration

• Made to Measure Design
  Manufactured to suit your exact opening
• Wide Range of Sizes Available
  Suitable for small internal openings to large industrial doorways

These options make PVC High Speed Doors ideal for logistics, food production, clean environments, and high-traffic industrial settings, delivering speed, efficiency, and operational flexibility without the need for heavy-duty security.

PVC High Speed Doors are available in a range of models and specifications, designed to suit internal, external, and specialist environments.

Curtain & Construction

• Curtain Material: Flexible reinforced PVC
• Curtain Options:Solid PVC
  Vision panels (clear sections)
  Full clear PVC (full vision)
• Curtain Thickness: Typically 0.8mm – 1.5mm (model dependent)
• Wind Resistance: Varies by model (see below)
• Opening Speed: Up to 1.0 m/s
• Closing Speed: Adjustable (typically 0.5 – 0.8 m/s)

Available Models

1. Internal High Speed Door

• Designed for internal use only
• Lightweight structure
• Ideal for warehouses, production areas, and logistics
• Moderate wind resistance

2. External High Speed Door

• Reinforced structure for external openings
• Increased wind resistance
• Suitable for loading bays and exposed areas

3. High Wind / Storm Resistant Door

• Heavy-duty frame and reinforced curtain
• Designed for high wind load environments
• Suitable for large external openings

4. Chill / Cold Store Door

• Designed for temperature-controlled environments
• Helps reduce heat transfer and maintain internal conditions
• Suitable for cold rooms and chilled storage

5. Self-Repairing High Speed Door (Optional)

• Curtain re-feeds automatically after impact
• Reduces downtime and maintenance costs

Size Capabilities

• Maximum Width: Up to approx. 6000mm (model dependent)
• Maximum Height: Up to approx. 6000mm
• Made to measure for each installation

Drive & Operation

• Motor Type: High-speed direct drive motor system
• Power Supply: 230V single phase
• 415V 3-phase (for larger doors)

Control Options

• Radar motion sensors
• Induction ground loops (vehicle detection)
• Push button control
• Pull cord operation
• Remote control / fobs
• Integration with access control systems

Safety Features

• Soft bottom safety edge (standard)Photocell safety beams
• Obstacle detection system
• Emergency stop button
• Self-repairing curtain (optional)

Finish & Appearance

• Curtain Colours: Wide range of standard PVC colours
• Vision Panels: Optional clear sections
• Branding: Custom colours or printed logos available

Performance

• Operating Speed: Up to 1 m/s
• Duty Cycle: Designed for high frequency use
• Temperature Range: Suitable for ambient to chilled environments (model dependent)

This specification ensures PVC High Speed Doors deliver fast operation, durability, and environmental control, with multiple configurations to suit a wide range of industrial applications.

We aim to keep lead times as efficient as possible for PVC High Speed Doors, with typical manufacturing taking approximately 4–6 weeks. Delivery is usually arranged shortly after completion. Please note that specialist models (such as high wind or cold store doors), custom colours, or advanced control systems may extend lead times slightly depending on specification.

For supply and installation projects, the full process typically takes 5–8 weeks. This includes an initial site survey to confirm sizes, usage requirements, and control methods, followed by manufacture and scheduling of installation.

Due to the automation and control systems involved, professional installation is recommended to ensure correct setup, safe operation, and reliable performance. Our team will guide you through the process to ensure the door is configured correctly for your environment and usage.

PVC High Speed Doors are a top range solution, offering excellent speed, automation, and efficiency are more important than security.

Indicative Pricing (Guide Only)

Small (up to 3m x 3m)

• Supply Only – £2,500 – £4,500
• Supply & Install – £4,000 – £7,000

Medium (up to 5m x 5m)

• Supply Only – £4,500 – £9,000
• Supply & Installation – £7,000 – £13,000

Large (up to 7m x 7m)

• Supply Only – £8,000 – £16,000
• Supply & Install – £12,000 – £22,000

What Affects the Price?

• Door Type – Internal, external, wind-resistant, or cold store models
• Automation Systems – Radar sensors, induction loops, and access control integration
• Size of Opening – Larger doors require more powerful motors and reinforced structures
• Curtain Type – Vision panels, reinforced PVC, or specialist curtains increase cost
• Installation Complexity – Access, structure, and electrical requirements impact pricing

Budget Guidance

• A cost-effective alternative to insulated high-speed steel doors
• Ideal for high-traffic environments where speed is critical
• Best suited where efficiency, workflow, and environmental control are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, usage requirements, and control options.
