Smoke Curtain- SC1 - Tested to BSEN 12101-1

Certified Smoke Control Performance

Tested to BS EN 12101-1 for effective smoke containment and channelling

Supports Safe Evacuation

Helps maintain clear escape routes by controlling smoke movement

Fail-Safe Gravity Deployment

Automatically descends during fire or power failure for reliable operation

Automatic System Activation

Integrates with fire alarms and smoke detection systems

Flexible Smoke Control Strategies

Can be used for smoke containment or smoke channelling applications

Custom Made to Measure

Manufactured to suit openings from small areas to large atriums

Discreet & Concealed Design

Compact headbox allows hidden installation within ceilings or bulkheads

Lightweight, High-Performance Fabric

Designed for long drops and large spans in multi-level spaces

Compatible with BMS & Fire Systems

Fully integrates with building management and smoke control systems

Staged & Delayed Deployment Options

Supports phased smoke control strategies in complex buildings

Ideal for Large Open Spaces

Perfect for atriums, shopping centres, transport hubs, and public buildings

Low Maintenance & Reliable Operation

Engineered for consistent performance in life safety applications

The SC1 Smoke Curtain is designed to provide flexible and discreet smoke control for a wide range of building layouts. With multiple configuration options available, it can be tailored to suit complex smoke management strategies, architectural requirements, and large open spaces.

Size & Made-to-Measure Design

Each system is custom manufactured to suit your exact opening:

• Bespoke widths and drop heights
• Suitable for small openings to large atriums and multi-level voids
• Designed for long drops and wide spans

Headbox & Integration Options

• Compact, lightweight headbox for minimal visual impact
• Suitable for concealed installation within ceilings or bulkheads

Ideal for modern architectural environments and refurbishment projects

Installation Methods

Flexible installation options include:

• Face fix installation
• Soffit fix installation

Suitable for integration into non-loadbearing structures, including plasterboard and metal framing (subject to design guidance)

Modular & Multi-Curtain Systems

• Can be configured as modular systems
• Suitable for large spans and complex layouts
• Allows for overlapping curtains to create effective smoke reservoirs

Curtain Fabric Options

• Lightweight smoke-resistant fabric
• Reinforced with steel wire for strength and durability
• Designed for high-temperature environments and long-term performance

Colour & Finish Options

Standard finishes:

• RAL 9005 (Black)
• RAL 9010 (White)
• Custom RAL / BS colours available to match interior design schemes

Smoke Control Configurations

Suitable for:

• Smoke containment (compartmentation)
• Smoke channelling (directional control)

Designed to work alongside smoke extraction and ventilation systems

Control & Operation Options

• A range of control features can be specified, including:
• Integration with fire alarm systems
• Connection to building management systems (BMS)

Partial or staged deployment options

• Delay timers for phased smoke control strategies
• Manual test and reset functionality

Audio & Visual Safety Features

Optional safety enhancements include:

• Audible alarms (sounders)
• Visual warning beacons

Provides clear warning prior to curtain deployment

Power & Safety Systems

• 24V DC motor system
• Fail-safe gravity descent mechanism
• Battery backup (UPS) for operation during power failure

Application Flexibility

Designed for use in:

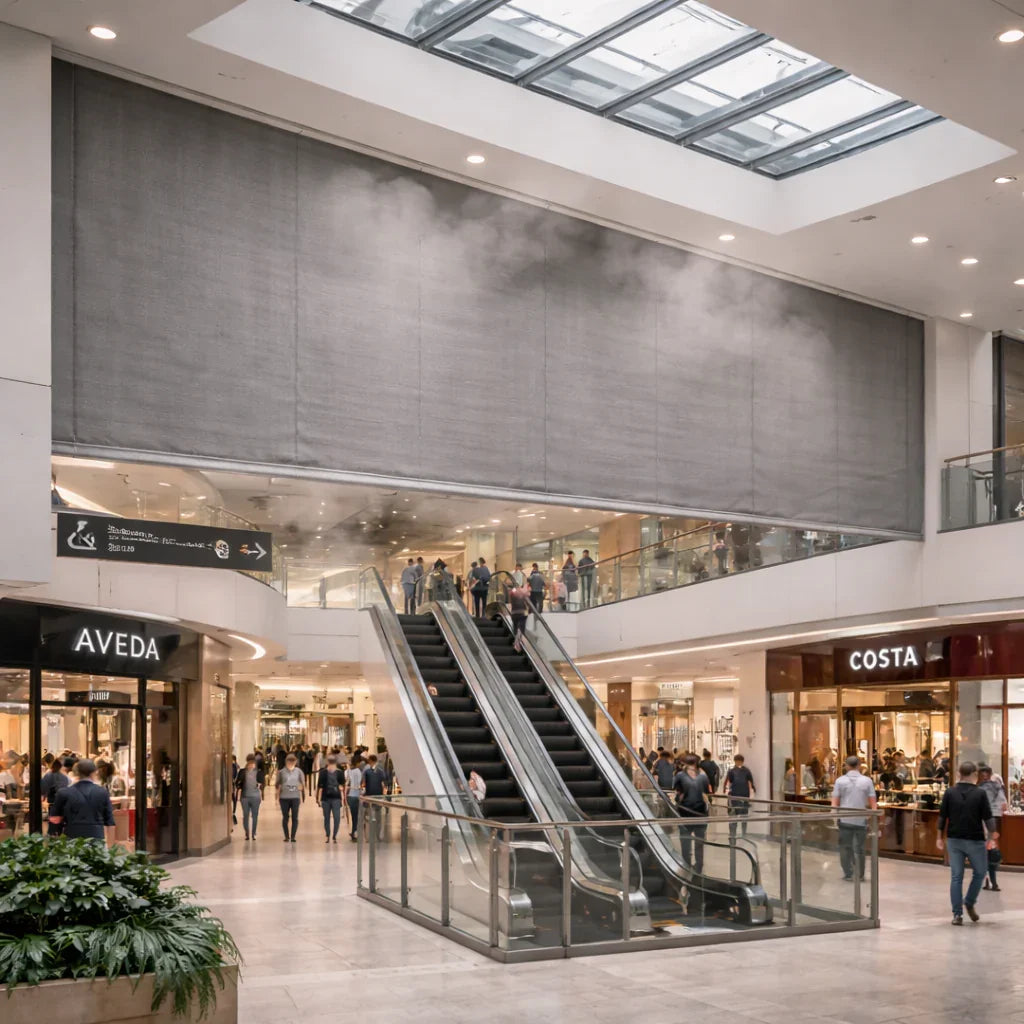

• Atriums and escalator voids
• Shopping centres and transport hubs

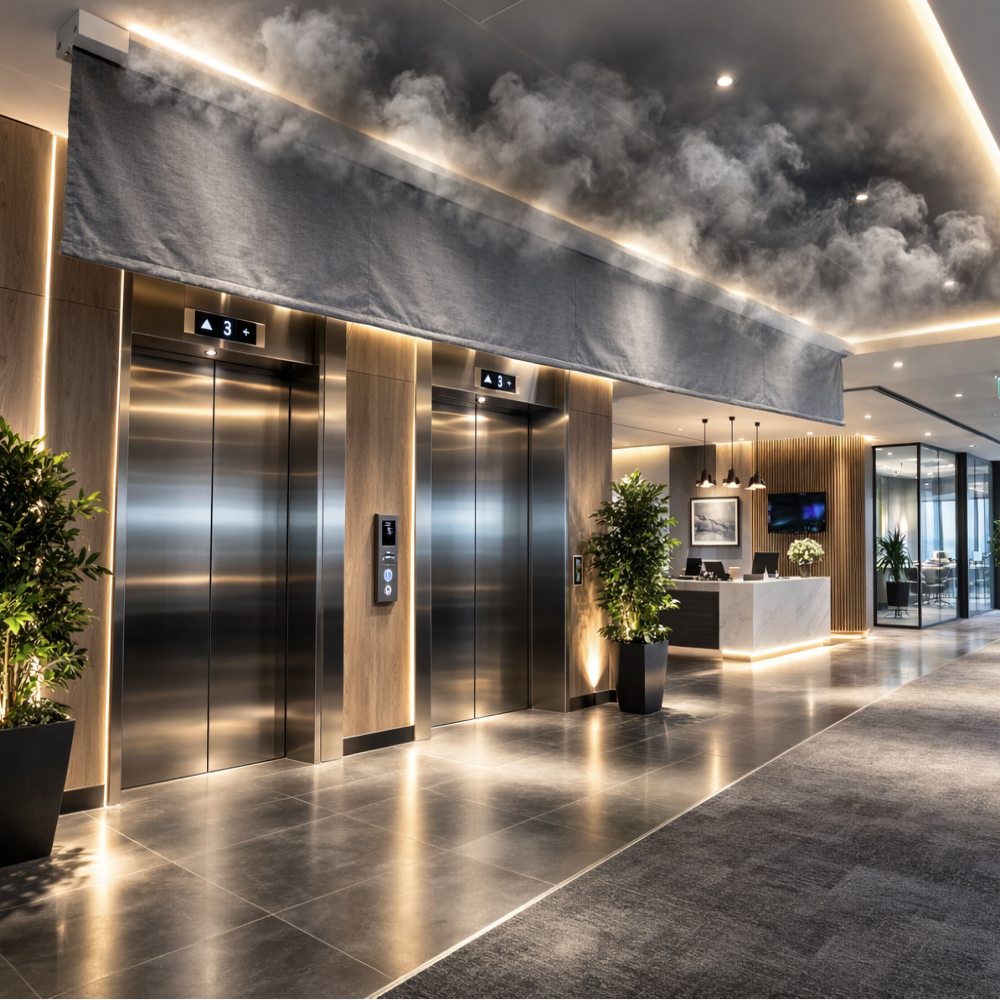

• Hospitals, hotels, and public buildings

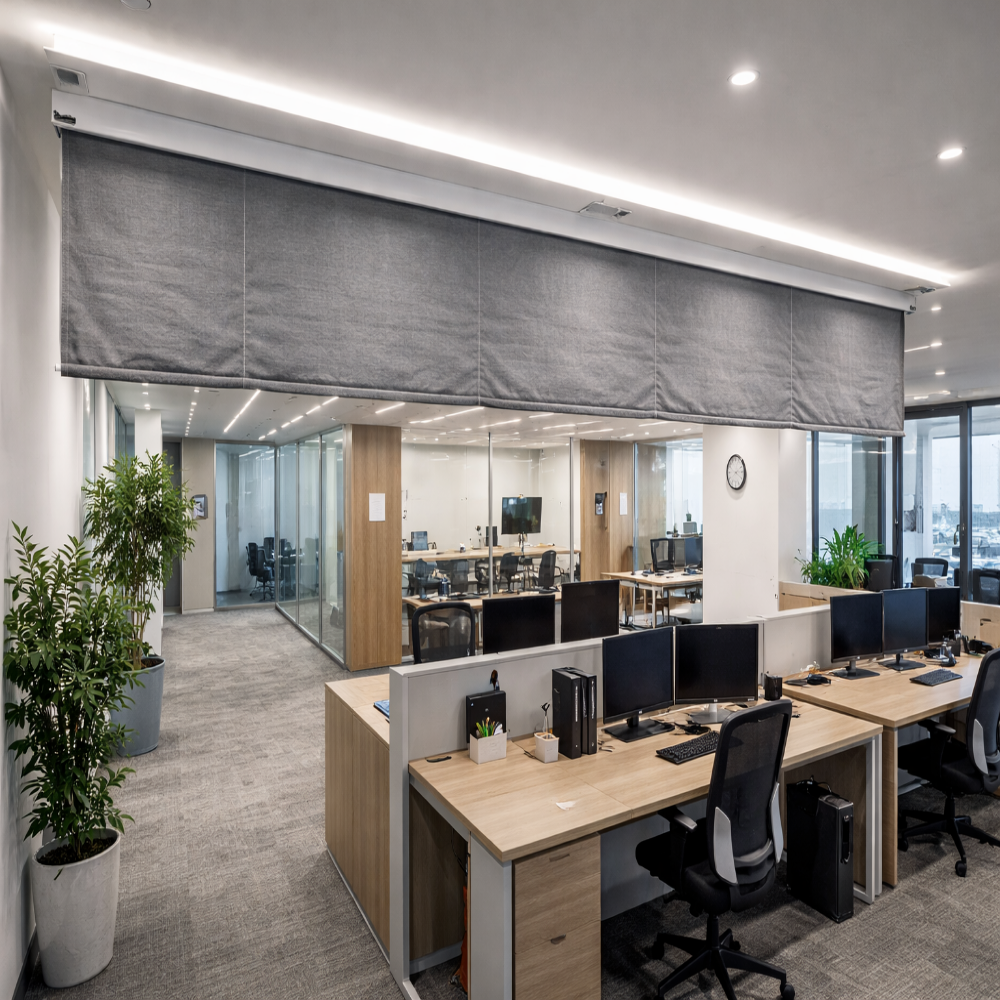

• Large open-plan commercial spaces

These design and customisation options ensure the SC1 Smoke Curtain delivers an effective balance of performance, flexibility, and discreet integration within modern smoke control strategies.

Product Type:

• Automatic smoke curtain system for smoke containment and channelling

Smoke Performance:

• Tested to BS EN 12101-1

Available classifications:

• DH60 (60 minutes smoke containment)
• D120 (120 minutes smoke containment)

Certification:

• Compliant with BS EN 12101-1 (Smoke and Heat Control Systems)

Curtain Material:

• Smoke-resistant fabric
• Reinforced with steel wire
• Designed for high-temperature environments and durability

Operation:

• 24V DC motor-driven system
• Automatic deployment via fire alarm or smoke detection system
• Fail-safe gravity descent in the event of power failure

Control System:

• Dedicated control panel (e.g. FC-INTUM)
• Compatible with fire alarm systems
• Compatible with building management systems (BMS)
• Includes manual test switch and reset functionality
• Built-in system monitoring for reliability

Power Supply:

• Mains powered with battery backup (UPS)
• Ensures operation during power outages

Deployment Features:

• Automatic descent upon alarm activation
• Staged or delayed deployment options available
• Suitable for integration into complex smoke control strategies
• Optional audible and visual warning systems

Headbox:

• Compact, lightweight design
• Suitable for concealed installation within ceilings or bulkheads

Finish:

• Curtain fabric in standard grey
• Headbox and side guides in RAL 9005 (Black) or RAL 9010 (White)
• Custom RAL / BS colours available

Installation Options:

• Face fix or soffit fix installation
• Typically installed into non-loadbearing structures (e.g. plasterboard or metal framing), subject to design approval

Structural Requirements:

• Installation in accordance with project-specific smoke control design
• May require coordination with structural and fire engineers

Sizes:

• Custom made to measure (widths and drop heights to suit application)

Usage:

• Suitable for atriums, escalator voids, corridors, and large open-plan areas

Safety Features:

• Fail-safe gravity operation
• Battery backup system
• Fire alarm and BMS integration
• Designed to maintain tenable escape conditions

Fire Performance:

• Not fire-rated
• Designed specifically for smoke control applications

Warranty:

• 12-month standard warranty (extendable with maintenance plans)

Maintenance:

• Requires regular servicing to maintain compliance and performance

Lead Time:

• Typically 2–4 weeks depending on size and configuration

Our SC1 Smoke Curtains are manufactured to order, with a typical lead time of 3–4 weeks from order confirmation and final specification. This allows each system to be tailored to the required dimensions and integrated into your building’s smoke control strategy.

Lead times may vary depending on opening size, system configuration, and control requirements, particularly where staged deployment, integration with BMS, or large multi-zone installations are involved. We will always confirm accurate timescales at quotation stage to align with your project programme.

We offer a professional supply and installation service, ensuring the system is installed correctly and fully integrated with fire alarm and smoke control systems. Installation includes commissioning and testing to ensure reliable performance and compliance. For supply-only projects, detailed installation guidance is provided to ensure the curtain performs as specified within the overall smoke management system.

The cost of SC1 Smoke Curtains will vary depending on size, configuration, and integration with smoke control systems. As a specialist life safety product, pricing reflects the level of testing, automation, and system integration required to meet smoke control strategies.

Indicative Pricing

Small Openings (Up to 2m wide)

• Supply Only: £1,200 – £2,500
• Supply & Install: £2,000 – £4,000

Medium Openings (2m – 4m wide)

• Supply Only: £2,500 – £5,500
• Supply & Install: £4,000 – £8,000

Large Openings (4m+ wide / Atriums & Open Plan Areas)

• Supply Only: £5,000 – £12,000+
• Supply & Install: £8,000 – £18,000+

Multi-Curtain / Zoned Smoke Control Systems

• Supply Only: £8,000+
• Supply & Install: £12,000+

Factors Affecting Price

Several factors will influence the final cost:

• Opening Size: Width and drop height are the main cost drivers
• Smoke Classification: DH60 vs D120 performance requirements
• System Configuration: Single curtain vs multi-zone layouts. Fire alarm, BMS, and staged deployment features
• Installation Type: Face fix vs soffit fix and structural requirements
• Finish Options: Powder coating and bespoke colours
• Site Conditions: Access, working height, and coordination with other trades

Installation Considerations

SC1 systems often require:

• Integration with smoke control and ventilation systems
• Coordination with fire engineers and M&E contractors
• Working at height for large or multi-level installations
• Commissioning and testing to ensure correct operation

This can increase installation costs depending on project complexity.

Additional Costs to Consider

• Electrical works for control panels and system integration
• Builder’s works or structural supports
• Access equipment (e.g. scaffolding or lifts)
• Ongoing maintenance and servicing

Get an Accurate Quote

As every smoke control system is unique, we recommend requesting a tailored quotation. Our team can help design a compliant solution that meets your building’s smoke strategy while balancing performance, safety, and budget.
