Fire Curtain - Integrity and Radiation

Dual Fire & Radiation Protection (E60 EW30)

Provides 60 minutes integrity and 30 minutes radiant heat control for safer evacuation

Tested to BS EN Standards

Certified to BS EN 1634-1 and EN 13501-2 for compliant fire protection

Protects Escape Routes from Heat

Reduces radiant heat transfer to prevent injury and secondary ignition

Automatic Fire Curtain Deployment

Activates via fire alarm or power failure for immediate protection

Fail-Safe Gravity Operation

Ensures curtain deployment even during power outages

Ideal for High-Occupancy Buildings

Perfect for shopping centres, hospitals, airports, and public spaces

Custom Made to Measure

Manufactured to suit a wide range of openings and layouts

Discreet & Concealed Design

Slim headbox allows seamless integration into ceilings or bulkheads

Modular & Wide Span Capability

Suitable for large openings using overlapping curtain systems

High-Performance Curtain Fabric

Multi-layer, reinforced material designed for fire and heat resistance

Full System Integration

Compatible with fire alarms and building management systems (BMS)

Low Maintenance & Reliable Operation

Engineered for long-term performance in demanding environments

The FC4 Fire Curtain is designed to deliver both fire containment and radiant heat protection, while offering flexibility to suit a wide range of architectural layouts and fire strategies. With multiple configuration, sizing, and finish options available, the system can be tailored to meet both performance and design requirements.

Size & Made-to-Measure Design

Each curtain is custom manufactured to suit your specific opening:

• Up to 5m wide per single curtain
• Unlimited widths achievable through overlapping or modular systems
• Bespoke drop heights to suit floor-to-ceiling applications

Headbox & Integration Options

• Slimline, compact headbox for discreet installation
• Suitable for concealed integration into ceilings, soffits, or bulkheads
• Minimal visual impact when retracted, ideal for modern interiors

Installation Methods

Flexible installation options to suit structural requirements:

• Face fix installation
• Soffit fix installation
• Designed for installation into masonry or structural steel supports (in line with certification requirements)

Modular & Multi-Curtain Systems

• Suitable for large spans and open-plan areas
• Curtains can be linked or overlapped for continuous coverage
• Ideal for zoned fire compartmentation strategies

Curtain Fabric & Performance Options

• Multi-layer glass fibre fabric reinforced with stainless steel wire
• Designed to provide both integrity (E) and radiation control (EW)
• Engineered to withstand high temperatures and reduce heat transfer

Colour & Finish Options

Standard finishes:

• RAL 9005 (Black)
• RAL 9010 (White)
• Full RAL / BS colour matching available for bespoke projects
• Headbox and guide rails can be finished to match interior design schemes

Control & Operation Options

A range of system control features can be specified, including:

• Integration with fire alarm systems
• Connection to building management systems (BMS)
• Manual override and reset functions
• Test switch functionality for maintenance

Audio & Visual Safety Features

Optional safety enhancements include:

• Audible warning systems (sounders)
• Visual warning beacons
• Provides clear alerts during curtain deployment

Power & Safety Systems

• 24V DC motor system
• Fail-safe gravity descent mechanism
• Battery backup (UPS) for operation during power failure

Application Flexibility

Suitable for a wide range of environments, including:

• Atriums and open-plan spaces
• Corridors and escape routes
• Commercial buildings and public spaces
• Healthcare and high-occupancy environments

These design and customisation options ensure the FC4 Fire Curtain delivers the right balance of fire protection, heat shielding, and architectural integration for modern building designs.

• Product Type: Automatic fire curtain with integrity and radiation control

Fire Rating:

• Tested to BS EN 1634-1
• Classified to BS EN 13501-2
• E60 (Integrity): 60 minutes fire resistance
• EW30 (Radiation Control): 30 minutes heat reduction

Enhanced Performance (Higher Spec Options):

• Up to E120 / EW60 available depending on specification

Certification:

• CE marked to EN 16034
• CE marked to EN 13241

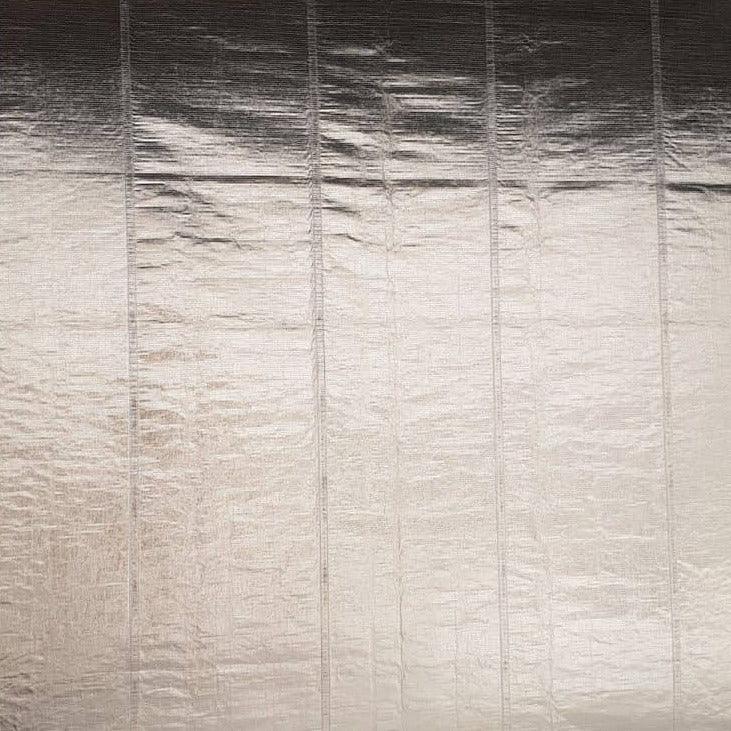

Curtain Material:

• Multi-layer glass fibre fabric
• Reinforced with stainless steel wire
• Coated for heat reflection and fire resistance

Operation:

• 24V DC tubular motor system
• Automatic deployment via fire alarm signal
• Fail-safe gravity descent in the event of power failure

Control System:

• FC-INTUM digital control panel
• Compatible with fire alarm systems
• Compatible with building management systems (BMS)
• Includes manual reset and test functionality

Power Supply:

• Mains powered with battery backup (UPS)
• Ensures operation during power failure

Deployment Features:

• Automatic descent upon alarm activation
• Controlled descent for safe operation
• Optional audible and visual warning systems

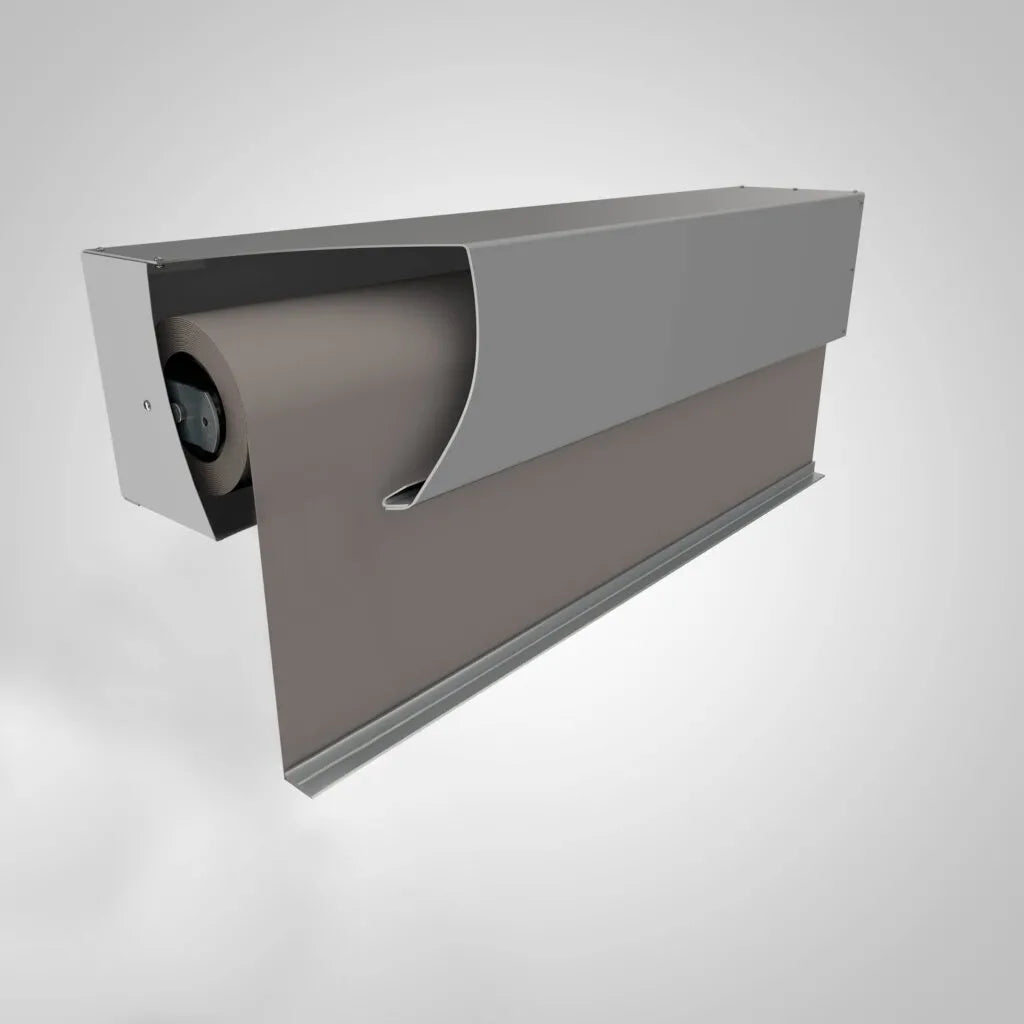

Headbox:

• Compact, slimline design
• Suitable for concealed installation within ceilings or bulkheads

Finish:

• Curtain fabric in standard grey
• Headbox and guides in RAL 9005 (Black) or RAL 9010 (White)
• Custom RAL / BS colours available

Installation Options:

• Face fix or soffit fix installation
• Suitable for installation into masonry substrates or
• Structural steel support (e.g. 80mm x 80mm x 5mm box section)

Sizes

• Up to 5m wide per curtain
• Unlimited widths achievable via modular / overlapping systems
• Custom drop heights available

Usage:

• Suitable for atriums, corridors, lobbies, and escape routes
• Ideal for environments requiring radiation control as well as fire containment

Safety Features:

• Fail-safe gravity operation
• Battery backup system
• Fire alarm and BMS integration
• Designed to protect occupants from radiant heat exposure

Warranty:

• 12-month standard warranty (extendable with maintenance plans)

Maintenance:

• Requires regular servicing to maintain compliance and performance

Lead Time:

• Typically 3–5 weeks depending on size and specification

Our FC4 Fire Curtains are manufactured to order, with a typical lead time of approximately 4 weeks from order confirmation and final specification. This allows each system to be produced to the required size, performance rating, and project-specific requirements.

Lead times may vary slightly depending on opening size, system configuration, and additional options, such as modular layouts or integration with fire alarm and building management systems. We will always confirm accurate timescales at quotation stage to support your project programme.

We offer a professional supply and installation service, ensuring the system is installed correctly into masonry or structural steel supports and fully integrated with fire control systems. Installation includes commissioning and testing to ensure reliable operation and compliance. For supply-only projects, detailed installation guidance is provided to ensure the curtain achieves its specified fire and radiation performance.

The cost of FC4 Fire Curtains reflects their dual-performance capability, providing both fire integrity and radiant heat protection (E & EW classification). As a more advanced system than standard fire curtains, pricing sits in the mid-to-high range, particularly where radiation control is required for life safety applications.

Indicative Pricing

Small Openings (Up to 2m wide)

• Supply Only: £2,500 – £5,000
• Supply & Install: £4,000 – £7,500

Medium Openings (2m – 4m wide)

• Supply Only: £4,500 – £9,000
• Supply & Install: £7,000 – £13,000

Large Openings (4m+ wide / Atriums & Open Plan Areas)

• Supply Only: £8,000 – £18,000+
• Supply & Install: £12,000 – £25,000+

High Specification / E120 EW60 Systems

• Supply Only: £7,000 – £15,000+
• Supply & Install: £11,000 – £22,000+

Multi-Curtain / Modular Systems

• Supply Only: £10,000+
• Supply & Install: £15,000+

Factors Affecting Price

Several factors will influence the final cost:

• Fire Rating: E60 vs higher-spec E120 performance
• Radiation Control: EW30 vs EW60 classifications
• Opening Size: Width and drop height significantly impact cost
• System Configuration: Single curtain vs modular / overlapping systems
• Control Integration: Fire alarm and BMS connectivity
• Installation Complexity: Structural requirements and access conditions
• Finish Options: Powder coating and bespoke colours

Installation Considerations

FC4 systems often require:

• Integration with fire alarm and control systems
• Installation into masonry or structural steel supports
• Working at height for larger openings
• Commissioning and testing to ensure compliance

This can increase installation costs depending on project complexity.

Additional Costs to Consider

• Electrical works for system integration
• Structural steel or builder’s works
• Access equipment (e.g. scaffolding or lifts)
• Ongoing maintenance and servicing

Get an Accurate Quote

As each project is unique, we recommend requesting a tailored quotation. Our team can help specify the correct fire and radiation performance level to ensure the best balance of life safety, compliance, and budget.
