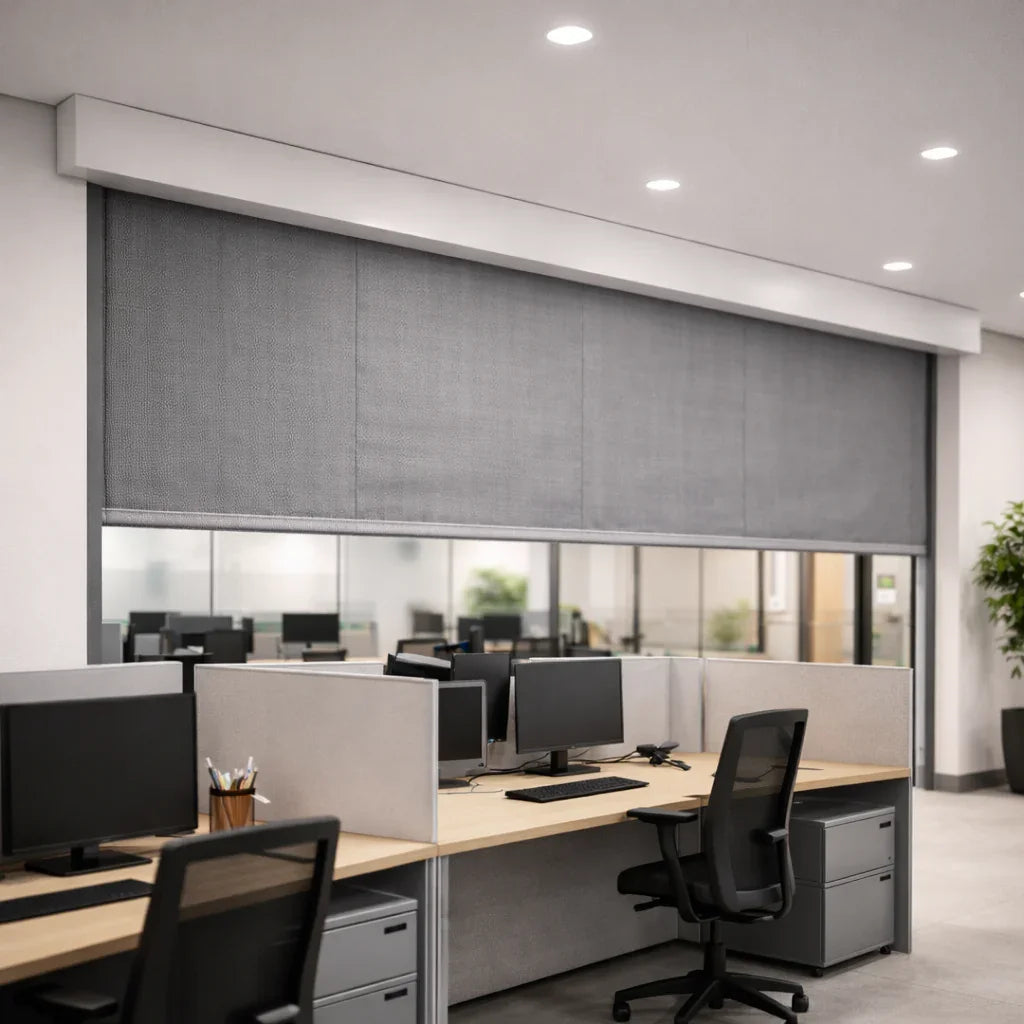

Fire and Smoke Curtains - FC2S

Fire & Smoke Protection Combined

Provides both fire resistance and smoke control in one integrated system

Up to 180 Minutes Fire Resistance

Tested to BS EN 1634-1 and EN 13501-2 with E180 and EW60 classifications

Advanced Smoke Sealing System

Reduces smoke leakage to protect escape routes and critical areas

Automatic Deployment System

Activates via fire alarm for rapid response during fire events

Fail-Safe Gravity Operation

Ensures curtain deployment even during power failure

Ideal for Open-Plan & Complex Spaces

Perfect for atriums, transport hubs, and large commercial environments

Custom Made to Measure

Manufactured to suit specific openings and fire strategy requirements

Discreet & Compact Design

Slim headbox allows concealed installation within ceilings or structures

High-Performance Curtain Fabric

Glass fibre with stainless steel reinforcement for durability and heat resistance

Full System Integration

Compatible with fire alarm systems and building management systems (BMS)

Flexible Installation Options

Suitable for face fix or reveal fix depending on project needs

Low Maintenance & Reliable Operation

Designed for long-term performance in demanding environments

The FC2-S Fire & Smoke Curtain is designed for maximum flexibility, allowing it to be tailored to complex building layouts where both fire compartmentation and smoke control are critical. With a wide range of configuration, control, and aesthetic options, the system can be adapted to meet project-specific fire strategies and architectural requirements.

Size & Made-to-Measure Design

Each curtain is custom manufactured to suit your exact opening dimensions, including:

• Bespoke widths and drop heights
• Suitable for small openings through to large multi-zone applications
• Designed to integrate seamlessly into complex building layouts

Headbox & Integration Options

The FC2-S features a compact headbox system, allowing for:

• Concealed installation within ceilings or bulkheads
• Minimal visual impact when retracted
• Integration into modern architectural designs and refurbishment projects

Installation Methods

Flexible installation options to suit different structures:

• Face fix installation
• Reveal (recessed) fix installation
• Suitable for integration into masonry or structural steel openings

Structural Support Requirements

• Designed for installation into masonry substrates
• Can also be installed with structural steel support sections (e.g. 80mm x 80mm x 5mm box section)
• Ensures compliance with fire and smoke certification standards

Curtain Fabric & Smoke Sealing System

• High-performance glass fibre fabric reinforced with stainless steel wire
• Integrated smoke sealing system with bottom bar seal
• Designed to minimise smoke leakage and enhance escape route protection

Colour & Finish Options

Headboxes and side guides available in:

• RAL 9005 (Black)
• RAL 9016 (White)
• Full RAL / BS colour matching available for bespoke architectural finishes

Smoke Control Performance

• Certified smoke control capability to EN standards
• Suitable for multi-zone fire and smoke compartmentation strategies
• Designed to support evacuation and fire service access

Control & Operation Options

A wide range of control features can be specified, including:

• Integration with fire alarm systems
• Connection to building management systems (BMS)
• Digital control panel (FC-INTUM)
• Manual reset and test functionality
• Delay timers for phased or staged deployment

Audio & Visual Safety Features

Optional safety enhancements include:

• Audible alarms (sounders)
• Visual warning beacons
• Provides advanced warning during curtain deployment

Power & Safety Systems

• 24V DC motor operation
• Battery backup system for operation during power failure
• Fail-safe gravity descent mechanism

Internal Applications

Designed primarily for internal use, particularly in:

• Atriums and open-plan areas
• Corridors and escape routes
• Transport hubs and public buildings

These design and customisation options ensure the FC2-S Fire & Smoke Curtain delivers a high level of fire protection, smoke control, and architectural integration for complex commercial environments.

Product Type:

• Automatic fire and smoke curtain system for compartmentation

Fire Rating:

• Tested to BS EN 1634-1
• Provides up to E180 integrity classification (up to 180 minutes)
• Classified to EN 13501-2 with E180 and EW60 ratings (integrity and radiation control)

Smoke Performance:

• Tested to BS EN 1634-3 and EN 12101-1
• Designed to limit smoke leakage with integrated sealing system

Certification:

• CE marked to EN 16034
• CE marked to EN 13241

Curtain Material:

• Glass fibre fabric reinforced with stainless steel wire
• Specialist coating to resist ignition and reduce radiant heat transmission

Operation:

• 24V DC motor-driven system
• Automatic deployment via fire alarm or local detection
• Fail-safe gravity descent during power failure

Control System:

• Digital control panel (FC-INTUM)
• Fully compatible with fire alarm systems
• Compatible with building management systems (BMS)
• Includes manual reset and test functionality

Power Supply:

• Mains powered with battery backup systemEnsures
• operation during power outage

Deployment Features:

• Automatic descent upon alarm activation
• Integrated smoke sealing bottom bar
• Optional delay timers for phased deployment
• Optional audible and visual warning systems

Headbox:

• Compact, slimline design for concealed installation
• Suitable for ceiling, soffit, or wall integration

Finish:

• Curtain fabric in standard grey
• Headbox and side guides in RAL 9005 (Black) or RAL 9016 (White)
• Custom RAL / BS colours available

Installation Options:

• Face fix or reveal (recessed) fix installation
• Suitable for masonry or structural steel substrates

Structural Requirements:

• Installation into masonry openings or
  80mm x 80mm x 5mm mild steel box section support

Sizes:

• Custom made to measure (widths and drop heights to suit application)

Usage:

• Suitable for atriums, corridors, stairwells, transport hubs, and open-plan areas

Safety Features:

• Smoke sealing system
• Fail-safe gravity operation
• Battery backup
• Fire alarm and BMS integration

Warranty:

• 12-month standard warranty (extendable with maintenance plans)

Maintenance:

• Requires regular servicing to maintain fire and smoke performance compliance

Lead Time:

• Typically 3–5 weeks depending on size and system complexity

Our FC2-S Fire & Smoke Curtains are manufactured to order, with a typical lead time of 4–5 weeks from order confirmation and final specification. This ensures each system is produced to the required size, fire and smoke performance ratings, and integration requirements.

Please note that larger openings, complex layouts, or additional features, such as smoke control enhancements, bespoke finishes, or advanced control integrations, may extend the lead time slightly. We will always confirm accurate timescales at quotation stage to support your project programme.

We offer a professional supply and installation service, ensuring the system is installed correctly into masonry or structural steel substrates and fully integrated with fire alarm and building management systems. Installation includes commissioning, testing, and handover to ensure full compliance and reliable operation. For supply-only orders, detailed installation guidance is provided to ensure the curtain achieves its certified fire and smoke performance.

The cost of FC2-S Fire & Smoke Curtains reflects their dual functionality, providing both fire resistance and certified smoke control. As a more advanced system than standard fire curtains, pricing is typically higher due to enhanced sealing systems, additional testing, and integration requirements.

Indicative Pricing

Small Openings (Up to 2m wide)

• Supply Only: £2,500 – £5,000
• Supply & Install: £4,000 – £7,500

Medium Openings (2m – 4m wide)

• Supply Only: £4,500 – £9,000
• Supply & Install: £7,000 – £13,000

Large Openings (4m+ wide / Atriums & Open Plan Areas)

• Supply Only: £8,000 – £18,000+
• Supply & Install: £12,000 – £25,000+

Multiple Curtain Systems / Complex Layouts

• Supply Only: £12,000+
• Supply & Install: £18,000+

Factors Affecting PriceSeveral factors will influence the final cost:

• Opening Size: Width and drop height significantly impact cost
• Fire & Smoke Ratings: E180, EW classifications, and smoke sealing systems
• Control Systems: Integration with fire alarms and BMS
• Smoke Control Features: Additional sealing and performance requirements
• Installation Type: Face fix vs reveal fix
• Finish Options: Powder coating and bespoke finishes
• Site Conditions: Access, working height, and structural requirements

Installation Considerations

Due to the complexity of fire and smoke systems, installation typically involves:

• Integration with fire alarm and smoke control systems
• Structural support via masonry or steel frameworks
• Working at height for larger openings
• Full commissioning and testing to meet compliance standards

This results in higher installation costs compared to standard fire curtains.

Additional Costs to Consider

• Electrical works for control panels and integration
• Structural steel supports or builder’s works
• Access equipment (e.g. scaffolding or lifts)
• Ongoing maintenance and servicing

Get an Accurate Quote

Every project is unique, so we recommend requesting a tailored quotation. Our team can assess your fire and smoke strategy to provide a compliant solution that balances performance, design, and budget.
