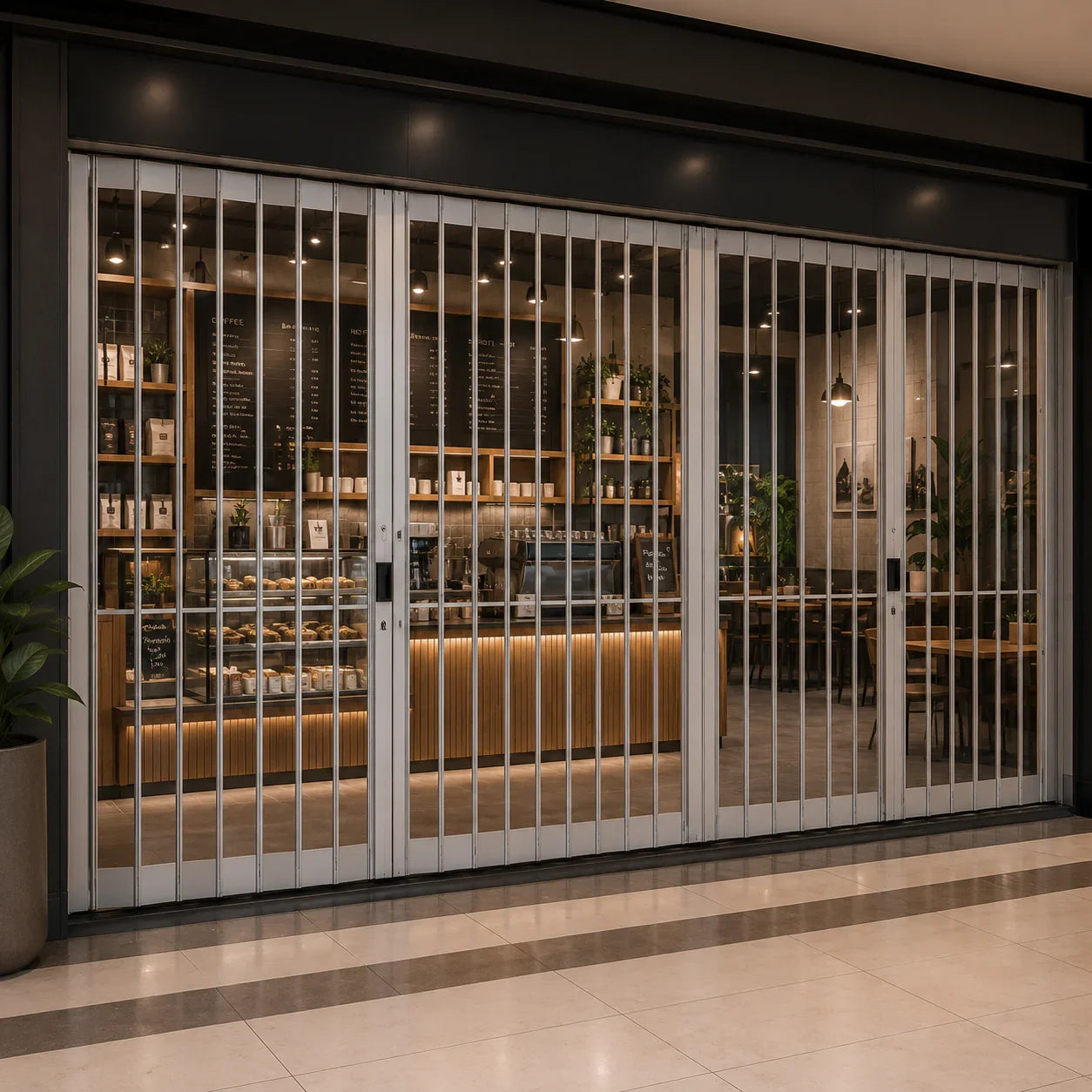

Polycarbonate Internal Sliding Security Shutter - 90% Vision

Crystal-Clear Visibility with Security

High-impact polycarbonate panels provide near-total transparency, allowing displays, interiors, and branding to remain fully visible even when secured

Strong Yet Lightweight Construction

Manufactured with polycarbonate (up to 250x stronger than glass) and aluminium framing, delivering durability without compromising ease of use

Manual, Smooth Sliding Operation

Top-hung system allows panels to glide effortlessly by hand, with no need for motors, electrics, or complex controls

Space-Saving, Modern Design

Panels stack neatly to one or both sides with no bulky headbox or floor tracks, maintaining a clean and open architectural finish

Ideal for Public-Facing Environments

Perfect for retail kiosks, airports, museums, showrooms, and reception areas where visibility and presentation are essential

Made-to-Measure for Any Opening

Fully bespoke design tailored to exact dimensions and layouts, including curved or non-standard openings

Flexible Configuration Options

Available as:

• Single sliding units
• Bi-parting systems
• Curved or angled installations

Secure Locking Options

Includes cylinder locks, flush bolts, and espagnolette systems, with optional intermediate locking for wider spans

Durable & Low Maintenance

Simple mechanical design with minimal moving parts, ensuring long-term reliability and low servicing requirements

Top-Hung System for Safety

No floor tracks required, reducing trip hazards and maintaining a clear, accessible floor space

Clean, Premium Aesthetic

Slimline aluminium framework with clear panels creates a modern, high-end appearance suited to contemporary interiors

Medium-Level Internal Security

Provides an effective physical barrier and deterrent while maintaining an open and inviting visual environment

The Polycarbonate Sliding Shutter is designed to deliver maximum visibility with flexible, bespoke design options, allowing it to integrate seamlessly into modern commercial interiors. The system combines a transparent curtain design with a top-hung sliding mechanism, making it highly adaptable to different layouts and aesthetic requirements.

Configuration Options

Single Sliding Shutter:

• Panels slide to one sideIdeal for smaller openings or restricted spaces

Bi-Parting Shutter:

• Panels slide from the centre to both sides
• Suitable for wider openings and improved access

Curved or Angled Layouts:

Track systems can be manufactured to suit:

• Curved kiosks
• Circular counters
• Angled or stepped openings

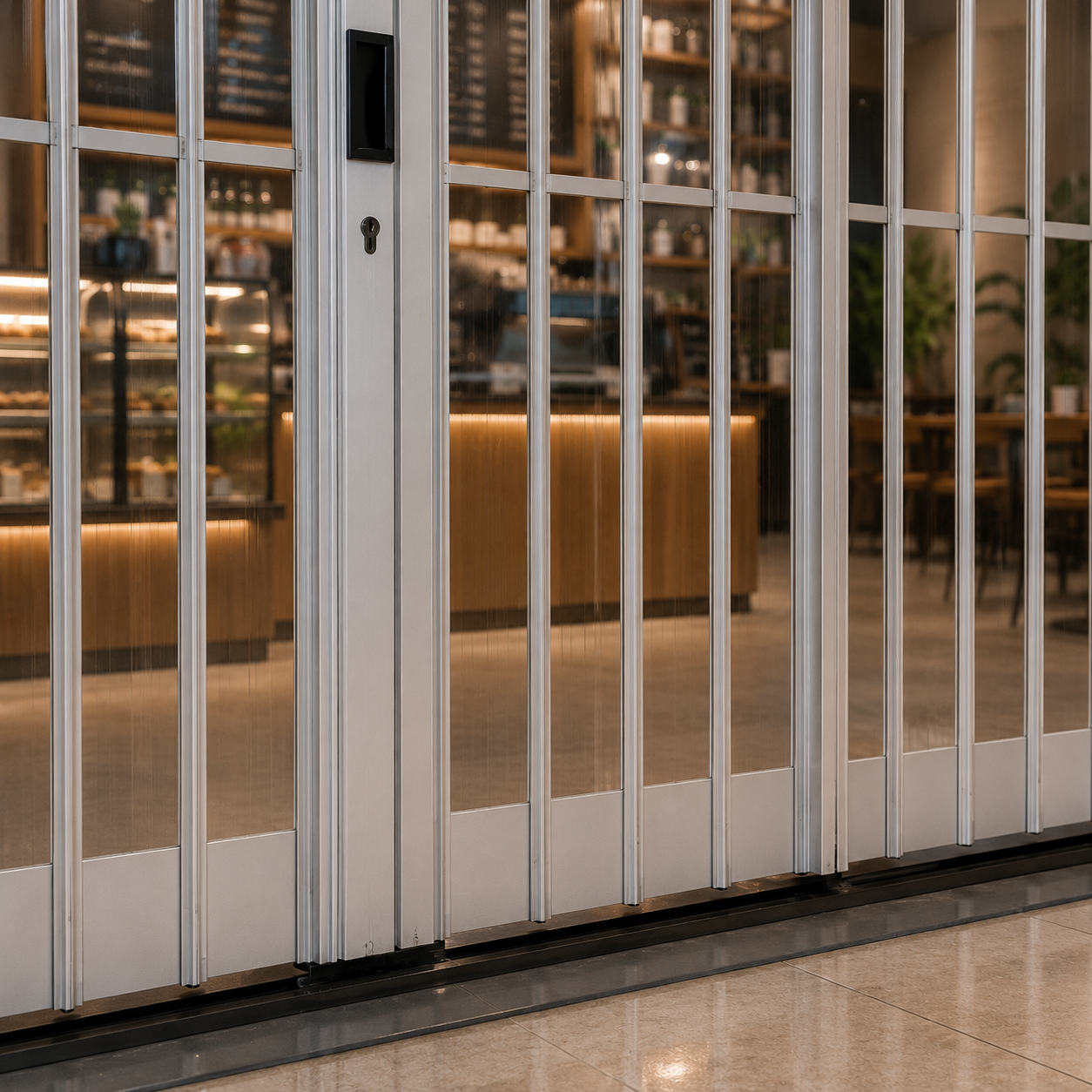

Panel & Curtain Construction

• Curtain formed from 152mm wide modular sections
• Panels are linked using a continuous aluminium hinge system

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge System:

• Extruded hinge cleats with a 15° offset
• Enables smooth folding and stacking during operation

Infill Options

Clear Polycarbonate Panels (Standard):

• High-clarity, impact-resistant material
• Provides maximum visibility and light transmission

Alternative Infill Options:

• Solid aluminium panels
• Perforated panels
• Grille / chequered designs

Polycarbonate (Lexan) is a high-performance material offering exceptional strength and transparency, ideal for public-facing environments.

Size & Bespoke Design

• Fully made-to-measure

Suitable for:

• Standard openings
• Large spans
• Complex and non-linear layouts

Can be adapted for:

• Straight runs
• Curved installations
• Multi-section systems

Track & Operation Design

Top-Hung Sliding System:

• Panels run on overhead rollers within a concealed track

Bottom Guide:

• Maintains alignment without intrusive floor tracks

Compact Stacking:

• Panels stack to approximately 15% of the total opening width

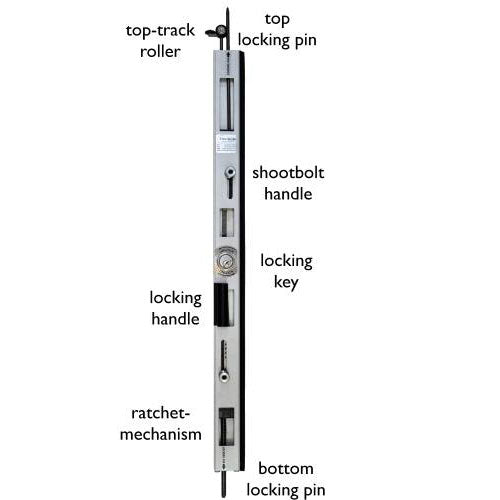

Locking Options

• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking systems
• Intermediate locking posts for wider openings

Finish Options

• Aluminium framework available in six standard anodised finishes
• Designed to complement modern commercial interiors and branding

Safety & Functional Design

• Top-hung system eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Optional emergency access or quick-release features
• Smooth manual operation for safe, everyday use

Design Summary

The Polycarbonate Sliding Shutter is built around:

• Maximum visibility with transparent panel design
• Flexible configurations for straight or curved layouts
• Compact, space-saving sliding system
• Durable aluminium and polycarbonate construction
• Clean, modern aesthetic for high-end environments

These design and customisation options make the system ideal for retail, hospitality, transport hubs, and commercial interiors, where security, visibility, and presentation must work together seamlessly.

Product Type:

• Internal manual sliding security shutter (top-hung system)

Application:

• Retail kiosks and concessions

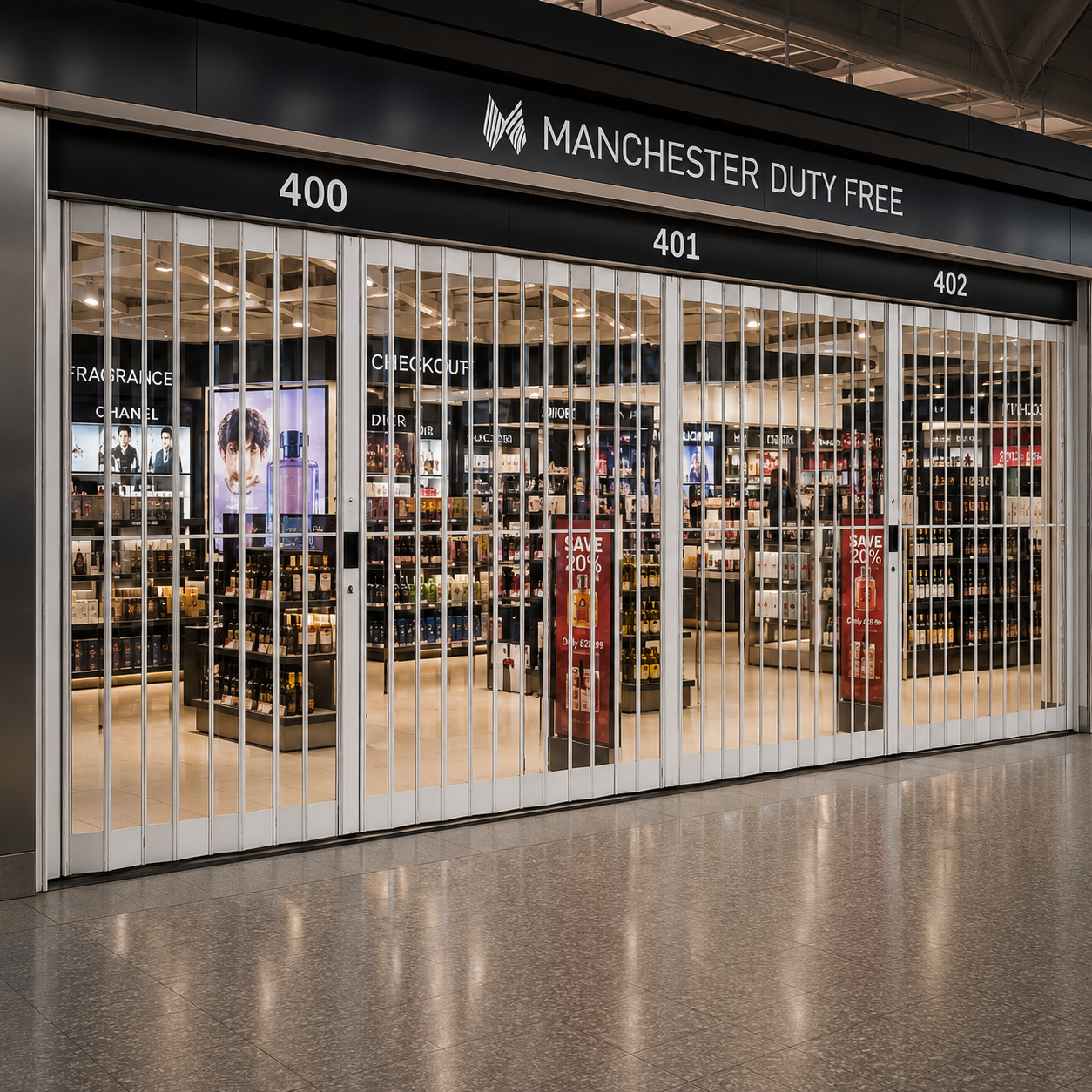

• Airports, stations, and public atriums
• Museums, showrooms, and display areas
• Reception desks and commercial counters
• Hospitality and corporate environments

Construction

Frame Material:

• Aluminium Alloy 6063-T5
• Designed for internal or semi-sheltered environments
• Provides medium-level security with full visibility

Curtain / Panel Construction

Module Width:

• 152mm wide aluminium sections
• Hinge System: Continuous aluminium hinge linking all panels

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge Cleats:

• Extruded aluminium with 15° offset
• Enables smooth folding and stacking
• Infill Specification

Standard Infill:

• Clear Polycarbonate (Lexan) panels
• High-impact, transparent material
• Up to 250x stronger than glass

Alternative Infill Options:

• Solid aluminium panels
• Perforated panels
• Grille / chequered designs

Operation

• Manual operation only
• Sliding action via top-mounted roller system
• No motors, electrics, or automation required

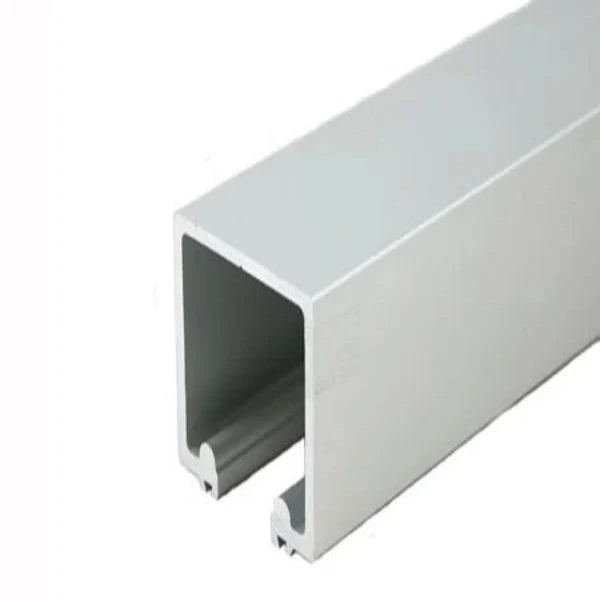

Track System

Top-Hung Track:

• Aluminium track with concealed roller system
• Anti-lift design for added security

Bottom Guide:

• Maintains alignment without intrusive floor track
• Ensures smooth and quiet operation

Configuration Options

• Single sliding (stacking to one side)
• Bi-parting (centre opening)
• Curved or angled layouts available

Sizes

• Fully made-to-measure
• Suitable for standard and complex openings
• Adaptable for wide spans and bespoke layouts

Stacking Requirements

• Allow approx. 95mm per linear metre of shutter
• Add 76mm per post member (lead, intermediate, end posts)
• Approximate stacking space: ~15% of overall shutter width

Weight

• Approx. 12 kg/m²
• Locking System
• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking
• Intermediate locking posts for wider spans

Finishes

• Aluminium framework available in six standard anodised finishes
• Designed for modern commercial interiors

Safety Features

• Top-hung design eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Smooth manual operation reduces risk
• Optional emergency access / quick-release systems

Installation

Mounting Options:

• Soffit fixed
• Face fixed to wall or structural framework

Suitable for:

• Steel structures
• Timber frameworks
• Masonry substrates
• Professional installation recommended for optimal performance

Maintenance

• Low maintenance system

Periodic checks of:

• Rollers and track
• Hinges and panel alignment
• Locking mechanisms

Warranty

• Typically supplied with a 12-month manufacturer’s warranty (subject to confirmation)

Performance Summary

• Provides high visibility with impact-resistant protection
• Medium-level internal security
• Smooth, manual operation
• Space-saving sliding design
• Durable and long-lasting materials

This technical specification defines the Polycarbonate Sliding Shutter as a modern, transparent security solution, combining strength, visibility, and flexibility for commercial environments where presentation and protection are equally important.

The Polycarbonate Sliding Shutter is a fully made-to-measure product, manufactured to suit your exact opening size, configuration, and panel specification.

Standard Lead Time

Typical manufacturing lead time:

3–5 weeks from order confirmation and approved drawings

Lead Time Considerations

Lead times may vary depending on:

• Opening size and complexity (e.g. curved or bespoke layouts)
• Panel configuration and infill selection (polycarbonate, solid, or mixed panels)
• System layout (single sliding, bi-parting, or multi-section installations)

Order quantity and project scale

All lead times will be confirmed at quotation stage to align with your project programme.

Delivery & Planning

• Supplied as a complete, made-to-measure system ready for installation
• Suitable for both new build and retrofit applications
• Manufactured to ensure precision fit, smooth operation, and high-quality finish

This lead time ensures each Polycarbonate Sliding Shutter is accurately produced and quality checked, delivering reliable performance and a premium appearance for commercial environments.

The Polycarbonate Sliding Shutter is a bespoke, made-to-measure system, with pricing influenced by size, configuration, and panel specification. It is a premium solution due to its combination of high-clarity materials, modern aesthetics, and durable construction.

Indicative Pricing

Small Openings (Up to 1.5m W x 1.5m H)

• From £2,500 – £3,500 + VAT

Standard Opening (Approx. 2m W x 2m H)

• From £4,000 + VAT

Medium Openings (2m – 4m wide)

• From £4,000 – £7,500 + VAT

Larger Openings (4m+ wide / bi-parting systems)

• From £7,500 – £12,000+ + VAT

Configuration Impact on Price

Single Sliding Units:

• Most cost-effective option

Bi-Parting Systems:

• Add approx. +10–20% due to additional panels and track

Curved or Bespoke Layouts:

• Add approx. +15–30% depending on complexity

Panel & Infill Considerations

Polycarbonate Panels (Standard):

• Premium material offering clarity and strength

Mixed Panel Options (e.g. solid or perforated sections):

• May adjust pricing depending on specification

Factors Affecting Price

• Opening width and height
• Configuration (single, bi-parting, curved)
• Panel specification and layout
• Number of panels and stacking requirements
• Locking options and additional features
• Site conditions and installation complexity

Installation Costs

Professional Installation (Recommended):

• Typically £400 – £1,200+ depending on size and complexity

Budget Guidance

Retail kiosks / concessions:

• £3,000 – £6,000 + VAT

Standard commercial installations:

• £4,000 – £7,500 + VAT

Large or bespoke projects:

• £7,500 – £12,000+ + VAT

Why It’s a Premium Investment

• Maintains full visibility and brand presence
• High-impact polycarbonate strength (up to 250x glass)
• Clean, modern design with no headbox or floor track
• Fully bespoke for complex and high-end environments
• Low maintenance with no motors or electrics

Get an Accurate Quote

Due to the bespoke design and material specification, we recommend requesting a tailored quotation to ensure the system meets your exact aesthetic, operational, and security requirements.
