Solid Internal Sliding Security Shutters

Full Privacy & Visual Screening

Solid aluminium panel construction provides 100% visual block, ideal for areas requiring confidentiality and concealment

Manual, Smooth Sliding Operation

Top-hung system allows panels to glide effortlessly by hand, with no need for power or automation

Space-Saving Design

Panels slide and stack neatly to the side, with no bulky headbox or intrusive floor tracks

Ideal for Internal Commercial Environments

Perfect for retail back-of-house areas, reception desks, bars, clinics, and service counters

Made-to-Measure for Any Opening

Fully bespoke design tailored to exact dimensions and layouts, including complex or non-standard openings

Flexible Configuration Options

Available as:

• Single sliding units
• Bi-parting systems
• Curved or angled installations

Durable Aluminium Construction

Manufactured from extruded aluminium profiles (6063-T5) for strength, longevity, and low maintenance

Secure Locking Options

Includes integrated cylinder locks with optional intermediate locking for wider spans

Clean, Professional Finish

Available in six standard anodised finishes, suitable for modern commercial interiors

Top-Hung System for Safety & Accessibility

No floor track required, reducing trip hazards and maintaining a clear floor space

Low Maintenance & Long Service Life

Simple mechanical design with minimal components ensures reliable, long-term performance

Suitable for Low to Medium Security Applications

Provides an effective physical barrier and privacy solution for protected internal environments

The Solid Sliding Shutter is designed to deliver maximum privacy and flexible internal security, with a wide range of bespoke options to suit different layouts, applications, and aesthetic requirements. The system combines a top-hung sliding mechanism with solid panel construction, allowing it to be tailored to both functional and architectural needs.

Configuration Options

Single Sliding Shutter:

• Panels slide to one sideIdeal for smaller openings or restricted spaces

Bi-Parting Shutter:

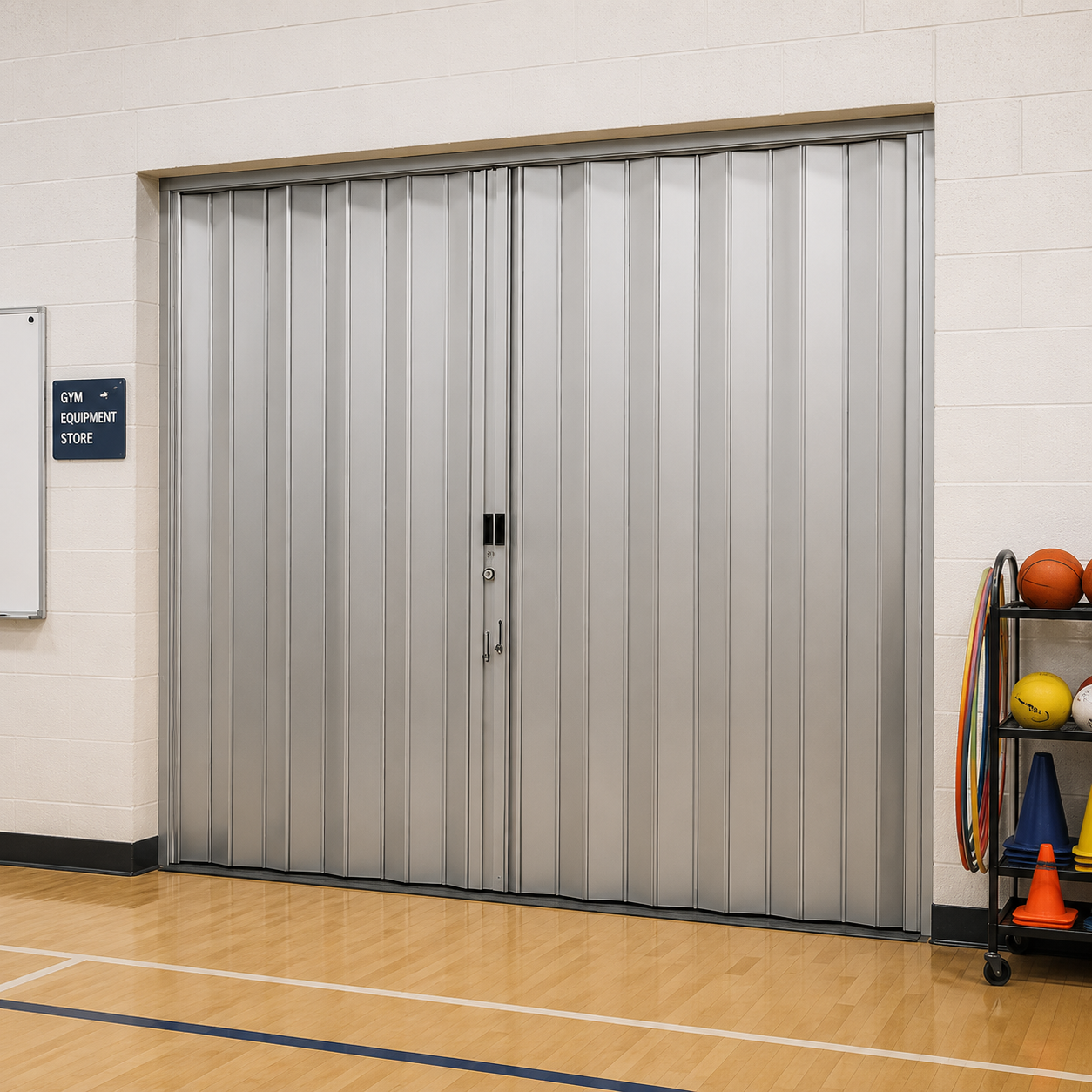

• Panels slide from the centre to both sides
• Suitable for wider openings and improved access

Curved or Angled Layouts:

Track can be manufactured to suit:

• Curved counters

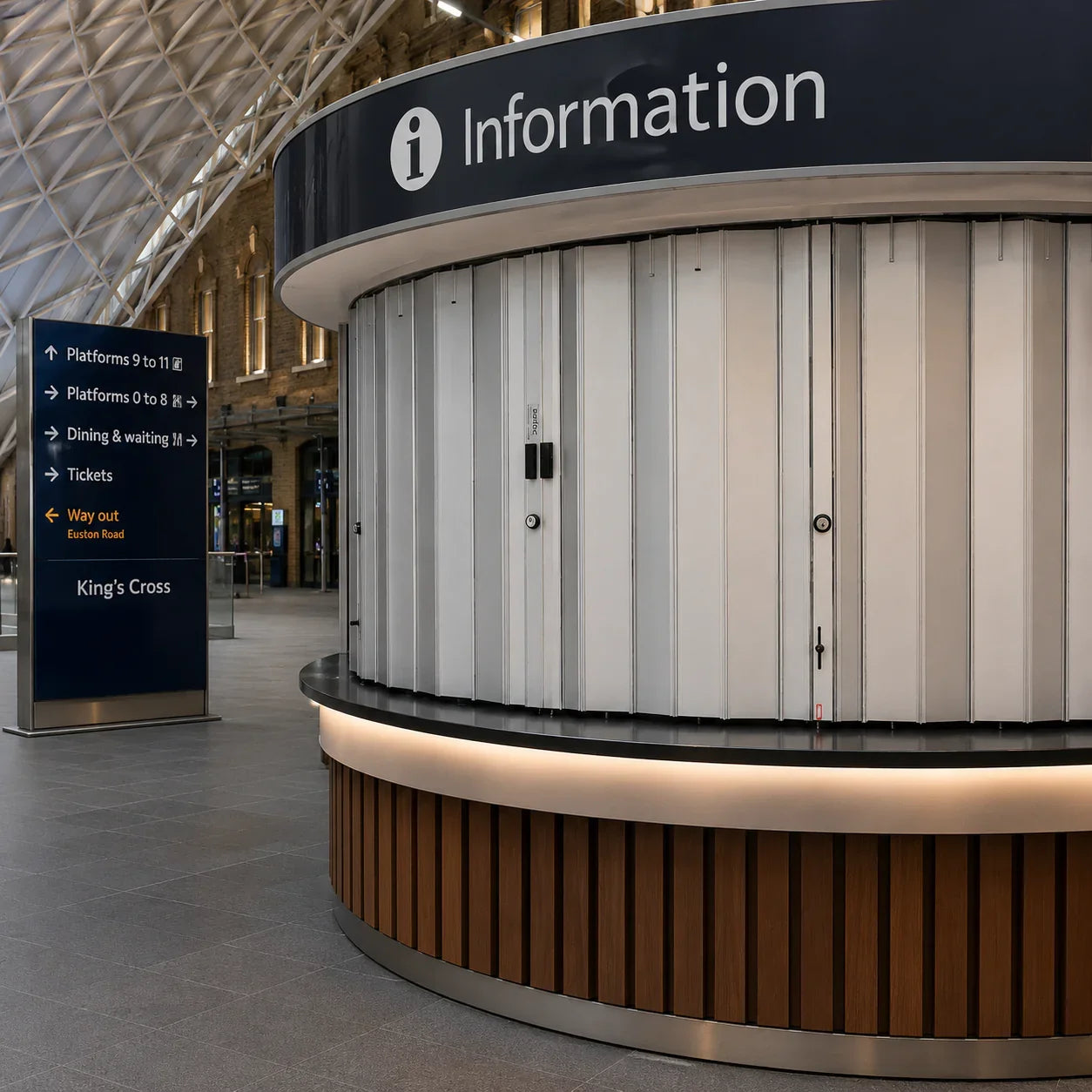

• Circular kiosks
• Angled or stepped openings

Panel & Curtain Construction

• Curtain formed from 152mm wide modular aluminium panels
• Panels are linked using a continuous aluminium hinge system

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge Design:

• Connected via extruded hinge cleats with a 15° offset
• Allows smooth folding and stacking during operation

Provides a fully solid curtain, delivering:

• 100% visual privacy
• Enhanced physical separation

Infill Options

The system supports multiple infill types within the panel framework:

Solid Aluminium Panels (Standard):

• Full privacy and concealment

Perforated Panels:

• Allows limited airflow while maintaining security

Polycarbonate (Lexan) Panels:

• Transparent or translucent for visibility and light

Tempered Glass Panels:

• Premium appearance with visibility

Grille / Chequered Designs:

• Decorative or semi-open configurations

Size & Bespoke Design

• Fully made-to-measure

Suitable for:

• Standard openings
• Large spans
• Complex shapes and layouts

Can be adapted for:

• Straight runs
• Curved installations
• Multi-section configurations

Track & Operation Design

Top-Hung Sliding System:

• Panels run on overhead rollers within a concealed track

Bottom Guide:

• Maintains alignment without intrusive floor tracks

Compact Stacking:

• Panels stack to approximately 15% of the total opening width

Locking Options

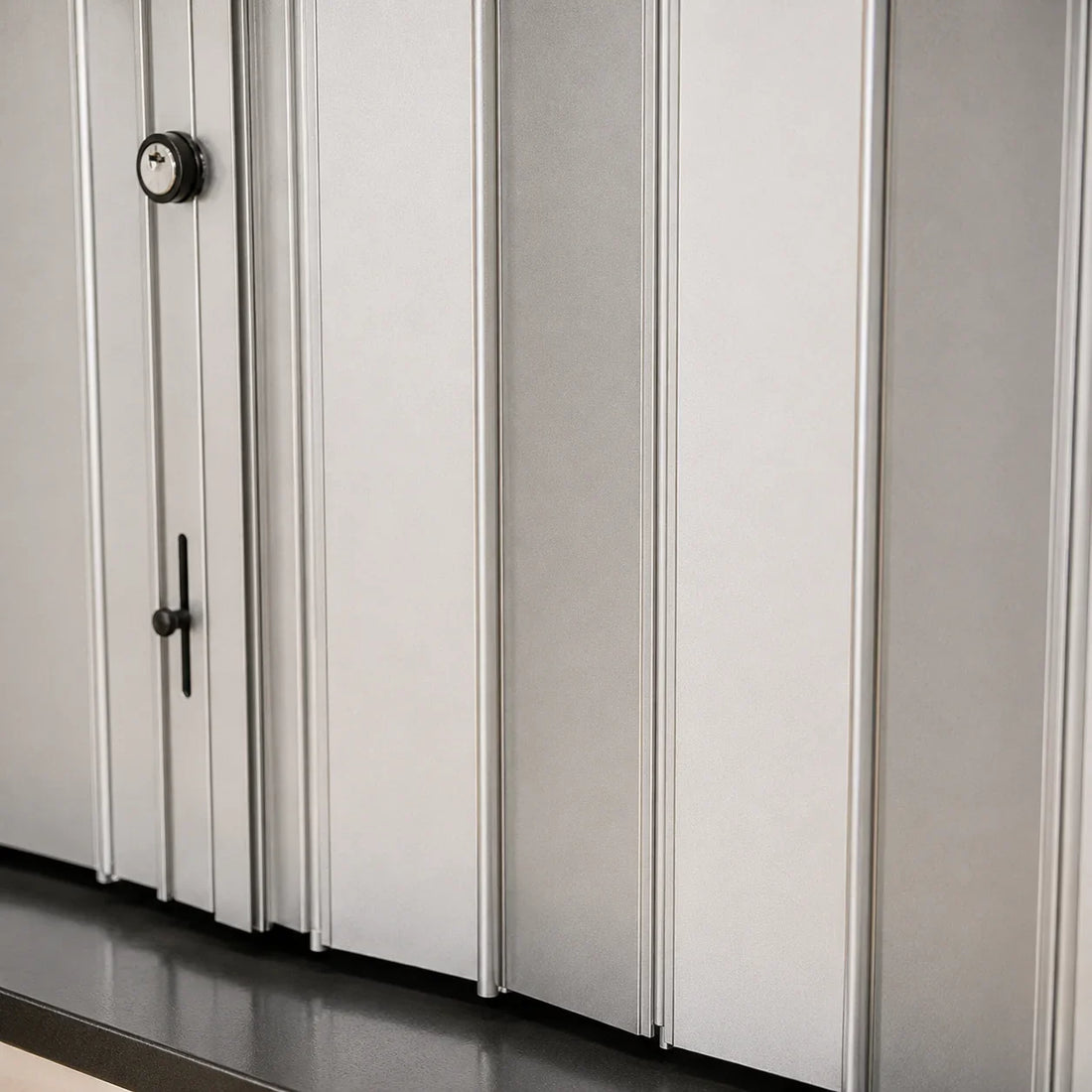

• Integrated cylinder locks fitted to end posts

Optional:

• Intermediate locking posts for wider spans
• Multi-point locking for enhanced security
• Designed for secure closure with a clean, discreet finish

Finish Options

• Available in six standard anodised finishes
• Suitable for modern commercial interiors and brand consistency

Safety & Functional Design

• Top-hung system eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Optional emergency access or quick-release features
• Smooth manual operation for safe daily use

Design Summary

The Solid Sliding Shutter is built around:

• Full privacy and visual screening
• Flexible panel and infill configurations
• Bespoke layouts including curved designs
• Compact, space-saving sliding system
• Durable aluminium construction with low maintenance

These design and customisation options make the system ideal for retail, hospitality, healthcare, and commercial interiors, where privacy, clean aesthetics, and efficient use of space are essential.

Product Type:

• Internal manual sliding security shutter (top-hung system)

Application:

• Retail kiosks and back-of-house areas
• Reception desks and corporate counters
• Cafés, bars, and hospitality serveries
• Clinics, laboratories, and secure internal spaces
• Airports, stations, and commercial environments

Construction

Material:

• Aluminium Alloy 6063-T5
• Designed for internal or sheltered environments
• Provides medium-level security with full visual privacy

Curtain / Panel Construction

Panel Type:

• Solid modular construction

Module Width:

• 152mm wide aluminium sections

Hinge System:

• Continuous aluminium hinge linking all panels

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge Cleats:

• Extruded aluminium with 15° offset
• Enables smooth folding and stacking

Infill Options

• Solid Aluminium Panels (Standard) – 100% privacy
• Perforated Panels – limited airflow
• Polycarbonate (Lexan) Panels – transparent / translucent
• Tempered Glass Panels – premium visibility option
• Grille / Chequered Designs – decorative or semi-open options

Operation

• Manual operation only
• Smooth sliding via top-mounted roller system
• No motors, electrics, or automation required

Track System

Top-Hung Track:

• Aluminium track with concealed roller system

Bottom Guide:

• Maintains alignment without intrusive floor track
• Ensures smooth, quiet operation

Configuration Options

• Single sliding (stacking to one side)
• Bi-parting (centre opening)
• Curved or angled layouts available

Sizes

• Fully made-to-measure
• Suitable for straight or complex openings
• Adaptable for wide spans and bespoke layouts

Stacking Requirements

• Allow approx. 95mm per linear metre of shutter
• Add 76mm per post member (lead, intermediate, end posts)
• Approximate stacking space: ~15% of overall shutter width

Weight

• Approx. 11 kg/m²
• Locking System
• Integrated cylinder locks fitted to end posts

Optional:

• Intermediate locking posts
• Multi-point locking for wider spans

Finishes

• Available in six standard anodised finishes
• Suitable for commercial interior applications

Safety Features

• Top-hung design eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Smooth manual operation reduces risk
• Optional emergency access / quick-release systems

Installation

Mounting Options:

• Soffit fixed
• Face fixed to wall or structural frame

Suitable for:

• Steel structures
• Timber frameworks
• Masonry substrates
• Professional installation recommended for alignment and performance

Maintenance

• Low maintenance system

Periodic checks of:

• Rollers and track
• Hinges and panel alignment
• Locking mechanisms

Warranty

• Typically supplied with a 12-month manufacturer’s warranty (subject to confirmation)

Performance Summary

• Provides 100% visual privacy
• Medium-level internal security
• Smooth, manual operation
• Space-saving, track-based system
• Durable and long-lasting aluminium construction

This technical specification defines the Solid Sliding Shutter as a durable, low-maintenance, and fully bespoke internal security solution, delivering complete privacy, flexibility, and reliable performance in commercial and public environments.

The Solid Sliding Shutter is a fully made-to-measure system, manufactured to suit your exact opening size, configuration, and panel specification.

Standard Lead Time

Typical manufacturing lead time: 3–5 weeks from order confirmation and approved drawings

Lead Time Considerations

Lead times may vary depending on:

• Opening size and complexity (e.g. curved or bespoke layouts)
• Panel and infill selection (solid, perforated, polycarbonate, or glass)
• Configuration (single slide, bi-parting, or multi-section systems)
• Order quantity and project scale

All lead times will be confirmed at quotation stage to ensure alignment with your project schedule.

Delivery & Planning

• Supplied as a complete, made-to-measure system ready for installation
• Suitable for both new projects and retrofit applications
• Lead times allow for precision manufacturing and quality control

This lead time ensures each Solid Sliding Shutter is accurately manufactured for a perfect fit, delivering reliable performance, smooth operation, and a high-quality finish for commercial environments.

The Solid Sliding Shutter is a bespoke, made-to-measure system, with pricing based on size, configuration, and panel specification. It provides a premium internal security solution where full privacy and a clean aesthetic are required.

Indicative Pricing

Small Openings (Up to 1.5m W x 1.5m H)

• From £2,500 – £3,500 + VAT

Standard Opening (Approx. 2m W x 2m H)

• From £4,000 + VAT

Medium Openings (2m – 4m wide)

• From £4,000 – £7,500 + VAT

Larger Openings (4m+ wide / bi-parting systems)

• From £7,500 – £12,000+ + VAT

Configuration Impact on Price

Single Sliding Units:

• Most cost-effective option

Bi-Parting Systems:

• Add approx. +10–20% due to additional panels and track

Curved or Bespoke Layouts:

• Add approx. +15–30% depending on complexity

Panel & Infill Options

• Solid Aluminium Panels (Standard)

Perforated Panels:

• Typically small uplift depending on design

Polycarbonate or Glass Panels:

• Add approx. +10–25% depending on specification

Factors Affecting Price

• Opening width and height
• Configuration (single, bi-parting, curved)
• Panel type and infill selection
• Number of panels and stacking requirements
• Locking options and additional features
• Site conditions and installation requirements

Installation Costs

Professional Installation (Recommended):

• Typically £400 – £1,200+ depending on size and complexity

Budget Guidance

• Small kiosks / counters: £2,500 – £4,500 + VAT

Standard retail or reception areas:

• £4,000 – £7,500 + VAT

Large or bespoke installations:

• £7,500 – £12,000+ + VAT

Why It’s a Premium Solution

• Provides 100% visual privacy
• Clean, modern design with no headbox or floor track
• Fully bespoke for complex layouts
• Durable aluminium construction with long lifespan
• Low maintenance with no motors or electrics

Get an Accurate Quote

Due to the bespoke nature of the system, we recommend requesting a tailored quotation to ensure the design, configuration, and pricing match your exact requirements.
