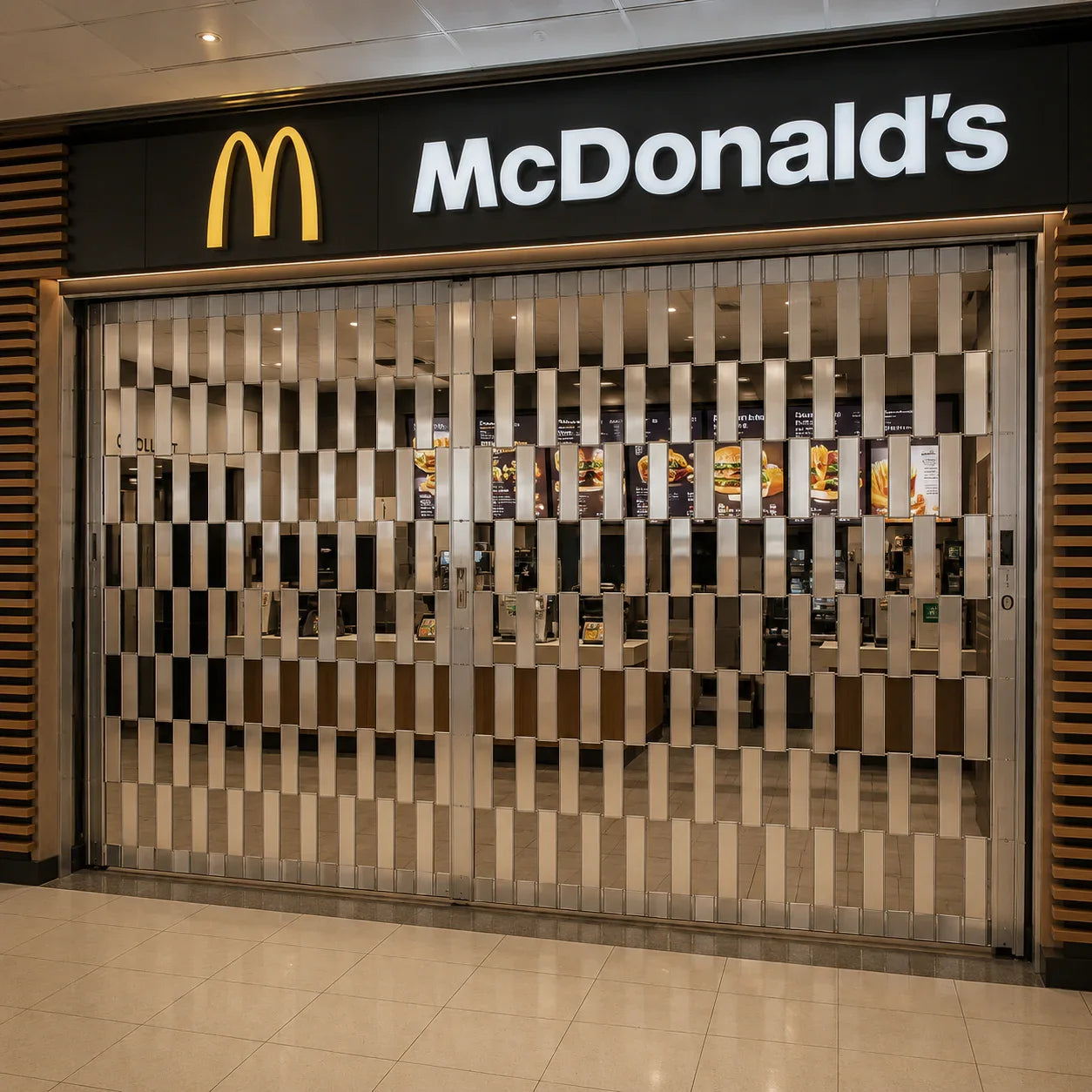

Brickbond Internal Sliding Security Shutter - 80% Vision

Architectural Brickbond Design

Distinctive aluminium pattern with alternating solid sections and open spaces creates a brickwork-style appearance, delivering a modern, design-led security solution

Visibility & Ventilation Combined

Open sections within the curtain allow light, airflow, and partial visibility, helping maintain an open and welcoming environment even when secured

Manual, Effortless Operation

Smooth top-hung sliding system enables easy manual use with no need for motors, electrics, or complex controls

Space-Saving Performance

Panels slide and stack neatly to one or both sides with no bulky headbox or floor track, maximising usable space

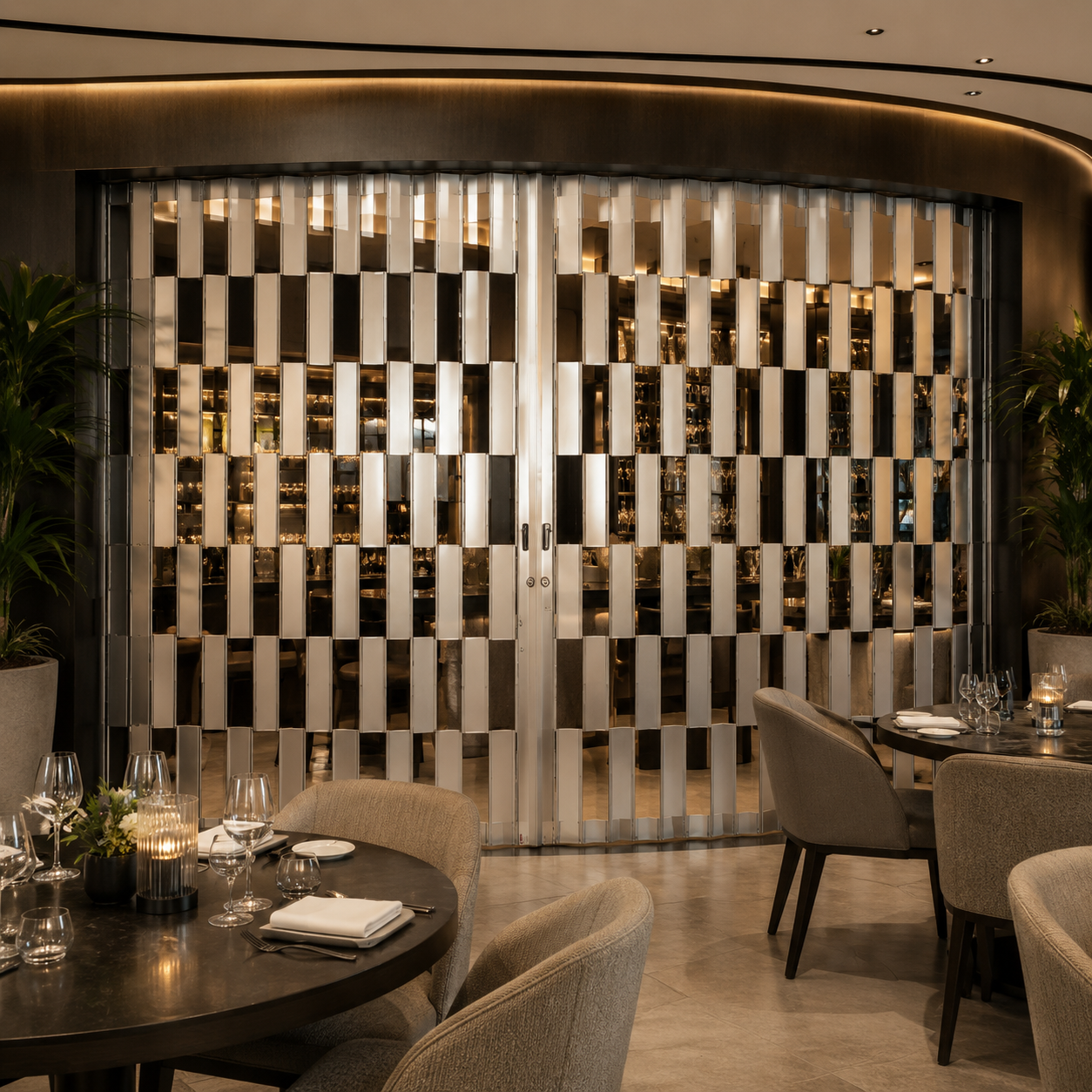

Ideal for Design-Led Commercial Spaces

Perfect for retail kiosks, shopping centres, airport concessions, hospitality counters, and reception areas where aesthetics matter

Made-to-Measure for Any Opening

Fully bespoke system tailored to exact sizes and layouts, including curved or non-standard openings

Flexible Configuration Options

Available as:

• Single sliding systems
• Bi-parting configurations
• Curved or angled installations

Lightweight Yet Strong Construction

Manufactured from 6063-T5 aluminium, offering durability, corrosion resistance, and easy operation

Secure Locking Options

Includes integrated cylinder locks with optional intermediate locking for wider openings

Clean, Contemporary Finish

Available in six standard anodised finishes, complementing modern architectural interiors

Top-Hung System for Safety

No floor tracks required, reducing trip hazards and ensuring a clean, accessible floor space

Low Maintenance & Reliable

Simple mechanical design ensures long-term performance with minimal servicing

Medium-Level Internal Security

Provides a visual deterrent and physical barrier while maintaining airflow and visibility

The Brickbond Sliding Shutter is a design-driven security solution, offering the perfect balance of style, airflow, and practical protection for modern commercial environments.

The Brickbond Sliding Shutter is designed to combine architectural styling with functional security, offering a wide range of bespoke options to suit modern commercial interiors. Its distinctive pattern and modular construction allow it to be tailored to both aesthetic and operational requirements.

Configuration Options

Single Sliding Shutter:

• Panels slide to one side
• Ideal for smaller openings or restricted spaces

Bi-Parting Shutter:

• Panels open from the centre and stack to both sides
• Suitable for wider openings and improved access

Curved or Angled Layouts:

Track systems can be manufactured to suit:

• Curved kiosks
• Circular counters
• Angled or stepped openings

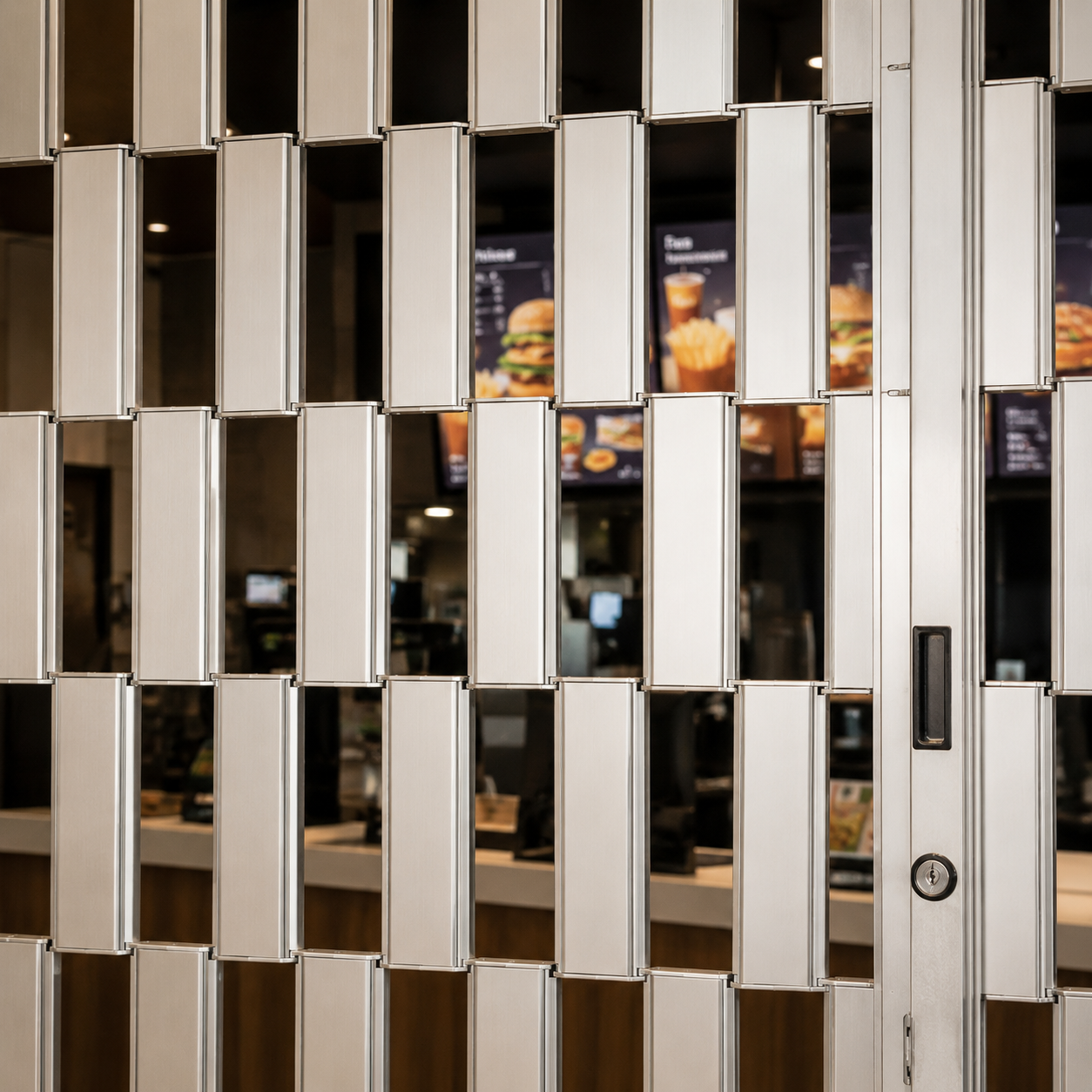

Panel & Curtain Construction

Curtain constructed using:

• 12mm aluminium tubes centred on a solid core
• Connected via horizontal aluminium linking profiles

Decorative Brickbond Plates:

• 300mm aluminium plates spaced at intervals
• Creates the signature brickbond pattern with alternating solid and open sections

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge System:

• Extruded hinge cleats with 15° offset
• Allows smooth folding and compact stacking

Note:

This is an open grille design, meaning the curtain can be accessed by hand/arm through the open sections.

Design Characteristics

Brickbond Pattern:

Alternating solid plates and open gaps

Provides:

• Ventilation
• Light transmission
• Partial visibility
• Distinct architectural styling

Size & Bespoke Design

Fully made-to-measure

Suitable for:

• Standard openings
• Wide spans
• Complex layouts

Adaptable for:

• Straight runs
• Curved installations
• Multi-section systems

Track & Operation Design

Top-Hung Sliding System:

• Panels run on overhead rollers within a concealed track

Bottom Guide:

• Maintains alignment without intrusive floor tracks

Compact Stacking:

• Panels stack to approximately 15% of the total opening width

Locking Options

• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking systems
• Intermediate locking posts for wider openings

Finish Options

• Available in six standard anodised finishes
• Designed to complement modern retail and commercial interiors

Safety & Functional Design

• Top-hung system eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Optional emergency access or quick-release systems
• Smooth manual operation for safe, everyday use

Design Summary

The Brickbond Sliding Shutter is built around:

• Distinctive brickbond architectural pattern
• Balanced airflow, visibility, and security
• Flexible configurations including curved layouts
• Compact, space-saving sliding system
• Lightweight yet durable aluminium construction

These design and customisation options make the system ideal for retail, hospitality, and commercial interiors, where visual appeal, airflow, and practical security must work together seamlessly.

Product Type:

• Internal manual sliding security grille (top-hung system)

Application:

• Retail kiosks and shopping centres
• Airport concessions and transport hubs
• Bar serveries and hospitality counters
• Reception desks and commercial interiors
• Internal partitions and display areas

Construction

Material:

• Aluminium Alloy 6063-T5
• Lightweight yet durable construction
• Designed for internal or sheltered environments
• Provides low to medium-level security with airflow and visibility

Curtain / Panel Construction

Curtain formed using:

• 12mm aluminium tubes centred on a solid core
• Connected via horizontal aluminium linking profiles

Decorative Plates:

• 300mm aluminium plates integrated into the curtain
• Arranged in an alternating pattern to create the brickbond design

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge System:

• Continuous linking system with extruded hinge cleats
• 15° offset to enable smooth folding and stacking

Important:

• Open grille design allows visibility and airflow, but can be accessible by hand/arm

Operation

• Manual operation only
• Smooth sliding via top-mounted roller system
• No motors, electrics, or automation required

Track System

Top-Hung Track:

• Aluminium track with concealed roller system
• Anti-lift / tamper-resistant design

Bottom Guide:

• Maintains alignment without intrusive floor tracks
• Ensures smooth and quiet operation

Configuration Options

• Single sliding (stacking to one side)
• Bi-parting (centre opening)
• Curved or angled layouts available

Sizes

• Fully made-to-measure
• Suitable for standard and complex openings
• Adaptable for wide spans and bespoke layouts

Stacking Requirements

• Allow approx. 95mm per linear metre of shutter
• Add 76mm per post member (lead, intermediate, end posts)
• Approximate stacking space: ~15% of overall shutter width

Weight

• Approx. 8 kg/m²

Locking System

• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking
• Intermediate locking posts for wider spans

Finishes

• Available in six standard anodised finishes
• Suitable for modern commercial interiors

Safety Features

• Top-hung design eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Smooth manual operation reduces risk
• Optional emergency access / quick-release systems

Installation

Mounting Options:

• Soffit fixed
• Face fixed to wall or structural framework

Suitable for:

• Steel structures
• Timber frameworks
• Masonry substrates
• Professional installation recommended for optimal performance

Maintenance

• Low maintenance system

Periodic checks of:

• Rollers and track
• Hinges and panel alignment
• Locking mechanisms

Warranty

• Typically supplied with a 12-month manufacturer’s warranty (subject to confirmation)

Performance Summary

• Provides ventilation and partial visibility
• Lightweight and easy to operate
• Medium-level internal security
• Space-saving sliding system
• Distinctive architectural brickbond design

This technical specification defines the Brickbond Sliding Shutter as a design-led, low-maintenance security solution, combining visual appeal, airflow, and practical protection for modern commercial environments.

The Brickbond Sliding Shutter is a fully made-to-measure system, manufactured to suit your exact opening size, configuration, and design requirements.

Standard Lead Time

Typical manufacturing lead time:

• 3–5 weeks from order confirmation and approved drawings

Lead Time Considerations

Lead times may vary depending on:

• Opening size and complexity (e.g. curved or bespoke layouts)
• Configuration (single sliding, bi-parting, or multi-section systems)
• Design requirements, including bespoke layouts or special detailing
• Order quantity and project scale

All lead times will be confirmed at quotation stage to ensure alignment with your project programme.

Delivery & Planning

• Supplied as a complete, made-to-measure system ready for installation
• Suitable for both new build and retrofit applications
• Manufactured to ensure precision fit, smooth operation, and high-quality finish

This lead time ensures each Brickbond Sliding Shutter is carefully manufactured and quality checked, delivering reliable performance and a consistent architectural finish for commercial environments.

The Brickbond Sliding Shutter is a bespoke, made-to-measure system, combining a distinctive architectural design with practical internal security.

Pricing will vary based on size, configuration, and layout complexity.

Indicative Pricing

Small Openings (Up to 1.5m W x 1.5m H)

• From £2,200 – £3,200 + VAT

Standard Opening (Approx. 2m W x 2m H)

• From £3,750 + VAT

Medium Openings (2m – 4m wide)

• From £3,750 – £6,500 + VAT

Larger Openings (4m+ wide / bi-parting systems)

• From £6,500 – £10,000+ + VAT

Configuration Impact on Price

Single Sliding Units:

• Most cost-effective option

Bi-Parting Systems:

• Add approx. +10–20% depending on width and number of panels

Curved or Bespoke Layouts:

• Add approx. +15–30% depending on complexity

Factors Affecting Price

• Opening width and heightConfiguration (single, bi-parting, curved)
• Number of panels and stacking requirements
• Locking options and additional features
• Site conditions and installation complexity

Installation Costs

Professional Installation (Recommended):

• Typically £300 – £1,000+ depending on size and complexity

Budget Guidance

• Small kiosks / counters: £2,200 – £4,000 + VAT

Standard retail or commercial areas:

• £3,750 – £6,500 + VAT

Large or bespoke installations:

• £6,500 – £10,000+ + VAT

Why It’s a Strong Value Option

• Unique brickbond architectural design
• Provides airflow and visibility with security
• No motors or electrics required
• Space-saving sliding system with clean finish
• Low maintenance and long-lasting aluminium construction

Get an Accurate Quote

Due to the bespoke nature of the system, we recommend requesting a tailored quotation to ensure the design, configuration, and pricing meet your exact project requirements.
