Perforated Internal Sliding Security Shutters - 30% Vision

Balanced Visibility & Ventilation

Perforated aluminium panels allow light, airflow, and partial visibility, maintaining an open feel while securing the space

Manual, Smooth Sliding Operation

Top-hung system enables panels to glide effortlessly by hand, with no need for motors, electrics, or automation

Space-Saving Design

Panels stack neatly to one or both sides with no bulky headbox or floor tracks, keeping the opening clean and unobstructed

Ideal for Commercial Interiors

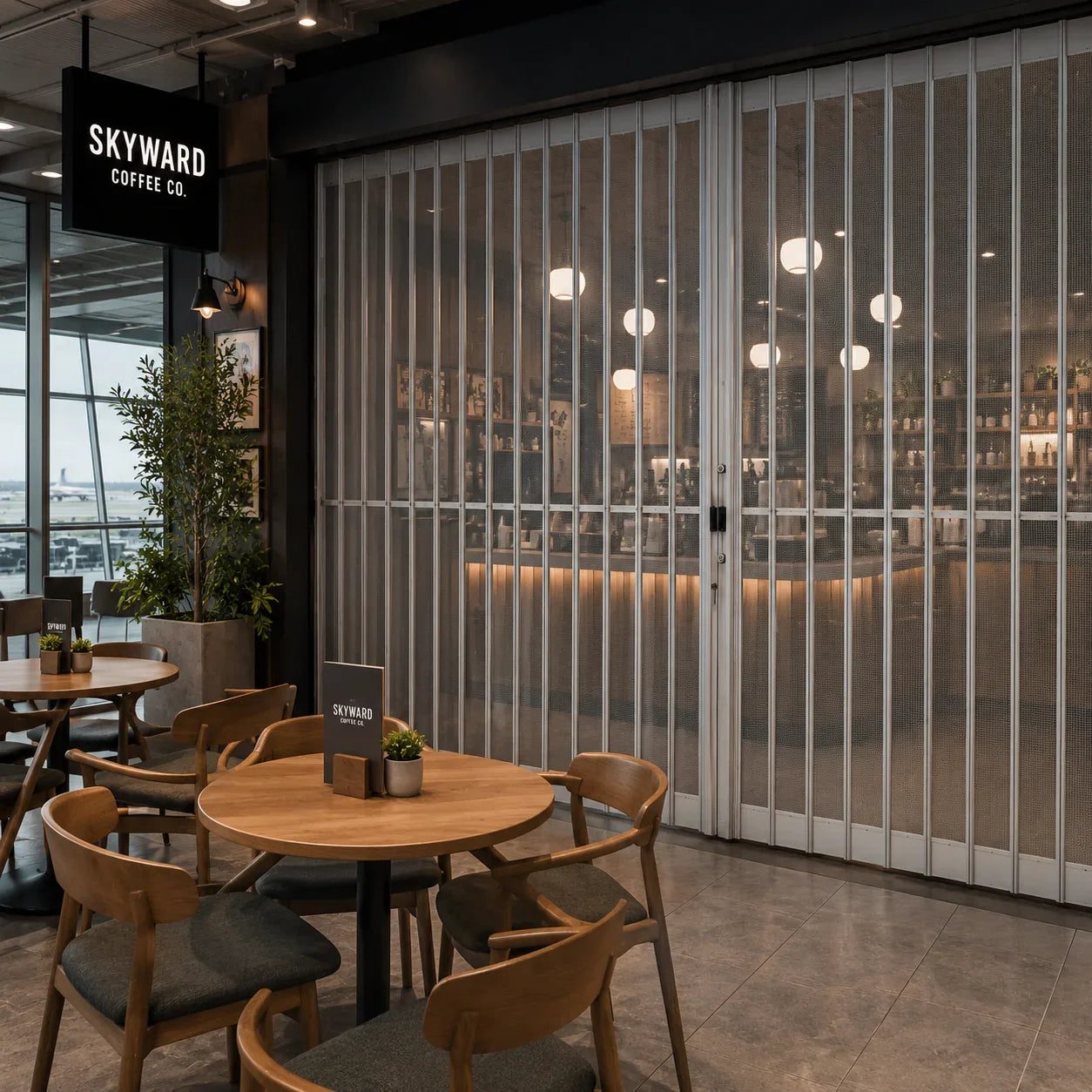

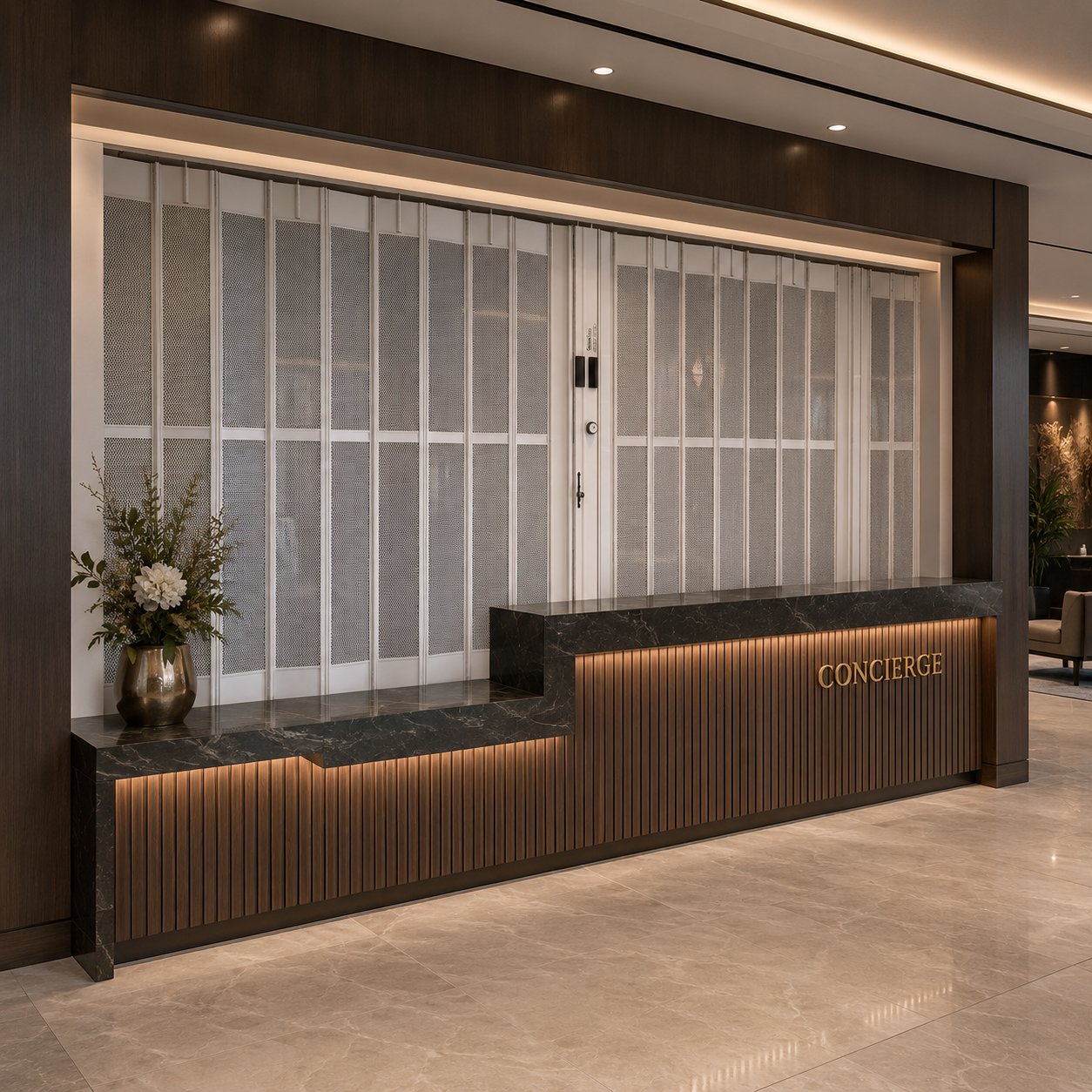

Perfect for retail kiosks, airport concessions, cafés, bars, and reception counters where visibility and airflow are important

Made-to-Measure for Any Opening

Fully bespoke design tailored to exact sizes and layouts, including curved or non-standard openings

Flexible Configuration Options

Available as:

• Single sliding units
• Bi-parting systems
• Curved or angled installations

Durable Aluminium Construction

Manufactured from 6063-T5 aluminium, providing strength, corrosion resistance, and long-term reliability

Secure Locking Options

Includes integrated cylinder locks with optional intermediate locking for wider spans

Modern, Contemporary Aesthetic

Perforated panels create a clean, architectural look while maintaining functionality

Top-Hung System for Safety

No floor tracks required, reducing trip hazards and ensuring a clear, accessible floor space

Low Maintenance & Reliable

Simple mechanical design with minimal moving parts, ensuring long-lasting performance with minimal servicing

Medium-Level Internal Security

Provides an effective deterrent against opportunistic access while retaining visibility and airflow

The Perforated Sliding Shutter is engineered to provide a flexible balance of airflow, visibility, and security, with a wide range of bespoke design options to suit different commercial environments and architectural layouts.

Configuration Options

Single Sliding Shutter:

Panels slide to one sideIdeal for smaller openings or restricted areas

Bi-Parting Shutter:

Panels open from the centre and stack to both sides

Suitable for larger openings and improved access

Curved or Angled Layouts:

Track systems can be tailored for:

• Curved kiosks
• Circular counters
• Angled or stepped openings

Panel & Curtain Construction

• Curtain formed from 152mm wide modular aluminium sections
• Panels linked using a continuous aluminium hinge system

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge Cleats:

• Extruded aluminium with a 15° offset
• Enables smooth folding and compact stacking

Infill Options

Perforated Aluminium Panels (Standard):

• Provides ventilation, light flow, and partial visibility
• Modern architectural appearance

Alternative Infill Options (within same system):

• Solid aluminium panels
• Polycarbonate (Lexan) panels
• Tempered glass panelsGrille / chequered designs

Size & Bespoke Design

Fully made-to-measure

Suitable for:

• Standard openings
• Wide spans
• Complex or non-linear layouts

Adaptable for:

• Straight runs
• Curved installations
• Multi-section systems

Track & Operation Design

Top-Hung Sliding System:

• Panels run on overhead rollers within a concealed track

Bottom Guide:

• Maintains alignment without intrusive floor tracks

Compact Stacking:

• Panels stack to approximately 15% of the total opening width

Locking Options

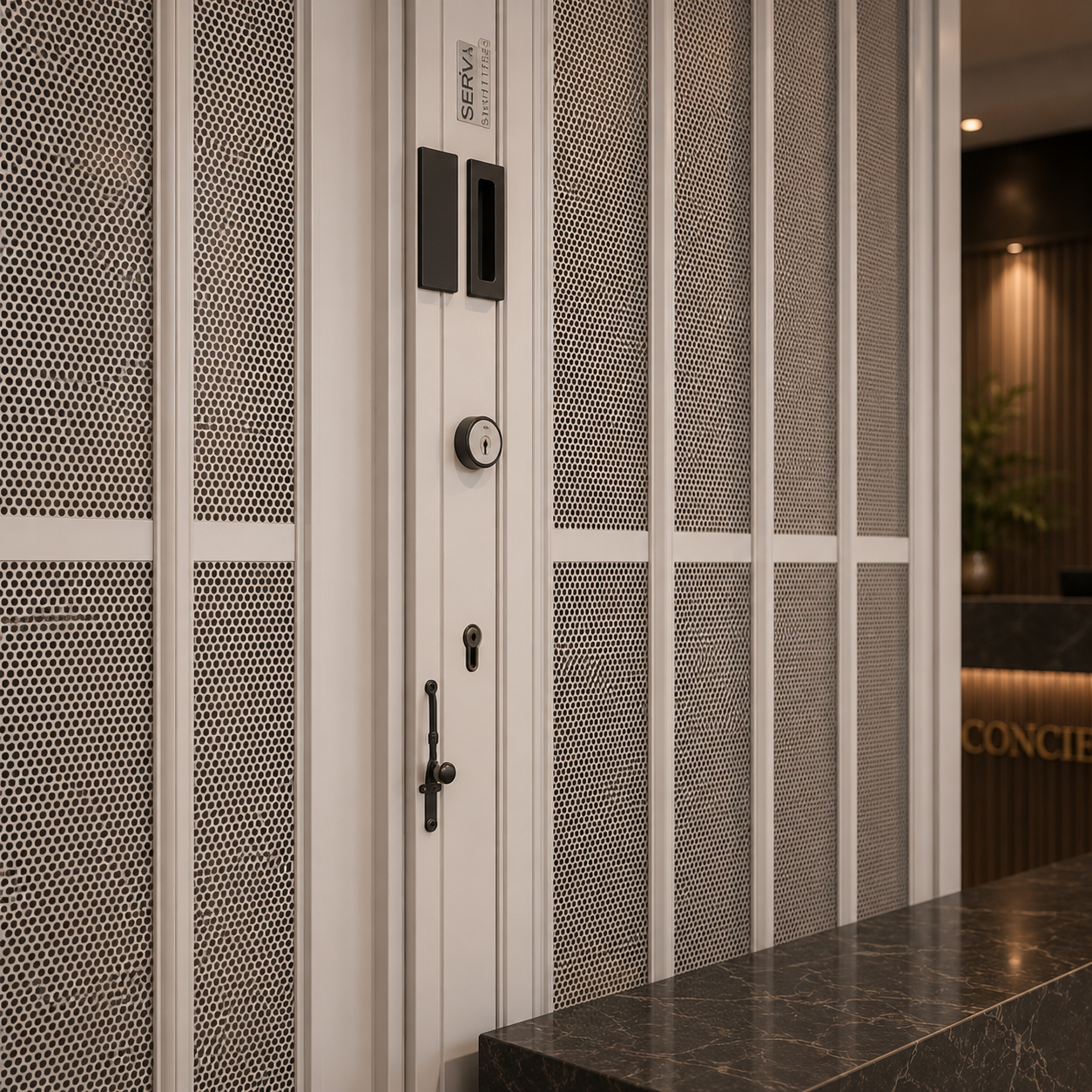

• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking systems
• Intermediate locking posts for wider openings

Finish Options

• Available in six standard anodised finishes
• Designed to complement modern commercial interiors and branding

Safety & Functional Design

• Top-hung system eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Optional emergency access or quick-release systems
• Smooth manual operation for safe, everyday use

Design Summary

The Perforated Sliding Shutter is built around:

• Ventilation and partial visibility through perforated panels
• Flexible configurations for straight or curved layouts
• Compact, space-saving sliding system
• Durable aluminium construction
• Clean, contemporary architectural appearance

These design and customisation options make the system ideal for retail, hospitality, transport hubs, and commercial interiors, where airflow, visibility, and security need to work together seamlessly.

Product Type:

• Internal manual sliding security shutter (top-hung system)

Application:

• Retail kiosks and shopping centres
• Airport concessions and transport hubs
• Cafés, bars, and hospitality counters
• Reception desks and commercial interiors
• Back-of-house and internal shopfronts

Construction

Material:

• Aluminium Alloy 6063-T5
• Designed for internal or semi-sheltered environments
• Provides medium-level security with airflow and visibility

Curtain / Panel Construction

• Module Width: 152mm wide aluminium sections
• Hinge System: Continuous aluminium hinge linking all panels

Top & Bottom Rails:

• 102mm high aluminium panels
• Manufactured from 2mm thick aluminium extrusion

Hinge Cleats:

• Extruded aluminium with 15° offset
• Enables smooth folding and stacking
• Infill Specification

Standard Infill:

• Perforated aluminium panels
• Provides airflow, light transmission, and partial visibility

Alternative Infill Options:

• Solid aluminium panels
• Polycarbonate (Lexan) panels
• Tempered glass panels
• Grille / chequered designs

Operation

• Manual operation only
• Sliding action via top-mounted roller system
• No motors, electrics, or automation required

Track System

Top-Hung Track:

• Aluminium track with concealed roller system
• Anti-lift design for added security

Bottom Guide:

• Maintains alignment without intrusive floor track
• Ensures smooth, quiet operation

Configuration Options

• Single sliding (stacking to one side)
• Bi-parting (centre opening)
• Curved or angled layouts available

Sizes

• Fully made-to-measure
• Suitable for standard and complex openings
• Adaptable for wide spans and bespoke layouts

Stacking Requirements

• Allow approx. 95mm per linear metre of shutter
• Add 76mm per post member (lead, intermediate, end posts)
• Approximate stacking space: ~15% of overall shutter width

Weight

• Approx. 10 kg/m²

Locking System

• Integrated cylinder locks fitted to end posts

Optional:

• Flush bolts
• Espagnolette multi-point locking
• Intermediate locking posts for wider spans

Finishes

• Aluminium framework available in six standard anodised finishes
• Suitable for modern commercial interiors

Safety Features

• Top-hung design eliminates floor trip hazards
• Finger-safe track profiles reduce pinch points
• Smooth manual operation reduces risk
• Optional emergency access / quick-release systems

Installation

Mounting Options:

• Soffit fixed
• Face fixed to wall or structural framework

Suitable for:

• Steel structures
• Timber frameworks
• Masonry substrates
• Professional installation recommended for optimal performance

Maintenance

• Low maintenance system

Periodic checks of:

• Rollers and track
• Hinges and panel alignment
• Locking mechanisms

Warranty

• Typically supplied with a 12-month manufacturer’s warranty (subject to confirmation)

Performance Summary

• Provides ventilation and partial visibility
• Medium-level internal security
• Smooth, manual operation
• Space-saving sliding design
• Durable and long-lasting aluminium construction

This technical specification defines the Perforated Sliding Shutter as a practical, low-maintenance, and visually open security solution, ideal for commercial environments where airflow, visibility, and protection must be balanced.

The Perforated Sliding Shutter is a fully made-to-measure system, manufactured to suit your exact opening size, configuration, and panel specification.

Standard Lead Time

Typical manufacturing lead time: 3–5 weeks from order confirmation and approved drawings

Lead Time Considerations

Lead times may vary depending on:

• Opening size and complexity (e.g. curved or bespoke layouts)
• Panel configuration and infill selection
• System layout (single sliding, bi-parting, or multi-section systems)
• Order quantity and project scale

All lead times will be confirmed at quotation stage to align with your project programme.

Delivery & Planning

• Supplied as a complete, made-to-measure system ready for installation
• Suitable for both new build and retrofit applications
• Manufactured to ensure precision fit, smooth operation, and high-quality finish

This lead time ensures each Perforated Sliding Shutter is accurately produced and quality checked, delivering reliable performance and a professional finish for commercial environments.

The Perforated Sliding Shutter is a bespoke, made-to-measure system, offering a cost-effective balance between visibility, airflow, and internal security. Pricing will vary depending on size, configuration, and panel specification.

Indicative Pricing

Small Openings (Up to 1.5m W x 1.5m H)

• From £1,800 – £2,800 + VAT

Standard Opening (Approx. 2m W x 2m H)

• From £3,000 + VAT

Medium Openings (2m – 4m wide)

• From £3,000 – £5,500 + VAT

Larger Openings (4m+ wide / bi-parting systems)

• From £5,500 – £9,000+ + VAT

Configuration Impact on Price

Single Sliding Units:

• Most cost-effective option

Bi-Parting Systems:

• Add approx. +10–20% depending on width and number of panels

Curved or Bespoke Layouts:

• Add approx. +15–30% depending on complexity

Panel & Infill Considerations

Perforated Panels (Standard):

• Base specification offering airflow and visibility

Alternative Infills (e.g. polycarbonate or solid sections):

• May increase cost depending on specification

Factors Affecting Price

• Opening width and height
• Configuration (single, bi-parting, curved)
• Panel type and layout
• Number of panels and stacking requirements
• Locking options and additional features
• Site conditions and installation complexity

Installation Costs

Professional Installation (Recommended):

• Typically £300 – £1,000+ depending on size and complexity

Budget Guidance

• Small kiosks / counters: £1,800 – £3,500 + VAT

Standard retail or hospitality areas:

• £3,000 – £5,500 + VAT

Large or bespoke installations:

• £5,500 – £9,000+ + VAT

Why It’s a Cost-Effective Solution

• No motors or electrics required
• Lower cost than solid or polycarbonate alternatives
• Provides airflow and visibility while maintaining security
• Low maintenance with durable aluminium construction

Get an Accurate Quote

Due to the bespoke nature of the system, we recommend requesting a tailored quotation to ensure the design, configuration, and pricing meet your exact project requirements.
