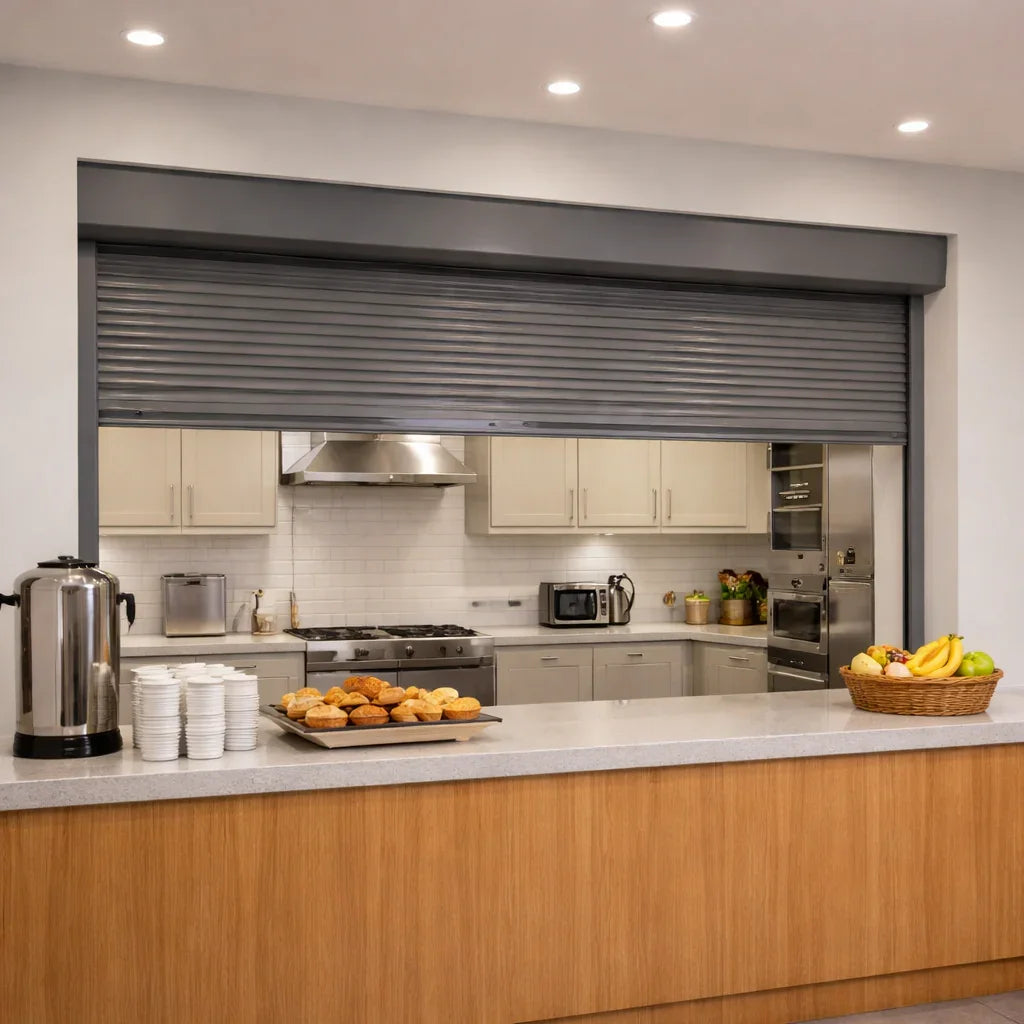

Compact Kitchen Shutters

• Use: kitchens, serveries and food counters in schools, cafés, canteens and community centres
• Construction: twin-walled extruded aluminium laths
• Security: high, depending on guide choice
• Operation: manual or electric
• Sizing: made to measure
• Certification: CE and UKCA marked
• Warranty: 12 months

• Laths: solid as standard. Perforated and punched versions have their own listings.
• Guide rails: H17, H25, H30 or H40, from standard to high security.
• Bottom rail: with a rubber insert, or with a reinforcing handle.
• Manual: swivel belt, geared belt, or spring and lock.
• Electric: tube motor on a hold-to-run switch, or upgrade to Somfy RTS or io remote control.
• Colours: White, Cream, Brown or Black as standard, or any RAL or BS colour. See our colour chart.

• Lath: 38mm high x 9mm thick
• Weight: approx. 8kg/m²
• Maximum size: 4000mm wide x 5000mm high
• Box: 165mm (up to 1600mm high), 180mm (1900mm), 205mm (2800mm), 250mm (5000mm)
• Guides: H17 45 x 22mm · H25 53 x 22mm · H30 60 x 24mm · H40 70 x 27mm
• Motor: single phase tube motor
• Finish: polyester powder coat (RAL 9016, RAL 1015, RAL 8014, RAL 9005)
• Fire rating: not fire rated

• Supply only, standard colour: up to 2 weeks (7–10 working days)
• Supply only, custom colour: up to 5 weeks
• Supply and installation: up to 3–4 weeks, including a site survey to confirm sizes and guide choice
• Fitting can be booked around school holidays or quiet periods.

Prices from £323 for 1000mm x 1000mm. Your price depends on size, guide rails, operation, colour and installation. Use our online quote builder or call 0800 046 6380 for an exact price.
