Tube & Link Roller Shutter - 75% Vision

High Visibility Tube & Link Design

Open aluminium tube and link construction provides approximately 75% vision

Premium Retail Appearance

Architectural, design-led finish ideal for high-end shopfronts and display areas

Low Security – Internal Use Only

Best suited for installation behind glass where visibility is prioritised

Electric Operation Only

Smooth, reliable motorised operation for effortless daily use

Large Span Capability

Suitable for wide openings up to 6000mm wide x 4500mm high

Made to Measure Design

Custom-built to your exact opening for a precise, seamless installation

Anodised Finish (Standard)

Supplied in a high-quality anodised silver finish for a clean, modern look

Powder Coating Options

Available in any RAL or BS colour to match branding or interior design

Lightweight Aluminium Construction

Durable yet lightweight for smooth operation and reduced wear

Ideal for Retail & Commercial Environments

Commonly used in shopping centres, boutiques, and premium retail spaces

Proven Commercial Performance

Designed for regular use in busy retail environments where presentation matters

The Tube & Link Roller Shutter is a premium, design-led system, offering flexibility in appearance, layout, and operation while maintaining maximum visibility.

Curtain Design Options

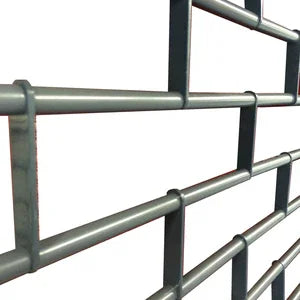

• Tube & Link Construction (Standard)
  Interlinked aluminium tubes and links provide approx. 75% vision
  Creates a highly open, architectural appearance
• Brickbond Pattern
  Staggered arrangement for a more dynamic, premium aesthetic

Operation & Control Options

Electric Operation (Standard Only):

• Hold-to-Run Switch - Controlled and reliable operation
• Key Switch Control - Restricted access for authorised users
• Remote Control (Fob Operation) - Convenient day-to-day use
• Automation Systems (e.g. Somfy) - Timers, grouping, and smart control

Electric operation ensures smooth performance across wider openings

Finish & Colour Options

• Anodised Silver Finish (Standard)
  High-quality, durable finish with a clean, premium appearance
• Powder Coated Finish
  Available in any RAL or BS colour
  Ideal for matching branding or interior design schemes

Size & Configuration

Maximum Sizes
Suitable for openings up to 6000mm wide x 4500mm high

Made to Measure Design
Manufactured to your exact opening for a precise, seamless fit

Installation Considerations

• Internal Installation Only
  Designed to be installed behind glass for optimal security and performance
• Low Security Application
  Best suited where visibility and aesthetics are prioritised over physical security

This flexibility makes the Tube & Link Roller Shutter ideal for premium retail, shopping centres, and high-end commercial spaces, delivering maximum visibility with a refined architectural finish.

• Slat Type: 13mm Aluminium Tubes enclosing 8mm steel rods & Links - Brickbond Design - 75% Vision
• Slat Height: 56mm high
• Curtain Thickness: Approx. 13mm
• Weight: Approx. 9 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 4500mm (width dependent)
• Guide Rails: Galvanised Steel U Section Guide Rails (channel depth will vary dependent on shutter size)
• Bottom Rail: Galvanised Steel T Rail
• Operation Types: Electric motor operation
• Motor Options: Tubular motors (230V) or Industrial Outboard Motors
• Control Options: Key switch, rocker switch, remote control
• Standard Finish:
  Curtain - Anodised Silver.
  Box and Guides - Galvanised
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Tube & Link Roller Shutter - 75% Vision. Typical manufacturing time is 20-25 working days, with delivery usually arranged within a few days of completion. Please note, powder coating may extend lead times to approximately 6-8 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 6-8 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The Tube & Link Roller Shutter is a premium, design led solution, positioned at the higher end of the market due to its labour intensive construction and high visibility finish.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £1800 – £3,000
• Supply & Install – £3,000 – £5,000

Medium (up to 4m x 4m)

• Supply Only – £3,000 – £6,000
• Supply & Installation – £5,000 – £9,000

Large (up to 6m x 4.5m)

• Supply Only – £6,000 – £12,000
• Supply & Install – £9,000 – £18,000

What Affects the Price?

• Size of Opening – Larger shutters require more material and stronger components
• Pattern Type – Inline or brickbond design can influence manufacturing cost
• Operation Type – Manual is more cost-effective; electric adds convenience and cost
• Colour Finish – Standard finishes are more affordable; custom RAL/BS increases cost
• Controls & Automation – Remote control and smart systems (Somfy IO) add to the price
• Installation Complexity – Access, fixing detail, and internal structure affect installation cost

Budget Guidance

• A cost effective alternative to tube and link grilles, with a similar open appearance
• Ideal for retail shopfronts, bars, and reception areas where visibility is key
• Electric operation is recommended for frequent daily use

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
