Secure Visi Link Roller Shutter

High Security with Maximum Visibility

• Designed to provide up to 72% vision and airflow, allowing clear visibility into premises while maintaining a secure barrier

LPCB Certified Security Ratings

• Available in LPS1175 A1 (SR1) and B3 (SR2) ratings, with enhanced anti-cut technology for higher security applications

Secured by Design Approved

• Police-preferred specification, making it suitable for insurance-backed and high-risk commercial environments

Ideal for Retail & Commercial Applications

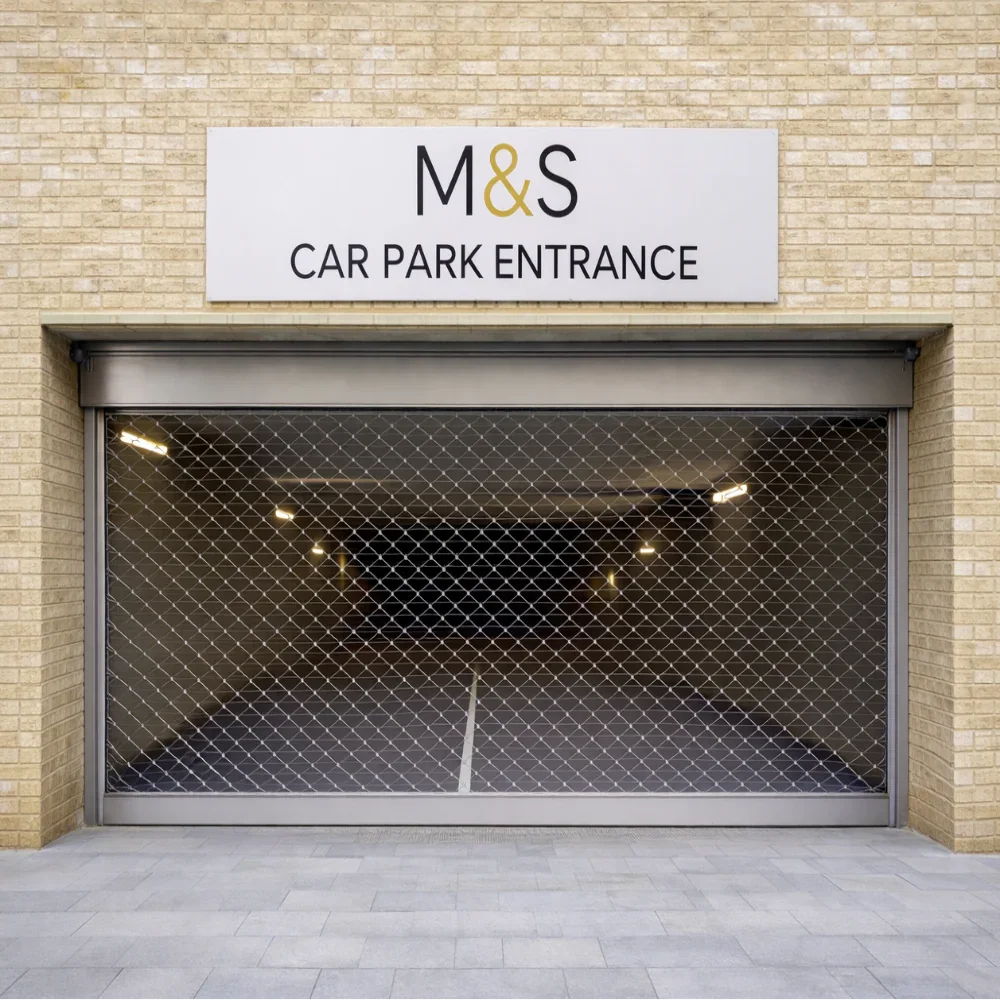

• Perfect for shopfronts, car parks, and high-security commercial sites where display, ventilation, and protection are required

Robust Steel Honeycomb Construction

• Manufactured using 14mm steel tubes in a honeycomb formation, delivering strength, durability, and resistance to attack

Suitable for Large Openings

• Capable of covering openings up to 7.9m wide and 5m high, making it ideal for wide commercial entrances

Internal Fix for Enhanced Security

• Designed for internal face or reveal installation, ensuring key components are protected from external attack

Flexible Motor Options

Available with:

• Tubular motors for smaller openings
• Direct drive or inboard motors for heavy-duty and high-usage applications

Multiple Control Options

• Includes key switches, push buttons, remote control, and smart activation options to suit different operational needs
• Smooth, Reliable Operation
• Engineered for consistent performance with industrial-grade motors and safety brake systems

Customisable for Different Applications

• Suitable for a wide range of environments, from retail display shutters to high-traffic car park entrances

Premium Security Without Compromising Aesthetics

• Combines modern design, visibility, and high-level protection, making it a leading solution in commercial security shutters

The Secure Visi Link Roller Shutter is engineered to provide a flexible, high-security solution that can be tailored to suit a wide range of commercial, retail, and high-risk environments. From security rating to motor specification, each element can be configured to meet specific operational and insurance requirements.

Security Rating Options

LPS1175 A1 (SR1):

• Suitable for standard commercial security applications
• Provides certified resistance against opportunistic attack

LPS1175 B3 (SR2):

• Enhanced security with additional anti-cut technology
• Ideal for higher-risk environments and insurance-driven specifications

Secured by Design Accredited:

• Police-preferred specification for crime prevention

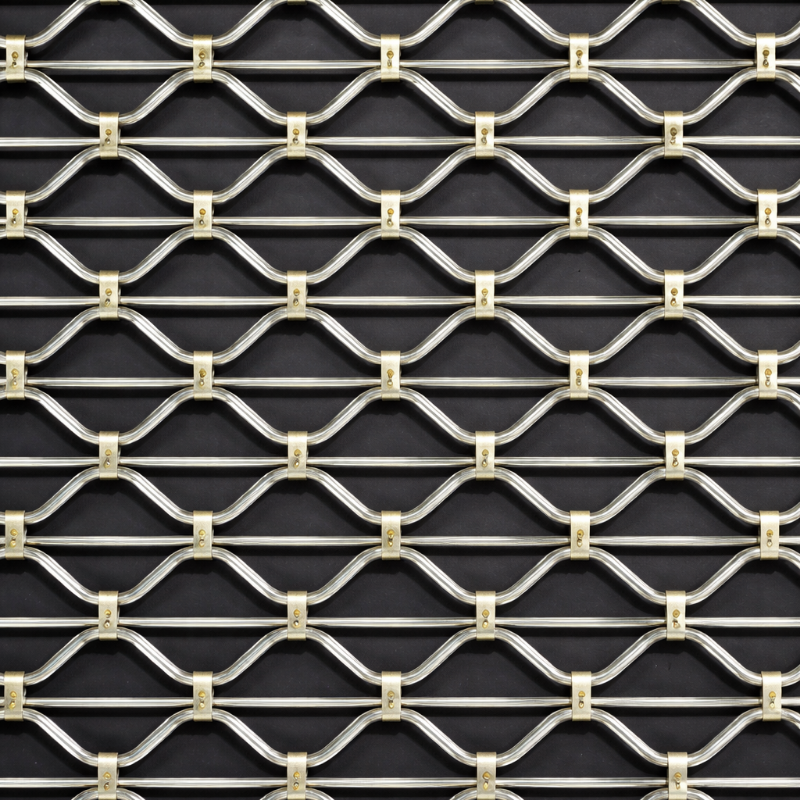

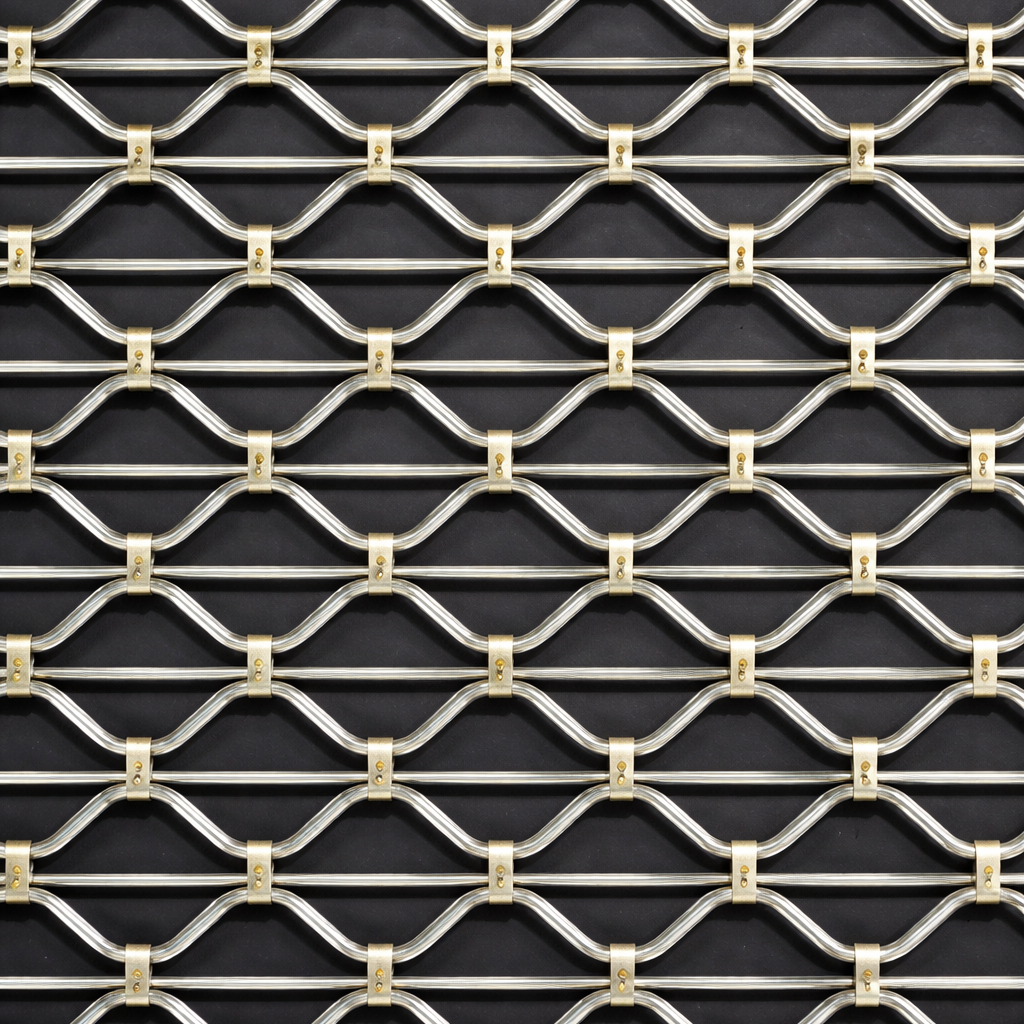

Slat Design & Construction

Honeycomb Steel Tube Design:

• 14mm steel tubes arranged in a high-strength lattice formation
• Provides 72% airflow and visibility

Designed to balance:

• Security
• Ventilation
• Visual transparency

Size & Configuration

• Maximum Width: Up to 7.9m
• Maximum Height: Up to 5m
• Maximum Area: 39.6m²
• Larger sizes available on request

Suitable for:

• Shopfronts
• Car parks
• Commercial entrances

Installation Options

• Internal Face Fix
• Internal Reveal Fix

Important:

• Shutter must be installed internally with box and guide channels not accessible from the attack side, ensuring compliance with security certification.

Box & Headplate Options

• Mild Steel End Plates (Standard)
• Optional box casing or fascia depending on installation type

Reveal Fix Installations:

• Supplied with fascia as standard for a clean finish

Guide Channels

• 100mm Steel Guide Rails

Heavy-duty construction for:

• Smooth operation
• Increased resistance to forced entry

Motor & Operation Options

Tubular Motor (Smaller Openings):

• Compact solution

Operated via:

• Internal rocker switch
• External key switch
• Hold-to-run operation for safety compliance
• Optional manual override (crank handle)

Direct Drive Motor:

• Suitable for larger or industrial applications
• Available in single or three phase

Includes:

• Integrated safety brake

Chain manual override

• Push-button control station
• Optional high-usage motor for frequent operation (e.g. car parks)

Inboard Motor (GfA Ranger):

• Heavy-duty industrial motor
• Single or three phase options
• Separate safety brake
• Chain override and control station included

Control Options

• Key switch operation
• Push-button control station
• Remote control operation
• Group control systems
• Mobile phone / smart activation (optional)

Safety Features

• Integrated safety brake systems
• Hold-to-run controls for compliance
• Manual override options for emergency operation

Finish & Appearance

• Industrial-grade steel construction
• Designed for modern commercial aesthetics
• Suitable for applications requiring visibility through the shutter

Application Flexibility

• Ideal for: Retail shopfronts requiring visibility after hours
• Car parks requiring airflow and security
• Commercial and high-security environments
• Areas where both display and protection are critical

Design Summary

The Secure Visi Link is built around:

• High-security certified performance
• Maximum airflow and visibility (72%)
• Flexible motor and control options
• Robust internal installation for enhanced protection

These design and customisation options make the Secure Visi Link Roller Shutter a premium, adaptable security solution, combining certified protection, operational flexibility, and modern design for demanding commercial applications.

Product Type:

• High-security perforated / open-lath roller shutter

Application:

• Retail shopfronts
• Commercial premises
• Car parks
• High-security environments requiring visibility and airflow

Security Ratings

• LPS1175 A1 (SR1)
• LPS1175 B3 (SR2) with enhanced anti-cut technology
• Secured by Design Accredited (Police preferred specification)

Curtain / Slat Construction

Profile:

• 14mm steel tubes

Design:

• Honeycomb lattice formation
• Airflow / Vision: Approx. 72% open area

Material:

• High-strength steel

Weight:

• Approx. 22 kg/m²

Maximum Sizes

• Maximum Width: 7,920mm
• Maximum Height: 5,000mm
• Maximum Area: 39.6m²
• Larger sizes available on request (subject to specification)

Guide Channels

Type:

• Steel guide rails

Width:

• 100mm
• Heavy-duty design for stability and security

Headbox & Structure

End Plates:

• Mild steel (standard)

Box / Fascia:

• Optional depending on installation type

Reveal Fix Installations:

• Supplied with fascia as standard
• Installation Requirements

Installation Type:

• Internal face fix
• Internal reveal fix

Important:

• Box and guides must not be accessible from the attack side
• Required to maintain LPS1175 certification

Motor & Operation Options

Tubular Motor (Smaller Openings):

• Internal rocker switch or external key switch
• Hold-to-run operation
• Integrated safety brake
• Optional manual override (crank handle)

Direct Drive Motor:

• Single or three phase options
• Integrated safety brake
• Chain manual override
• Push-button control station
• Optional high-usage motor (e.g. car parks)

Inboard Motor (GfA Ranger):

• Single or three phase options
• Separate safety brake
• Chain manual override
• Push-button control station

Control Options

• Internal rocker switch
• External key switch
• Push-button control station
• Remote control (optional)
• Group control systems
• Mobile phone / smart activation (optional)

Safety Features

• Hold-to-run operation (where required)
• Integrated or separate safety brakes
• Manual override systems for emergency operation

Performance Features

• High visibility and airflow (72%)
• Resistant to forced entry and cutting (SR2 version)
• Suitable for high-traffic and high-risk environments

Finish

• Steel construction suitable for commercial environments
• Typically supplied in standard industrial finishes (custom options available on request)

Compliance

• LPS1175 Issue 8 Certified
• Secured by Design Approved
• Designed to meet relevant UK safety and security standards

Application Suitability

• Retail shopfronts requiring display visibility
• Car parks requiring airflow
• Commercial premises with high security requirements
• Areas needing both security and transparency

This technical specification highlights the Secure Visi Link Roller Shutter as a high-security, high-visibility solution, engineered to deliver certified protection, airflow, and operational reliability in demanding commercial environments.

Lead Times

The Secure Visi Link Roller Shutter is a made-to-order, high-security product, with a typical manufacturing lead time of:

• 6–8 weeks from order confirmation and final specification

Lead times may vary depending on:

• Security rating selected (SR1 or SR2 with anti-cut technology)
• Size and configuration of the shutter
• Motor type and control options
• Project quantity or bespoke requirements

All lead times will be confirmed at quotation stage to align with your project programme.

Installation

Due to its security certification and installation requirements, the Secure Visi Link must be installed correctly to maintain compliance with LPS1175 standards.

Installation Requirements

Must be installed:

• Internally face fixed orInternally reveal fixed

Critical Requirement:

• The headbox and guide channels must not be accessible from the attack side
• This is essential to achieve and maintain the certified security rating

Installation Process

Installed onto:

• Structural steel
• Concrete or masonry openings

Includes fitting of:

• Guide channels
• Headbox / fascia
• Curtain assembly
• Motor and control system
• Electrical connection required for motorised operation

Installation Considerations

• Ensure adequate structural support for fixing
• Allow space for headbox and guide installation
• Access required for safe installation at height
• Compliance with electrical and safety regulations
• Professional InstallationInstallation is recommended to be carried out by qualified engineers

Ensures:

• Correct operation
• Compliance with LPS1175 and Secured by Design requirements
• Safe integration with control systems

Post-Installation

Shutter will be:

• Fully tested and commissioned
• Set up with chosen control system
• User guidance provided for safe operation

This combination of precision manufacturing and controlled installation ensures the Secure Visi Link Roller Shutter delivers certified security performance, reliability, and long-term durability in demanding commercial environments.

The Secure Visi Link Roller Shutter is a high-security, LPCB-certified product, with pricing reflecting its advanced construction, certification level, and motor specification. As a guide, costs vary based on size, security rating (SR1 or SR2), and operational requirements.

Indicative Pricing (Supply Only)

Small Openings (Up to 3m W x 3m H)

• From £3,000 – £5,500 + VAT

Medium Openings (3m – 5m wide)

• From £5,500 – £9,000 + VAT

Large Openings (5m – 7.9m wide)

• From £9,000 – £15,000+ + VAT

Security Rating Impact on Price

LPS1175 A1 (SR1):

• Standard high-security option

LPS1175 B3 (SR2):

Typically +15–30% due to:

• Anti-cut technology
• Enhanced construction
• Higher certification requirements

Motor & Control Options

Tubular Motor (Small Openings):

• Included or lower cost option

Direct Drive / Inboard Motors:

• Add approx. £800 – £2,500+ depending on size and usage

High Usage Motors (Car Parks):

• Additional cost depending on duty cycle

Advanced Controls (Remote / Smart Access):

• Add approx. £150 – £600+

Factors Affecting Price

• Opening size (width, height, total area)
• Security rating (SR1 vs SR2)
• Motor type and usage level
• Control systems and automation
• Installation method (face fix or reveal fix)
• Site conditions and access requirements

Installation Costs

Professional Installation Required:

• Typically £800 – £2,500+ depending on size and complexity

Includes:

• Full installation
• Electrical connection
• Commissioning and testing

Budget Guidance

• Retail shopfronts: £4,000 – £10,000 + VAT
• Commercial / industrial units: £6,000 – £12,000 + VAT
• Large openings / car parks: £10,000 – £18,000+ + VAT

Why It’s a Premium Investment

• Certified to LPS1175 security standards
• Secured by Design approved
• Combines security, visibility, and airflow
• Suitable for insurance-backed specifications
• Built for long-term durability and high usage

Get an Accurate Quote

Due to the bespoke nature and certification requirements, we recommend requesting a tailored quotation. This ensures the correct specification is selected to meet your security, operational, and insurance requirements.
