Transparent Polycarbonate Roller Shutter - 83% Vision

High Visibility Transparent Design

Clear polycarbonate panels provide up to 83% vision, maintaining full product visibility

High Impact Polycarbonate Construction

Extremely durable material offers strong resistance to impact and forced entry

Ideal for Retail & Public Environments

Perfect for shopfronts, airports, shopping centres, and showrooms

Electric Operation Options

Tubular motors for smaller shutters or industrial outboard motors for larger openings

Large Span Capability

Suitable for wide openings up to 10.5m and curtain areas up to 84m²

Made to Measure Design

Custom-built to your exact opening for a precise, seamless installation

Modern Aluminium Framing

Clean, architectural design that complements high end commercial spaces

Standard & Custom Finishes

White (RAL 9016) as standard or powder coated in any RAL or BS colour

Internal & Sheltered External Use

Suitable for indoor or protected external environments

Low Maintenance & Long Lasting

Durable materials designed for consistent performance with minimal upkeep

Proven Commercial Performance

Engineered for regular use in high-traffic, high-visibility environments

The Transparent Polycarbonate Roller Shutter is designed to deliver maximum visibility with high performance security, while offering flexibility in operation, finish, and configuration.

Curtain Design

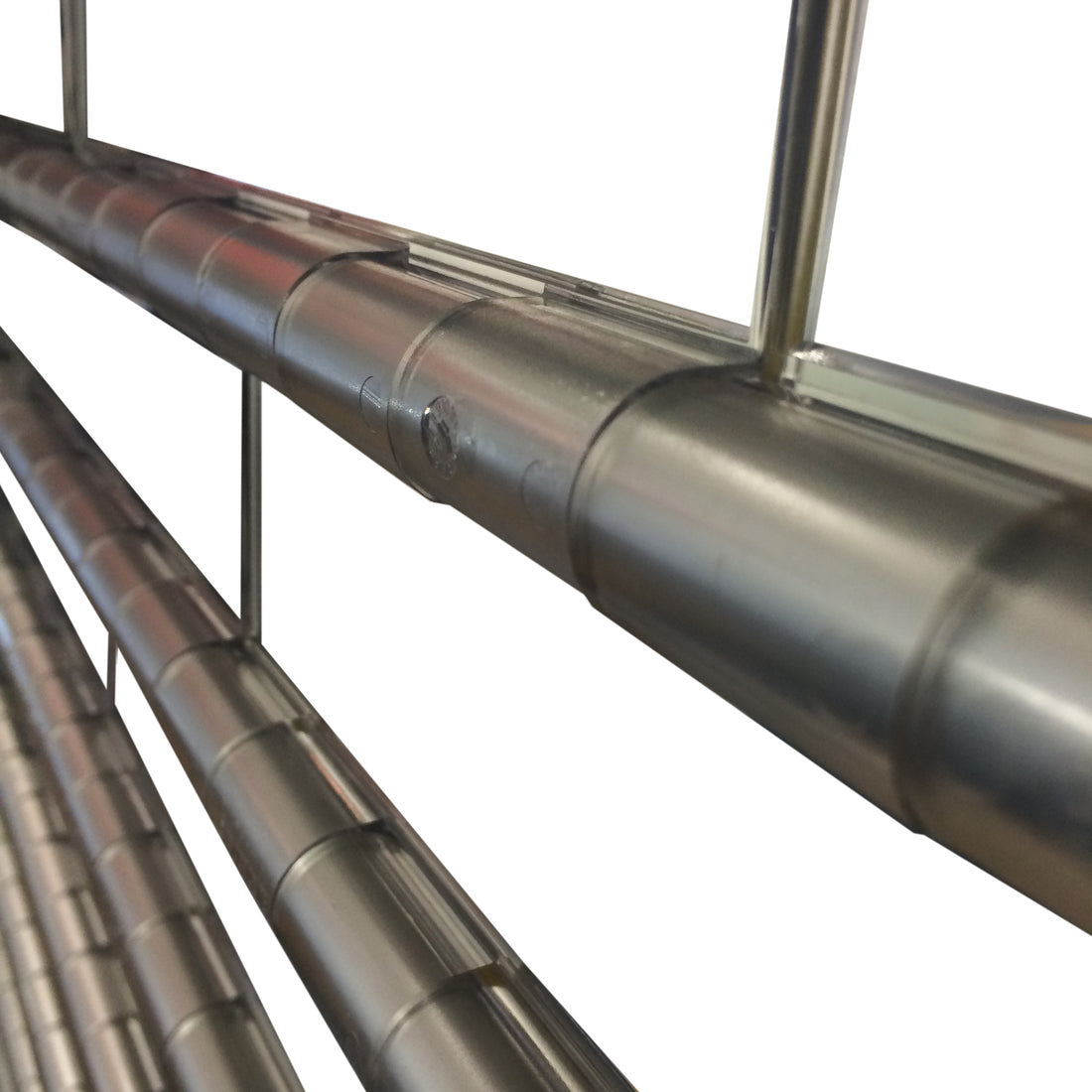

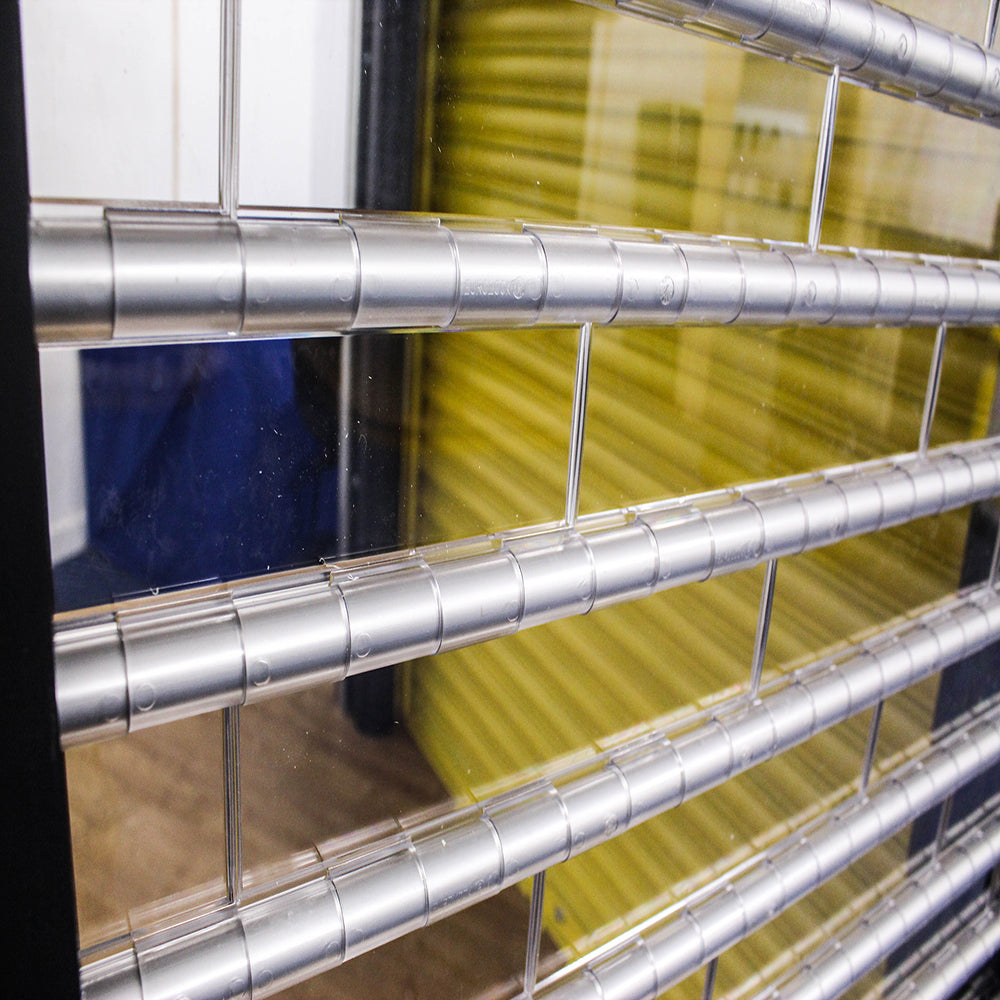

• Clear Polycarbonate Modules (83% Vision)
  Transparent, high-impact panels allow maximum visibility and light transmission
  Ideal for retail displays, public spaces, and high-end commercial environments
• Aluminium Framing System
  Each panel is supported by aluminium links, creating a clean, architectural finish

Operation & Control Options

Electric Operation (Standard):

• Tubular Motors - Suitable for smaller to medium-sized shutters
• Industrial Outboard Motors - Designed for larger openings and heavier-duty use

Control Options:

• Hold-to-Run Switch - Standard safe operation
• Key Switch / Keypad - Controlled access for authorised users
• Remote Control (Fob Operation) - Convenient day-to-day use
• Integration Options - Can be linked to access control or building systems
• Manual Override - Allows emergency operation in the event of power failure

Finish & Colour Options

• Box and Guide Standard Finish: White (RAL 9016)
• Custom Powder Coating: Available in any RAL or BS colour
• Ideal for matching branding, interiors, or architectural schemes

Size & Configuration

• Maximum Sizes
  Up to 10.5m wide and 84m² curtain area
• Made to Measure Design
  Manufactured to your exact opening for a precise and seamless fit

This flexibility makes the polycarbonate shutter ideal for high end retail, airports, and public facing environments, delivering a unique combination of transparency, security, and modern design.

• Slat Type: High resistance polycarbonate transparent modules - 83% Vision
• Slat Height: 100mm high
• Weight: Approx. 10 kg/m²
• Maximum Width: Up to approx. 10,500mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)

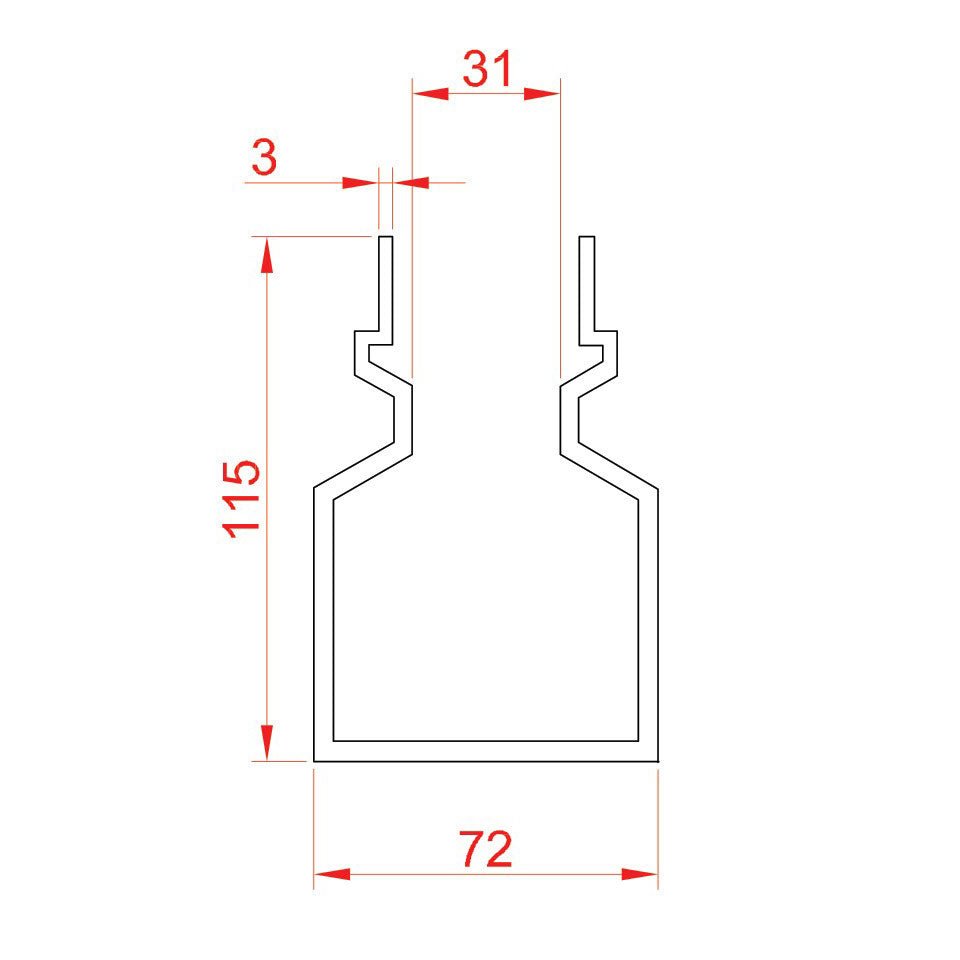

• Guide Rails: White Aluminium U Section Guide Rails (channel depth will vary dependent on shutter size)
• Bottom Rail: Extruded Aluminium Bottom Rail
• Operation Types: Electric motor operation
• Motor Options: Tubular motors (230V) or Industrial Outboard Motors
• Control Options: Key switch, rocker switch, remote control
• Standard Finish:
  Box and Guides - White RAL9016
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Polycarbonate Roller Shutter - 83% Vision. Typical manufacturing time is 20-30 working days, with delivery usually arranged within a few days of completion. Please note, powder coating non standard colours may extend lead times to approximately 6-8 weeks, depending on powder coating requirements.

For supply and installation projects, the full process typically takes 6-8 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The Transparent Polycarbonate Roller Shutter is a premium, high spec solution, designed for applications where visibility, aesthetics, and security are equally important.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £2,500 – £4,500
• Supply & Install – £4,000 – £7,000

Medium (up to 4m x 4m)

• Supply Only – £4,500 – £9,000
• Supply & Installation – £7,000 – £14,000

Large (up to 7m x 5m)

• Supply Only – £8,000 – £18,000
• Supply & Install – £12,000 – £25,000

What Affects the Price?

• Polycarbonate Curtain System – Premium materials significantly increase cost vs metal shutters
• Size & Area – Larger shutters (especially over 5m) increase cost substantially
• Motor Type – Tubular motors for smaller units; industrial motors for large spans add cost
• Control Systems – Remote controls, access integration, and automation increase price
• Finish – Standard white is included; custom RAL/BS powder coating adds cost
• Installation Complexity – Structural supports, access, and fixing details impact pricing

Budget Guidance

• A premium alternative to roller grilles, offering near full transparency with security
• Ideal for high-end retail, airports, and public buildings
• Best suited where visibility, branding, and customer experience justify the investment

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, application details, and control requirements.
