Roller Grille Shutter - 69% Vision

Aluminium Link Construction

Durable aluminium links provide reliable security with an open, lightweight design

69% Vision Open Grille Design

Maximises visibility and airflow while maintaining an effective security barrier

Inline or Brickbond Patterns

Choose between two design styles to suit your aesthetic and application

Cost Effective Alternative to Tube & Link

Offers a similar high-end look at a more accessible price point

Ideal for Retail & Hospitality

Perfect for shopfronts, reception counters, and bar areas

Manual or Electric Operation Available

Manual for simplicity or electric for convenience and frequent use

Compact & Neat Design

Rolls neatly above the opening for a clean, professional finish

Made to Measure Design

Custom-built to suit your exact opening for a precise fit

Wide Range of Colour Options

Available in standard colours or full RAL/BS range to match interiors

Low Maintenance

Corrosion-resistant aluminium reduces ongoing upkeep

Internal Installation Only

Designed specifically for internal use in retail and commercial environments

Proven Commercial Performance

Designed for regular use in busy environments such as shops, bars, and counters

The RA9 Roller Grille Shutter is designed to provide maximum visibility with a clean, architectural finish, while still offering flexibility in design, operation, and finish to suit your environment.

Grille Design Options

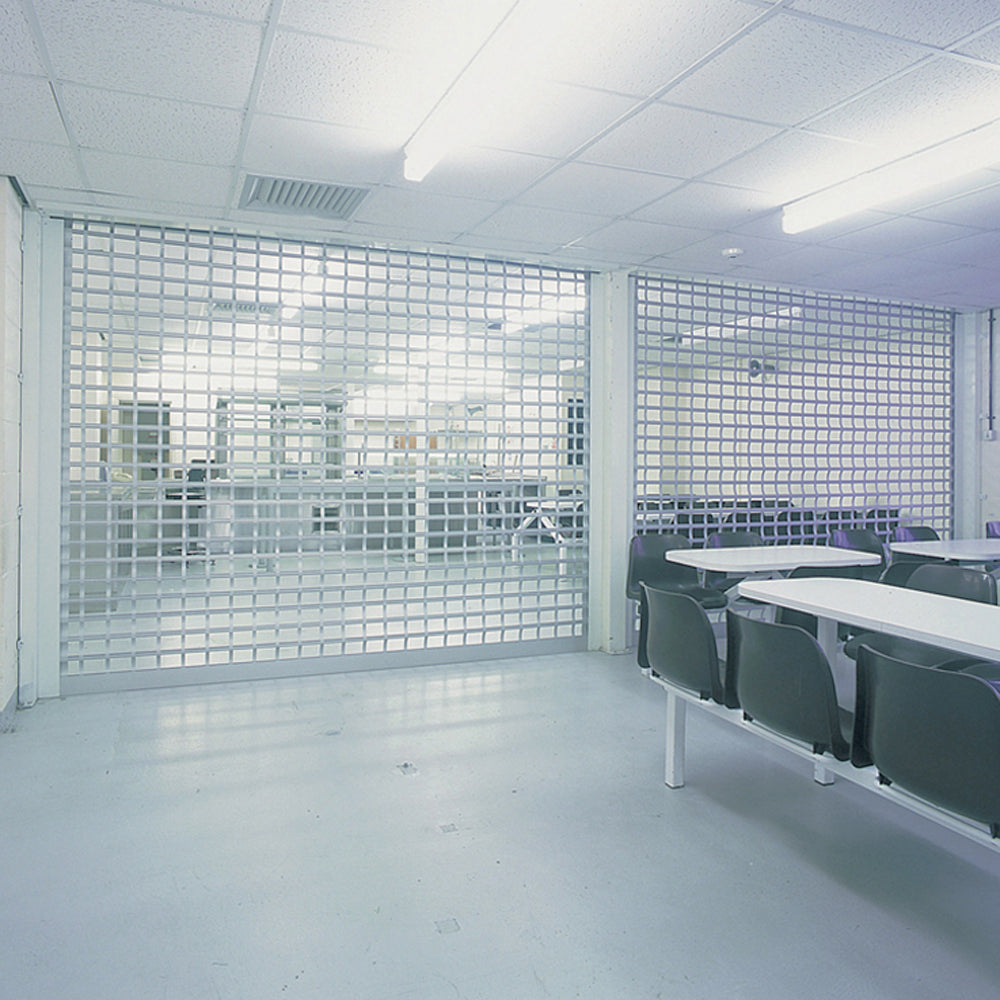

• Inline Pattern
  Uniform, straight alignment of aluminium links for a clean and modern look

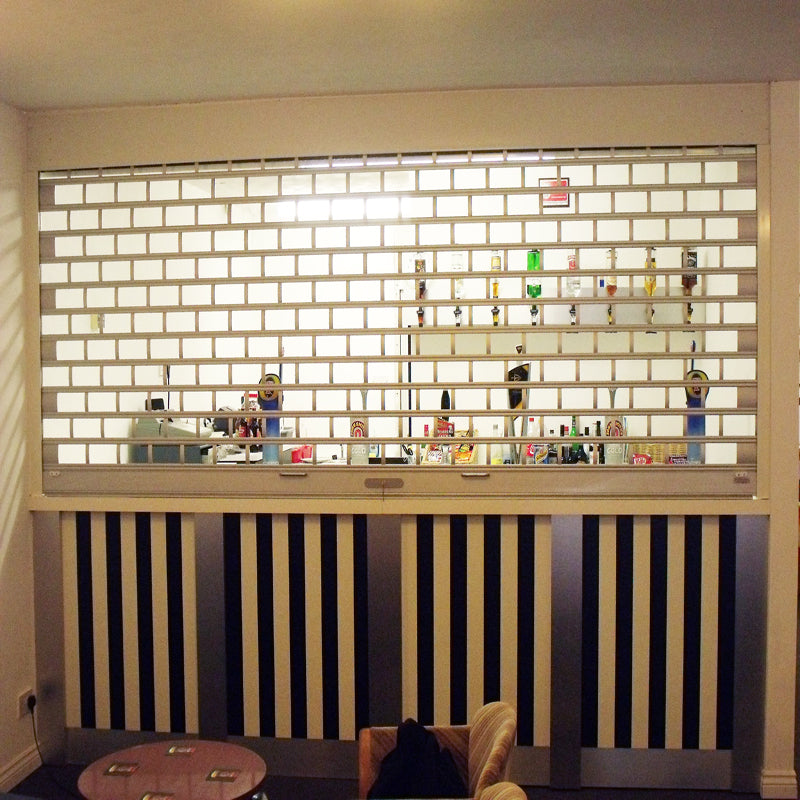

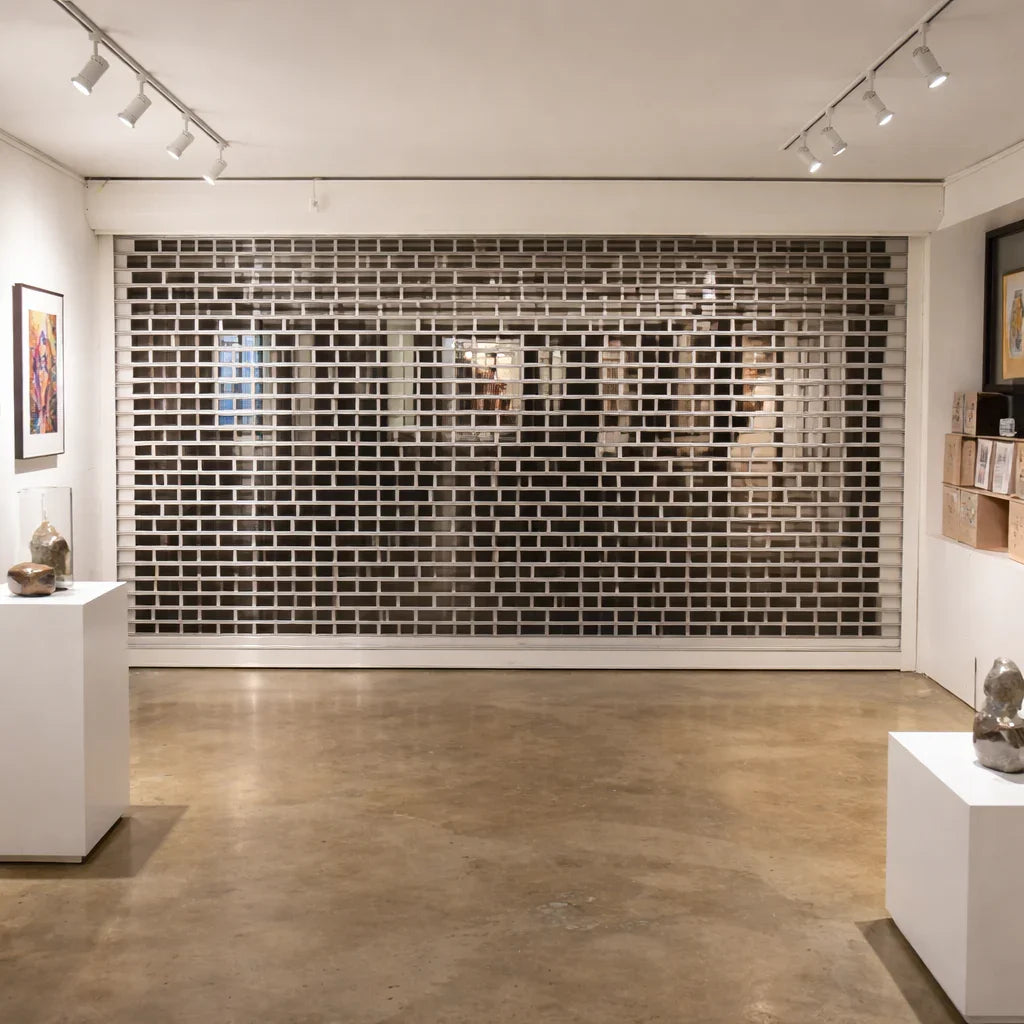

• Brickbond Pattern
  Staggered link design for a more architectural, premium appearance

Operation & Control Options

Manual Operation (Cost-Effective & Simple):

• Spring & Lock (Push-Up Operation) – Suitable for smaller shutters with simple manual use

Electric Operation (Convenience & Frequent Use):

• Hold-to-Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button
• Somfy IO Automation – Smart control with timers, group operation, and integration with automation systems

Colour & Finish Options

Standard Finishes

• Curtain - Anoidised Silver
• Box and Guides - White (RAL 9016), Cream (RAL 1015), Brown (RAL 8014), Black (RAL 9005)

Full Custom Powder Coating:
Available in any RAL or BS colour (subject to lead time and cost)

This flexibility allows the RA9 to be tailored for retail shopfronts, bars, and reception areas, delivering a balance of visibility, security, and design-led appearance.

• Slat Type: Aluminium Links (In-Line or Brickbond) - 69% Vision
• Slat Height: 100mm high
• Curtain Thickness: Approx. 13mm
• Weight: Approx. 7 kg/m²
• Maximum Width: Up to approx. 5000mm (height dependent)
• Maximum Height: Up to approx. 4000mm (width dependent)

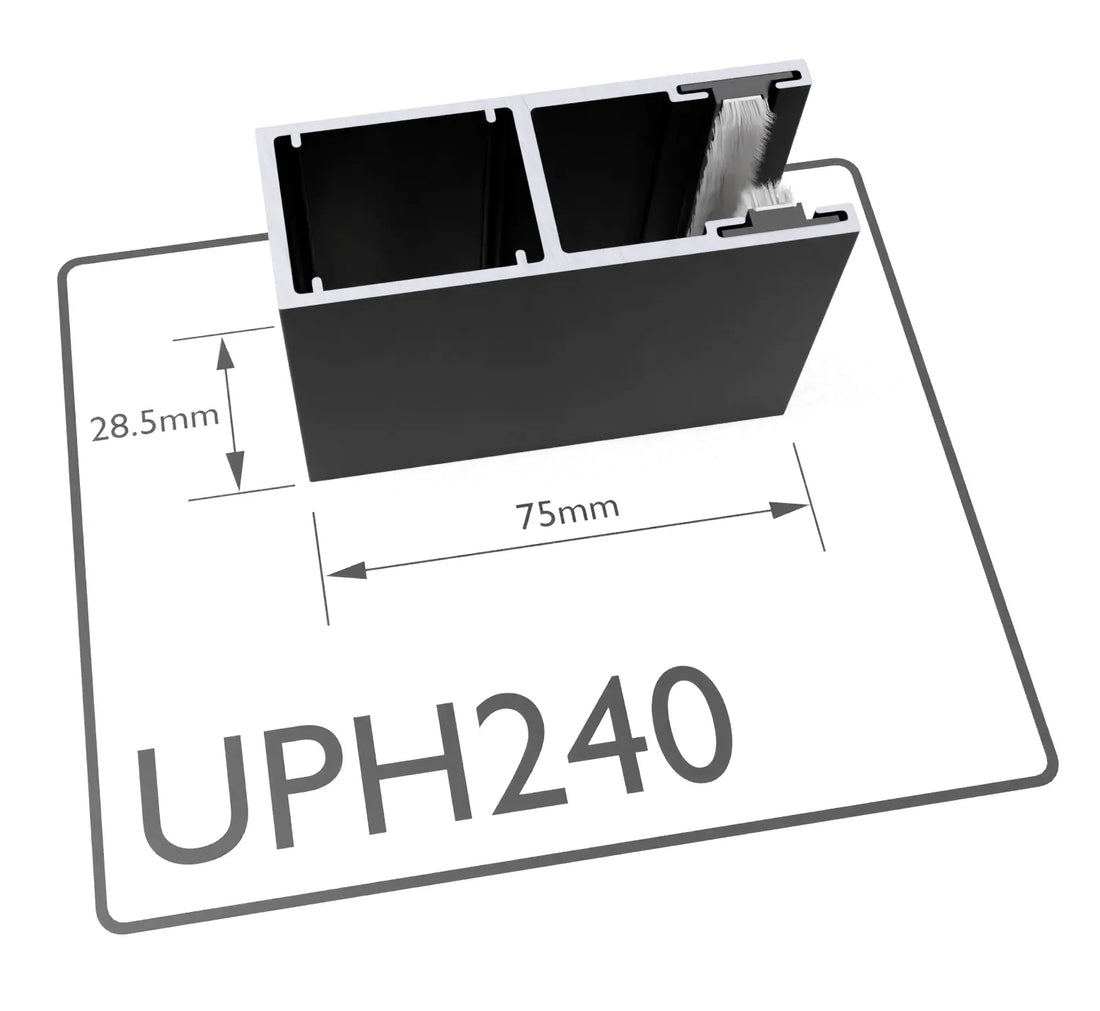

• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Standard Finish: Curtain - Anodised Silver. Box and Guides - Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Punched Aluminium Roller Shutter - 58% Vision. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 3–5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The RA9 Roller Grille Shutter is a mid to premium-range solution, offering a high-visibility, design-led alternative to traditional shutters, ideal for retail and hospitality environments.

Indicative Pricing (Guide Only)

Small (up to 1.5m x 1.5m)

• Supply Only – £900 – £1,800
• Supply & Install – £1,800 – £3,200

Medium (up to 2.5m x 2.5m)

• Supply Only – £1,500 – £3,000
• Supply & Installation – £2,800 – £5,000

Large (up to 4m x 4m)

• Supply Only – £2,800 – £5,500
• Supply & Install – £4,500 – £8,500

What Affects the Price?

• Size of Opening – Larger shutters require more material and stronger components
• Pattern Type – Inline or brickbond design can influence manufacturing cost
• Operation Type – Manual is more cost-effective; electric adds convenience and cost
• Colour Finish – Standard finishes are more affordable; custom RAL/BS increases cost
• Controls & Automation – Remote control and smart systems (Somfy IO) add to the price
• Installation Complexity – Access, fixing detail, and internal structure affect installation cost

Budget Guidance

• A cost effective alternative to tube and link grilles, with a similar open appearance
• Ideal for retail shopfronts, bars, and reception areas where visibility is key
• Electric operation is recommended for frequent daily use

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
