Mesh Window Guards

Effective Window Protection Against Vandalism

Mesh window guards provide a strong barrier to protect glazing from damage, break-ins, and anti-social behaviour

External or Internal Installation

Commonly fitted externally for vandal resistance, but can also be installed internally for added security

Wide Range of Mesh Infill Options

Choose from square mesh, diamond mesh, high-security prison mesh, and perforated mesh panels for varying levels of visibility and protection

Perforated Mesh for Enhanced Aesthetics

Perforated mesh offers a more architectural finish while still providing security and airflow

Custom Made to Measure

All mesh window guards are manufactured to suit your exact window size and site requirements

Medium to High Security Options

Suitable for general protection through to high-risk environments, including LPS1175 Level 4 rated systems

Flexible Frame & Fixing Options

Available in box section, flat bar, or angle frames with multiple fixing methods

Access Options Available

Supplied as fixed panels, hinged units, or lift-out sections for maintenance and access

Stand-Off & Cage Designs

Allows windows to open behind the guard or provides enhanced protection with full cage enclosures

Durable Powder-Coated Finish

Available in a range of standard RAL colours with bespoke options available

Optional Galvanised Protection

Ideal for external mesh window guards to prevent corrosion and extend lifespan

Suitable for Multiple Sectors

Perfect for retail, schools, public buildings, industrial units, and commercial properties

Our Mesh Window Guards are highly versatile and can be tailored to meet a wide range of security requirements, building types, and aesthetic preferences. With multiple mesh types, frame options, and configurations available, each system is designed to suit the specific needs of your project.

Made-to-Measure & Bespoke Design

ll mesh window guards are manufactured to your exact dimensions:

• Suitable for small windows through to large glazed areas
• Designed to fit precisely within or over the opening
• Bespoke designs available for non-standard openings or complex requirements

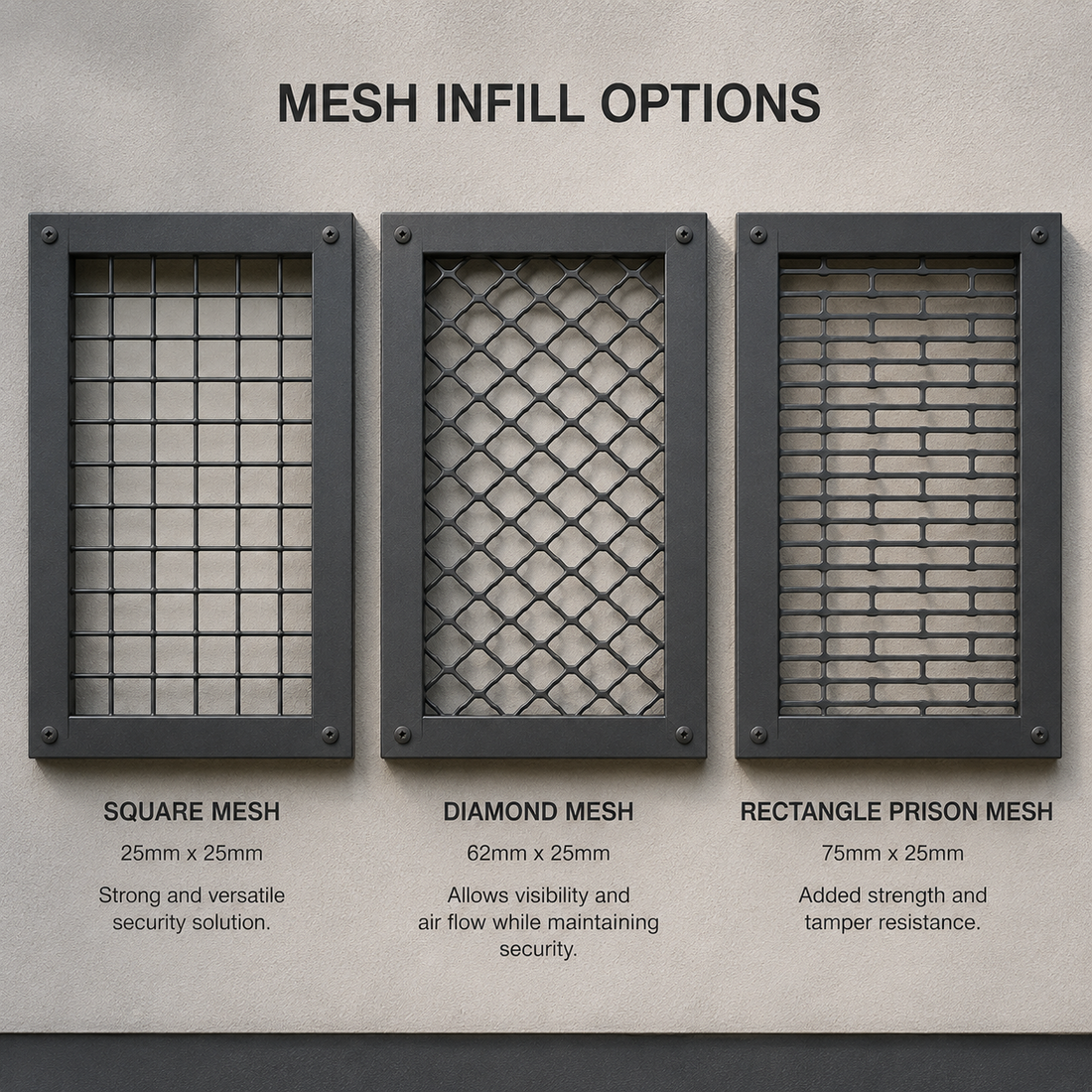

Mesh Infill Options

A wide selection of mesh types allows you to balance security, visibility, and appearance:

Square Mesh

• 25mm x 25mm
• 50mm x 50mm

Popular for general-purpose security with good airflow and visibility

Diamond Mesh

• 14mm x 42mm
• 32mm x 76mm
• 60mm x 90mm

More open and decorative appearance

High Security (Prison Mesh)

• 12.5mm x 75mm

Designed for high-risk environments requiring enhanced protection

Perforated Mesh Panels

• Architectural appearance with controlled visibility
• Provides additional screening while maintaining airflow

For high-risk sites, we can also supply security-rated mesh window guards tested up to LPS1175 Level 4.

Frame Types

Choose from a range of frame constructions to suit your installation method:

Box Section Frame (Standard)

• Strong, clean appearance
• Concealed fixings for improved tamper resistance

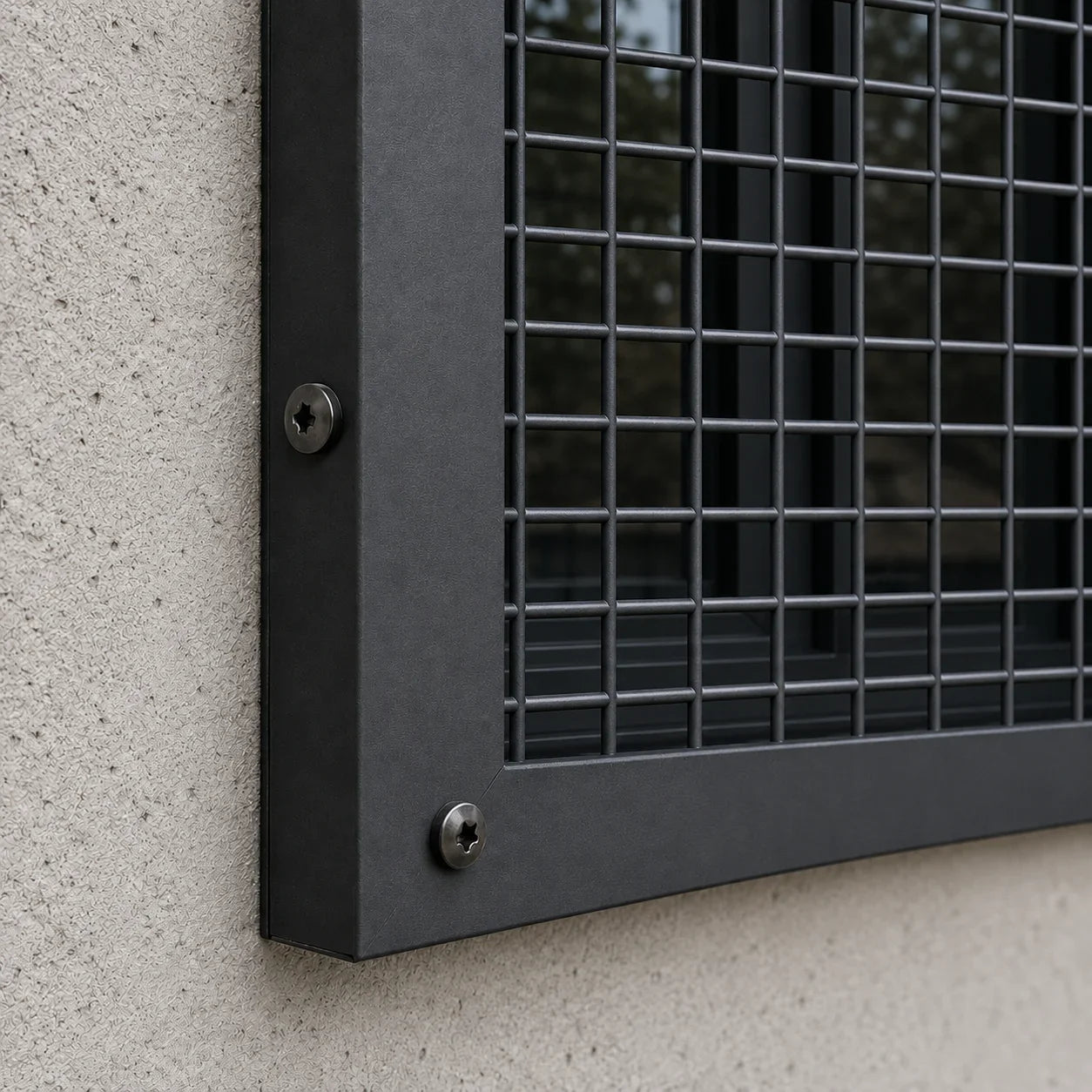

Flat Bar Frame

• Ideal for face fixing to walls or doors

Angle Frame

• Suitable for stand-off installations and industrial applications

Installation Options

Flexible fixing methods to suit different building structures:

• Face fix
• Reveal fix
• Stand-off fix (allows window operation behind the guard)

Suitable for both internal and external installations, depending on application.

Access & Configuration Options

To meet operational and maintenance requirements:

• Fixed Panels (standard)
• Hinged Panels – For access, cleaning, or emergency use
• Lift-Out Panels – Removable option for smaller openings

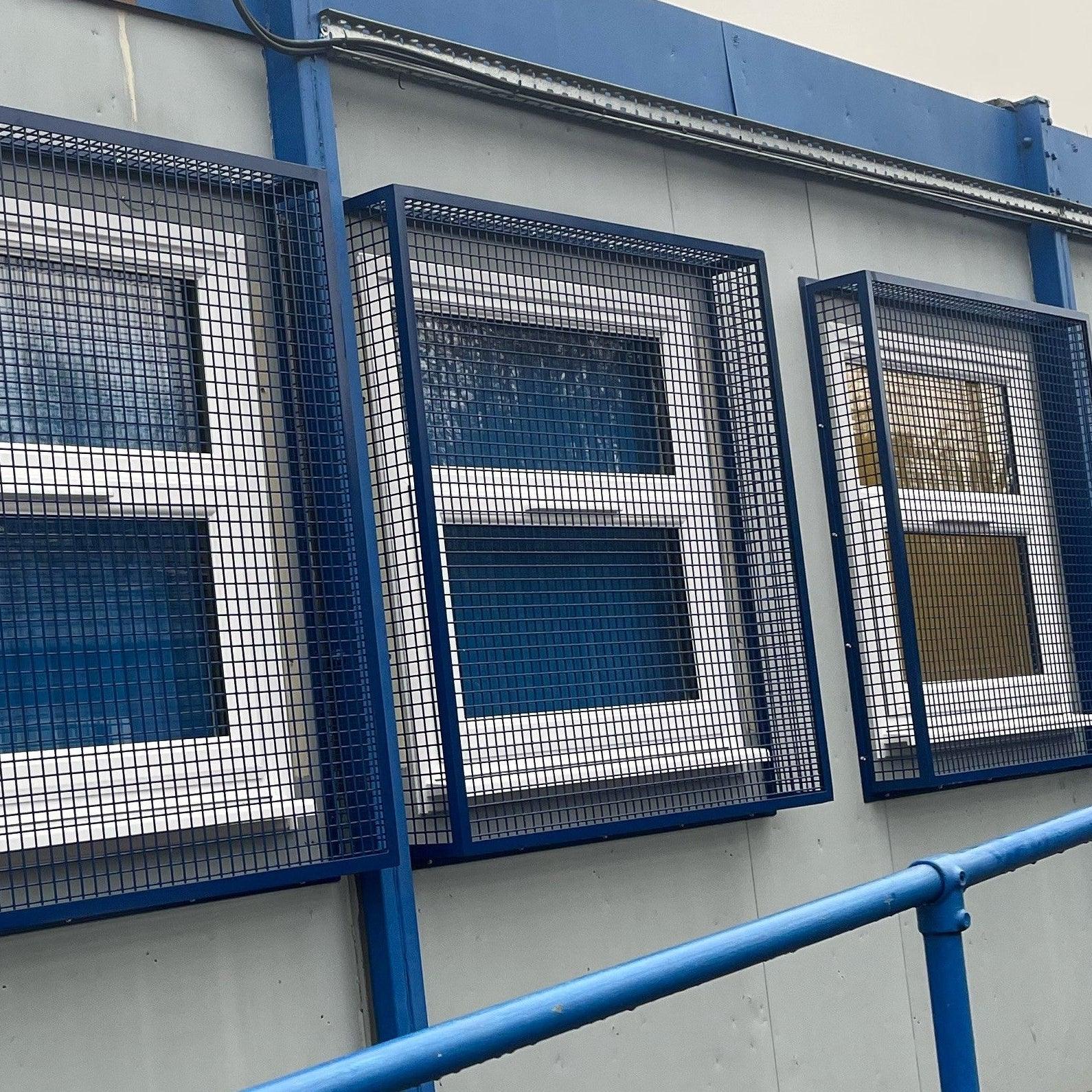

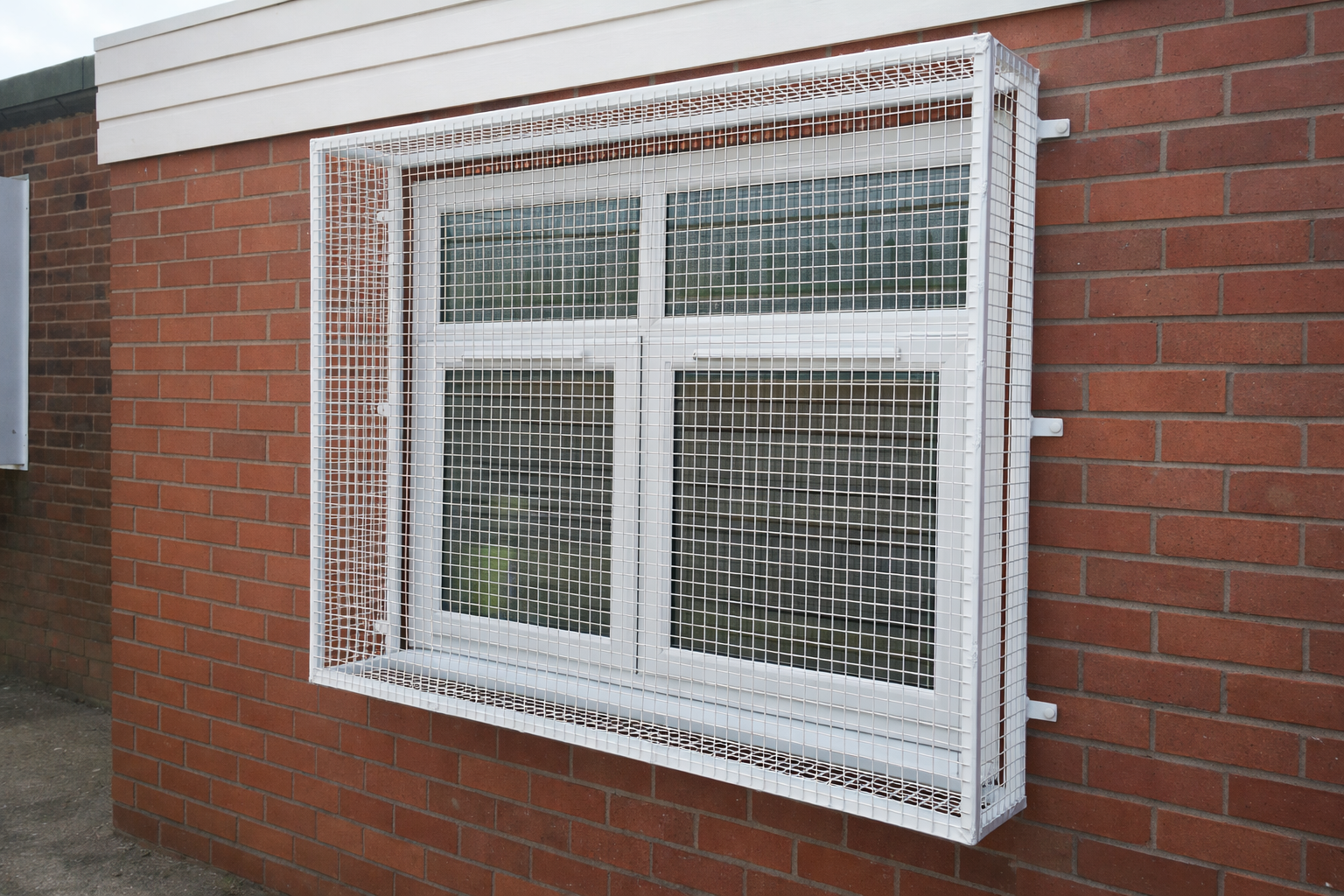

Stand-Off & Cage Designs

• Stand-off legs allow windows to open behind the mesh
• Cage designs provide full enclosure for higher security applications
• Ideal for protecting vulnerable or high-value assets

Cut-Outs & Site-Specific Modifications

• Custom cut-outs for handles, vents, pipes, sensors, and services
• Ensures functionality is maintained without compromising security

Colour & Finish Options

• Supplied in 13 standard RAL coloursFull RAL / BS colour matching available for bespoke projects
• Designed to complement both functional and architectural requirements

Corrosion Protection (External Use)

• Optional zinc primer coating
• Optional hot-dip galvanising for maximum durability
• Recommended for exposed or harsh environments

Application Flexibility

Suitable for a wide range of environments, including:

• Retail and commercial properties
• Schools and public buildings
• Industrial and warehouse facilities

High-risk and high-security locations

These design and customisation options ensure mesh window guards deliver the ideal combination of security, durability, and visual integration, from basic vandal protection to certified high-security installations.

Product Type:

• Steel mesh window guards / security grilles

Construction:

• Fully welded steel mesh infill within a rigid steel frame
• Designed for strength, durability, and long service life
• Suitable for both internal and external applications

Mesh Infill Options:

Square Mesh:

• 25mm x 25mm
• 50mm x 50mm

Diamond Mesh:

• 14mm x 42mm
• 32mm x 76mm
• 60mm x 90mm

High Security (Prison Mesh):

• 12.5mm x 75mm

Perforated Mesh Panels:

• Solid sheet with perforations for controlled visibility and airflow

Security Rating (Optional):

• Available as security-rated mesh window guards
• Tested up to LPS1175 Security Rating Level 4

Frame Types:

• Box Section Frame (Standard) – Fully welded with concealed fixings
• Flat Bar Frame – Suitable for face fixing
• Angle Frame – Ideal for stand-off or industrial installations

Panel Types:

• Fixed panels (standard)Hinged panels for access
• Lift-out removable panels (lockable option)

Installation Options:

• Face fix or reveal fix
• Stand-off fix using welded legs
• Suitable for fixing into masonry, brickwork, or structural openings

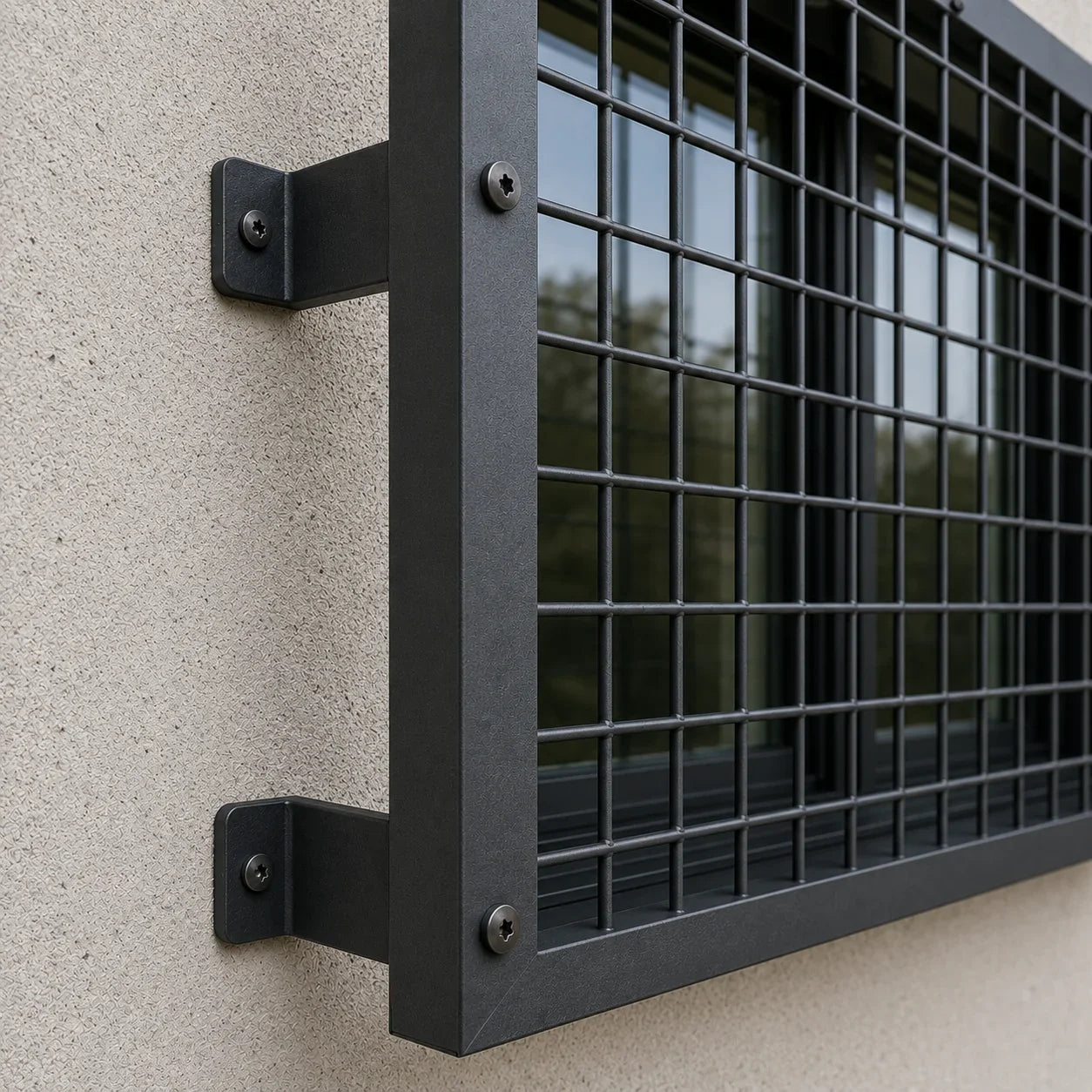

Stand-Off Options:

• Optional stand-off brackets or legs
• Allows windows to open behind the mesh guard

Cage Design (Optional):

• Full mesh enclosure for enhanced protection
• Suitable for high-risk or vulnerable areas

Cut-Outs & Modifications:

• Custom cut-outs available for vents, pipes, handles, sensors, and services

Finish:

• Powder coated as standard
• Available in 13 standard RAL colours
• Full RAL / BS colour range available on request

Corrosion Protection (External Use):

• Optional zinc primer coating
• Optional hot-dip galvanised finish for long-term durability

Sizes:

• Made to measure to suit individual openings
• Panels can be split for larger openings and assembled on site

Usage:

• Suitable for commercial, industrial, retail, and public sector buildings
• Ideal for vandal protection and medium to high-security applications

Durability:

• Designed for long-term internal and external use
• Resistant to impact and environmental exposure

Maintenance:

• Low maintenance
• Periodic inspection recommended

Compliance:

• Can be manufactured to meet project-specific security requirements
• Optional compliance with LPS1175 security standards

Warranty:

• Typically supplied with a 12-month manufacturer’s warranty (subject to specification)

Our mesh window guards are manufactured to order, with a typical lead time of 4–5 weeks from order confirmation and final specification. This allows each system to be produced to the required size, mesh type, frame design, and finish.

Lead times can vary depending on mesh specification, frame type, and project complexity, particularly for bespoke designs, large quantities, or security-rated systems such as LPS1175 Level 4 mesh window guards.

Where hot-dip galvanising is specified for external installations, additional time should be allowed, which may extend the lead time beyond the standard 4–5 weeks. We will always confirm accurate timescales at quotation stage to ensure alignment with your project programme.

The cost of mesh window guards is generally competitive, offering a strong balance between security, durability, and cost-effectiveness. Pricing will vary depending on mesh type, frame specification, and installation requirements.

Indicative Pricing

Small Windows (Up to 1m²)

• Supply Only: £120 – £300
• Supply & Install: £250 – £450

Medium Windows (1m² – 2m²)

• Supply Only: £250 – £500
• Supply & Install: £400 – £700

Large Windows (2m²+)

• Supply Only: £400 – £900+
• Supply & Install: £600 – £1,200+

High Security / LPS1175 Rated Mesh Window Guards

• Supply Only: £600 – £1,800+
• Supply & Install: £900 – £2,500+

Cage Designs / Full Enclosures

• Supply Only: £800 – £2,000+
• Supply & Install: £1,200 – £3,000+

Factors Affecting Price

Several factors will influence the final cost:

Mesh Type:

• Square, diamond, perforated, or high-security prison mesh

Security Level:

• Standard vs LPS1175-rated systems

Size of Opening:

• Larger windows require more material and fabrication

Frame Type:

• Box section, flat bar, or angle frame

Design Complexity:

• Fixed, hinged, lift-out, or cage configurations

Finish:

• Standard powder coating vs galvanised and powder-coated

Installation Requirements:

• Access, fixing method, and site conditions

Installation Considerations

Mesh window guards often require:

• Installation into masonry or structural openings
• Use of stand-off brackets where windows need to open behind the mesh
• Working at height for upper-level installations
• Coordination with other building elements such as vents or services

Additional Costs to Consider

• Hot-dip galvanising for external installations
• Bespoke cut-outs for vents, pipes, or sensors
• Access equipment (scaffolding, lifts)
• Removal of existing guards or obstructions

Budget Guidance

Typical budgets are:

• Domestic / light commercial: £300 – £700 per window installed
• Commercial / higher risk environments: £600 – £1,500+ per window installed
• High-security applications: £1,000 – £2,500+ per window installed

Get an Accurate Quote

As all mesh window guards are made to measure, we recommend requesting a tailored quotation. Our team can advise on the best mesh type and specification to achieve the right balance of security, visibility, and budget for your project.
