CrimeShield Perforated Window Security Mesh

Effective Protection Against Vandalism

CrimeShield provides a robust barrier to help protect vulnerable windows and glazing from vandalism, impact damage and unauthorised access.

2mm Perforated Steel Screen

Manufactured from 2mm thick galvanised steel sheet with a matrix of perforations for strength while maintaining visibility.

60% Free Area

The perforated steel provides a 60% free area, helping maintain natural light, visibility and ventilation through the window.

Discreet Architectural Appearance

Designed as a more attractive alternative to traditional window bars, welded mesh and expanded metal security screens.

Protects Windows & Glazing

The perforated steel screen helps protect glazing against deliberate impact, thrown objects and other forms of vandalism.

Custom Made to Measure

Each CrimeShield system is manufactured to suit the individual window or glazed door opening and site requirements.

Heavy-Duty Aluminium Frame

The perforated steel screen is securely housed within an architecturally designed, heavy-gauge aluminium frame system.

Flexible Fixing Options

Installation options include fixing between the reveals or face fixing directly to suitable window frames, subject to site conditions.

Durable Powder-Coated Finish

The system features an external-grade polyester powder-coated finish, with standard and optional colours available.

Internal or External Installation

CrimeShield can be positioned in front of or behind existing windows, depending on the application and fixing arrangement.

Suitable for Multiple Sectors

Ideal for schools, shops, offices, factories, supermarkets, public buildings and other vandal-prone locations.

CrimeShield Perforated Window Security Mesh is custom manufactured to provide discreet protection for vulnerable windows and glazed areas. The combination of perforated galvanised steel and an aluminium frame provides a clean architectural appearance while maintaining natural light, visibility and airflow.

Made-to-Measure Design

Each CrimeShield panel is manufactured to suit the individual window or glazed opening:-

• Made to your required width and height
• Suitable for a variety of window and glazed door sizes
• Designed to fit within or over the existing opening
• Manufactured as a fixed security panel

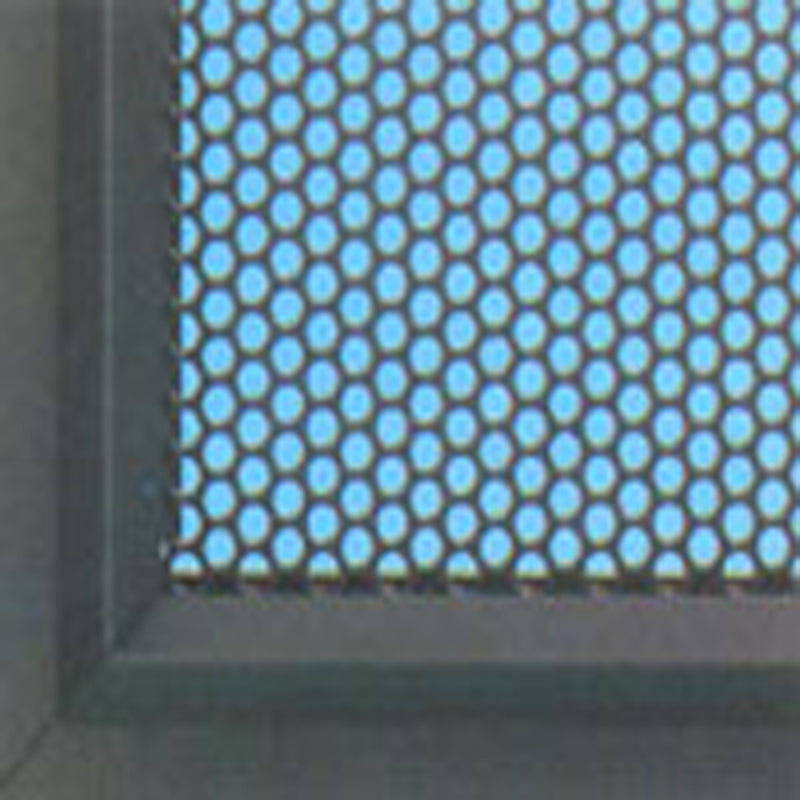

2mm Perforated Steel

CrimeShield uses a specially perforated steel screen designed to combine protection with visibility:-

• 2mm thick galvanised steel sheet
• Matrix of perforations across the panel
• 60% free area
• Helps maintain natural light and airflow
• Provides a less intrusive appearance than traditional bars or welded mesh

Aluminium Frame System

The perforated steel panel is securely housed within a purpose-designed aluminium frame:-

• Heavy-gauge aluminium construction
• Two-piece frame system
• Mitred and welded construction
• Clean architectural appearance
• Designed to securely retain the perforated steel panel

Fixed Panel Design

Security Direct supplies CrimeShield as a fixed window protection system:-

• Fixed panels only
• Designed for permanent protection of vulnerable glazing
• No hinged or lift-out options
• Suitable where regular access through the security panel is not required

Consideration should be given to window operation, cleaning and maintenance requirements before ordering.

Installation Options

The fixing arrangement will depend on the window, surrounding structure and available fixing positions.Typical configurations include:-

• Reveal Fix – Installed between the structural reveals
• Face Fix - Installed over the opening or to a suitable window/frame construction
• Internal or External Installation – Subject to the opening, structure and project requirements

The final fixing method should be confirmed to suit the individual application.

Colour & Finish Options

CrimeShield is designed to provide a more architectural appearance than conventional security mesh or window bars:-

• Mesh - External-grade polyester powder-coated finish- Black Only
• Frame - External-grade polyester powder-coated finish- Black or white finishes available - Alternative colours available subject to specification
• Suitable for internal and external applications

Site-Specific Requirements

Every installation should be considered individually to ensure the CrimeShield panel does not interfere with the existing window or surrounding building elements.Considerations include:-

• Window handles and opening mechanisms
• Window sills and surrounding reveals
• Existing frames and suitable fixing positions
• Vents and other building services
• Access requirements for window cleaning and maintenance

Application Flexibility

CrimeShield is particularly suited to locations where glazing requires additional protection without the appearance of conventional security bars, including:-

• Schools and educational buildings
• Shops and retail premises
• Offices and commercial properties
• Factories and industrial buildings
• Supermarkets
• Public buildings

CrimeShield provides a discreet, made-to-measure solution for protecting vulnerable glazing while retaining natural light, airflow and the appearance of the existing building.

Perforated Steel Mesh

• Material: Galvanised steel sheet
• Thickness: 2mm
• Type: Perforated steel security screen
• Free Area: 60%- Mesh Finish
• External-grade polyester powder coating
• Mesh Colour: Black only- Designed to maintain natural light, visibility and airflow while protecting vulnerable glazing

Aluminium Frame

• Material: Heavy-gauge aluminium extrusion
• Construction: Two-piece aluminium frame system
• Corners: Mitred and welded construction
• Standard Frame Colours: Black or White
• Bespoke Frame Colours: Available powder coated to any BS or RAL colour
• Finish: External-grade polyester powder coating

Please Note: Bespoke colour options apply to the aluminium frame only. The perforated steel mesh is supplied black only.

Panel Configuration

• Design: Fixed panel
• Manufacture: Made to measure
• Manufactured to suit the individual opening and fixing requirements

Fixing Options

CrimeShield can be installed using different fixing arrangements depending on the window and surrounding construction:-

• Reveal fixing between the opening
• Face fixing over the opening
• Fixing to suitable window frames where appropriate
• Internal or external installation

The fixing method will depend on the available substrate, window construction and site conditions.

Performance & Protection

• Helps protect glazing against vandalism and impact damage
• Provides a physical barrier against unauthorised access through vulnerable windows
• 60% free area helps retain visibility, natural light and ventilation
• Suitable for internal and external applications

Typical Applications

Suitable for a range of commercial, industrial and public-sector buildings, including:-

• Schools and educational buildings
• Retail premises and shops
• Offices
• Factories and industrial buildings
• Warehouses
• Supermarkets
• Public buildings

Our CrimeShield Perforated Window Security Mesh is manufactured to order, with a typical lead time of 3–4 weeks from order confirmation and final specification. Each panel is made to measure to suit the required opening, fixing arrangement and frame finish.

Lead times may vary depending on order quantity, panel sizes and bespoke frame colours. Where a specific BS or RAL colour is required for the aluminium frame, additional manufacturing time may be required. We will confirm the expected lead time at quotation or order stage.

Installation

CrimeShield is supplied as a fixed security panel and can be installed internally or externally, depending on the window construction and project requirements.

Typical installation methods include:

• Reveal Fix – Installed within the structural opening
• Face Fix – Installed over the opening
• Frame Fix – Fixed directly to a suitable window frame where appropriate

All installations require a suitable and secure fixing substrate. The proposed fixing method will be determined by the window construction, surrounding structure and site conditions.

Professional Installation

Security Direct can provide a professional installation service throughout the UK. Where installation is required, we will assess the opening and fixing conditions to determine the appropriate installation method.

CrimeShield panels can also be supplied on a supply-only basis, subject to the installer ensuring suitable fixings and installation methods are used for the supporting structure.

The cost of mesh window guards is generally competitive, offering a strong balance between security, durability, and cost-effectiveness. Pricing will vary depending on mesh type, frame specification, and installation requirements.

Indicative Pricing

Small Windows (Up to 1m²)

• Supply Only: £250 – £300
• Supply & Install: £500 – £800

Medium Windows (2m²)

• Supply Only: £800 – £900
• Supply & Install: £1200 – £1500

Installation Considerations

Mesh window guards often require:

• Installation into masonry or structural openings
• Working at height for upper-level installations
• Coordination with other building elements such as vents or services

Additional Costs to Consider

• Bespoke cut-outs for vents, pipes, or sensors
• Access equipment (scaffolding, lifts)
• Removal of existing guards or obstructions

Get an Accurate Quote

As all Crimeshield window guards are made to measure, we recommend requesting a tailored quotation. Our team can advise on the best mesh type and specification to achieve the right balance of security, visibility, and budget for your project.
