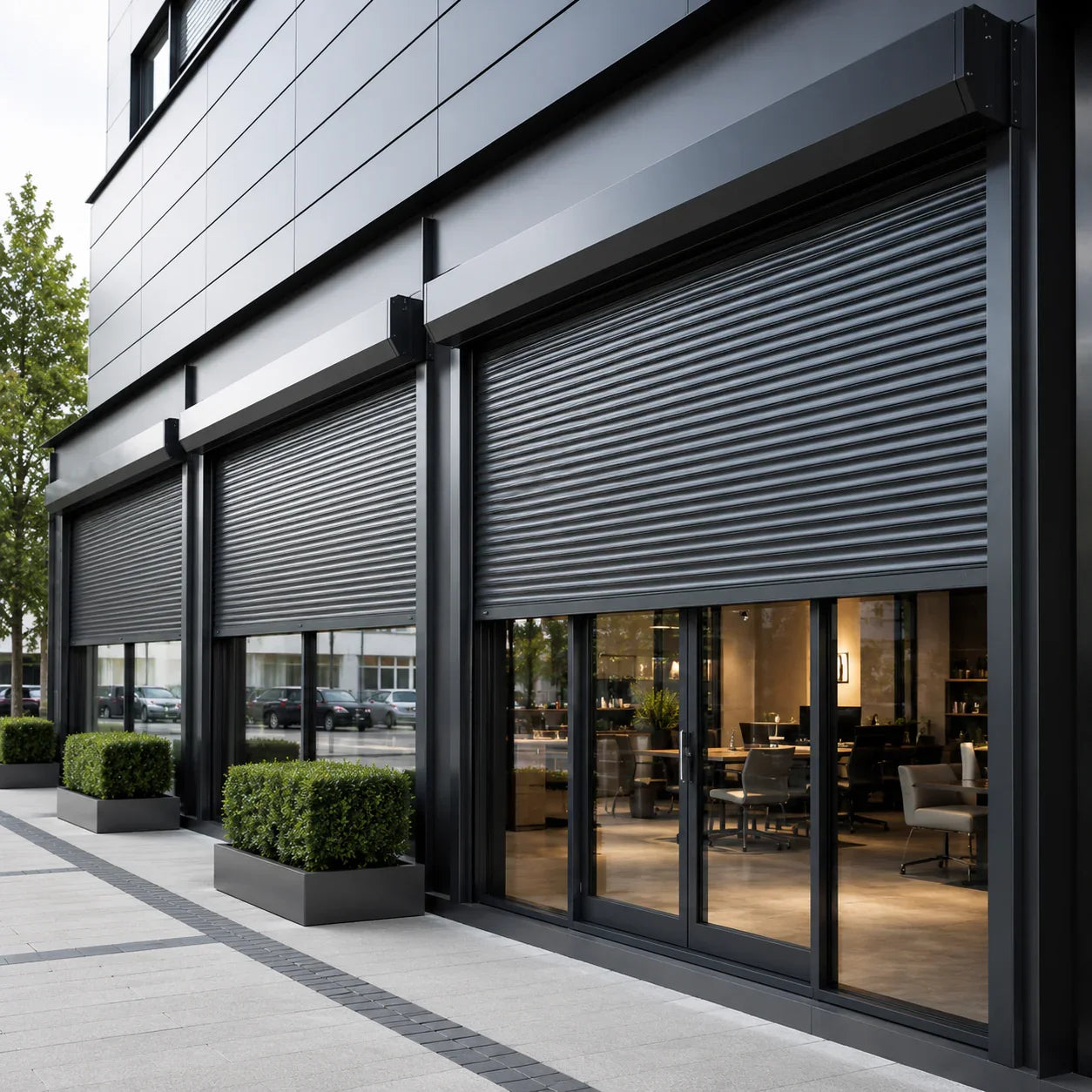

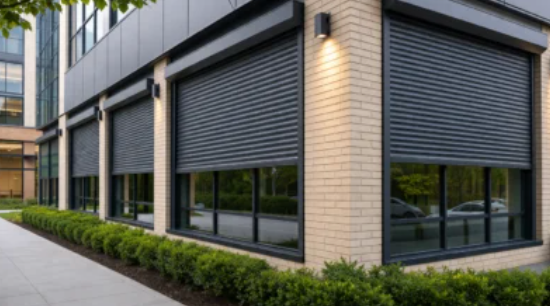

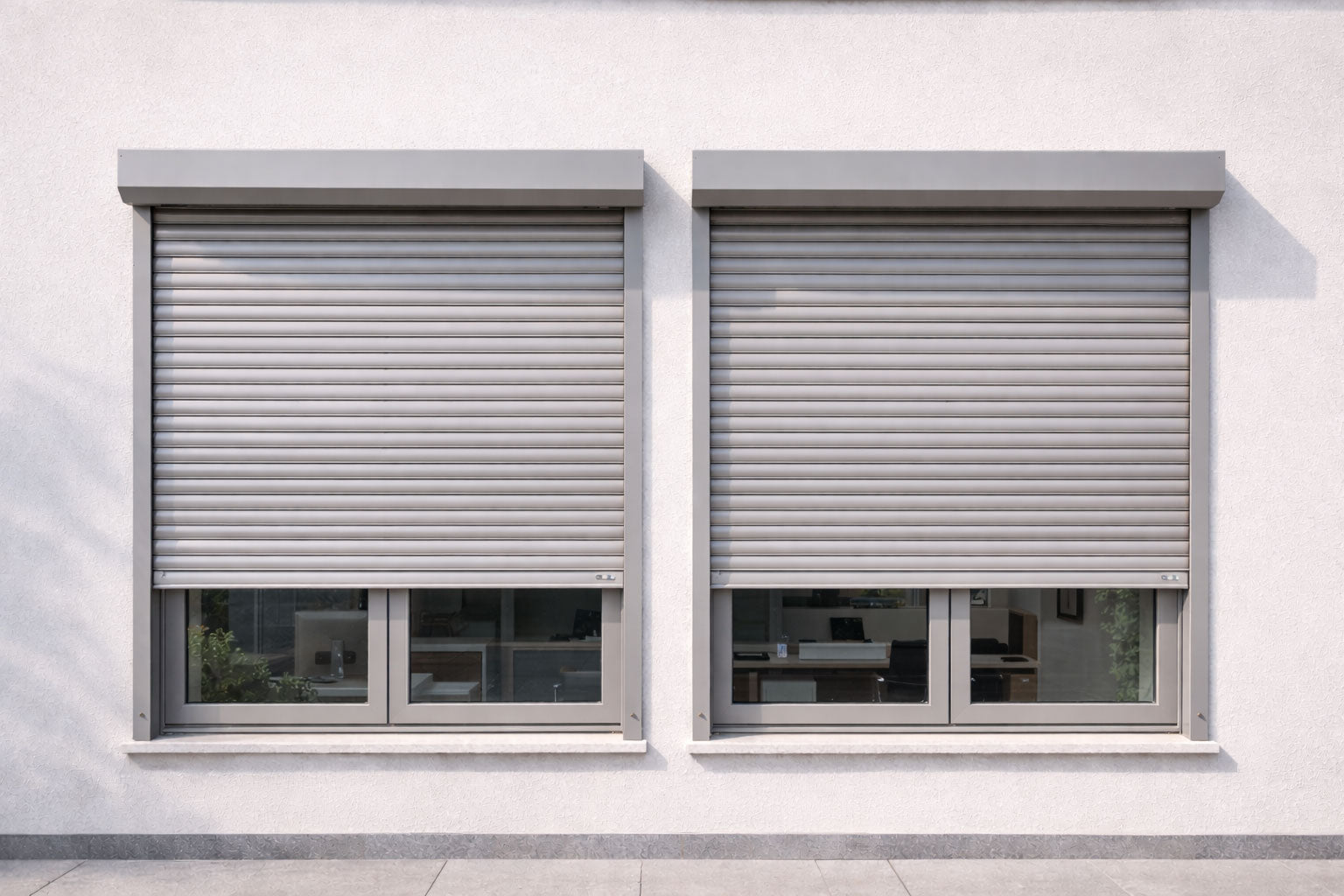

Exterior Steel Window Roller Shutters

Medium Security for Commercial Windows A strong steel barrier over the glass, locked down with a two-point bottom lath lock. Bullet locks are available at extra cost.

Built for Outside Fitting Galvanised steel box, guides and laths as standard. An optional fascia and hood covers the shutter box and mechanism.

Windlocking Guides Optional windlocking guides hold the curtain in place for added security on windy or exposed sites.

Power Cut Back-up Electric shutters can have a manual override, so you can still open and close the shutter in a power cut.

5-Year Motor Warranty The tube motor comes with a 5-year manufacturer's parts warranty.

Light Daily Use The tube motor suits 3–4 operations a day. For heavier use, ask us about our industrial steel roller shutters.

Laths

• Solid (standard)

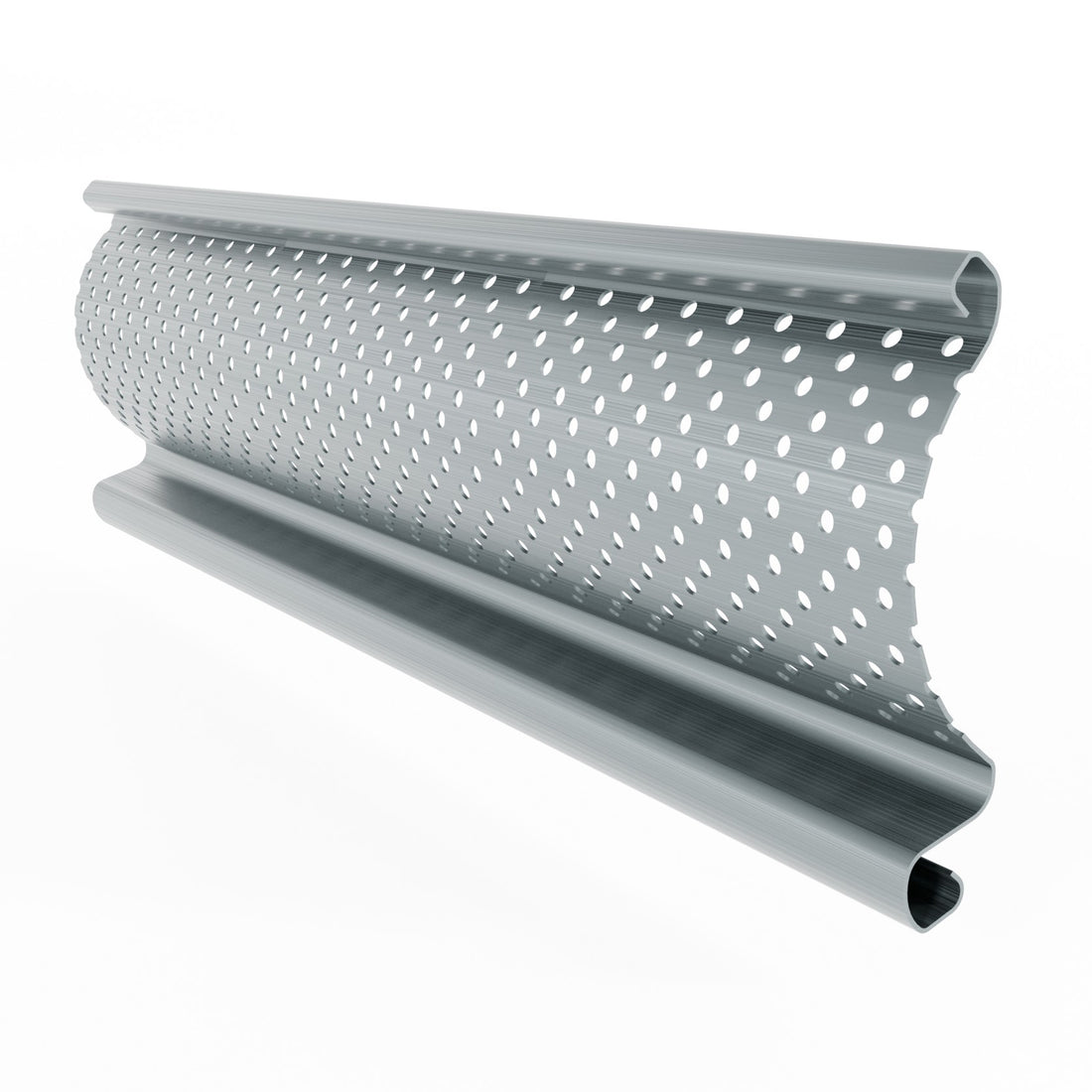

• Perforated – 18% vision (extra cost)
• Punched – 25% vision (extra cost)

Finish

• Galvanised as standard
• Powder coated White, Brown, Black or Cream
• Any other BS or RAL colour at extra cost

Shutter box

• Galvanised steel casing and end plates
• Optional fascia and hood (extra cost)

Bottom rail

• "T" rail as standard
• "L" rail for face fixing, or to clear a door handle on one side
• Rubber bottom seal and safety edge (extra cost)

Guides

• 50mm, 65mm or 100mm galvanised "U" channel, depending on size
• Windlocking guides (optional)
• Bolted onto angle or box section

Controls (electric)

• Internal toggle switch as standard
• Options: external key switch, keypad, remote control, smartphone control, high security tag system

• Product code: RS75

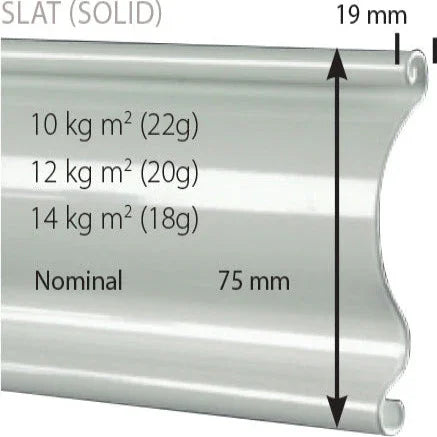

• Curtain: single skin 75mm curved galvanised steel lath
• Lath thickness: 0.7mm (22G), 0.9mm (20G) or 1.2mm (18G), depending on width
• Maximum width: 7000mm
• Maximum height: 5000mm
• Weight: approx. 12kg/m²
• Guides: 50mm, 65mm or 100mm galvanised "U" channel
• Bottom rail: galvanised "T" rail ("L" rail optional)
• Shutter box: galvanised steel casing and end plates
• Operation: manual spring and lock, or single phase tube motor
• Motor duty: 3–4 operations per day
• Motor warranty: 5 years, manufacturer's parts
• Locking: two-point bottom lath lock (manual); bullet locks optional
• Security level: medium security (not LPS1175 rated)
• Compliance: CE marked, UKCA

Supply only: 2–3 weeks (10–15 working days) from order confirmation and approved measurements. Lead times are subject to change.

Supply and fit: 4–5 weeks.

For supply and fit, we survey the site first to confirm sizes, fixing details and power before manufacture. Guides are bolted onto angle or box section to suit the opening. If you're fitting it yourself, our team can help with measuring and specification.

Prices from £546 for a 1000mm x 1000mm overall size, manual operation, supply only.

The final price depends on:

• Width and height of the opening (this also sets the lath thickness)
• Lath type: solid, perforated or punched
• Manual or electric operation, and the controls you choose
• Finish: galvanised, standard powder coat or a special RAL/BS colour
• Extras: fascia and hood, windlocking guides, bullet locks, bottom seal or safety edge
• Supply only or supply and fit

Is it worth it? For most offices and shops, RS75 is a cost-effective way to add medium security. If your insurer asks for an LPS1175 rated shutter, contact us and we'll recommend one.
