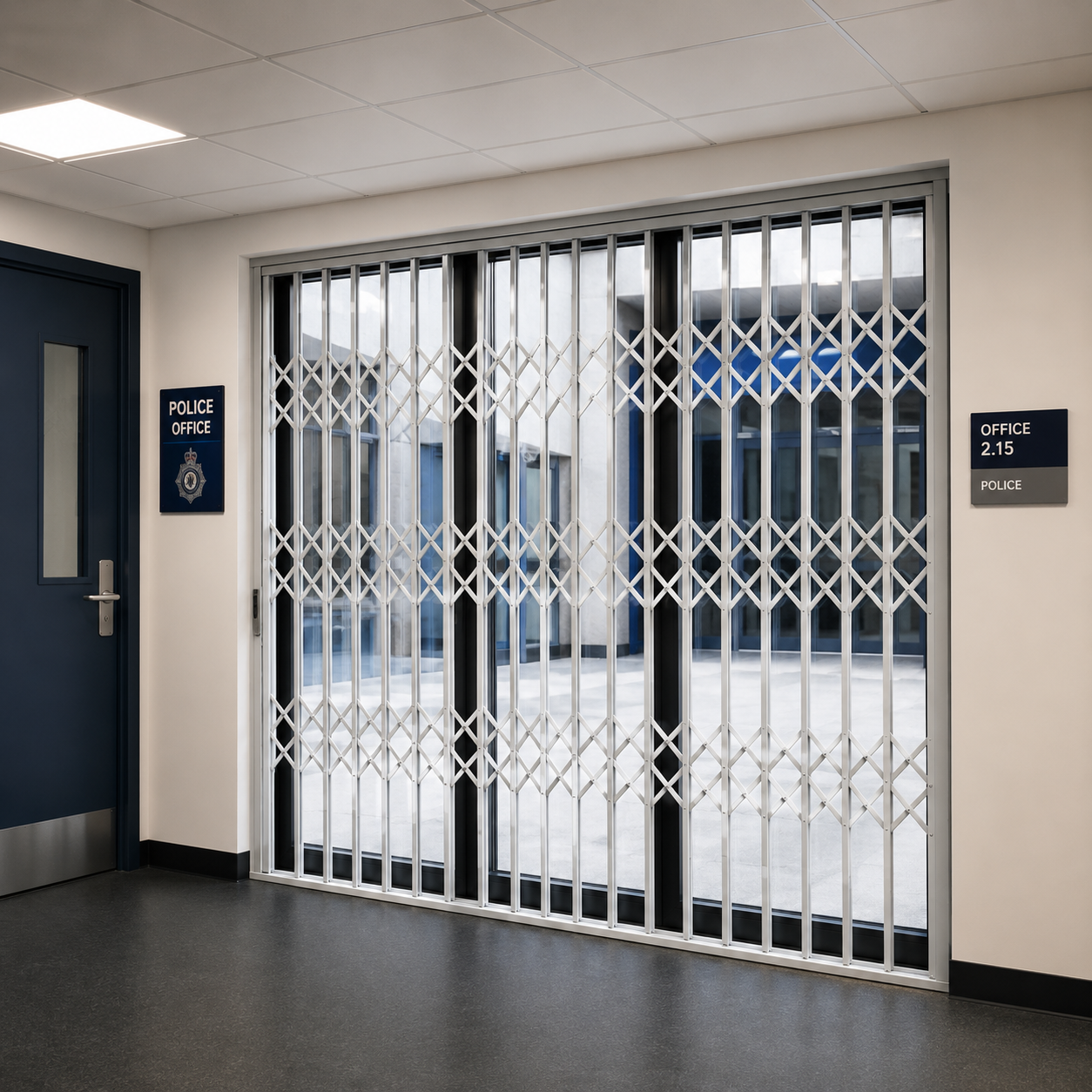

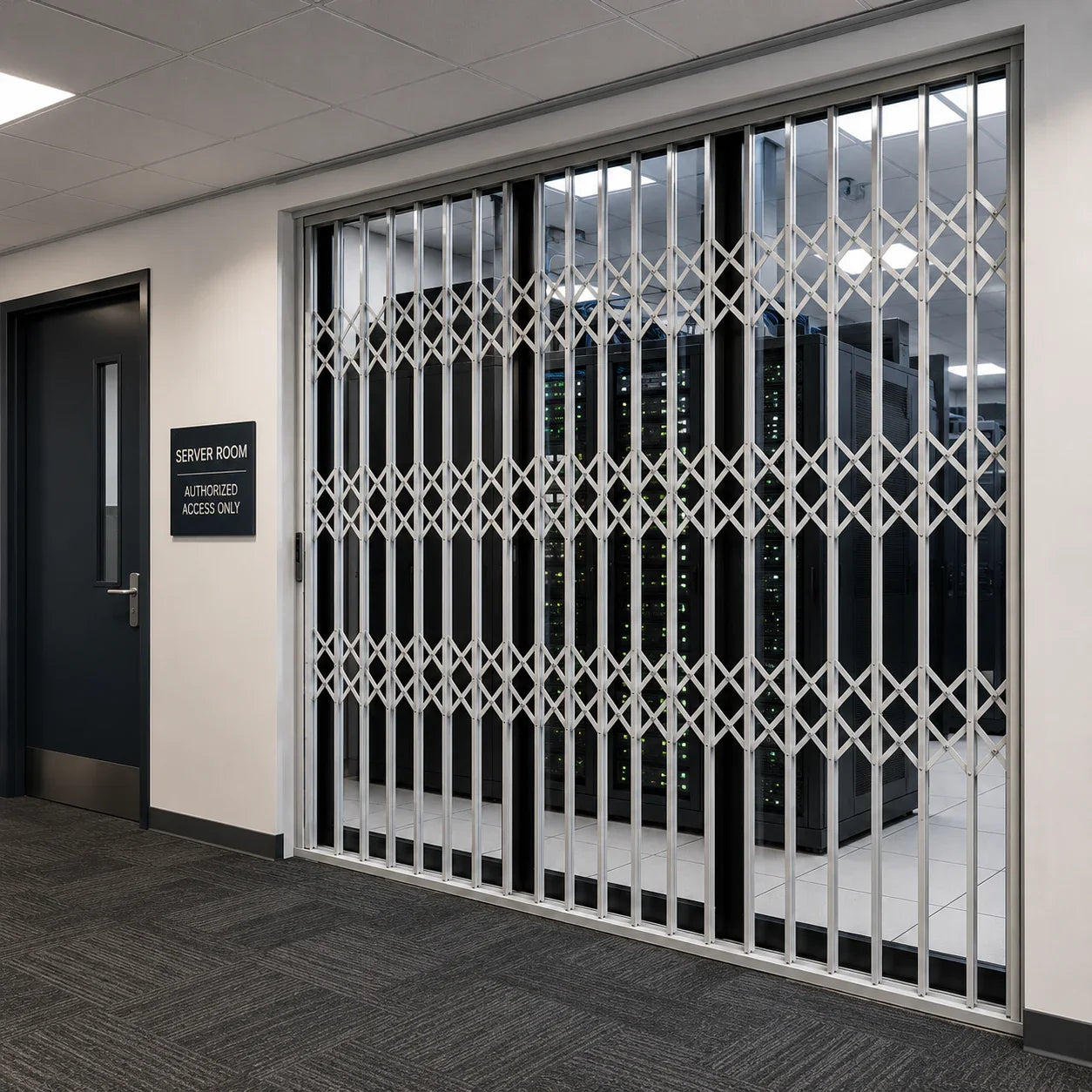

Insurance Approved - Level 2 Retractable Security Grille

LPCB Certified High Security Protection

CS12 retractable grille tested to LPS1175 Security Rating 2 (SR2) for enhanced resistance

Secured by Design Approved

Meets police and insurance-preferred standards for high-risk environments

Multi-Point Locking System

Heavy-duty integral lock with reinforced attack plates for increased protection

Smooth & Reliable Operation

Top-rolling system with nylon-coated bearings for quiet, effortless use

Robust Steel / Aluminium Construction

Engineered for strength, durability, and long-term performance

Flexible Configuration Options

Available as single sash, double sash, or fixed sash to suit different openings

Fixed Track System for Security Compliance

Designed with a fixed bottom track to maintain certified performance

Discreet Internal Installation

Provides strong protection while maintaining light and visibility

CS12 Pro Enhanced Features

Includes unlimited widths, angled installations, and emergency escape lock options

EMESC Emergency Escape Lock Option (Pro Version)

Ideal for fire escape routes with integrated 4-point deadlock system

Custom Made to Measure

Manufactured to suit a wide range of window and door openings

Custom Colour Finishes Available

Standard RAL 9016 White or upgrade to any RAL / BS colour

The CS12 Retractable Grille is designed to meet strict LPS1175 SR2 certification requirements, while still offering flexibility to suit a wide range of openings, applications, and building layouts. Both the standard and Pro versions provide tailored solutions for high-security environments.

Made-to-Measure Design

All CS12 grilles are manufactured to your exact dimensions:

• Suitable for windows, doors, and shopfronts
• Designed for a precise internal fit
• Standard version: Typical size limitations apply
• Pro version: Unlimited widths available for large or complex openings

Configuration Options

The CS12 can be configured to suit operational requirements:

Single Sash

• Locks to one side and stacks to the other
• Ideal for smaller or single-access openings

Double Sash

• Locks centrally and stacks to both sides
• Suitable for wider openings and balanced access

Fixed Sash

• Permanent installation where access is not required
• Maximum security with no moving parts

Lattice Design

• “X” Lattice Pattern (Standard)
• Proven high-security design
• Optimised for strength and compliance with SR2 rating

Bottom Track Requirement

• Fixed Bottom Track Only
• Required to maintain LPS1175 SR2 certification
• For doorways, the track must be rebated (sunk) into the floor to eliminate trip hazards

Installation Options

• Face fix or reveal fix depending on site conditions
• Internal installation only
• Must be installed in accordance with LPCB-approved fixing methods

CS12 Pro Version Enhancements

The Pro version offers additional flexibility while maintaining certification:

• Unlimited width capability for large spans
• Angular installations (90°–135°) for corner or multi-faceted layouts
• Ability to butt multiple grilles together while maintaining SR2 security rating
• Ideal for complex architectural designs and large commercial projects

Emergency Escape Lock Option (Pro Version)

• EMESC-certified emergency escape lock available
• Incorporates a 4-point deadlocking system
• Suitable for fire escape routes and regulated environments
• Allows safe egress while maintaining security compliance

Colour & Finish Options

• Standard finish: RAL 9016 White
• Full RAL / BS colour range available on request
• Designed to match interior finishes or branding requirements

Security-Focused Design Constraints

To maintain certification:

• Fixed track system is mandatory
• Lattice design and structural configuration cannot be altered beyond tested parameters
• Installation must follow approved methods

Application Flexibility

Suitable for:

• Retail shopfronts

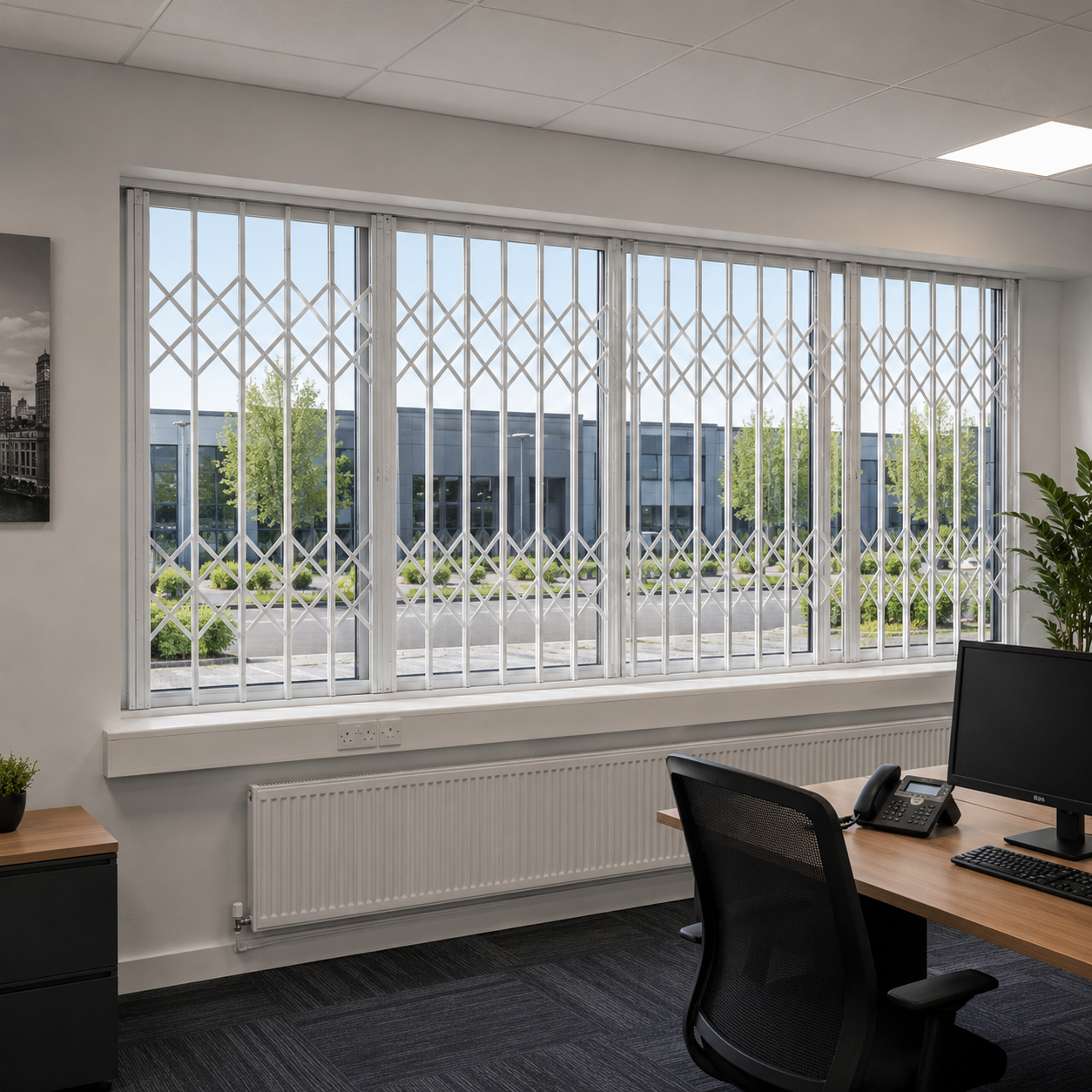

• Commercial offices and warehouses
• Public sector buildings (schools, hospitals, government)
• High-security and insurance-approved environments

These design and customisation options ensure the CS12 provides a fully compliant, high-security solution, while still allowing flexibility for layout, access, and aesthetic integration, particularly with the enhanced capabilities of the CS12 Pro version.

Product Type:

• LPCB certified retractable folding security grille

Security Rating:

• Tested and certified to LPS1175 Issue 7/8 – Security Rating 2 (SR2 / B3)
• Certified by the Loss Prevention Certification Board (LPCB)
• Approved under Secured by Design (SBD)

Construction:

• High-strength steel or aluminium construction
• Fully welded design for enhanced durability
• Engineered to resist forced entry, cutting, and prying attacks

Lattice Design:

• “X” lattice pattern (security-optimised design)

Operation:

• Top-hung, top-rolling system
• Fitted with nylon-coated bearings for smooth and quiet operation
• Designed for regular daily use in commercial environments

Locking System:

• Multi-point locking system as standard
• Reinforced with attack plates for increased resistance
• Secure locking across the full opening

CS12 Pro Locking Option:

• Optional EMESC-certified emergency escape lock
• Includes 4-point deadlocking system
• Suitable for fire escape routes and compliant egress

Configurations:

• Single sash
• Double sash
• Fixed sash

Stacking Options:

• Single stack or double stack
• Allows grille to retract to one or both sides

Bottom Track:

• Fixed bottom track only (required for SR2 certification)
• Must be rebated into the floor for doorways

Design Capabilities:

• Standard Version: Suitable for typical window and door sizes
• Pro Version: Unlimited width capability
• Angular installation (90°–135°)
• Multiple grilles can be linked while maintaining certification

Installation Options:

• Face fix or reveal fix
• Internal installation only
• Must be installed in accordance with LPCB-approved fixing methods

Finish:

• Standard finish: RAL 9016 White
• Full RAL / BS colour range available on request

Sizes:

• Made to measure
• Pro version allows large-span and complex layouts

Durability:

• Designed for high-use commercial environments
• Corrosion-resistant materials and finishes

Maintenance:

• Low maintenance system
• Periodic inspection of tracks, bearings, and locking system recommended

Application:

• Suitable for retail, commercial, public sector, and high-security environments
• Ideal for windows, doors, and shopfronts requiring certified protection

Compliance:

• Must be installed in line with LPS1175 certification requirements
• Installation directly affects certification validity

Warranty:

• Typically supplied with a 12-month manufacturer’s warranty (subject to specification)

Lead Time

The CS12 Retractable Grille is manufactured to order, with a typical production lead time of 6–8 weeks from order confirmation and final specification. This reflects the additional manufacturing processes and quality controls required to meet LPS1175 SR2 certification standards.

Lead times may vary depending on project size, configuration (single or double sash), and whether the Pro version is specified, particularly for large-span or complex installations. Bespoke colour finishes may also extend lead times slightly. Confirmed timescales will be provided at quotation stage.

Installation

Installation must be carried out in accordance with LPCB-approved fixing methods to ensure the grille maintains its SR2 security rating.

• Suitable for internal installation only
• Can be face fixed or reveal fixed depending on site conditions
• Requires a fixed bottom track, which must be rebated into the floor for doorways to remove trip hazards
• Must be securely fixed into structural substrates, typically masonry or steel

For the CS12 Pro version, additional considerations may include:

• Installation of multiple linked grilles across large openings
• Angular installations (90°–135°) for corner layouts
• Integration of EMESC emergency escape locking systems where required

Professional installation is strongly recommended to ensure correct operation, safety, and compliance with LPS1175 and Secured by Design requirements.

The CS12 Retractable Grille is a high-security, LPCB-certified product, and pricing reflects its SR2 rating, robust construction, and compliance requirements. As a step up from SR1 systems, the CS12 is suited to applications where enhanced protection and insurance compliance are required.

Indicative Pricing

Small Windows (Up to 1m²)

• Supply Only: £500 – £900
• Supply & Install: £800 – £1,400

Medium Openings (1m² – 3m²)

• Supply Only: £800 – £1,500
• Supply & Install: £1,200 – £2,200

Large Openings / Doors (3m²+)

• Supply Only: £1,500 – £3,000+
• Supply & Install: £2,200 – £4,500+

Wide Shopfronts / Commercial Installations

• Supply Only: £2,500 – £5,500+
• Supply & Install: £3,500 – £7,500+

CS12 Pro Version (Enhanced System)

Large / Complex Installations

• Supply Only: £3,000 – £8,000+
• Supply & Install: £4,500 – £10,000+
• With EMESC Emergency Escape Lock Add approximately £300 – £800+ per opening depending on configuration

Factors Affecting Price

Several key factors influence the final cost:

• Security Rating & Specification: Standard CS12 vs Pro version
• Size of Opening: Larger spans significantly increase cost
• Configuration: Single sash, double sash, or fixed
• Installation Complexity: Straight openings vs angled (Pro version)
• Locking System: Standard multi-point vs EMESC escape lock
• Finish: Standard RAL 9016 vs bespoke RAL/BS colours
• Track Installation: Recessed floor track requirements for doorways

Installation Considerations

Due to its certified nature, the CS12 requires:

• Installation in line with LPS1175 SR2 requirements
• Secure fixing into approved structural substrates
• Accurate installation of rebated bottom track for compliance
• Additional time for larger or multi-section installations

This can increase installation costs compared to non-rated or lower-rated systems.

Additional Costs to Consider

• Rebating floor track (builder’s works)
• Bespoke colour finishes
• Access equipment (scaffolding, lifts)
• Complex layouts or angled installations (Pro version)

Budget Guidance

Typical budgets are:

• Domestic / small commercial: £1,000 – £2,000 per opening installed
• Standard commercial applications: £1,500 – £3,500+ installed
• Large shopfronts / high-security sites: £3,000 – £7,500+ installed
• CS12 Pro / complex projects: £5,000 – £10,000+ installed

Get an Accurate Quote

As all CS12 systems are made to measure and security certified, we recommend requesting a tailored quotation. Our team can advise on the correct specification to meet LPS1175, insurance, and project-specific security requirements, while balancing performance and budget.
