Insulated Steel Roller Shutters

Insulated Steel Construction

Double skinned 77mm steel slats provide improved strength, thermal efficiency, and noise reduction

Enhanced Thermal & Acoustic Performance

Helps retain heat and reduce sound transfer, ideal for commercial and kitchen environments

Ideal for Retail, Commercial & Serveries

Perfect for shopfronts, internal openings, and service areas requiring insulation

Electric Operation (Tubular Motor)

Smooth, reliable motorised operation for everyday use

Medium Size Capability

Suitable for openings up to 6400mm wide x 3400mm high

Made to Measure Design

Custom-built to your exact opening for a precise, professional installation

Wide Range of Colour Options

Galvanised finish as standard or powder coated in any RAL or BS colour

Upgrade Path to Industrial Systems

Larger openings or heavier duty use can be specified with industrial motor systems

Low Maintenance

Durable steel construction with insulated core reduces ongoing upkeep

Internal & External Use

Suitable for a wide range of commercial and retail applications

Proven Commercial Performance

Designed for regular use in busy environments such as shops, kitchens, and service areas

The 77mm Insulated Steel Roller Shutter is designed to provide enhanced insulation, security, and performance, with flexible options to suit your application, operation needs, and finish requirements.

Slat Design

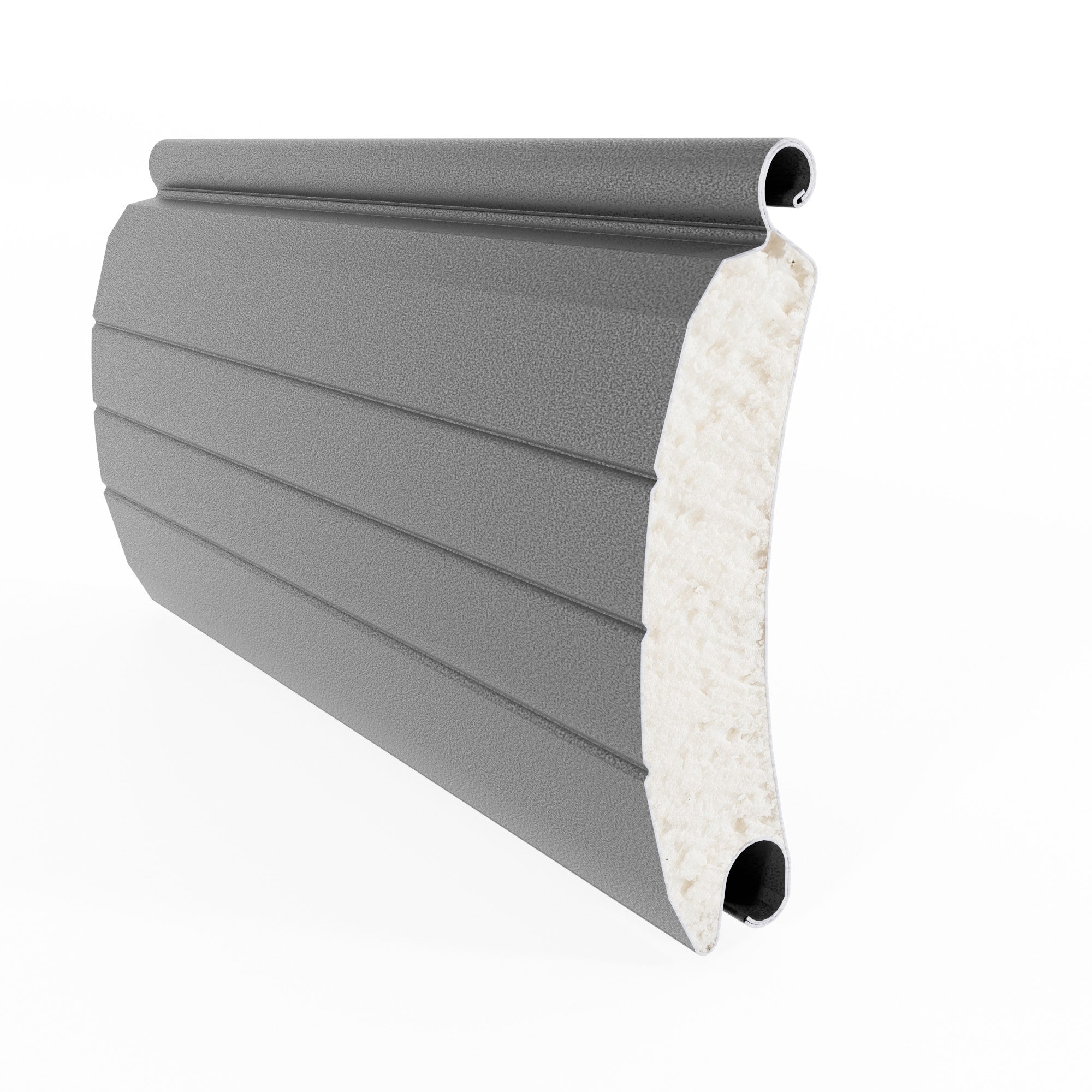

• 77mm Insulated Steel Slats
  Double-skinned, foam-filled slats provide improved thermal efficiency and noise reduction
  Ideal for environments where comfort, energy efficiency, and sound control are important

Operation & Control Options

Electric Operation (Standard – Tubular Motor):

• Hold-to-Run Switch – Safe, controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Convenient day-to-day use
• Automation Systems (e.g. Somfy) – Smart control with timers and group operation

Designed primarily for electric operation to ensure smooth performance and reliability

Finish & Colour Options

• Galvanised Finish (Standard)
  Durable, corrosion-resistant finish suitable for most commercial applications
• Powder Coated Finish
  Available in any RAL or BS colour
  Ideal for matching branding, shopfronts, or interior finishes

Performance & Application Options

• Thermal & Acoustic Performance
  Insulated slats help reduce heat loss and minimise noise transfer

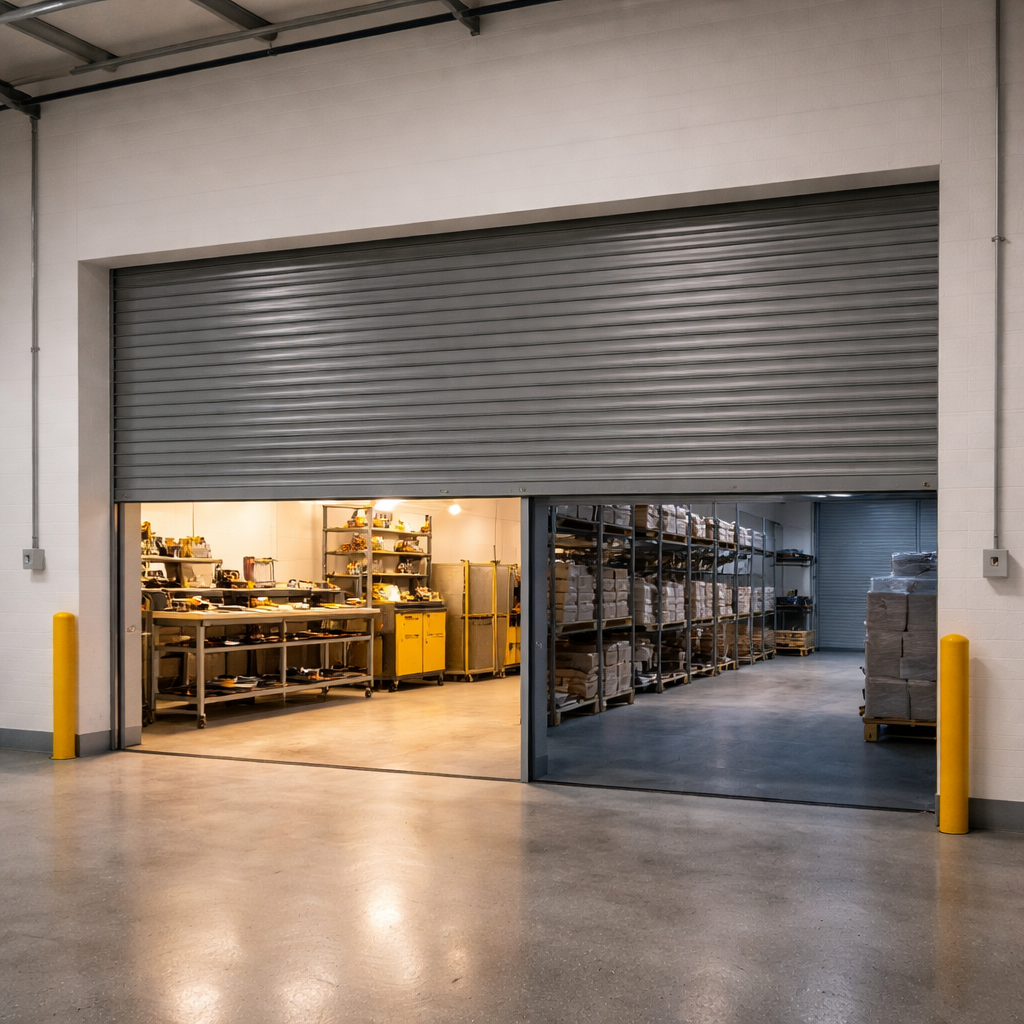

• Upgrade Path to Industrial Systems
  For larger openings or heavier-duty use, industrial motor systems can be specified

Size & Configuration

• Maximum Sizes
  Suitable for openings up to 6400mm wide x 3400mm high
• Made to Measure Design
  Manufactured to your exact opening for a clean, precise installation

This flexibility makes the 77mm insulated steel shutter ideal for retail, commercial units, and kitchen serveries, delivering a balance of security, insulation, and everyday performance.

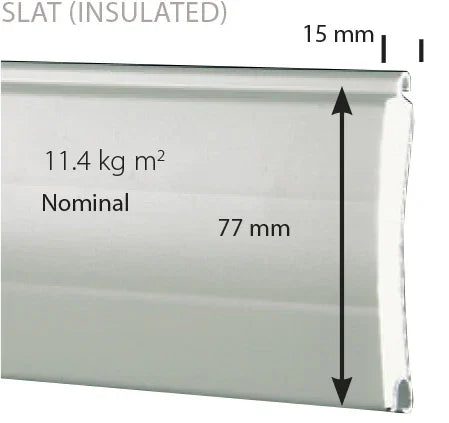

• Slat Type: Twin walled insulated galvanised steel slats
• Lath heat transmission performance: 4.01 W/m2K
• Slat Height: 77mm high
• Curtain Thickness: 15mm
• Weight: Approx. 12 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 3400mm (width dependent)
• Guide Rails: 90mm W x 34mm Extruded Aluminium Guide Rail
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Electric tubular motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Galvanised Finish.
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Steel Roller Shutter. Typical manufacturing time is 10-15 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the steel roller shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 4-5 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

Steel Roller Shutters are a cost effective, medium security solution, making them one of the most popular choices for shopfronts, commercial units, and larger openings.

Indicative Pricing (Guide Only)

Small (up to 2m x 2m)

• Supply Only – £500 – £1,000
• Supply & Install – £1,000 – £1,800

Medium (up to 4m x 4m)

• Supply Only – £1,000 – £2,000
• Supply & Installation – £1,800 – £3,500

Large (up to 7m wide)

• Supply Only – £4,00 – £6,000
• Supply & Install – £6,000 – £8,00

What Affects the Price?

• Operation Type – Manual options reduce cost; electric operation adds convenience and increases price
• Slat Type – Solid, perforated, or punched slats can influence pricing
• Colour Finish – Galvanised finish is more cost-effective; custom RAL/BS colours add cost and lead time
• Controls & Automation – Remote controls and smart systems (e.g. Somfy IO) increase price
• Installation Complexity – Structure type, access, and working conditions can impact installation cost

Budget Guidance

• One of the most cost effective commercial shutter options
• Ideal for retail, industrial, and wide span openings
• Best suited where budget and durability are key priorities

All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, operation preference, and installation details.
