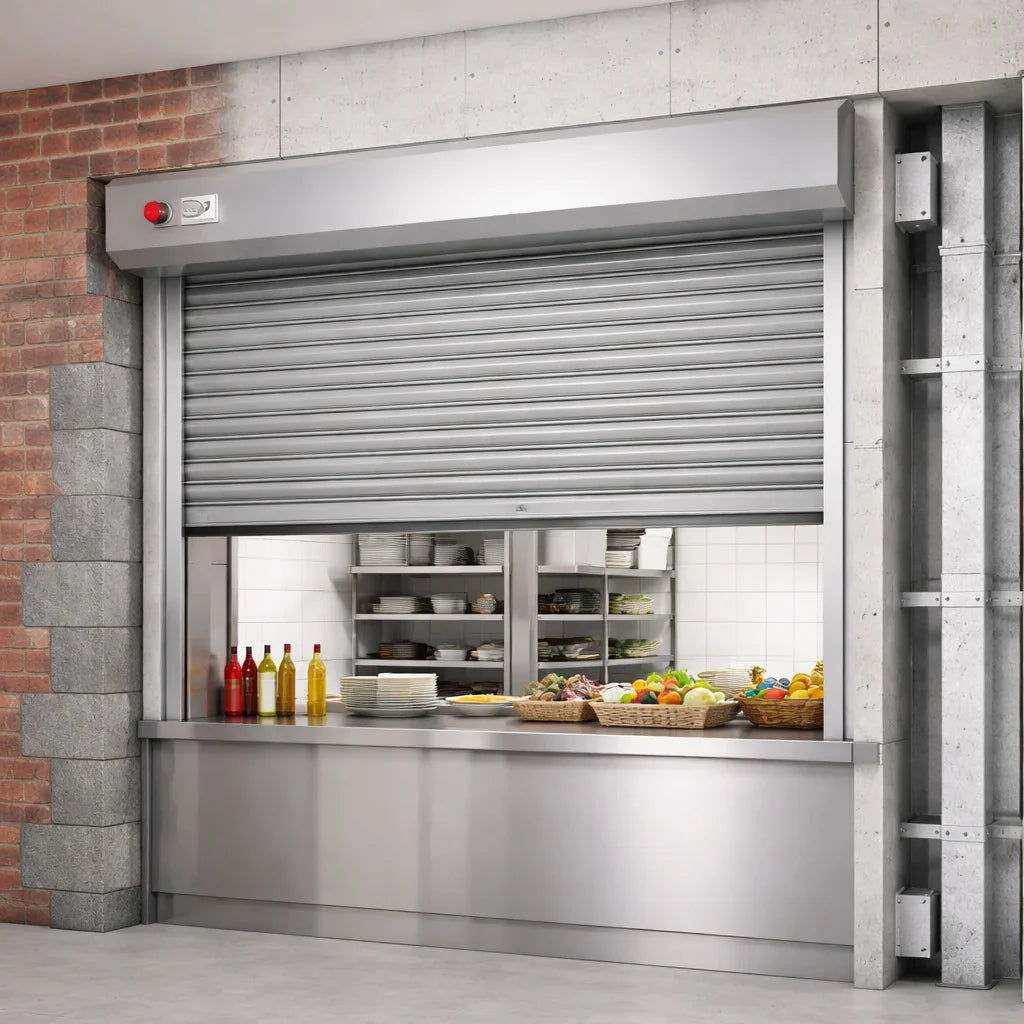

Servery Fire Shutter - Rigid Structure

Fire Rated Protection (E60, E90 & E120)

Tested to BS EN 1634-1 and classified to EN 13501-2 for up to 120 minutes integrity

Certified for Rigid Structures

Designed for masonry and protected structural steel installations

Complete Tested Assembly

Includes shutter, substrate, and cill detail for full system compliance

Maintains Fire Compartmentation

Prevents the spread of fire and smoke through servery openings

Tubular Motor Option (Smaller Openings)

Includes battery backup, manual override, and fire alarm relay with AV warning

Industrial Motor Option (Larger Openings)

Fitted with fusible link, solenoid release, AV warning, and chain override

Automatic Fire Operation

Closes automatically on fire alarm activation or thermal trigger

Made to Measure Design

Manufactured to suit your exact opening and wall construction

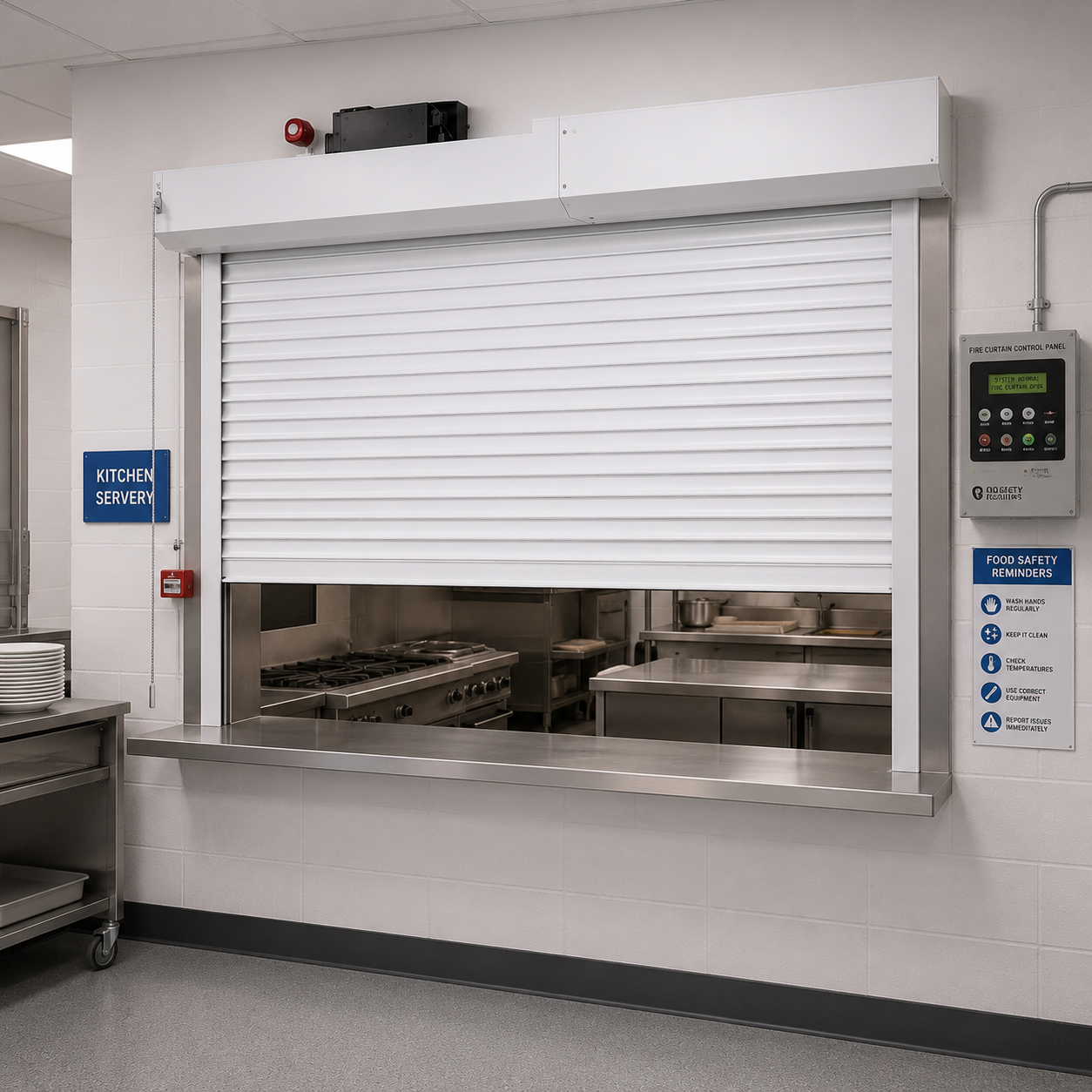

Ideal for Serveries & Counters

Perfect for kitchens, kiosks, and public service areas requiring fire protection

CE Marked & Fully Compliant

Certified to BS EN 16034 and supported by BS EN 15269-10

The Servery Fire Shutters for Rigid Structures are designed as a tested fire rated system, meaning customisation is more controlled to ensure compliance with certification. However, there are still key configuration options available to suit your opening size, operation requirements, and project specification.

Fire Rating & System Configuration

Fire Ratings Available:

• E60 (60 minutes integrity)
• E90 (90 minutes integrity)
• E120 (120 minutes integrity)

Tested System:

• Includes the shutter, applicable rigid supporting construction, fixings and cill/landing detail.
• Must be installed in accordance with the applicable tested or assessed specification.

Substrate Requirements

The supporting structure forms part of the fire-performance arrangement and should therefore be confirmed before manufacture.

Approved rigid constructions currently listed on this product include suitable masonry, concrete and appropriately fire-protected structural steel.

Masonry / Concrete (Rigid Structure)

• Minimum 102.5mm thick
• Minimum density 1600kg/m³

Protected Structural Steel

• Section factor (A/V) must be <230 m⁻¹
• Minimum 60mm x 120mm x 5mm RHS box section
• Must be fire protected on all 4 sides to required rating:
  Passive protection (EN 13381-4 – fire boarding)
  Reactive protection (EN 13381-8 – intumescent coating)

Landing Surface Requirement

• Must close onto an A1 non-combustible substrate (EN 13501)

Curtain & Shutter Design

Solid Steel Fire Curtain (Standard)

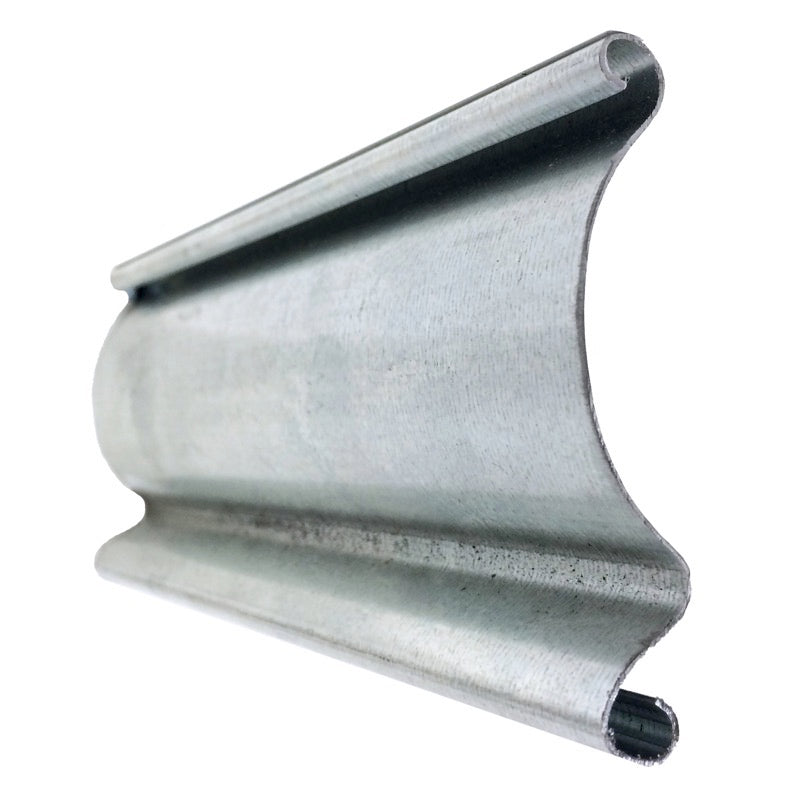

• Galvanised steel laths designed for fire resistance
• Engineered for controlled descent during fire activation

Motor & Operation Options

Tubular Motor (Smaller Openings):

• Ideal for smaller servery openings
• Max Width 4m (Depending on Height)
• Max Height 2m (Depending on Width)

Includes:

• Battery backup for operation during power failure
• Manual override for emergency use
• Fire alarm relay for automatic activation
• Integrated audio-visual warning system

Industrial Motor (Larger Openings):

• Suitable for wider or higher openings
• Max Width 6.75m (Depending on Height)
• Max Height 2.4m (Depending on Width)

Includes:

• Fusible link for thermal activation
• Solenoid release mechanism
• Audio-visual warning system
• Chain override for manual operation

Activation & Safety Features

Automatic Fire Operation (Standard)

• Closes on fire alarm signal or thermal trigger

Controlled Descent

• Ensures safe and compliant closing during activation

Audio Visual Warning

• Alerts occupants prior to shutter closure

Finish Options

• Galvanised Finish (Standard)
• Durable, industrial finish suitable for most environments

Powder Coated Finish (Optional)

• Available in RAL/BS colours for visible installations
• Subject to lead time and cost

Size & Installation Options

Made to Measure Design

• Manufactured to suit your exact opening dimensions

Installation Requirements

• Must be installed in accordance with the applicable tested specification.
• Supporting masonry, concrete or protected structural steel must meet the applicable system requirements.
• The specified fixings and cill/landing detail must be maintained.

Additional Considerations

• Designed as a compliance first system with limited structural changes
• All elements must align with tested configuration to maintain fire rating
• Ideal for projects requiring Building Control approval in rigid structures

This approach ensures the shutter delivers certified fire performance, safe operation, and full compliance, while still allowing controlled flexibility to suit your project.

Fire Rating & Compliance

• Tested to BS EN 1634-1 – Fire resistance of doors and shutters
• Extended application to BS EN 15269-10
• Classified in accordance with EN 13501-2
• Fire resistance ratings: E60, E90, E120 (Integrity)
• CE Marked to BS EN 16034Designed to maintain fire compartmentation in servery applications

Substrate & Installation Requirements

Suitable Wall Types (Rigid Structures):

• Concrete & Masonry:Minimum thickness: 102.5mm
• Minimum density: 1600kg/m³

Protected Structural Steel:

• Section Factor (A/V): <230 m⁻¹
• Minimum section: 60mm x 120mm x 5mm RHS (Rectangular Hollow Section)
• Must be protected on all 4 sides to required fire rating:
• EN 13381-4 – Passive protection (fire boarding)
• EN 13381-8 – Reactive protection (intumescent coating)

Landing Requirement:

• Must close onto an A1 non-combustible substrate (EN 13501)

Curtain Construction

• Galvanised steel fire rated laths
• Solid curtain design for fire and smoke containment
• Engineered for controlled descent during activation

Motor Options

Tubular Motor (Smaller Openings):

• Max Width:- 4m (Depending on Height)
• Max Height 2m (Depending on Width)
• Integrated within barrel
• Battery backup for operation during power failure
• Manual override facility
• Fire alarm relay connection
• Audio-visual warning system

Industrial Motor (Larger Openings):

• Max Width:- 6.75m (Depending on Height)
• Max Height 2.4m (Depending on Width)
• Heavy duty external motor system
• Fusible link for thermal activation
• Solenoid release mechanism
• Audio visual warning system
• Chain override for manual operation

Activation & Safety Features

• Automatic closure on fire alarm signal
• Backup activation via fusible link (industrial motor)
• Controlled descent for safe operation
• Audio visual warning prior to shutter movement

Control System

• Interface with fire alarm system (volt-free contact)
• Power-failure operation: Dependent on the selected motor and control system. The current tubular-motor configuration includes battery backup, while industrial-motor systems use the specified release and manual-override arrangement.
• Compliance with fire system integration requirements

Finish Options

• Galvanised steel finish (standard)
• Optional powder coating in RAL or BS colours

Size & Configuration

• Made to measure to suit opening dimensions
• Motor type selected based on opening size and weight

Application

• Servery openings in commercial kitchens, counters, kiosks
• Suitable for masonry and protected steel structures
• Designed for fire separation in commercial and public buildings

This specification ensures the system delivers certified fire protection, safe automatic operation, and full compliance when installed as tested.

We aim to keep lead times as efficient as possible for the Servery Fire Shutters –Rigid Structure, while ensuring full compliance with fire testing requirements. Typical manufacturing lead times are 3–4 weeks for tubular motor systems (smaller openings) and 3–5 weeks for industrial motor systems (larger openings). These timeframes reflect the specialist nature of the product and the need to manufacture in line with the tested fire rated specification. Please note, any project-specific requirements or powder coated finishes may extend lead times slightly.

Professional installation is strongly recommended so that the shutter, supporting structure, fixings and cill/landing detail can be installed in accordance with the applicable tested specification and required project fire-performance criteria.

The Servery Fire Shutter for Rigid Structures is a specialist, tested fire rated system, so pricing reflects the certification, compliance requirements, and integrated safety features. Costs will vary depending on size, fire rating (E60, E90 or E120), and motor type.

Indicative Supply Only Prices

Tubular Motor Fire Shutters (Smaller Openings)

• Small Servery (up to 1200mm wide): £1,800 – £2,800
• Medium Servery (1200mm – 2000mm): £2,500 – £3,800

Industrial Motor Fire Shutters (Larger Openings)

• Medium Openings (2000mm – 3000mm): £3,500 – £5,500
• Large Openings (3000mm+): £5,000 – £8,000+

Supply & Installation Prices

• Tubular Motor Systems: £2,500 – £4,500
• Industrial Motor Systems: £4,500 – £9,000+

Installation pricing depends heavily on substrate preparation and compliance requirements.

What Affects the Price?

• Fire rating required (E60 vs E120)
• Opening size and configuration
• Motor type (tubular vs industrial)
• Substrate construction (structural steel wall build up requirements)
• Fire alarm integration and controls
• Finish options (galvanised vs powder coated)

Optional Extras

• Powder coating (RAL/BS colours): +10–20%Additional fire alarm interfaces: £150 – £500
• Enhanced audio-visual warning systems: £200 – £600
• Site surveys and compliance inspections: project dependent

Budget Summary

This system is ideal for:

• Commercial kitchens and serveries requiring certified fire protection
• Projects needing Building Control approval

Due to the compliance critical nature of this product, we recommend obtaining a project specific quotation to ensure the system meets all fire and installation requirements.
